“AD1981B: AC'97 SoundMAX® Codec”
Looks like 3-metal planarized CMOS around the 350 - 500 nm node. Minimum observed M1 half-pitch in analog logic is 750 nm, digital may be smaller.
Package

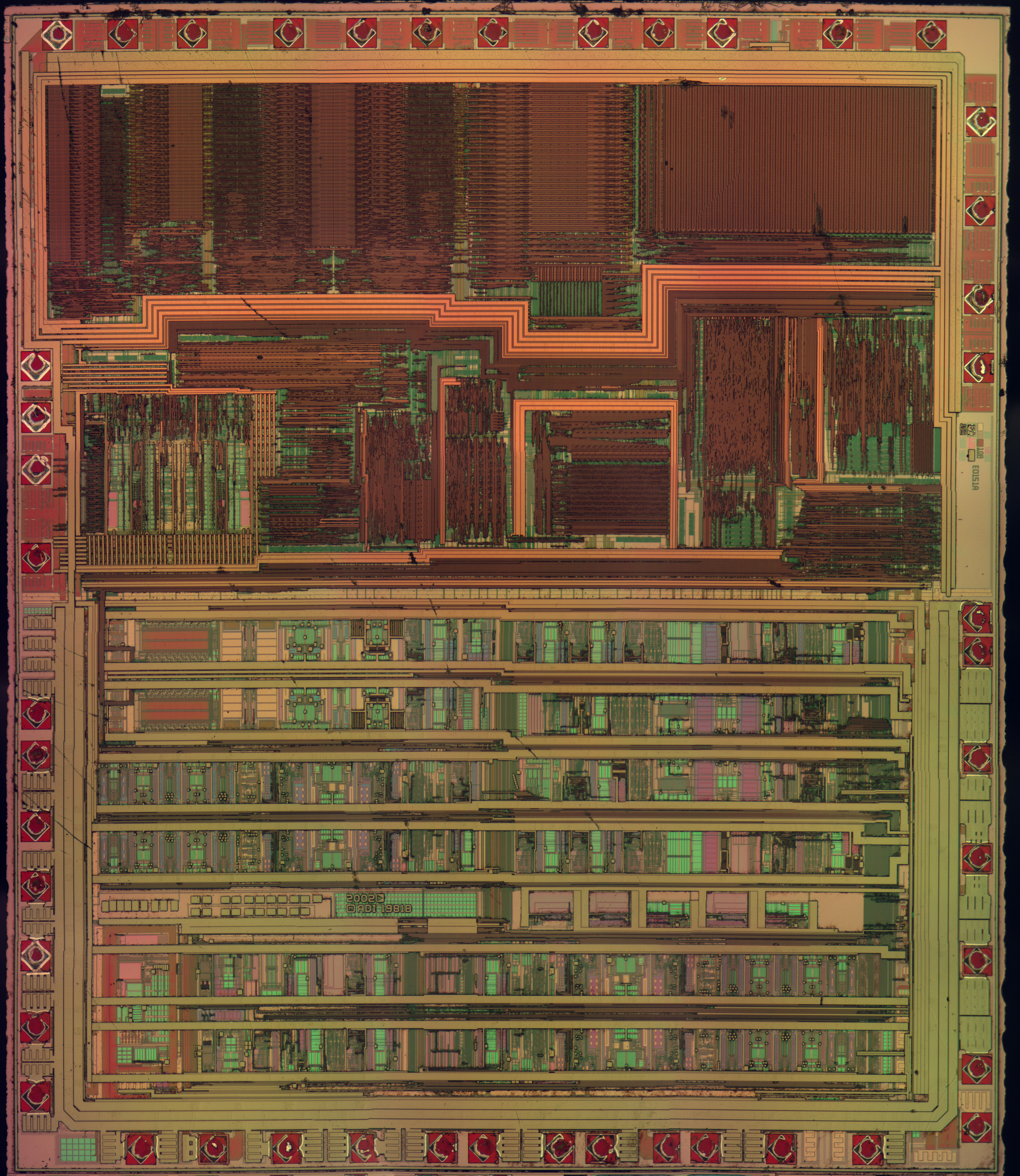

Die
Size is approximately 2730 x 3140 μm (8.57 mm2)
Map: http://siliconpr0n.org/map/ad/ad1981b/mz_neo10x/

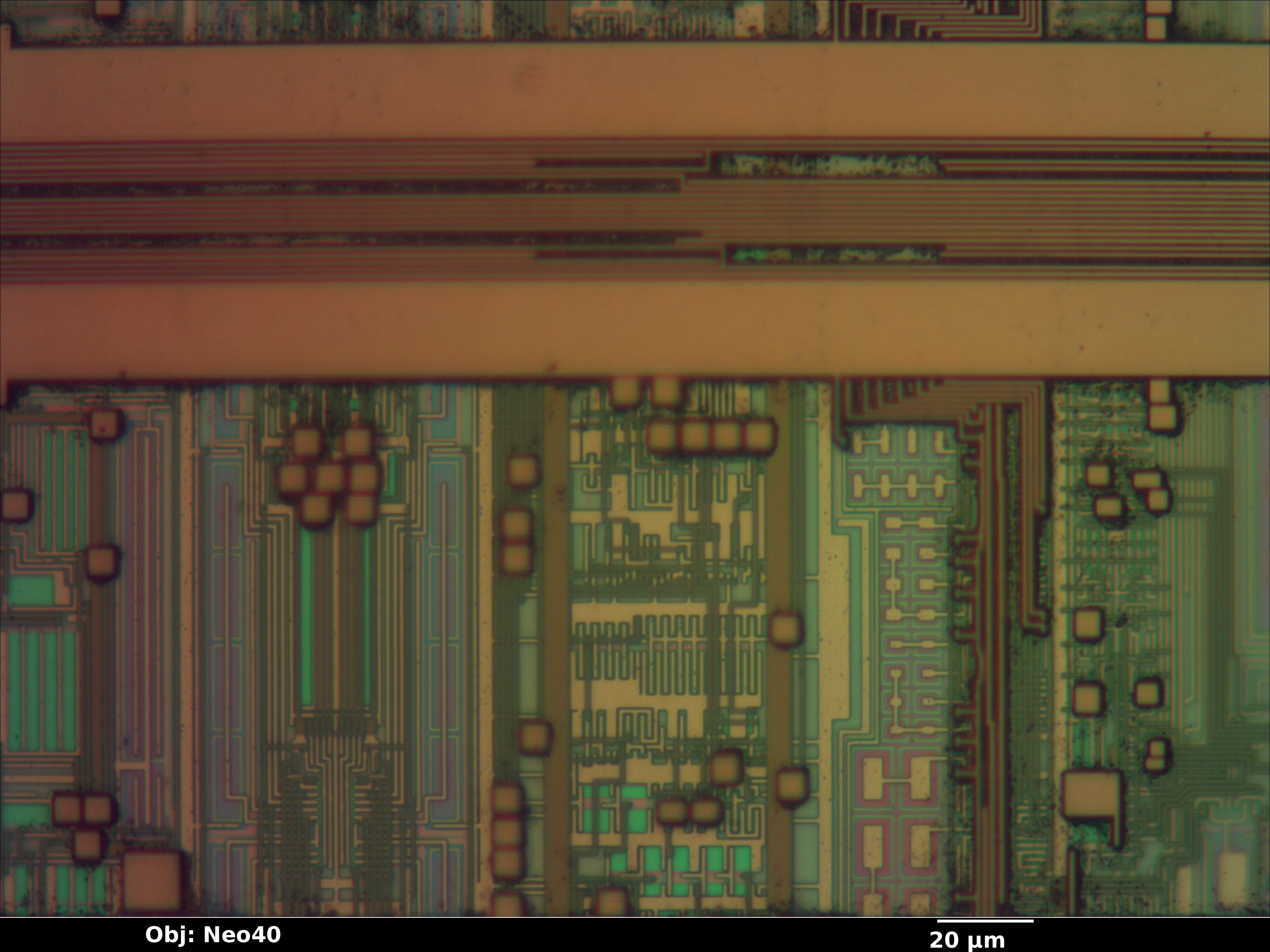

Random analog logic

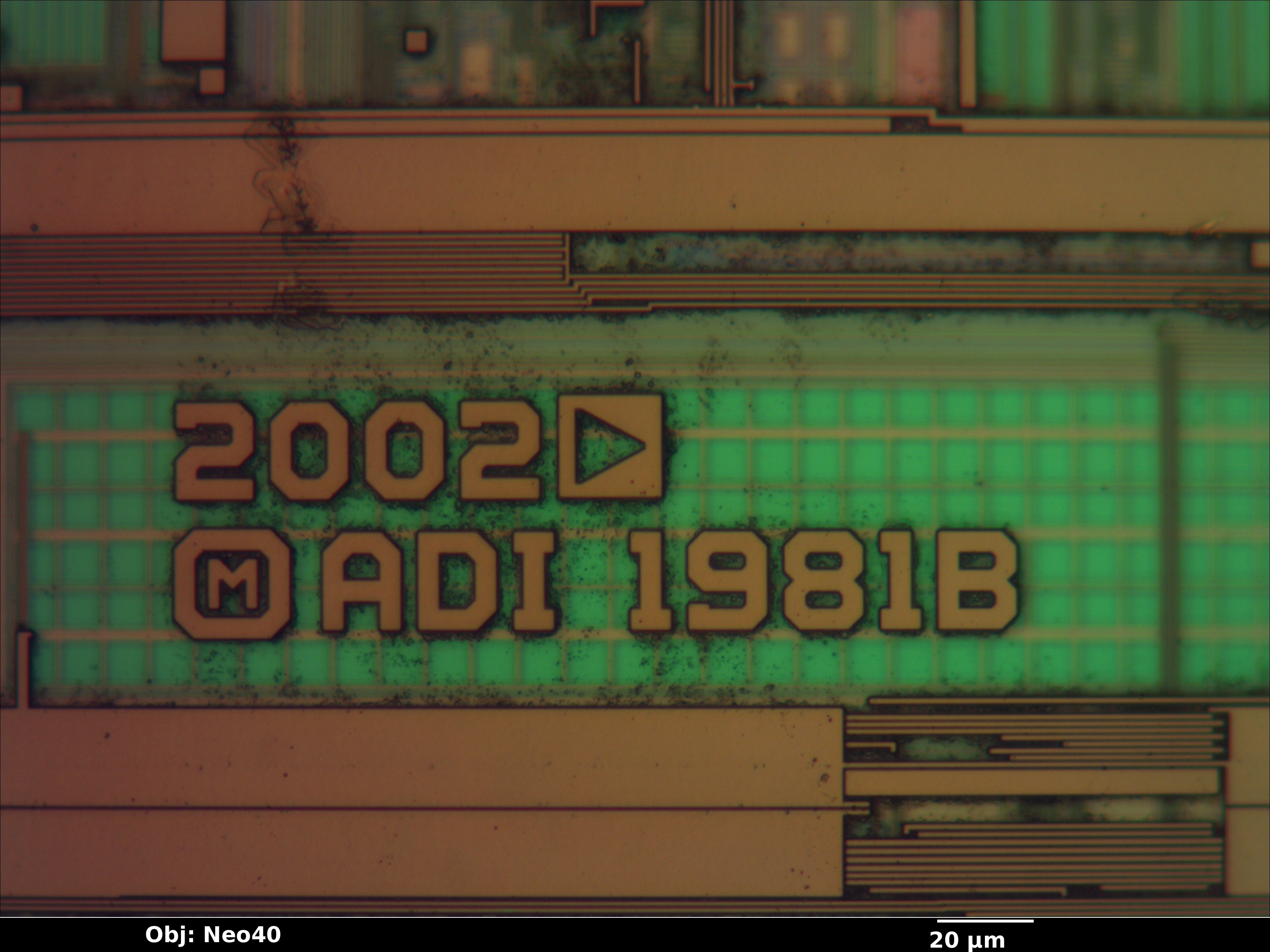

Die label

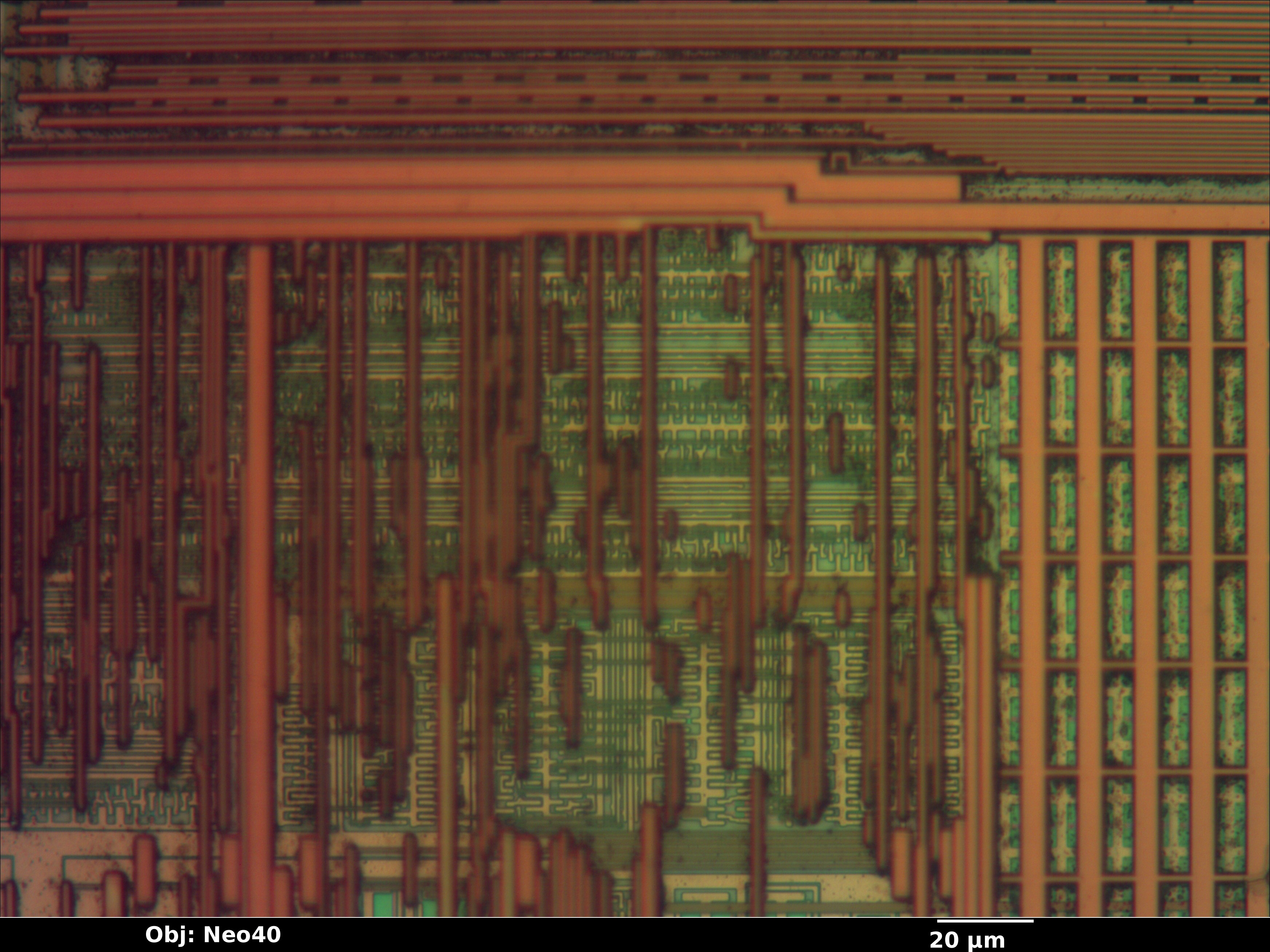

Random area of chip, focal plane on M3
Same area, focal plane on M1
