azonenberg:atmel:atmega328p
Looks like Atmel's standard 350 nm 3-metal process.
This is actually a 328P not a 328.

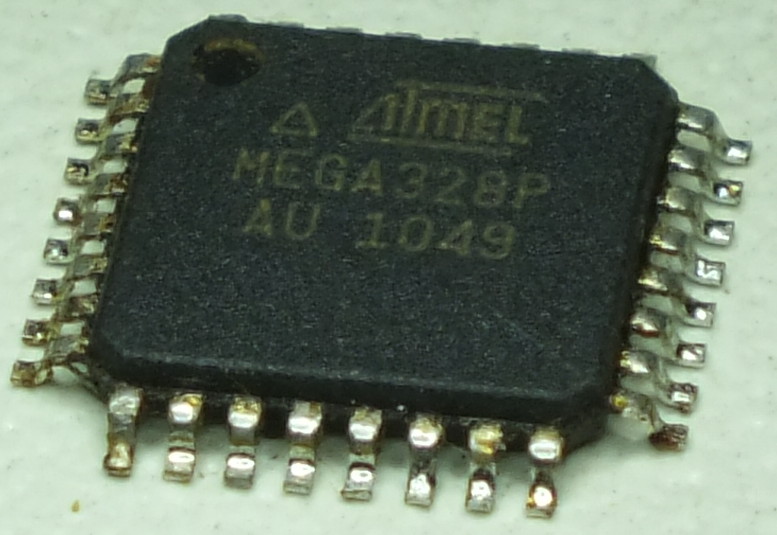

Package
Markings:
(ATMEL) MEGA328P AU 1049

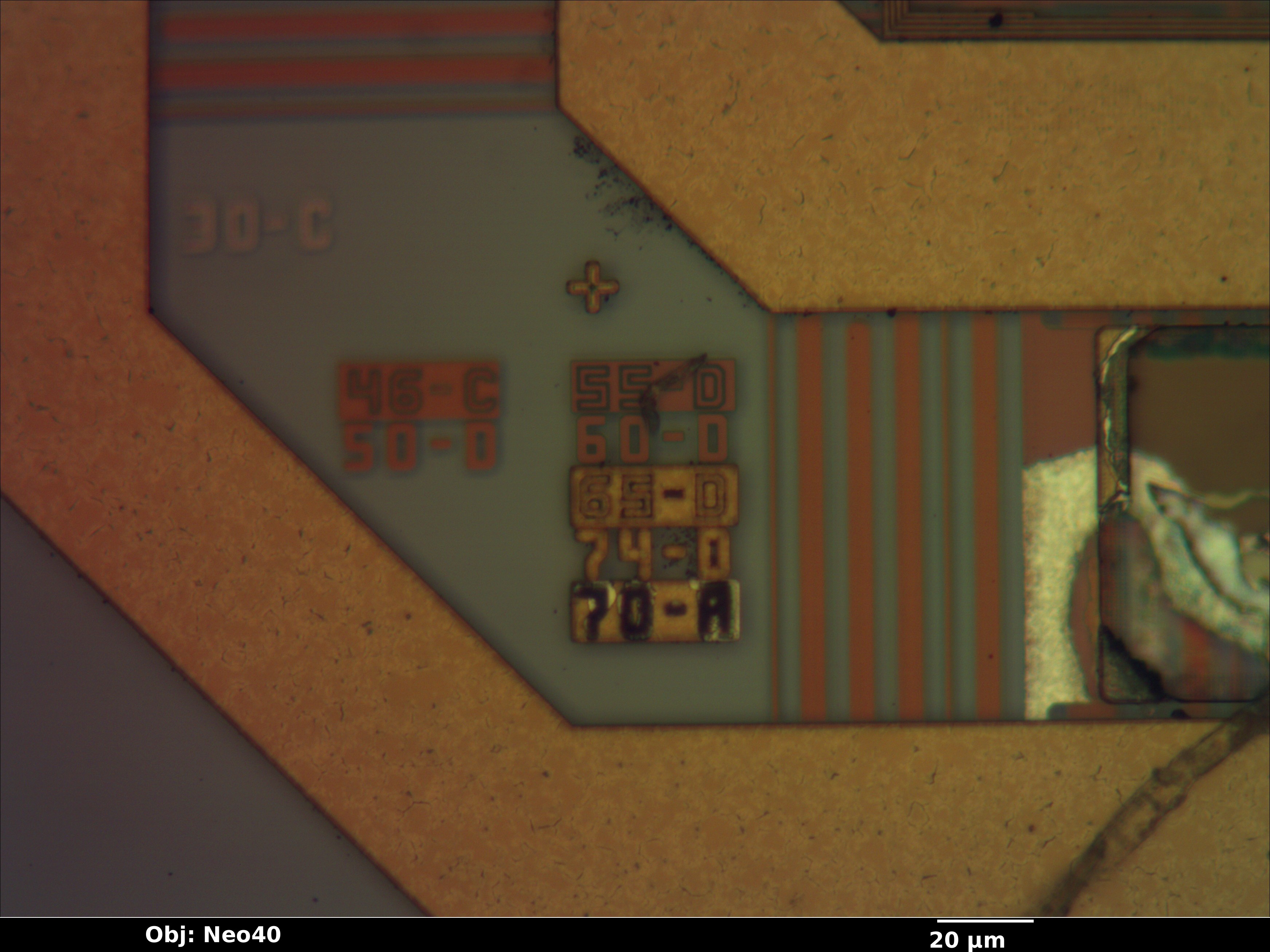

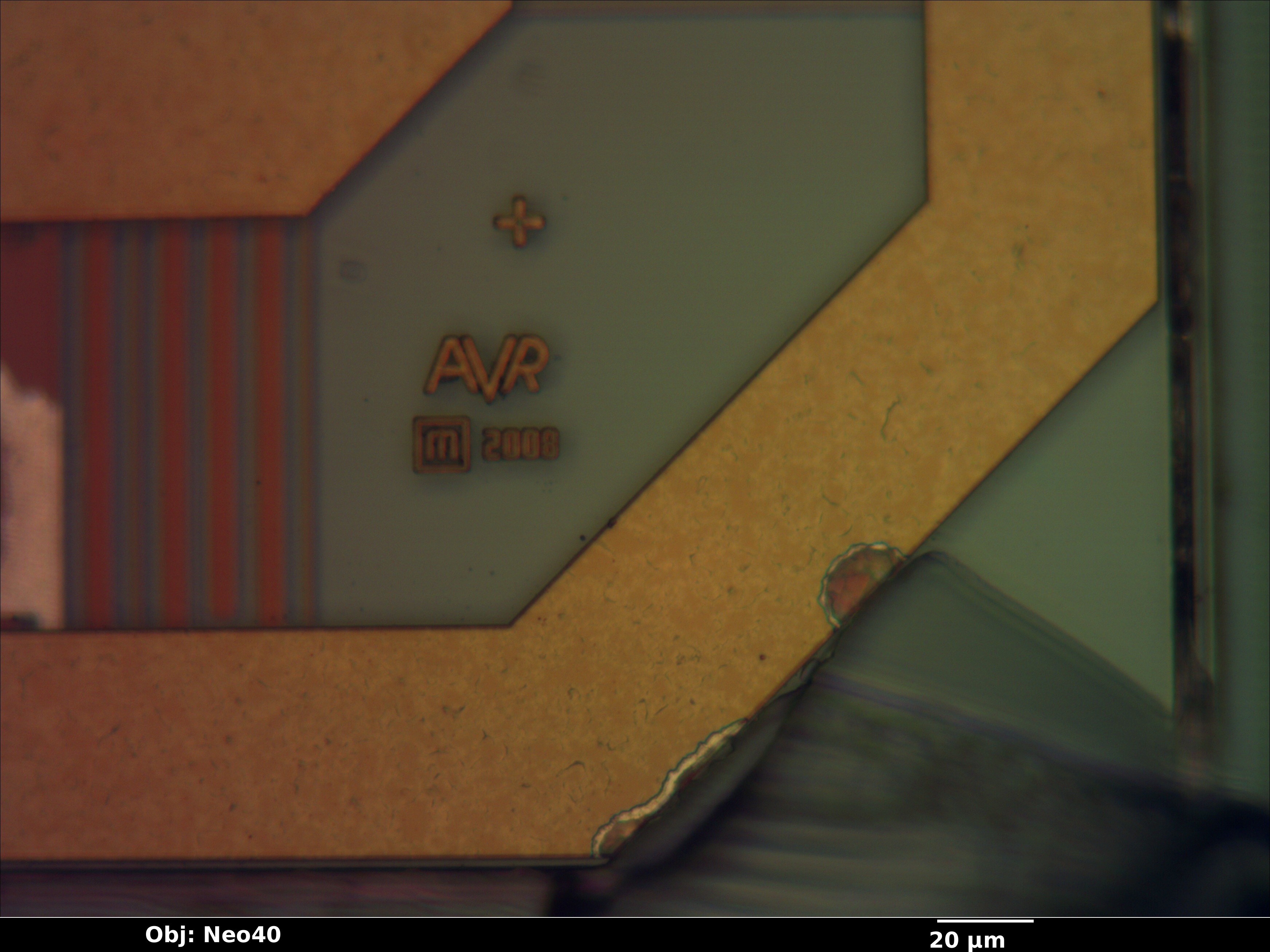

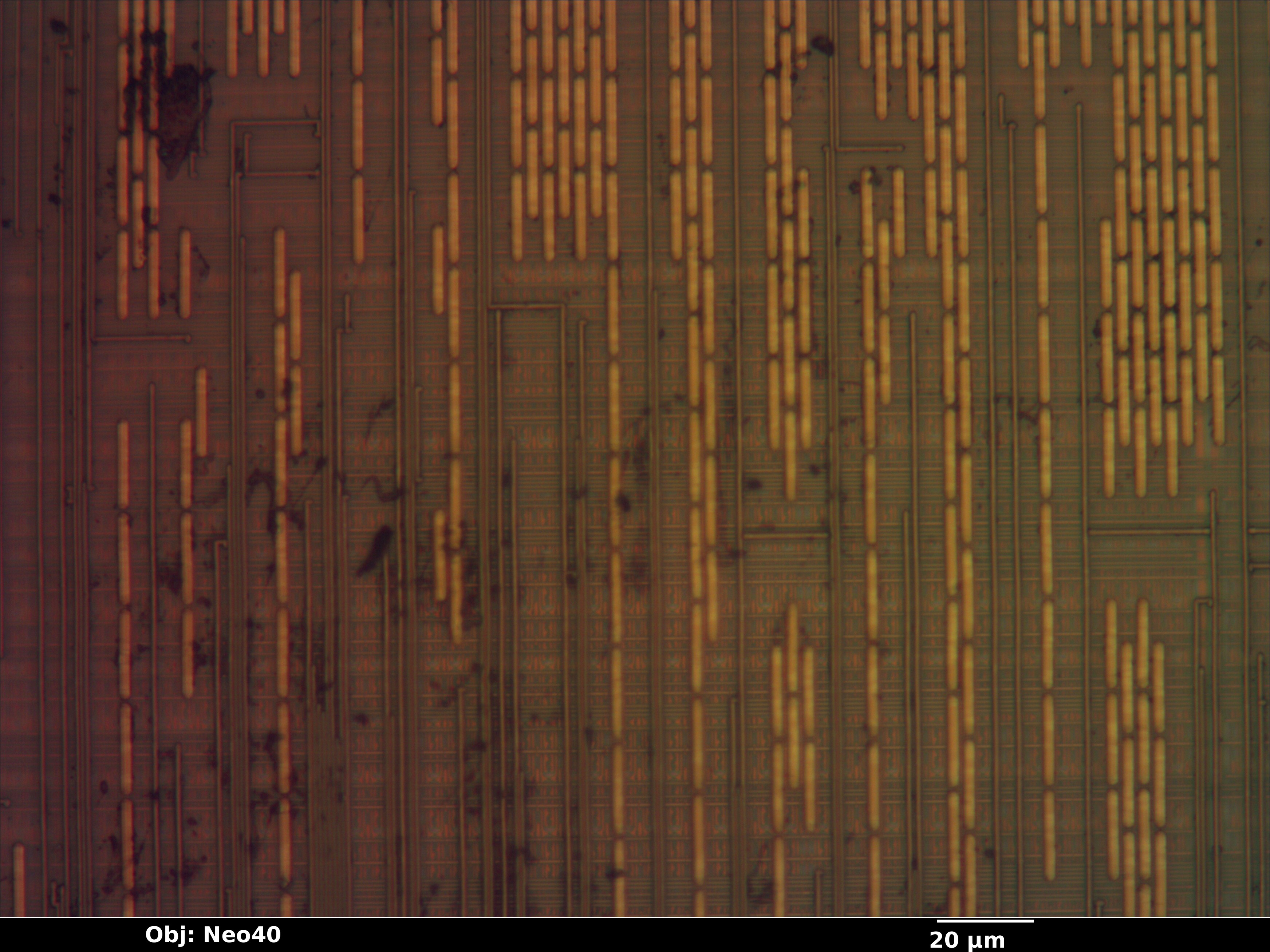

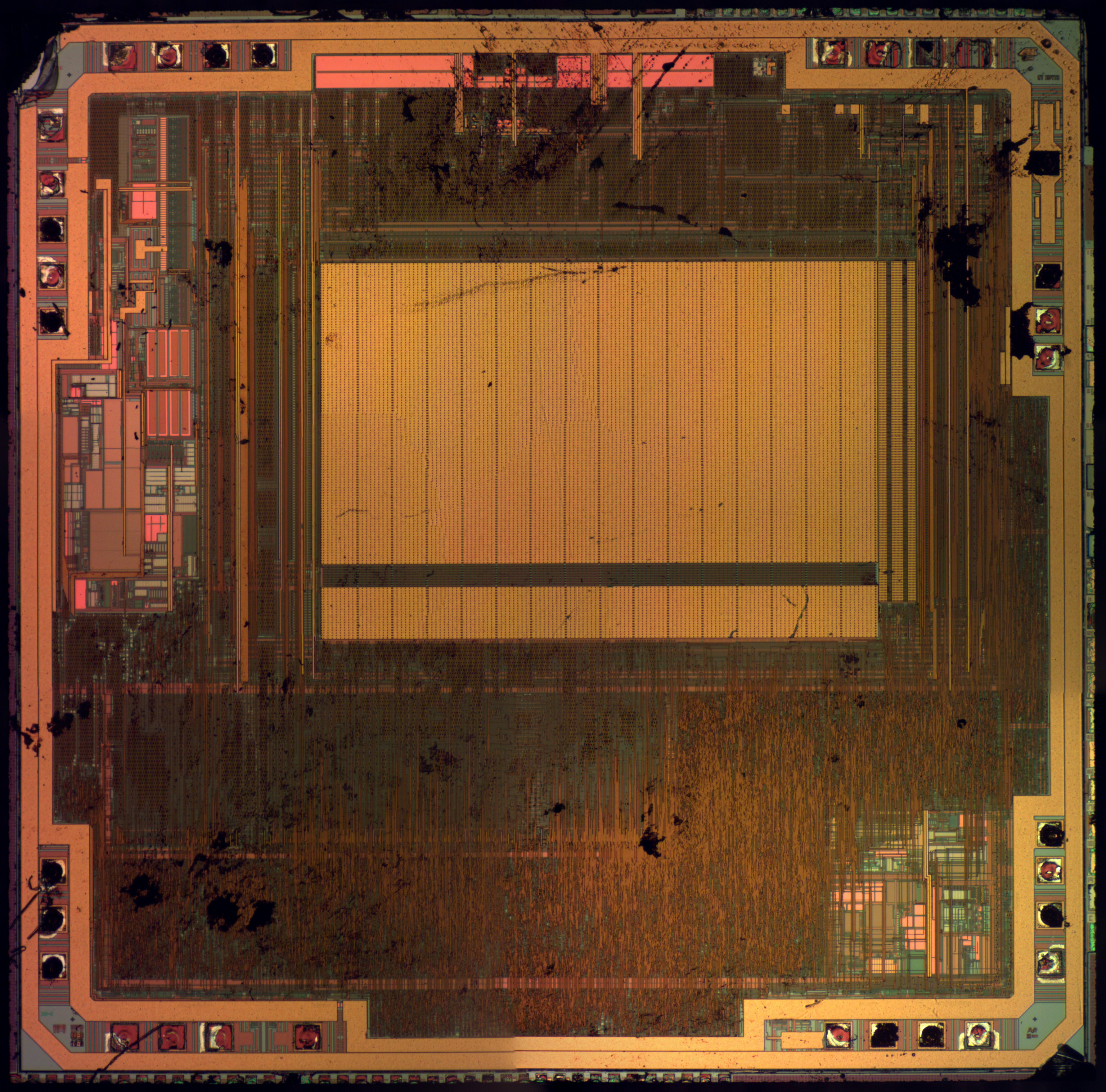

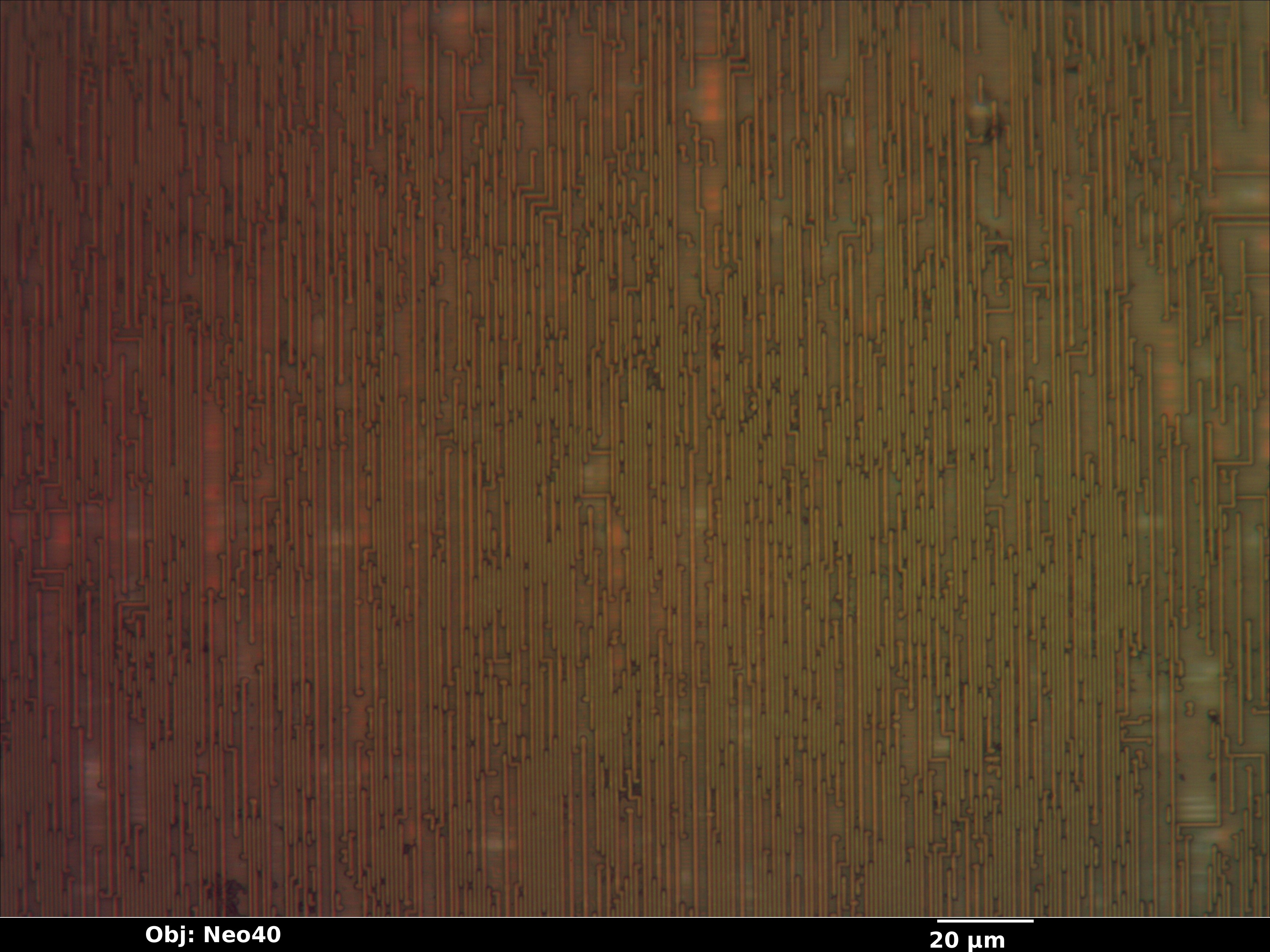

Die
Dimensions are approximately 2990 μm x 2950 μm (8.82 mm2)
AT 35473
