azonenberg:atmel:atmega48
Looks like Atmel's standard 350 nm 3-metal process.
Package markings are weird, looks to be rebranded.
Package
TODO

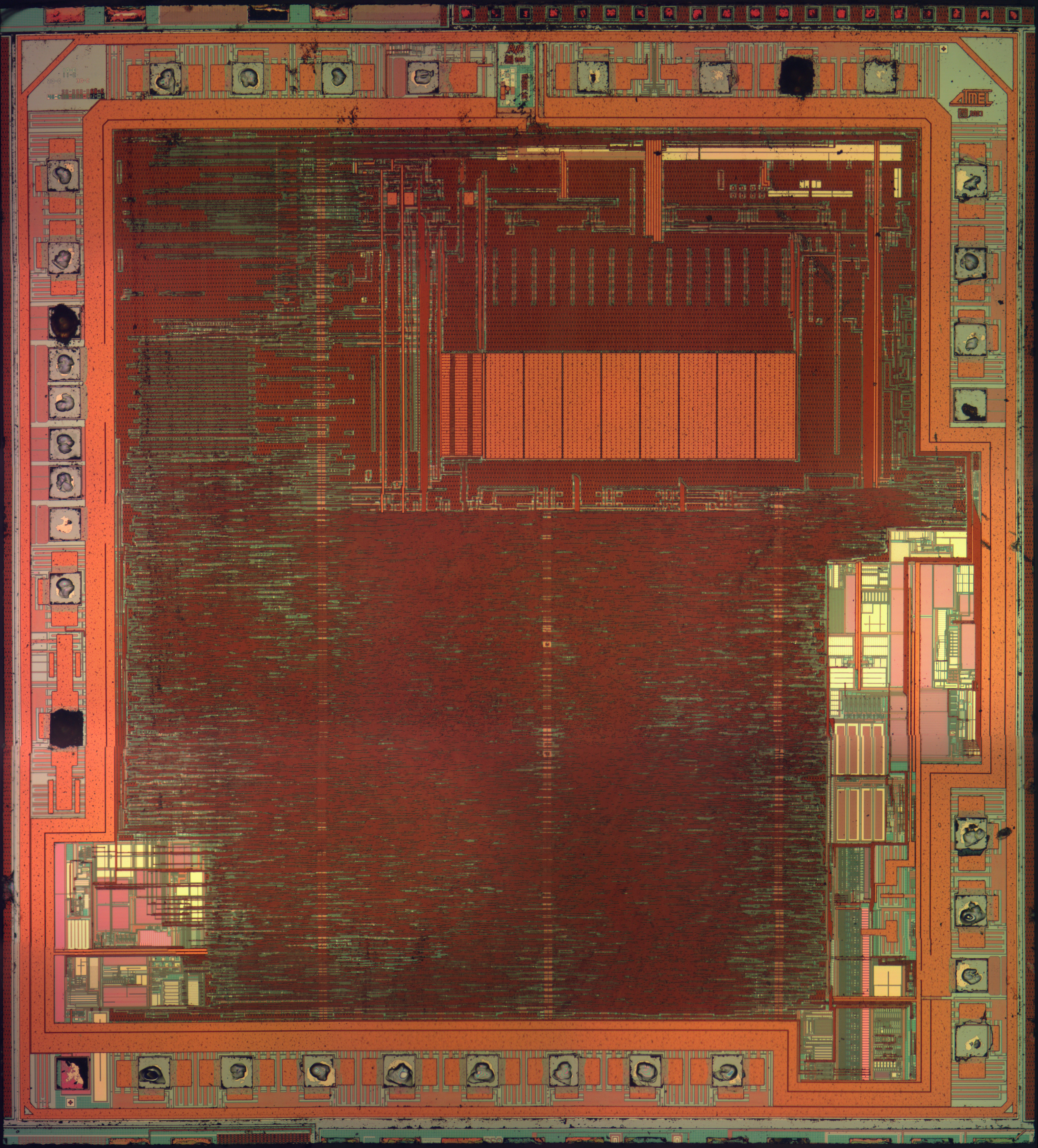

Die
Dimensions are approximately 2520 μm x 2780 μm (7.01 mm2)

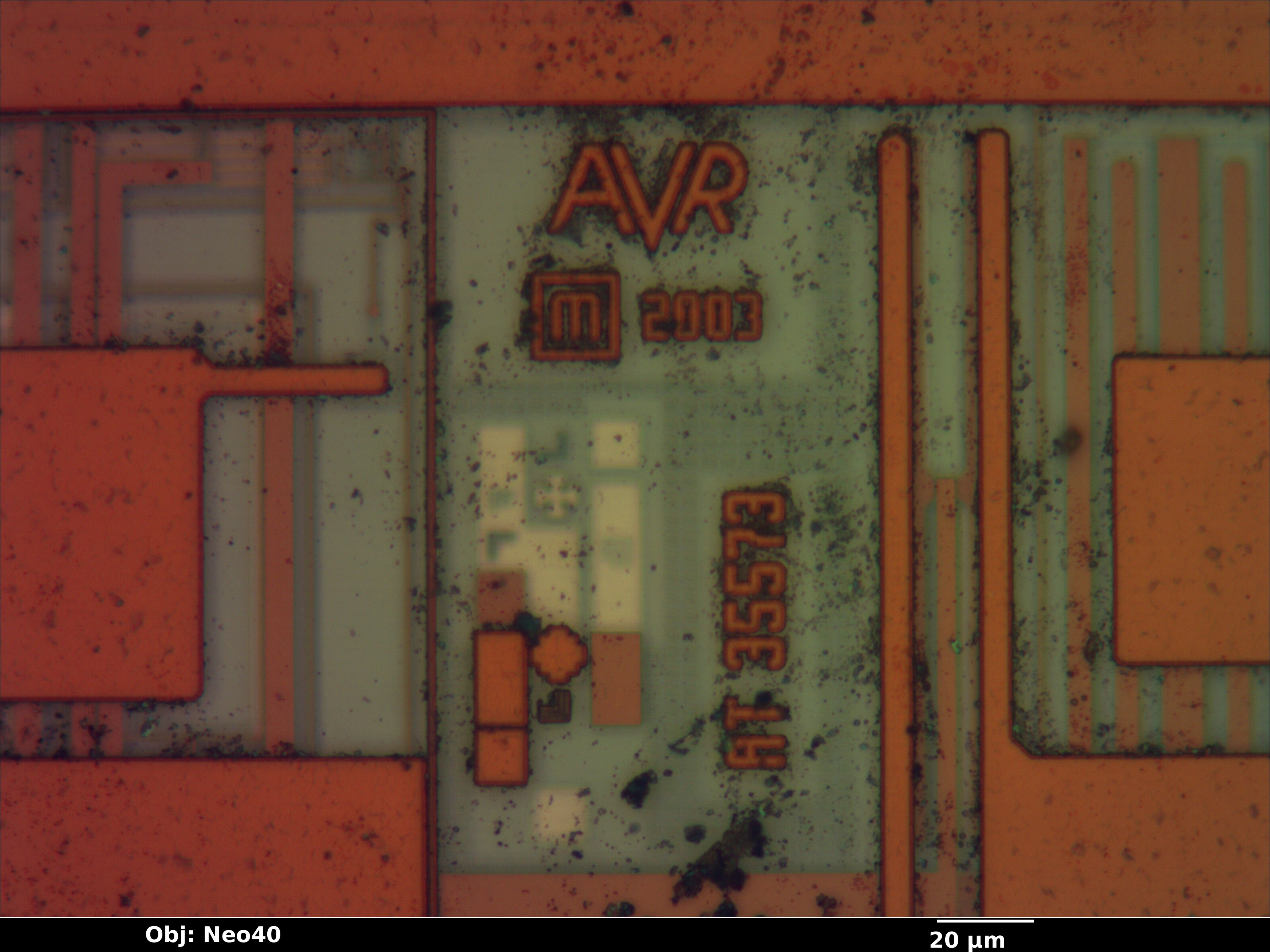

Upper right logo

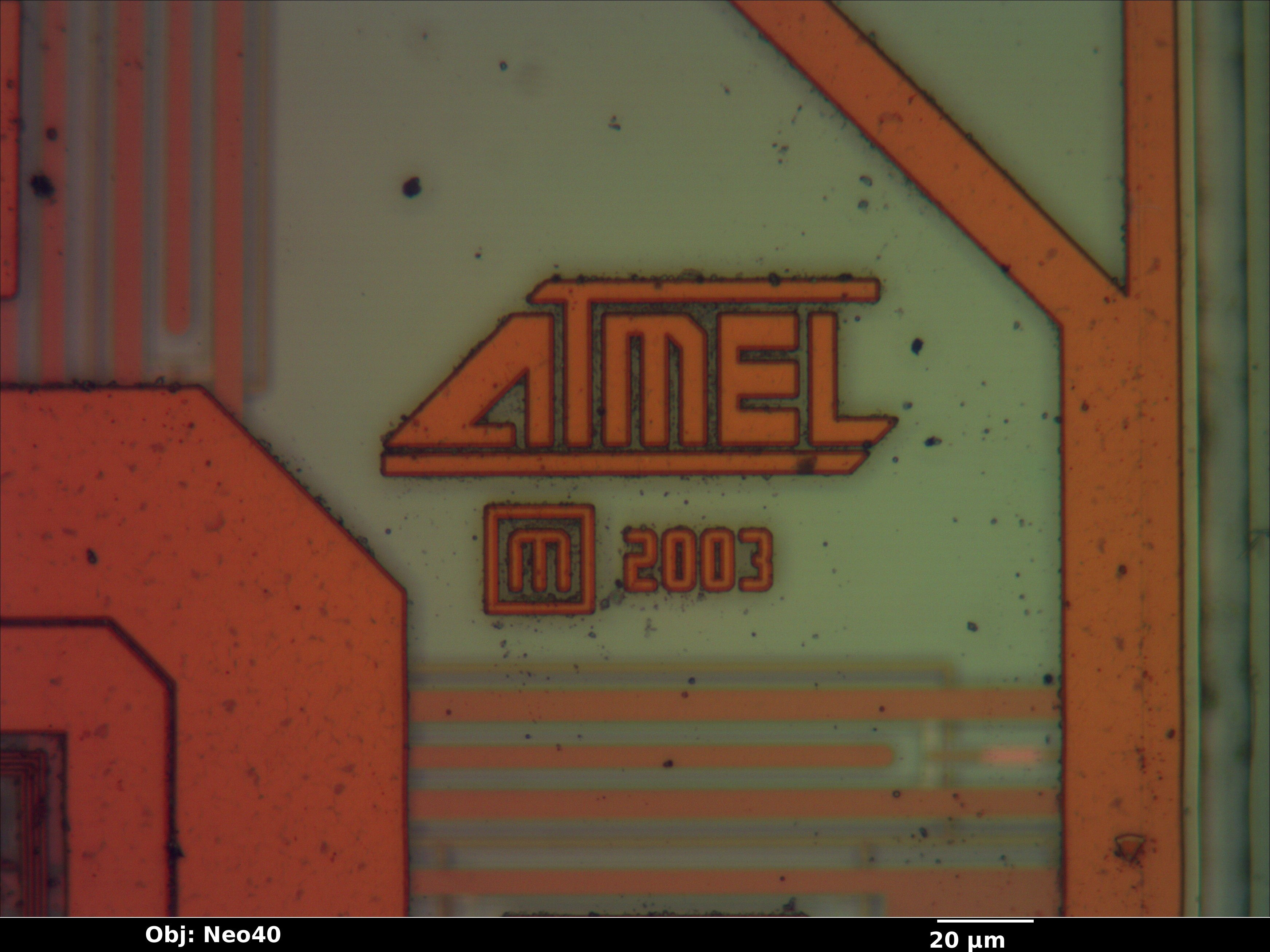

Top center logo

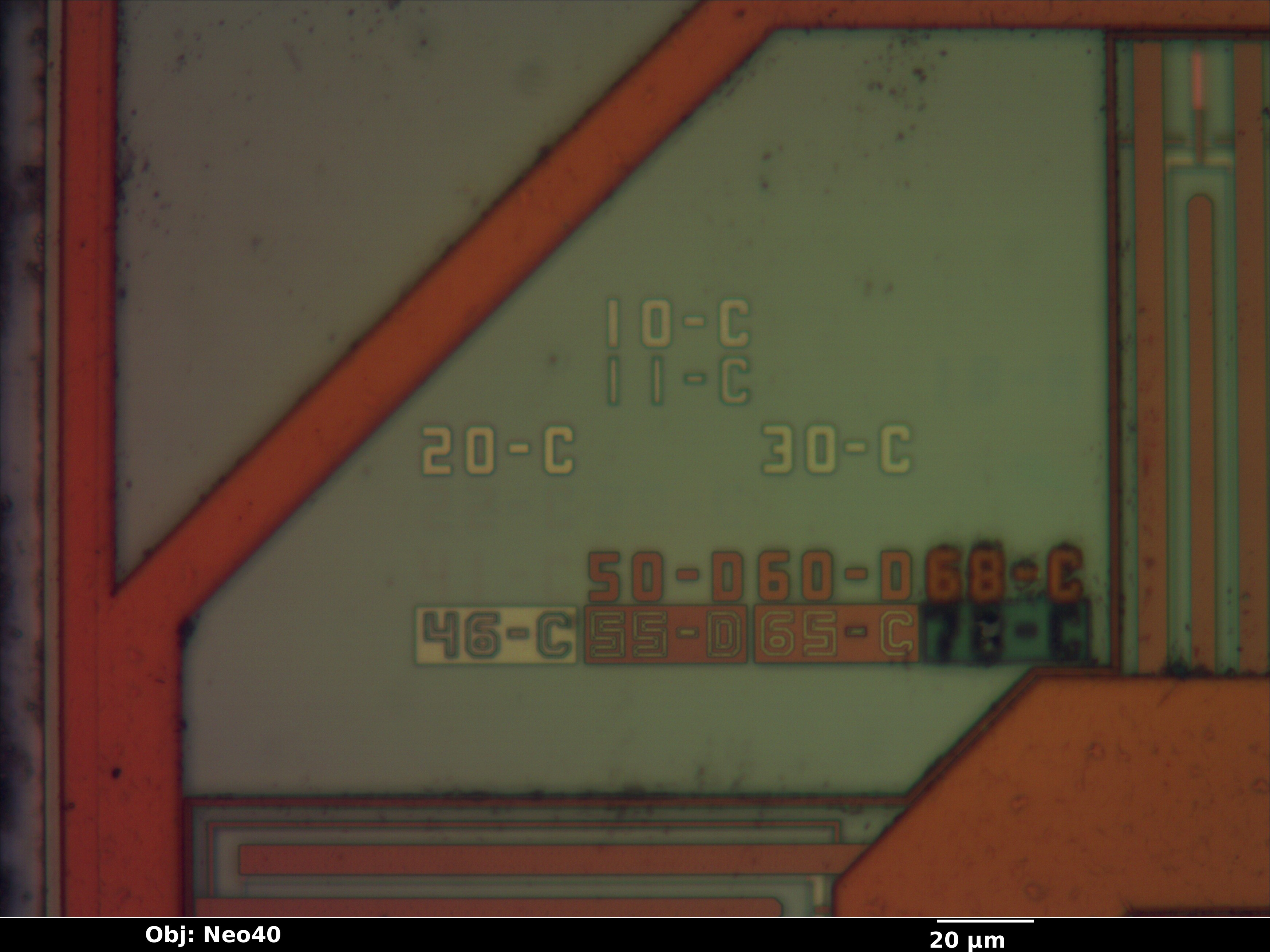

Top left mask revision markings

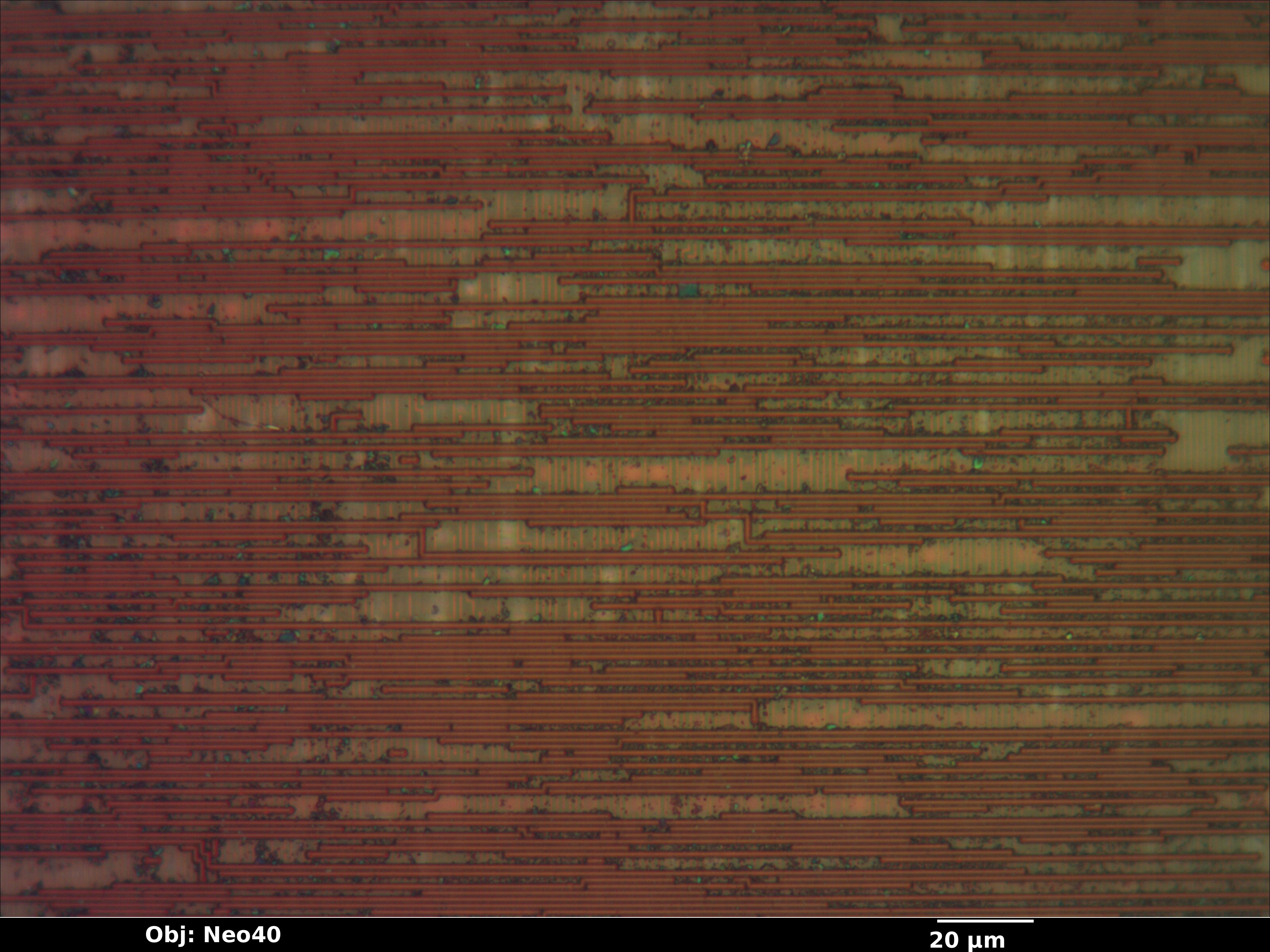

Random logic

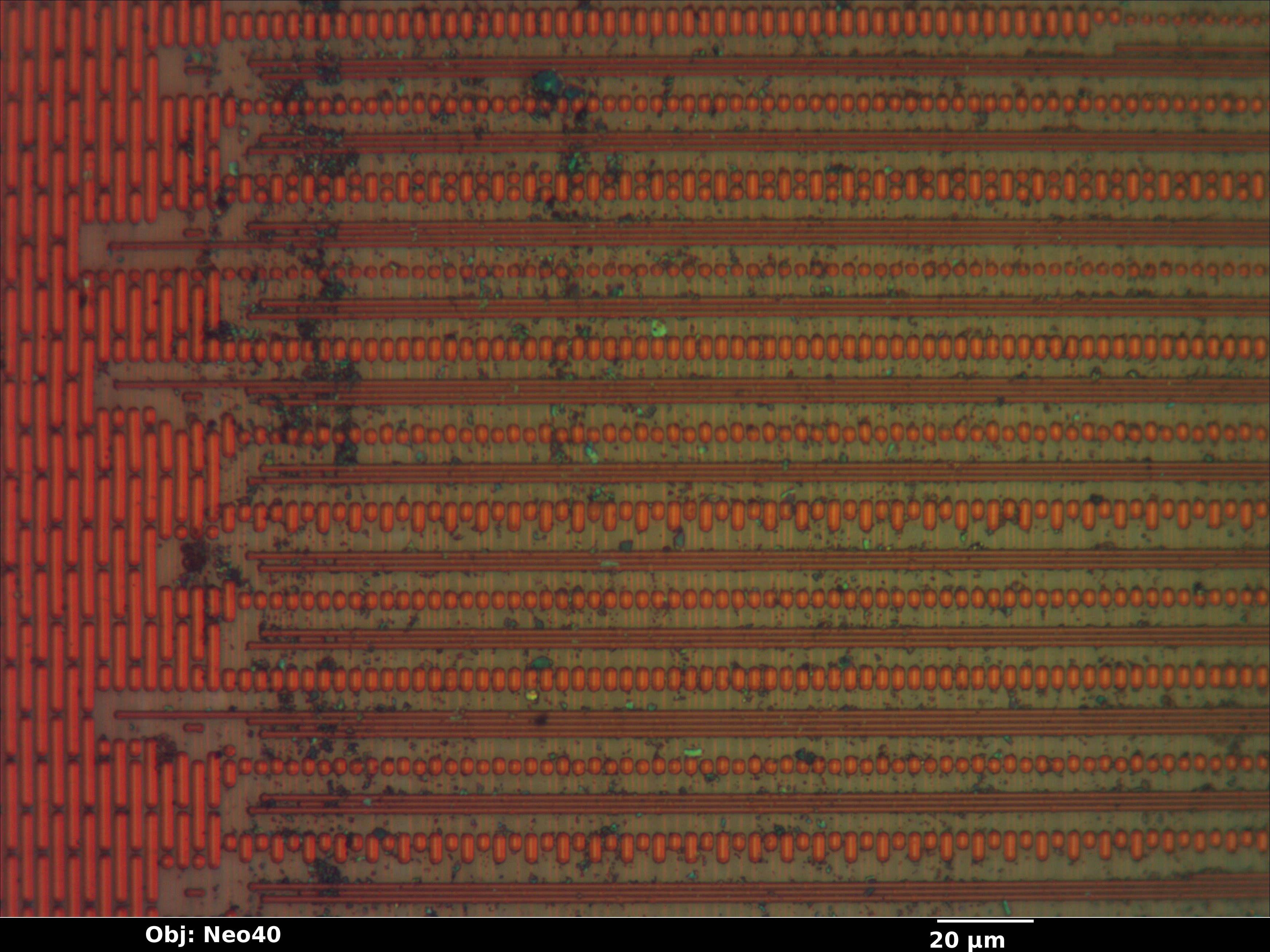

Some kind of memory

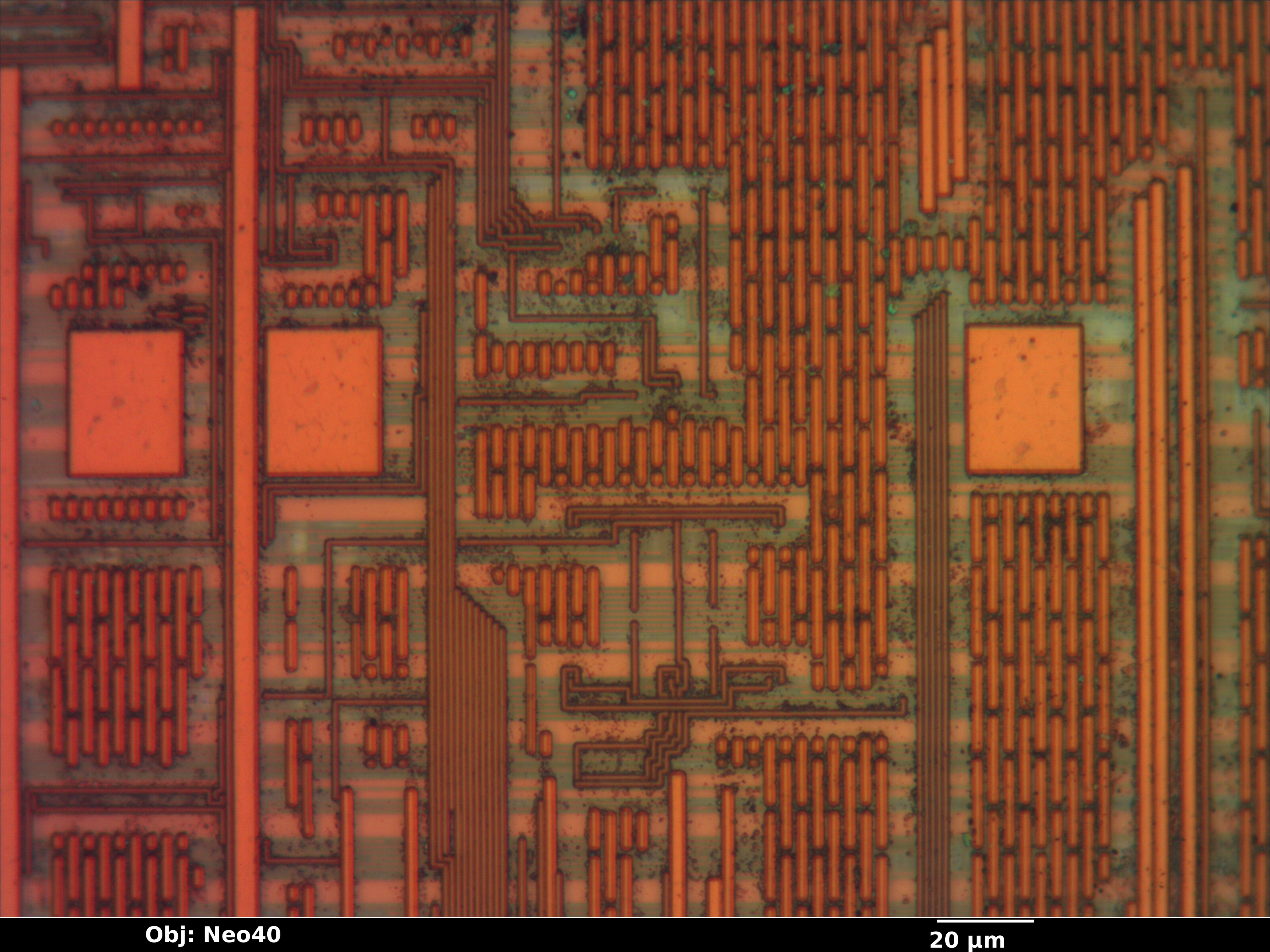

Fuse logic
