azonenberg:ftdi:ft232h

collection az, vendor ftdi, year 2011, type interface, type interface/serdes, type interface/serdes/uart, type interface/usb, tech 180nm, foundry umc

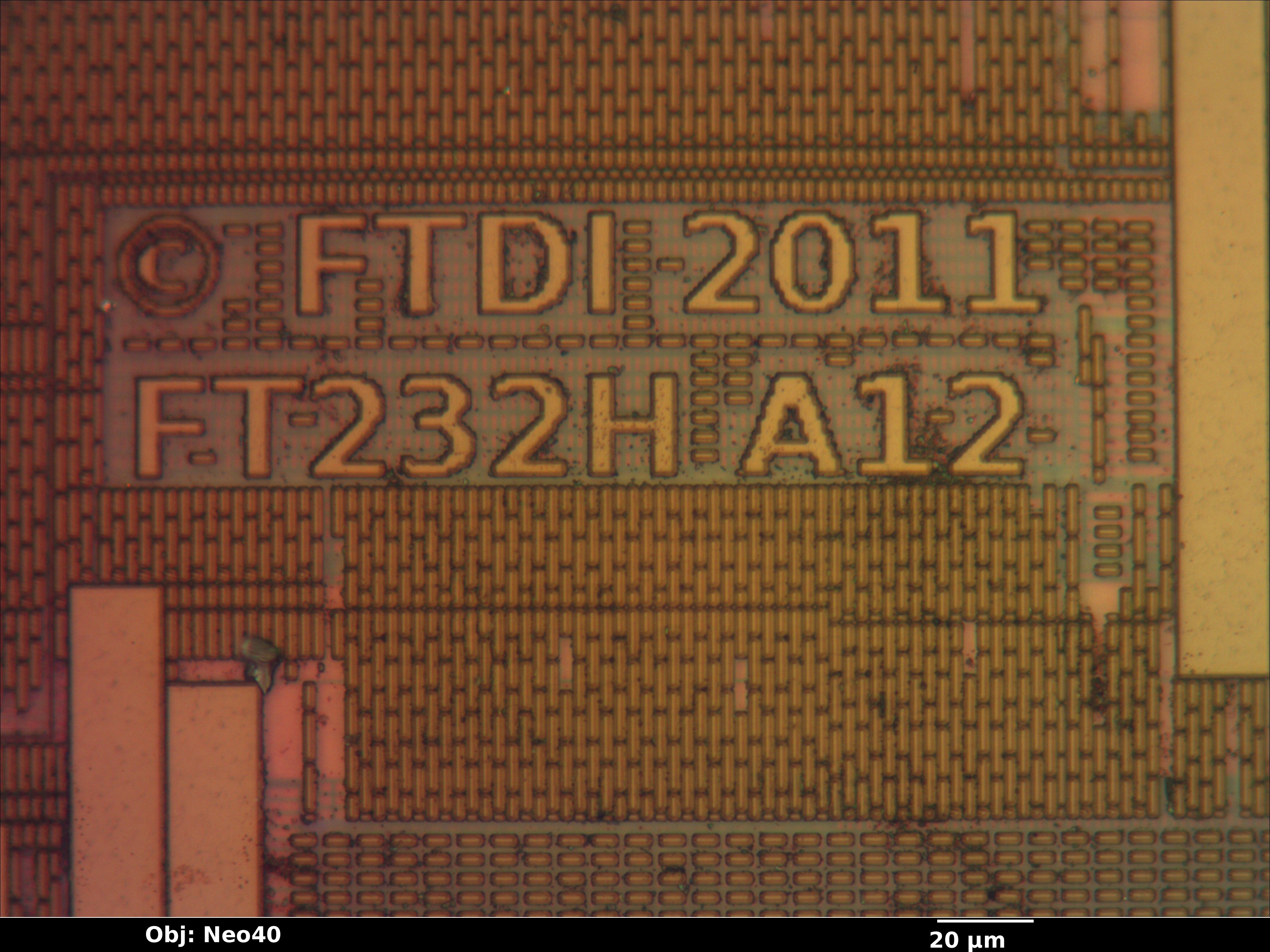

Tentatively ID'd as UMC 180nm from CMP filler.

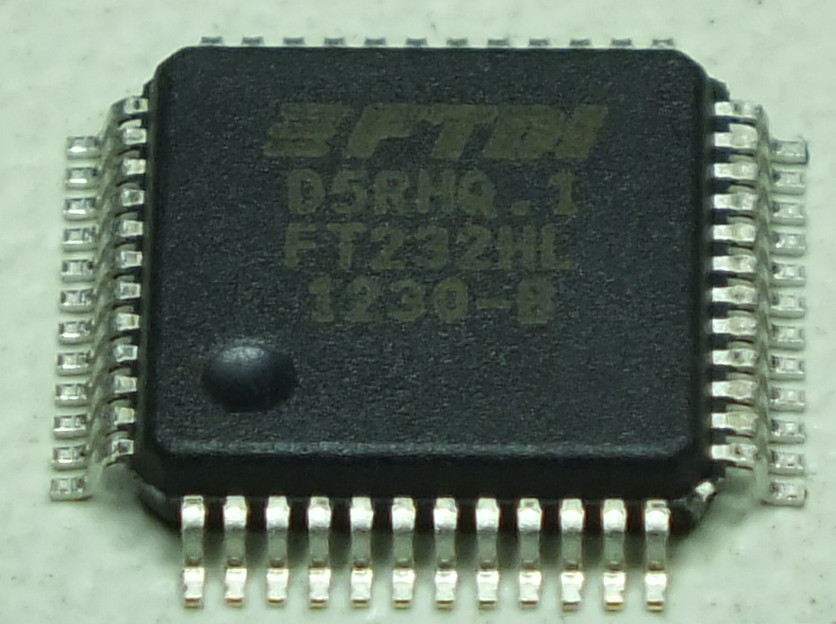

Package

Markings:

  (FTDI logo)
  D5RHQ-1
  FT232HL
  1230-B

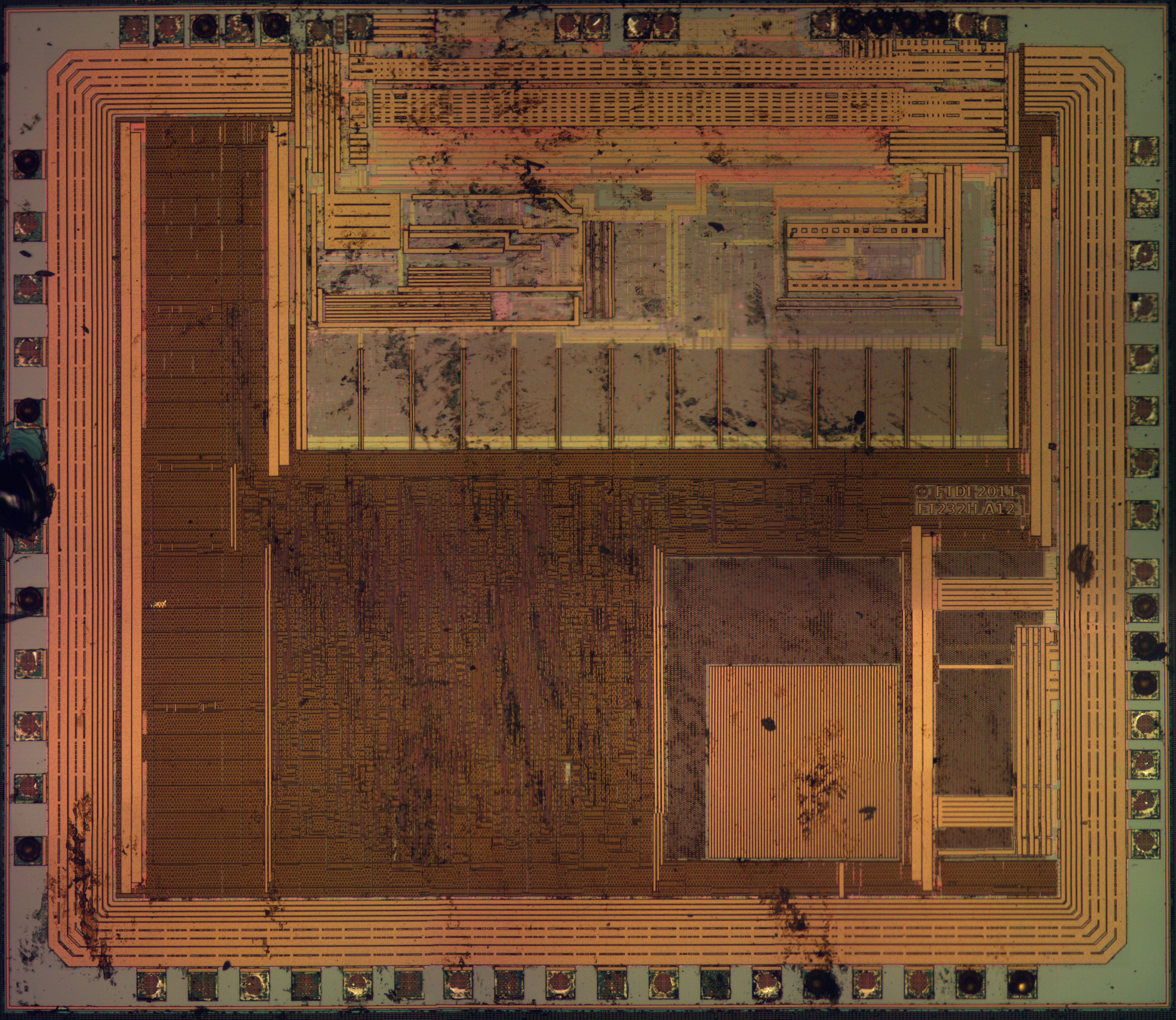

Die

Size is approximately 2280 x 1980 μm (4.51 mm²)
