azonenberg:promise:pdc20267
IDE RAID controller ASIC.
Original package unknown, found long-abandoned as a bare die in a vial.

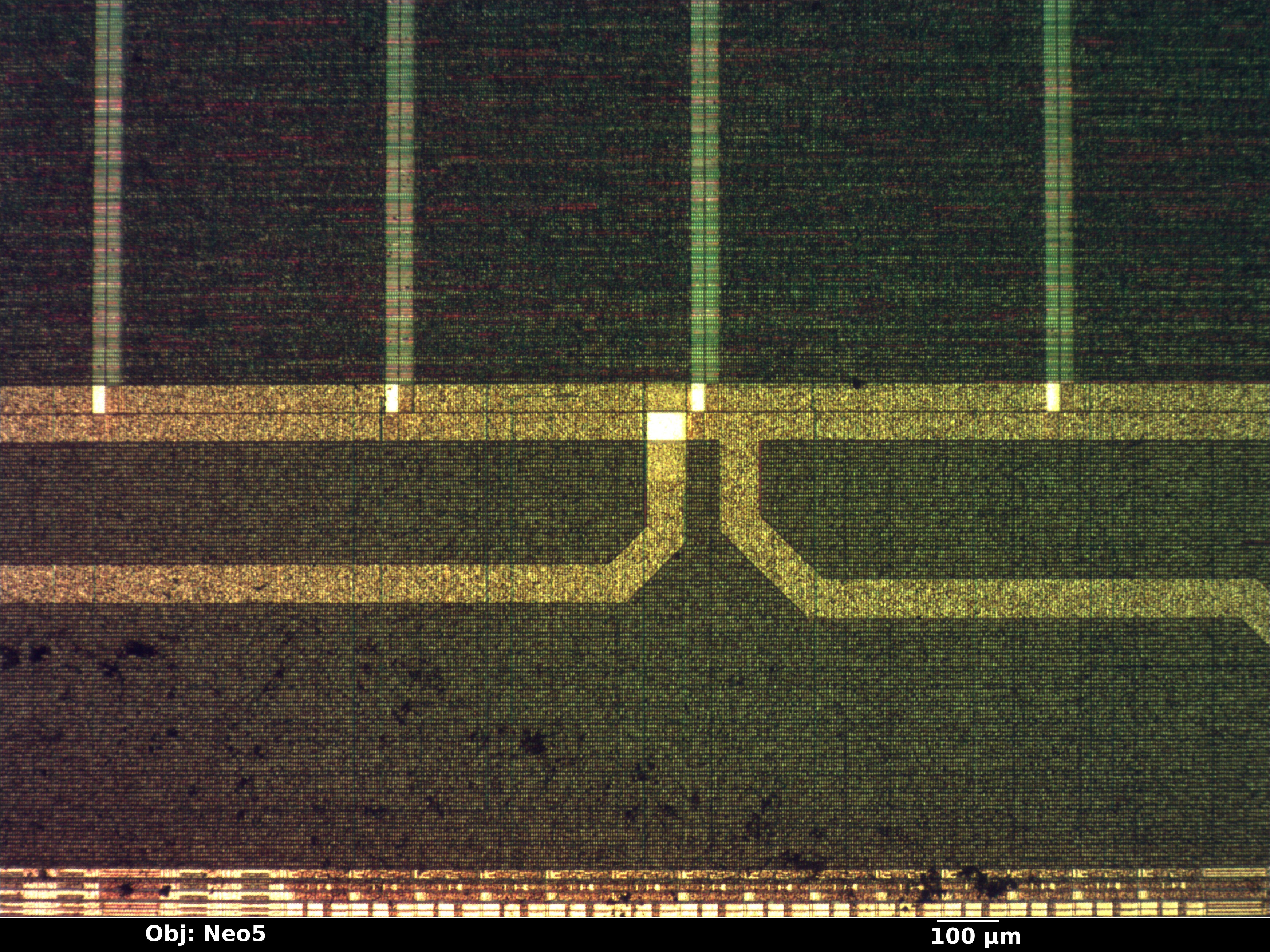

Die overview

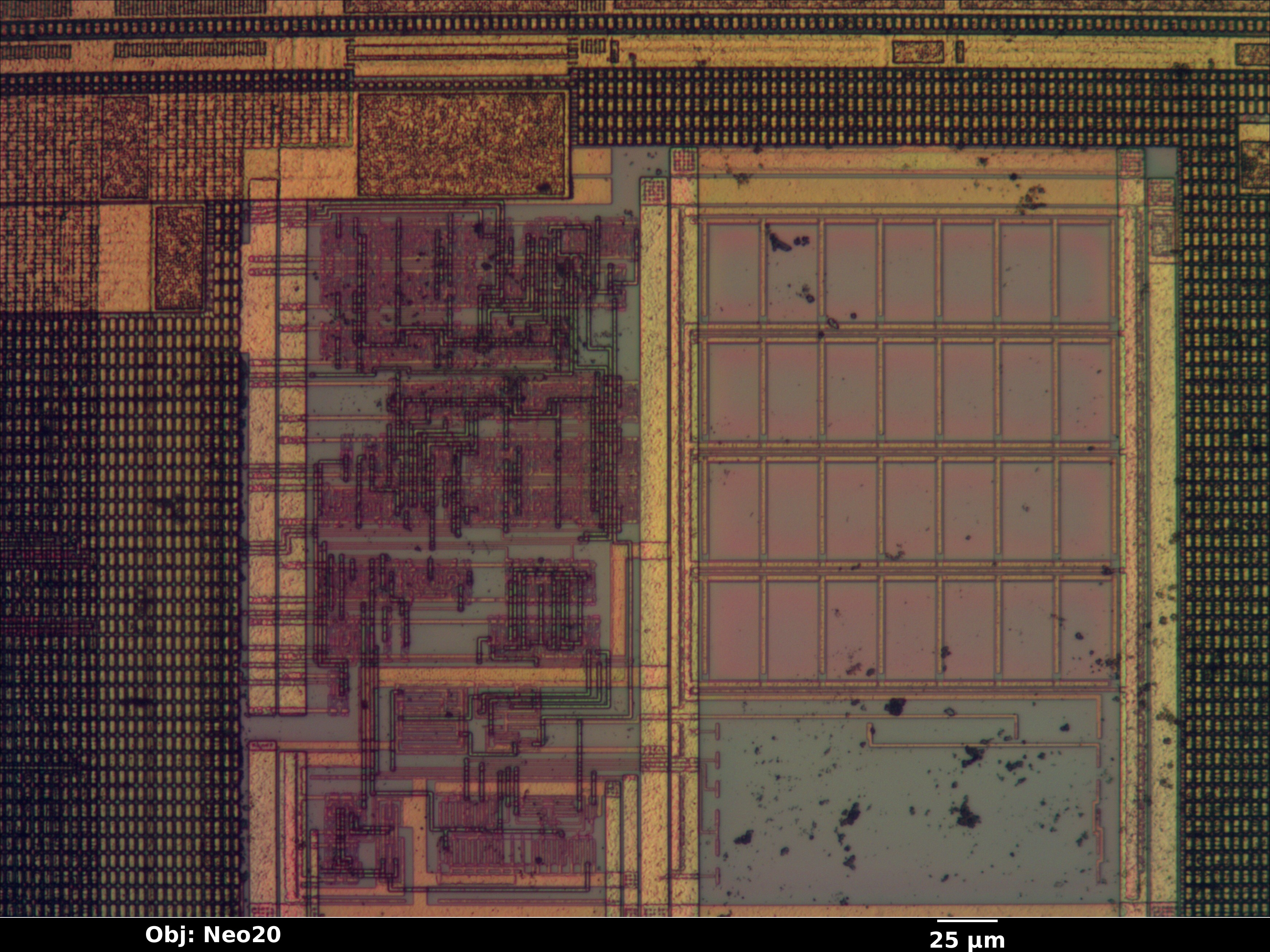

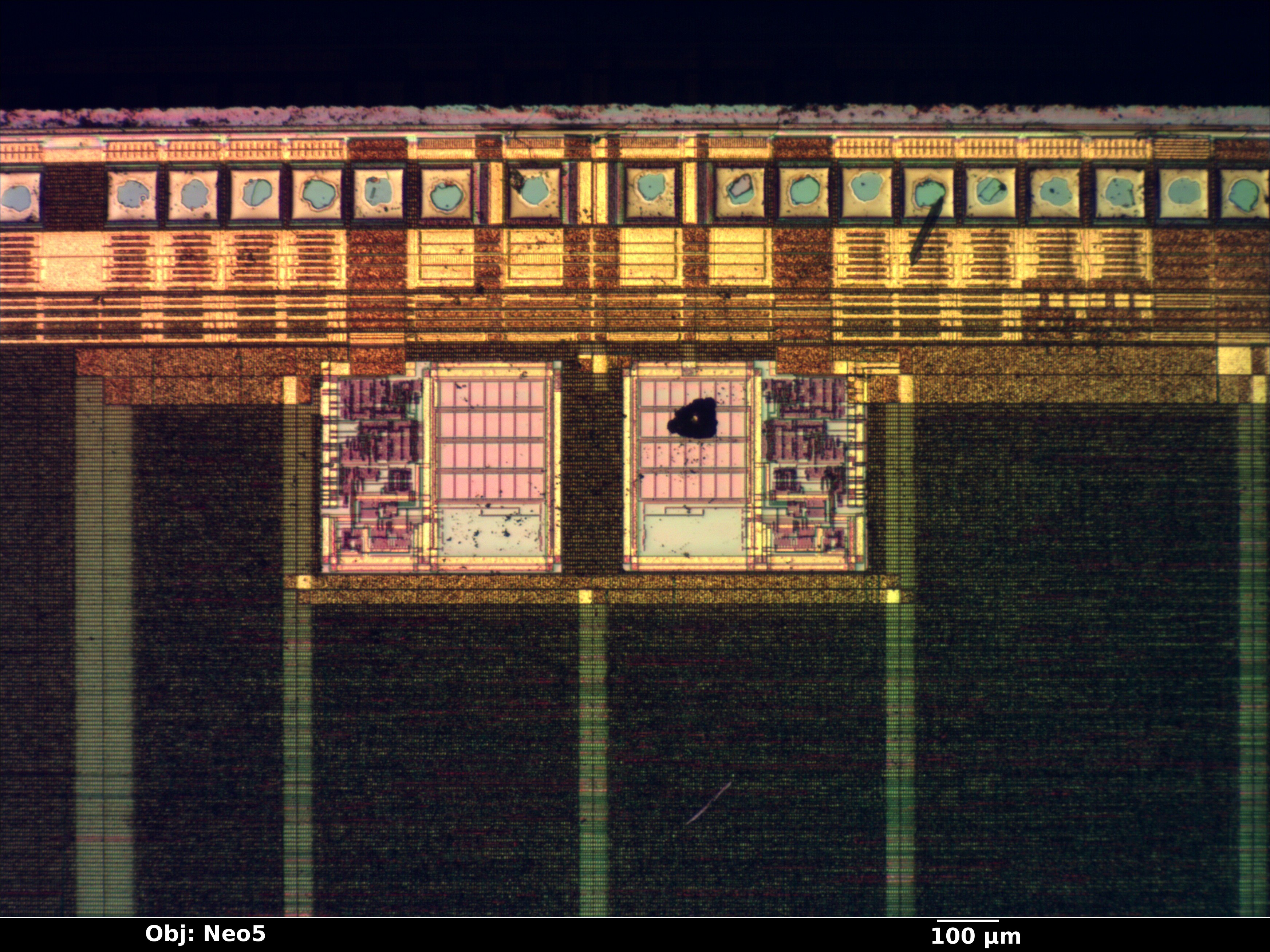

Two large structures which look like PLLs are visible at top center. Close-up:

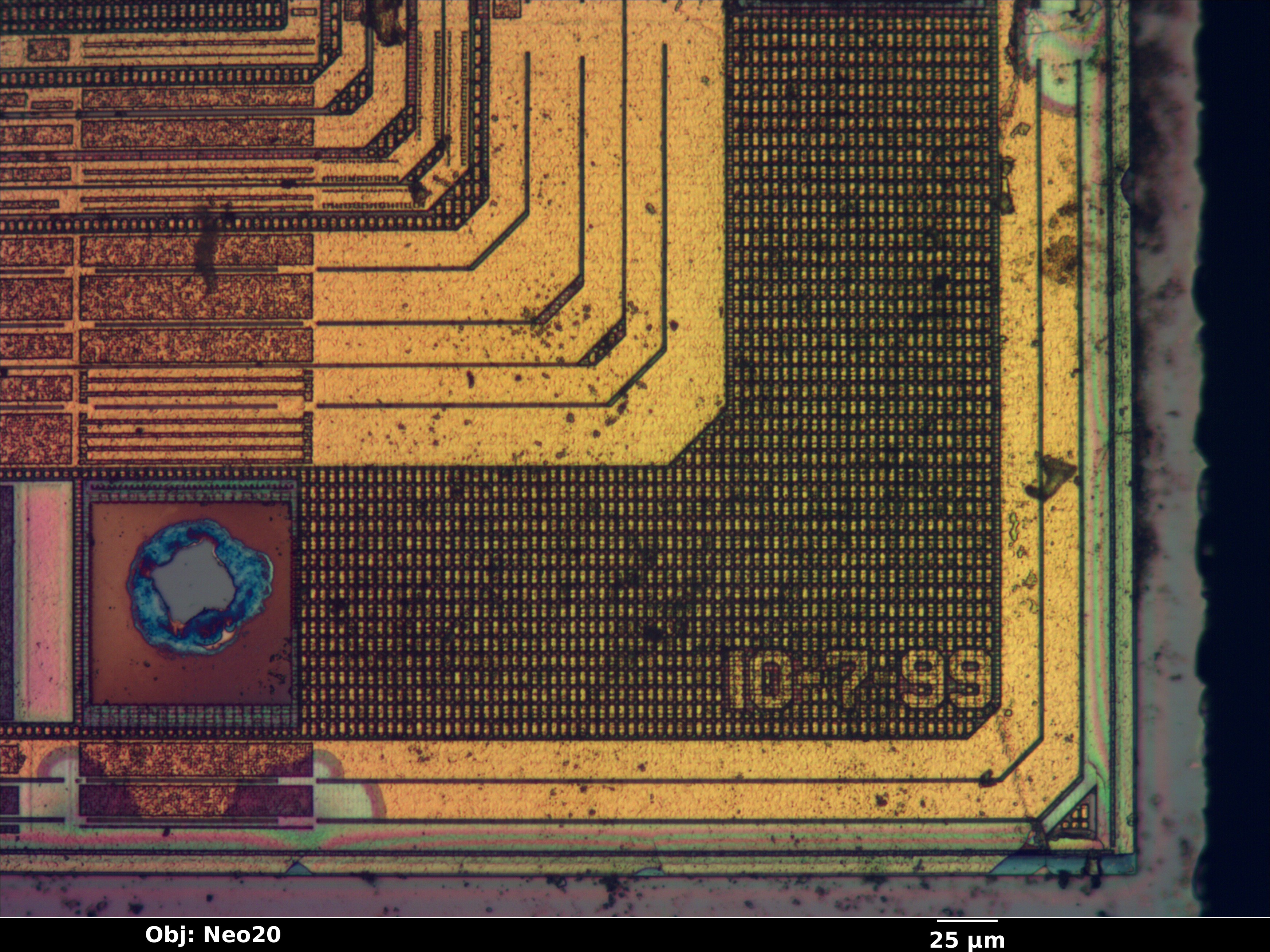

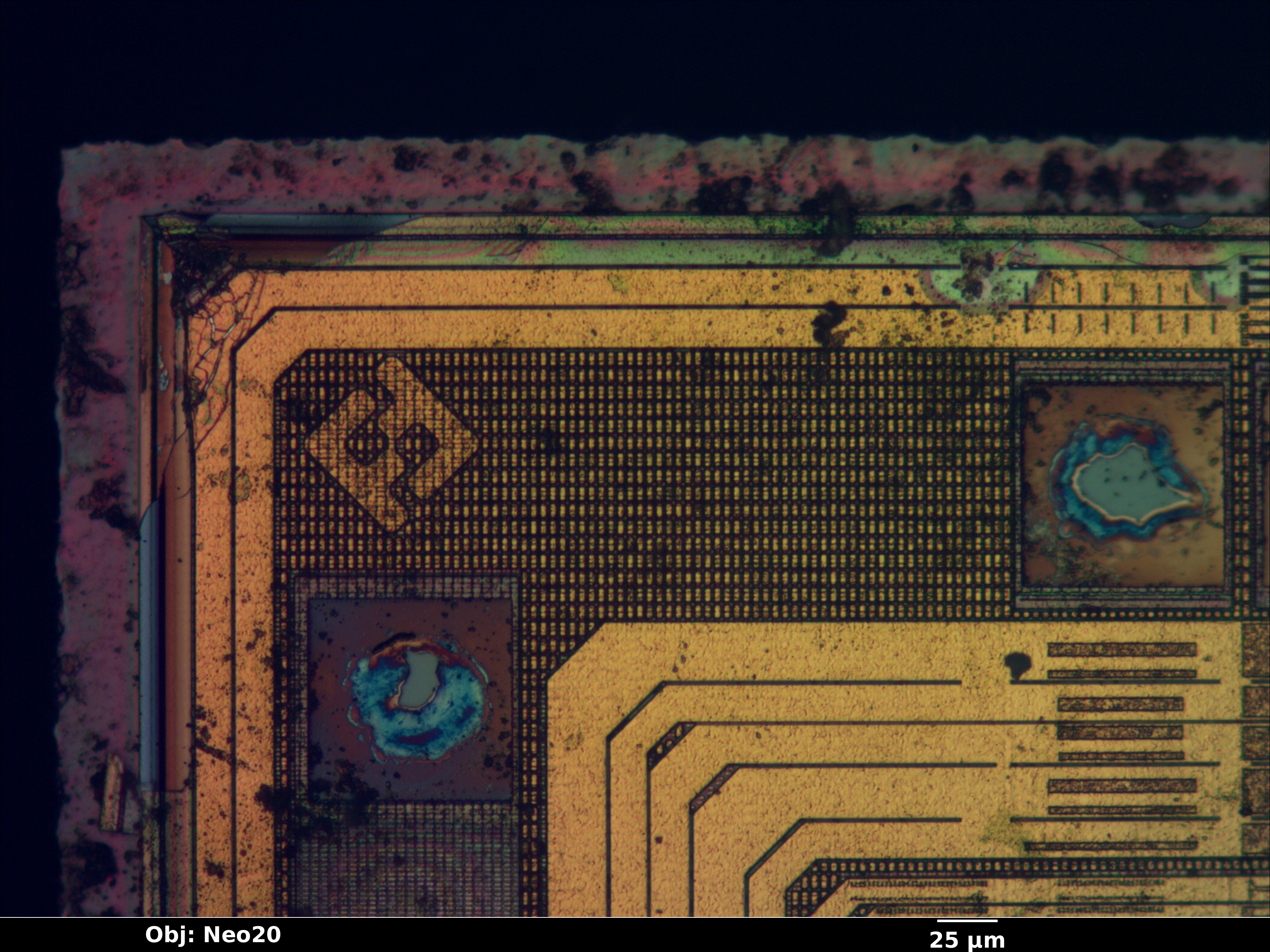

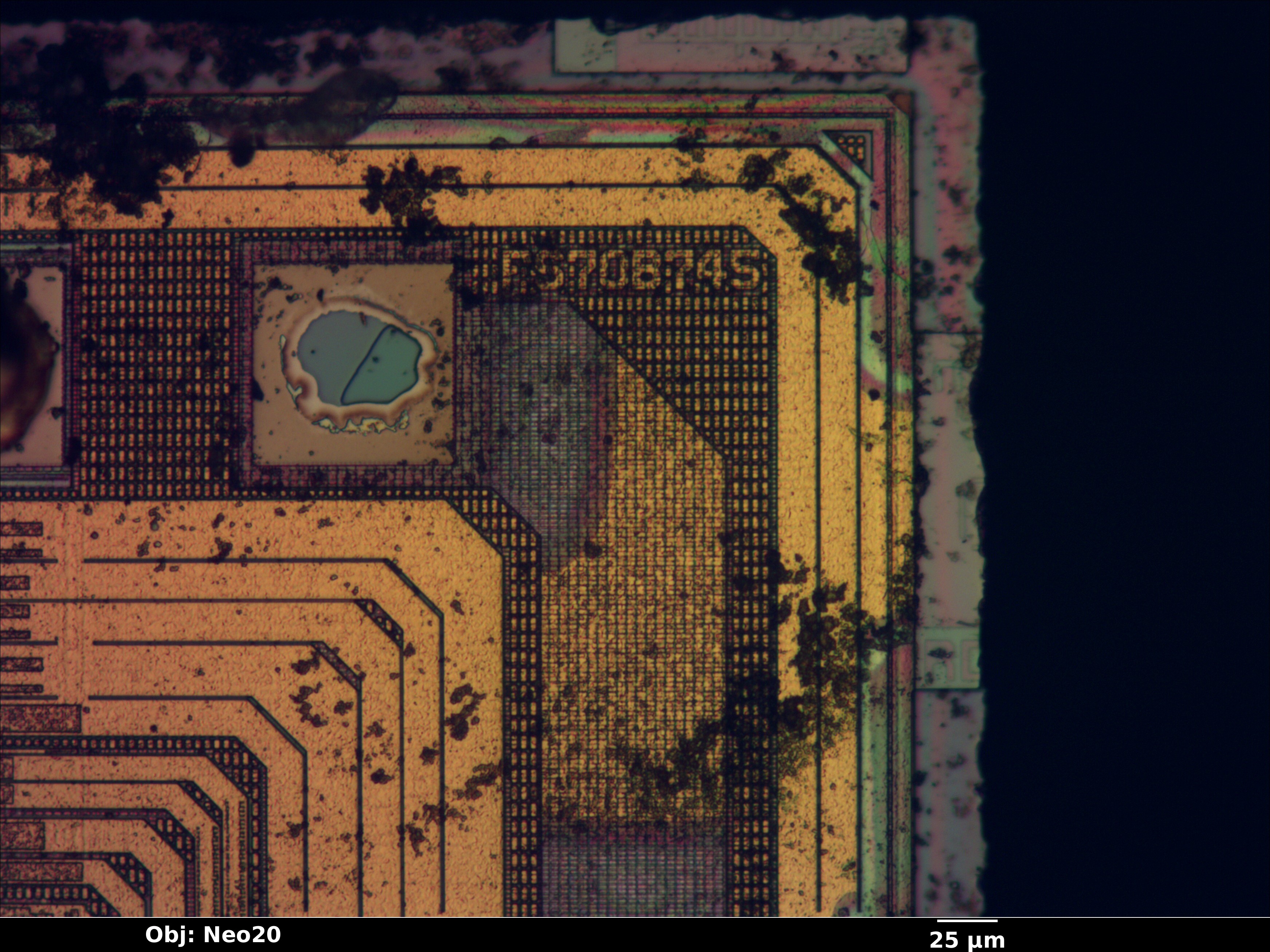

Die labels (no logo in the last corner)
