azonenberg:siliconimage:sil164

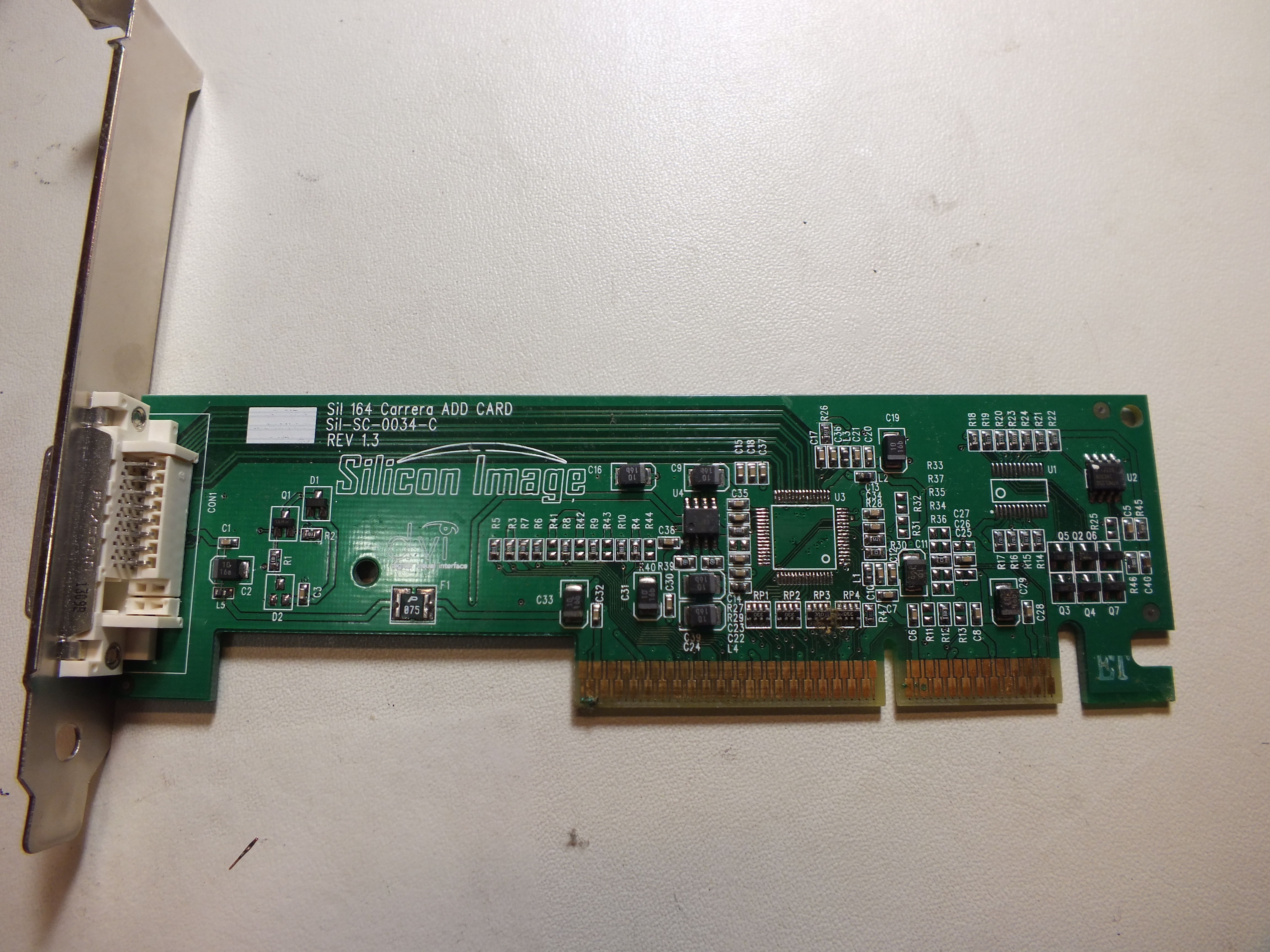

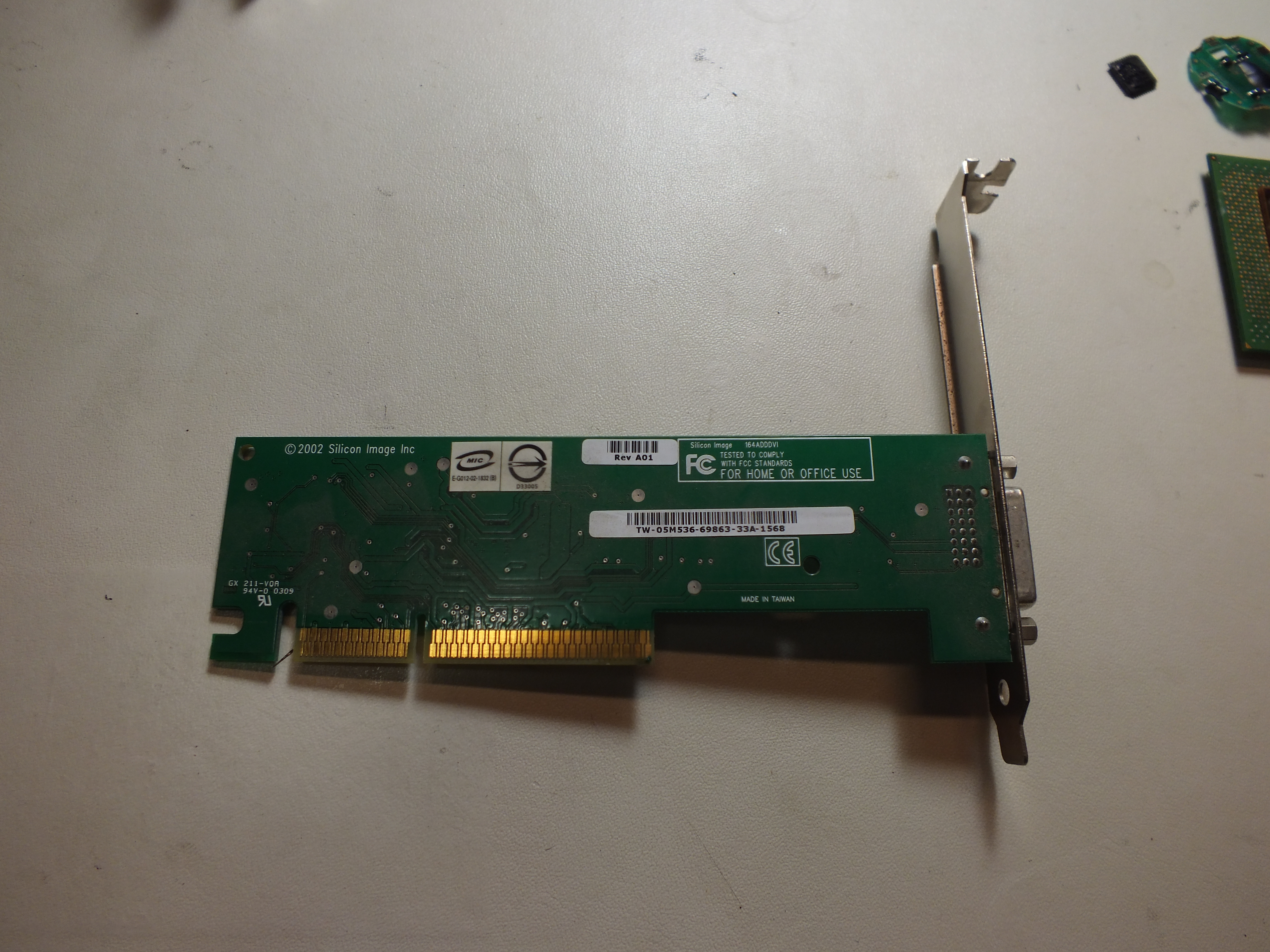

Board

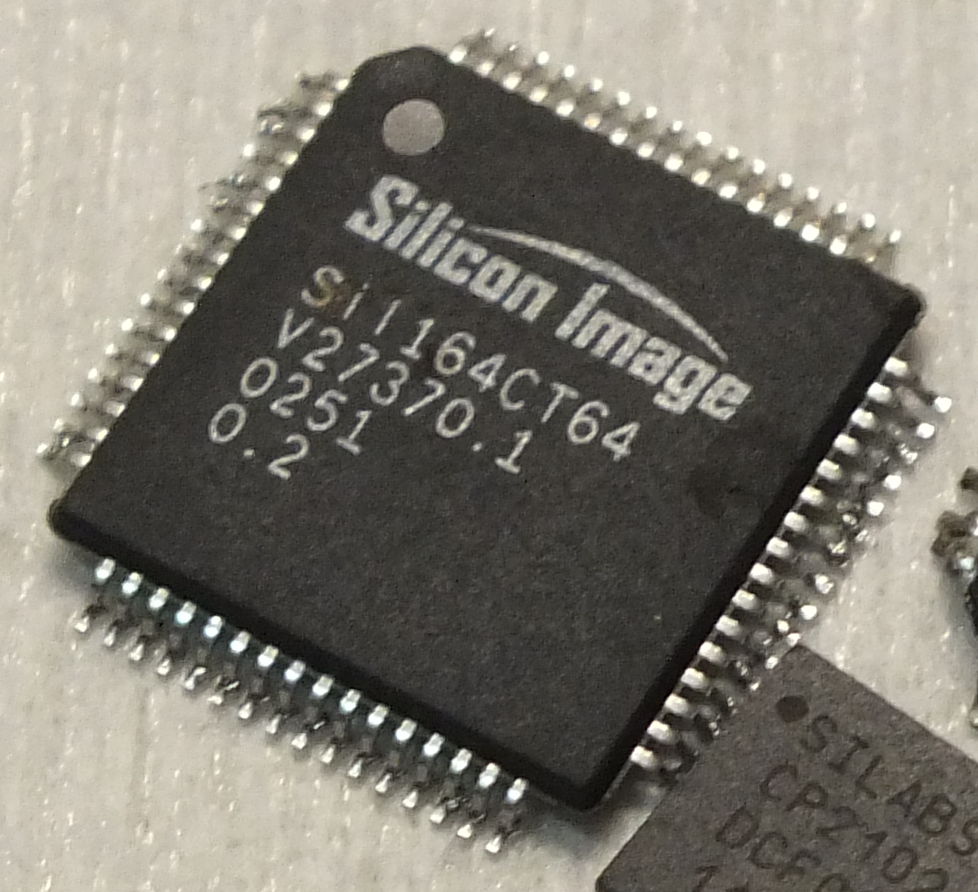

Package
Very small for a GPU - 64-pin 0.5mm TQFP.

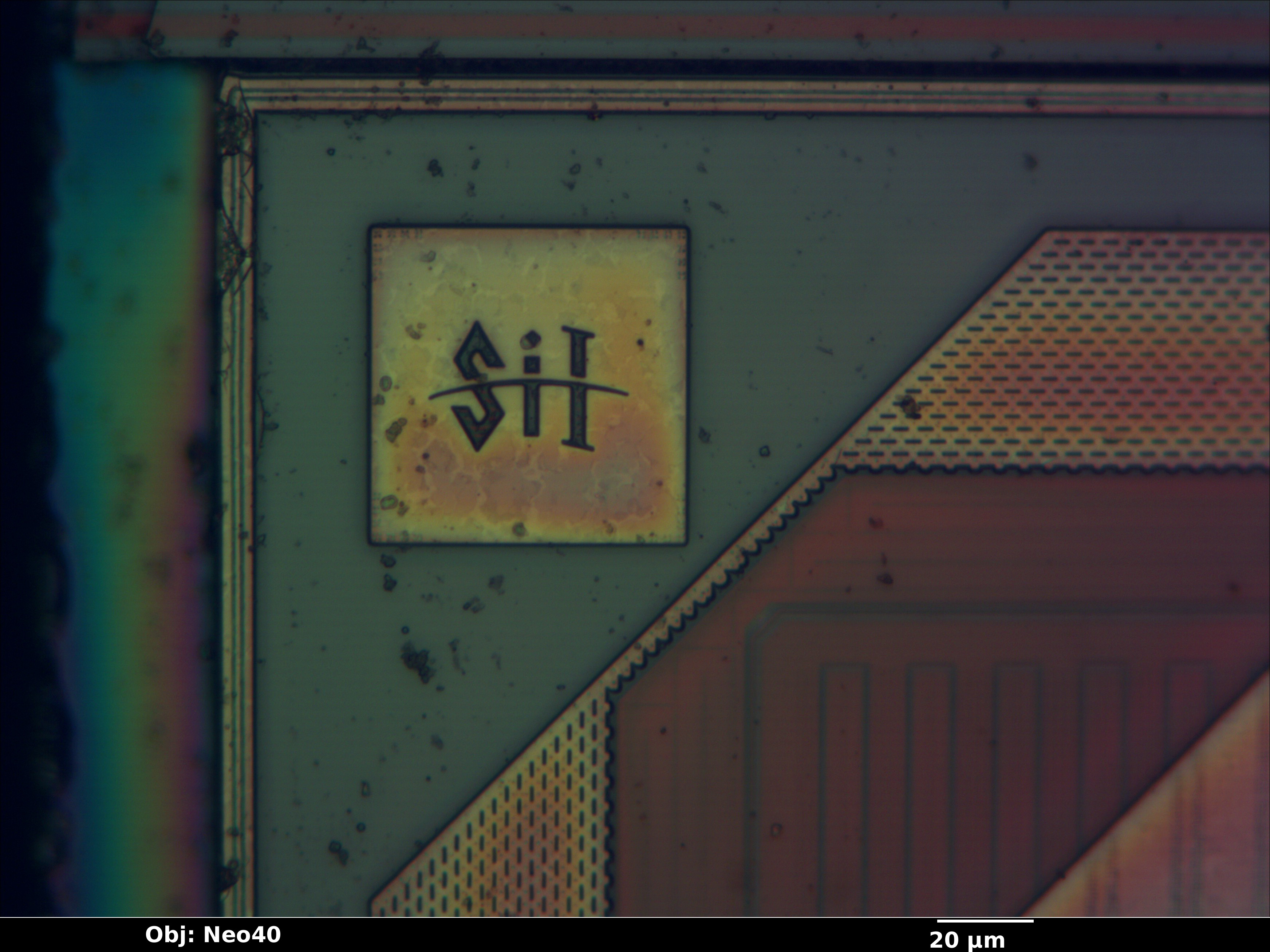

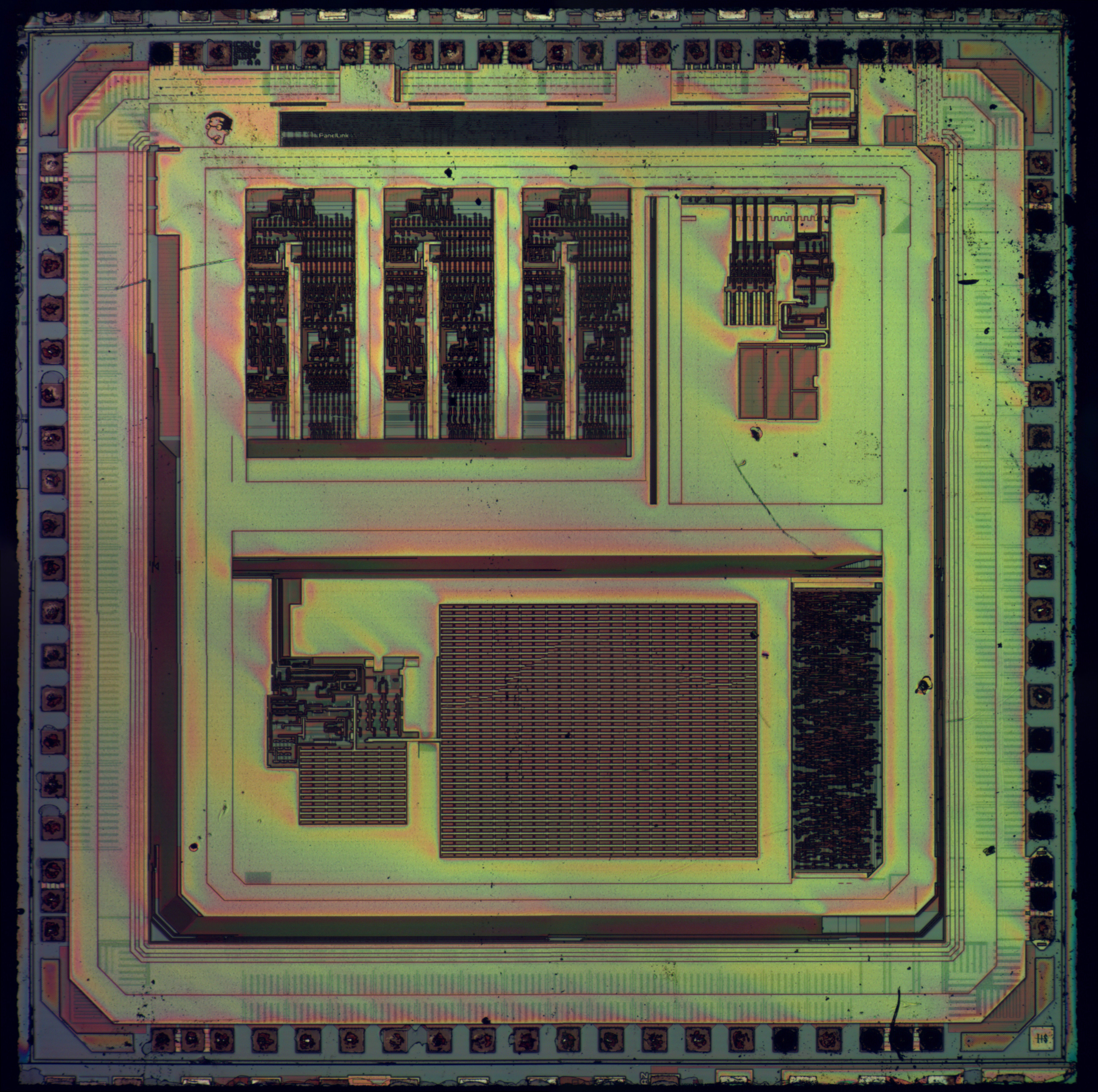

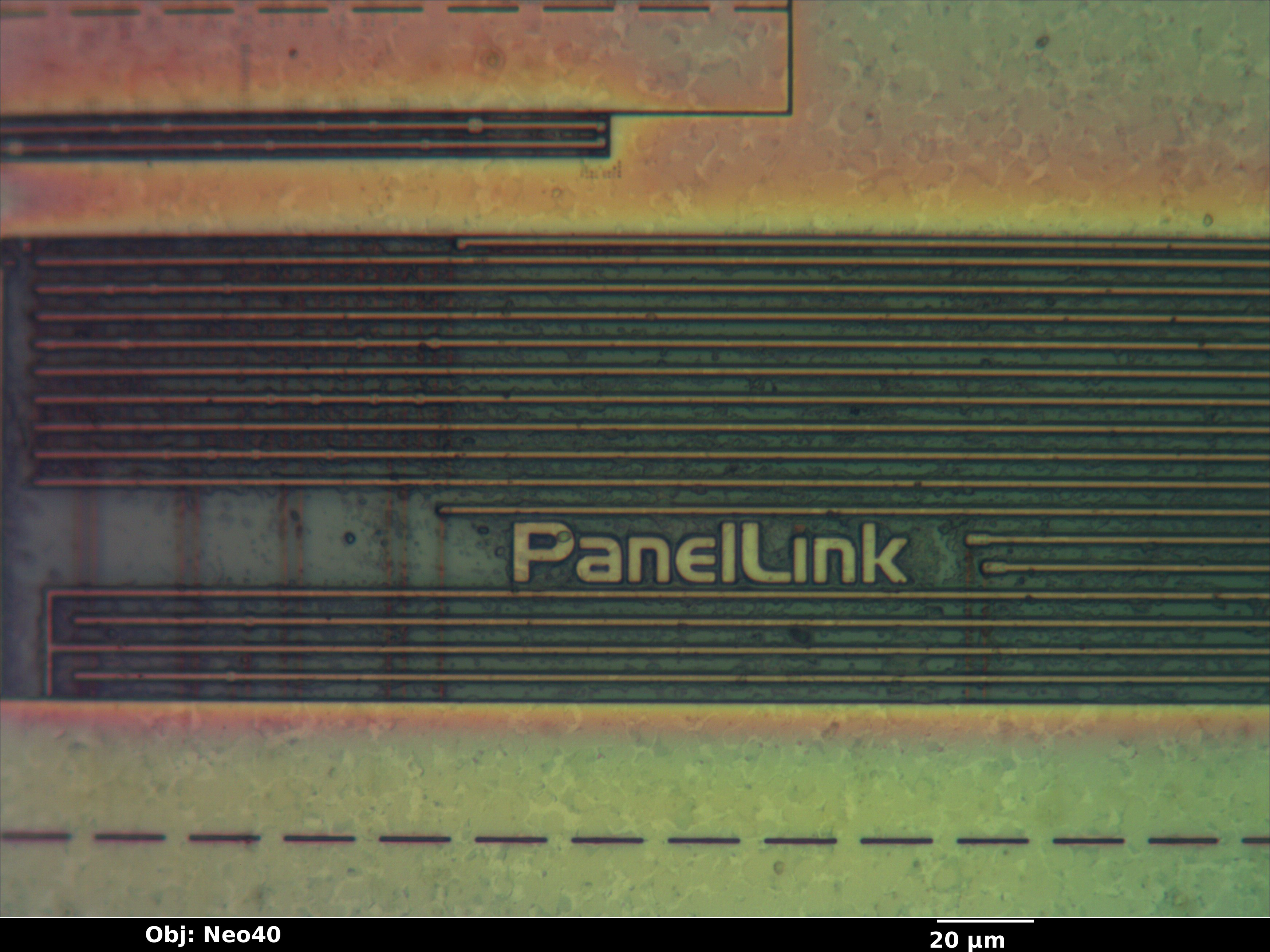

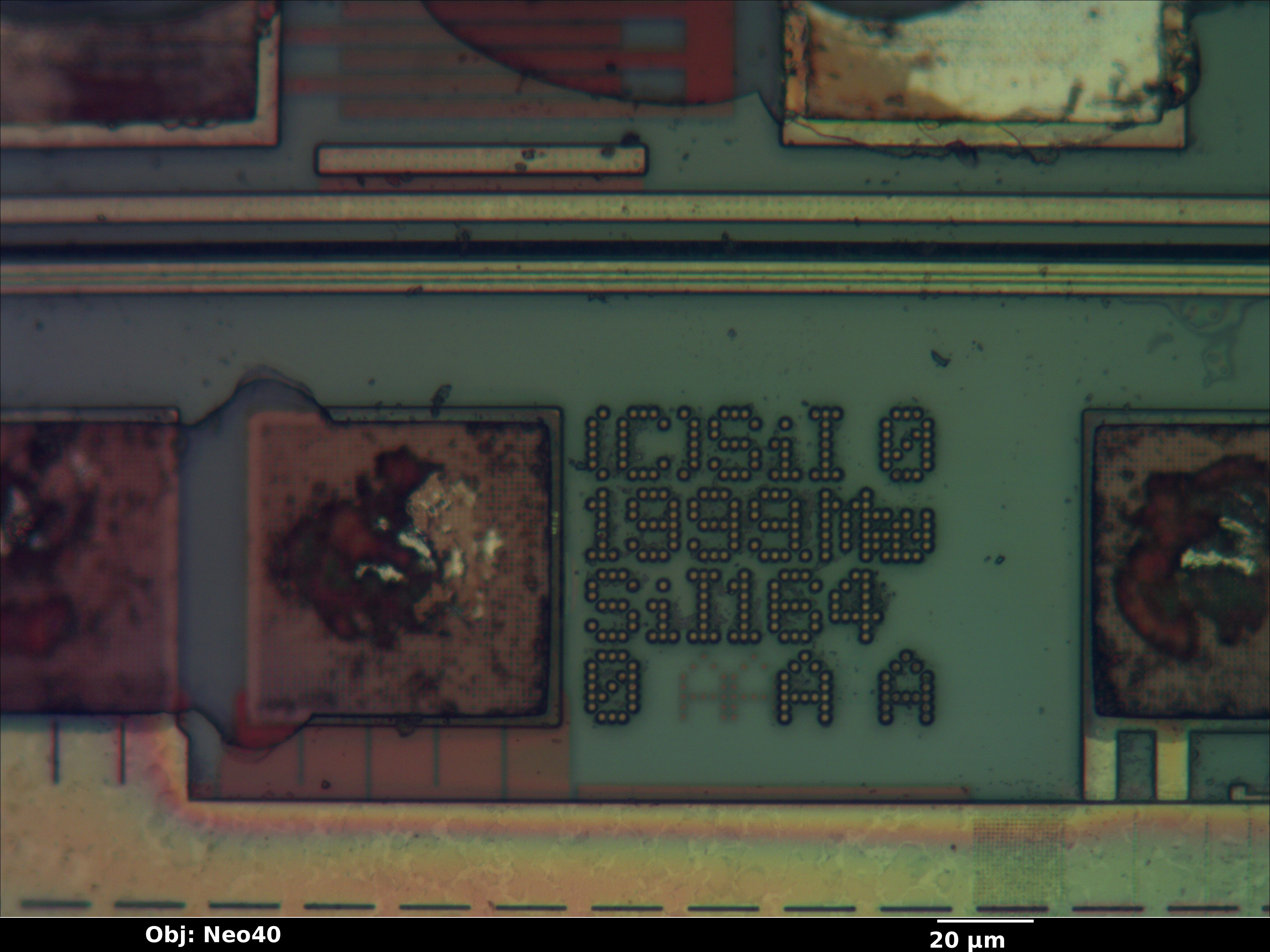

Die
Size: 2900 x 2930 μm (8.5 mm2)
Looks like the same process (TSMC 350 nm) as the Altera EPM3064A

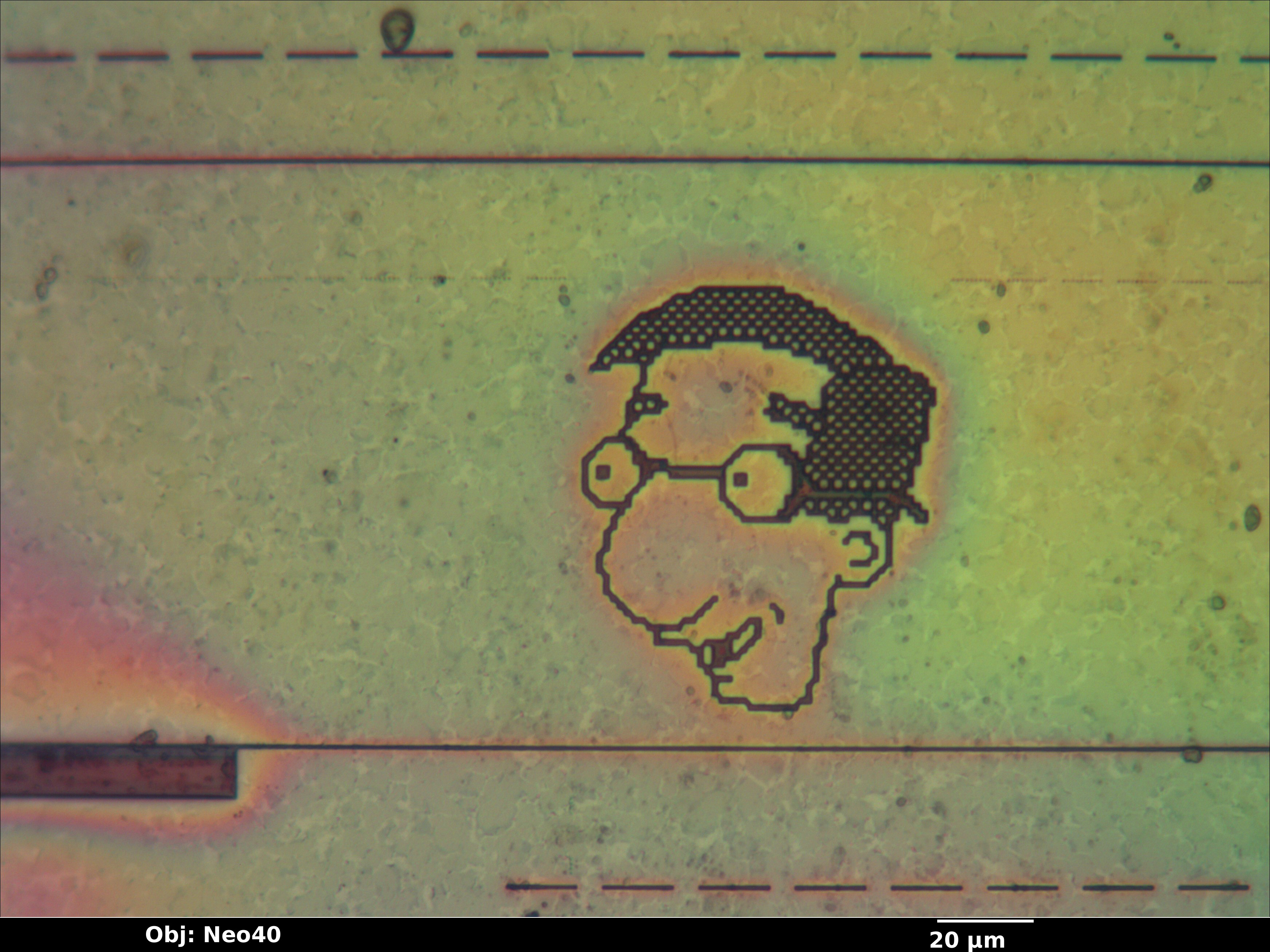

Has a little doodle at the upper left. Best guess so far is Milhouse van Houten
