collection az, vendor ti, year 1999, type interface, type interface/1394, foundry unknown, tech unknown

IEEE 1394a Three-Port Cable Transceiver/Arbiter

http://www.ti.com/product/tsb12lv26

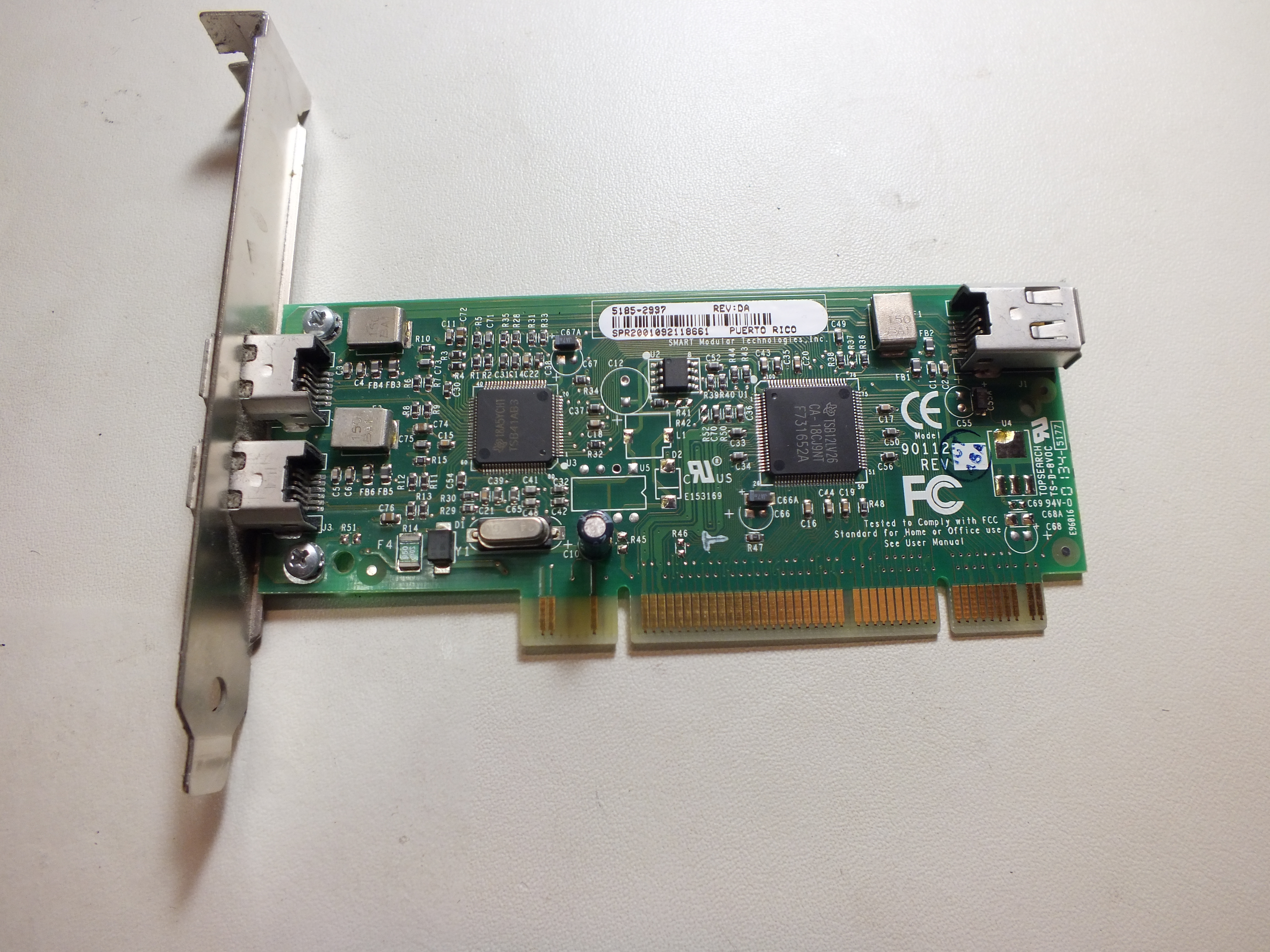

Board

Also contains a TSB12LV26 PCI-1394 bridge

Package

Markings:

  (TI) 18A5YCHT
  TSB41AB3

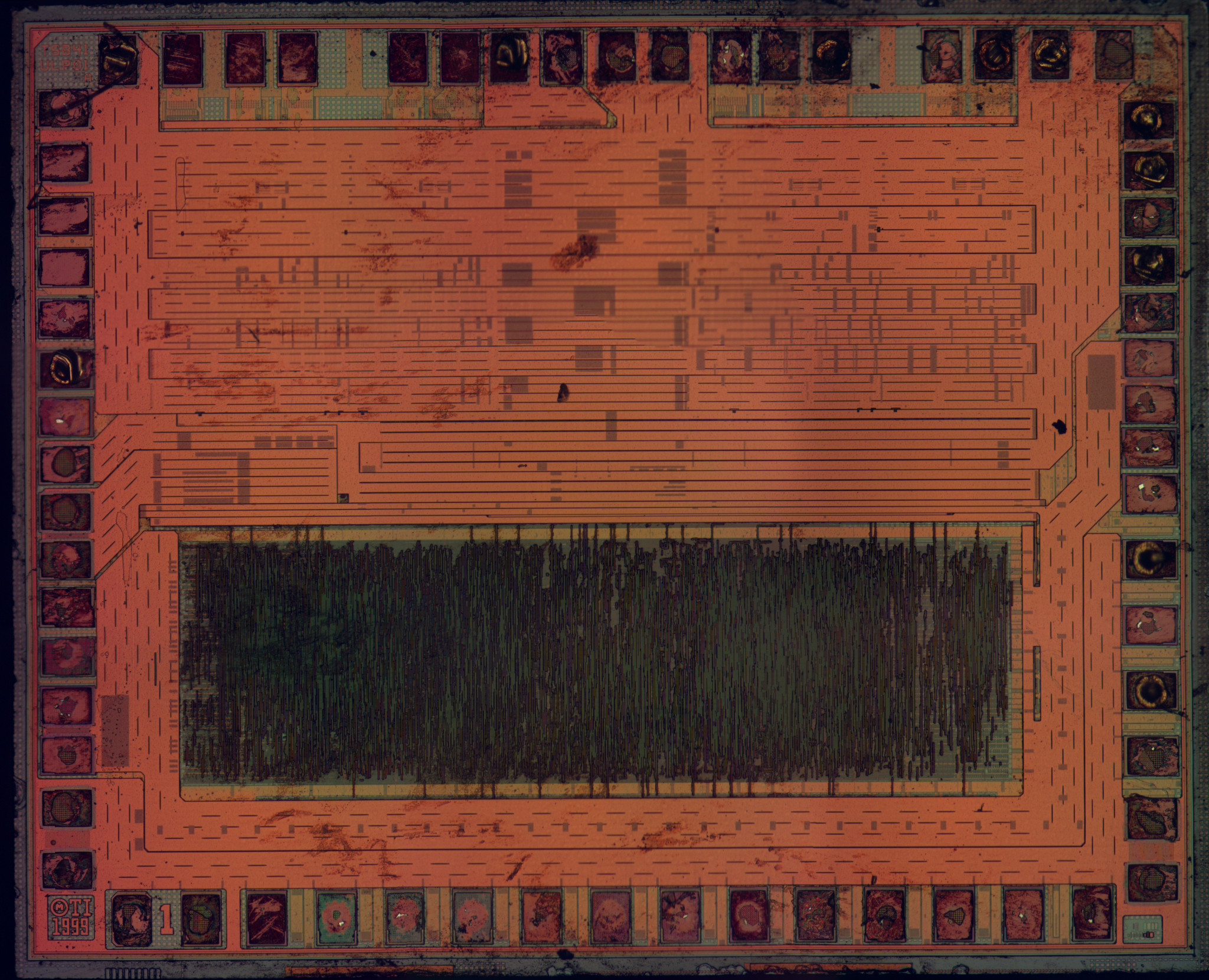

Die

Size is approximately 2290 x 1850 μm (4.23 mm²)

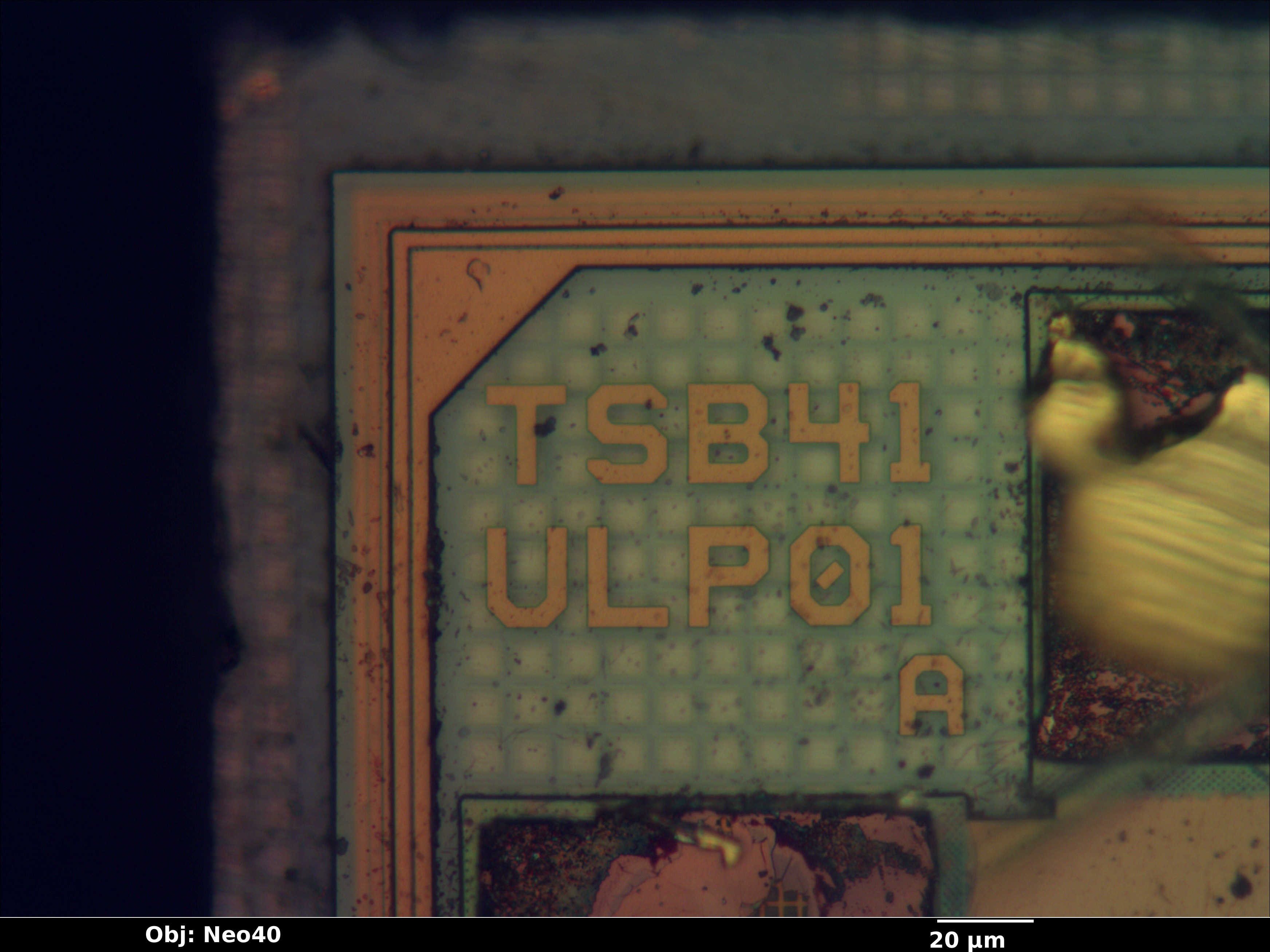

Top left:

  TSB41
  ULP01
  A

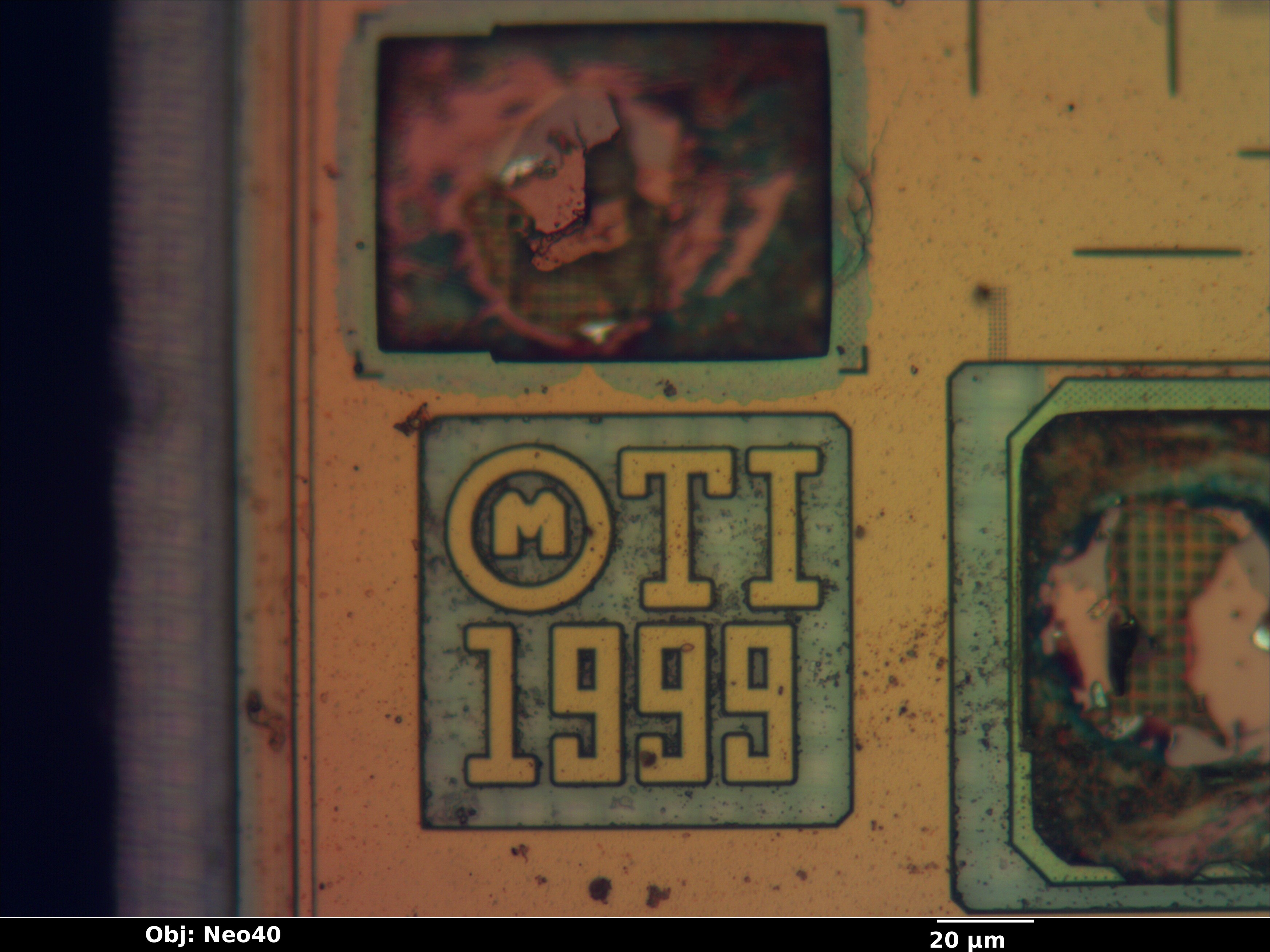

Bottom left:

  (M) TI
  1999

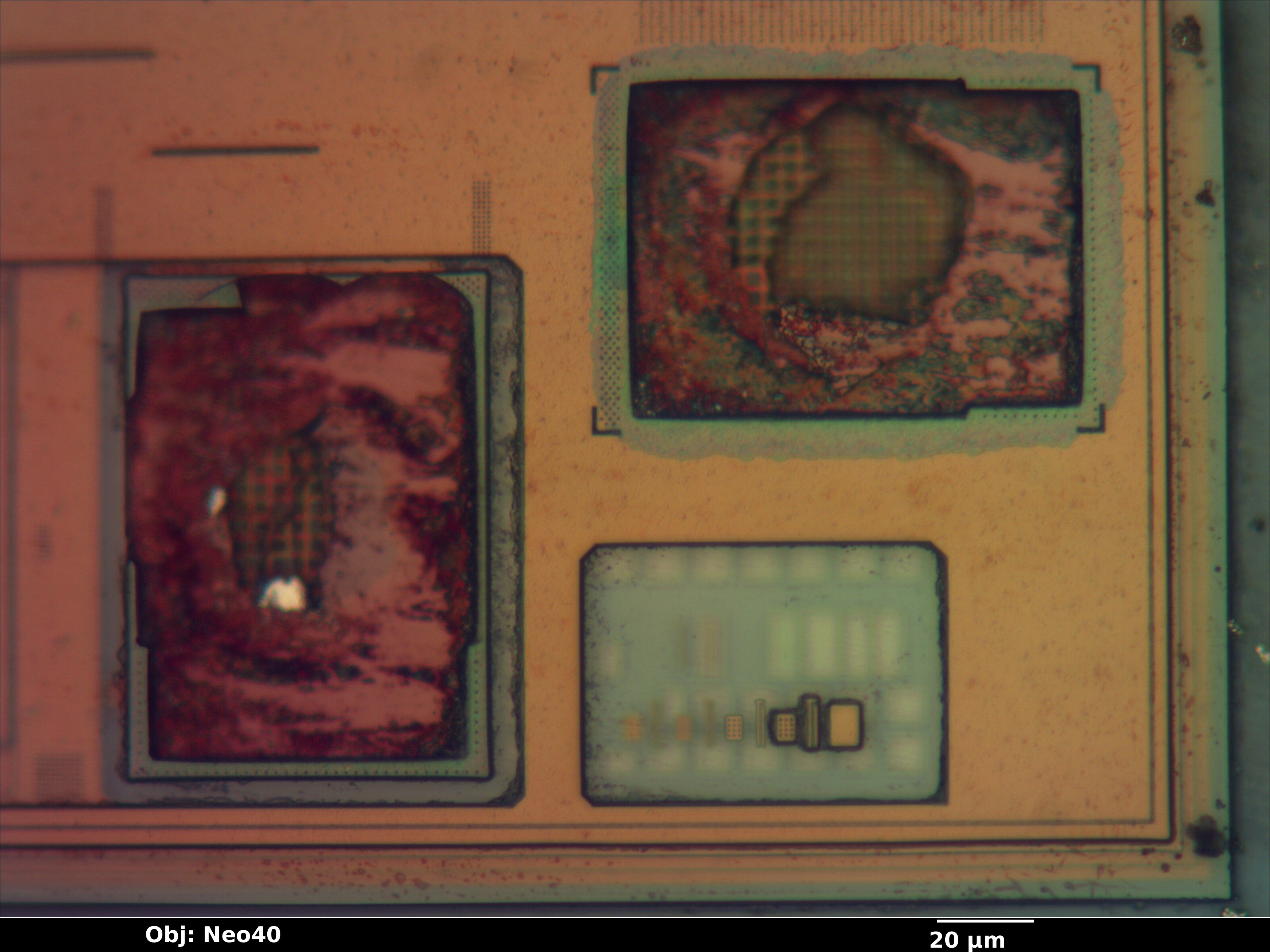

  [pin 1 marking]

Map

http://siliconpr0n.org/map/ti/tsb41/mz_bf_neo10x/
