azonenberg:winbond:w9751g6kb

Table of Contents

Package
Partial decap
Die

collection az, vendor winbond, type memory, type memory/dram, type memory/dram/ddr2, year unknown, foundry unknown, tech unknown

Datasheet: “8M x 4 BANKS x 16 BIT DDR2 SDRAM”

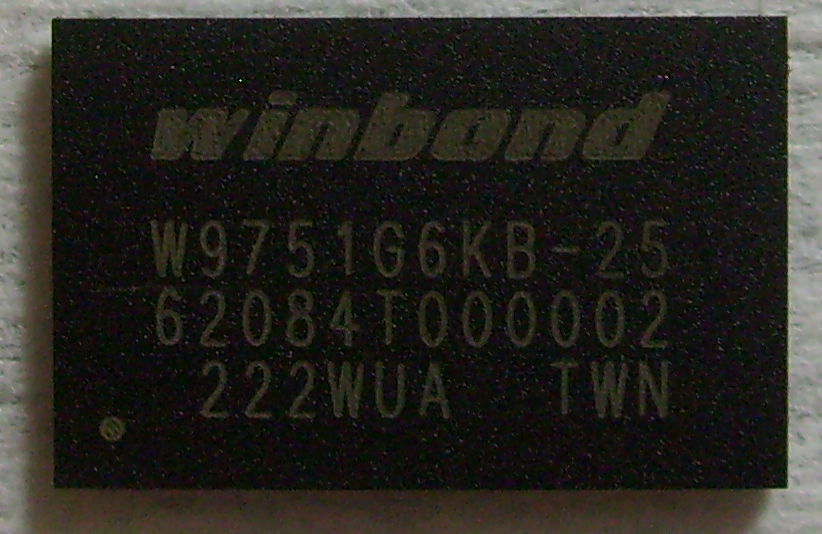

Package

Label

  WINBOND
  W9751G6KB-25
  62084T000002
  222WUA TWN

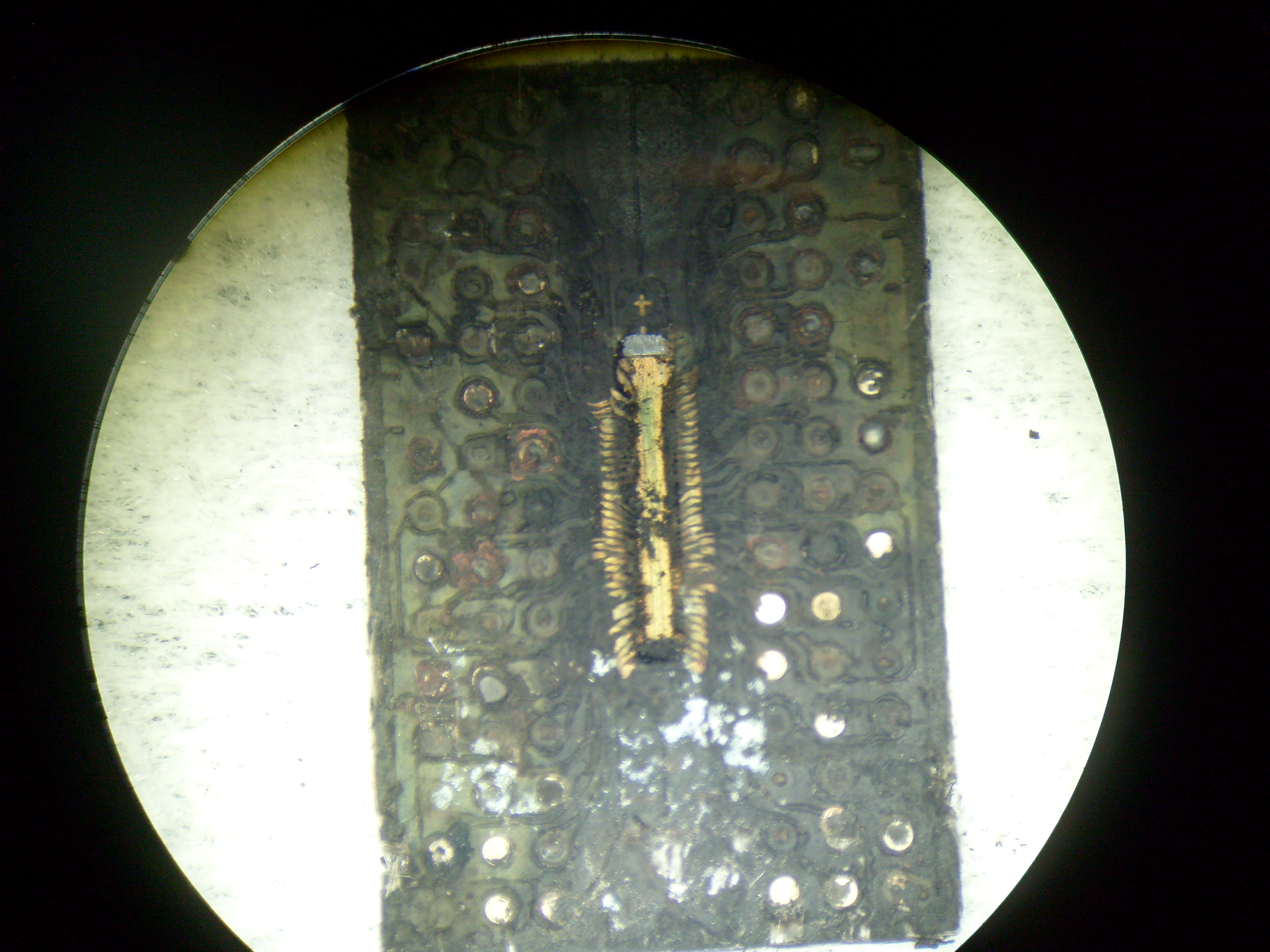

Partial decap

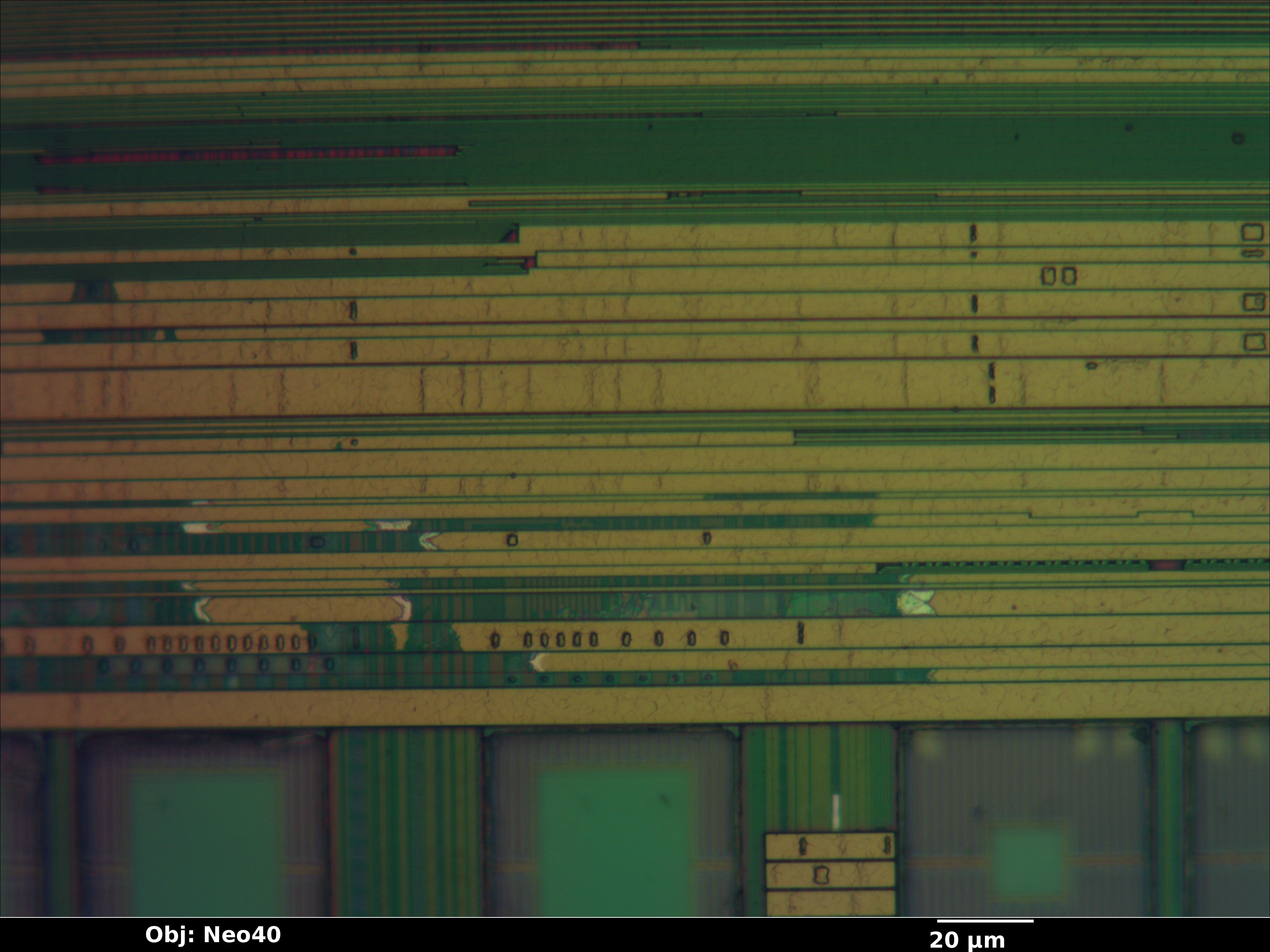

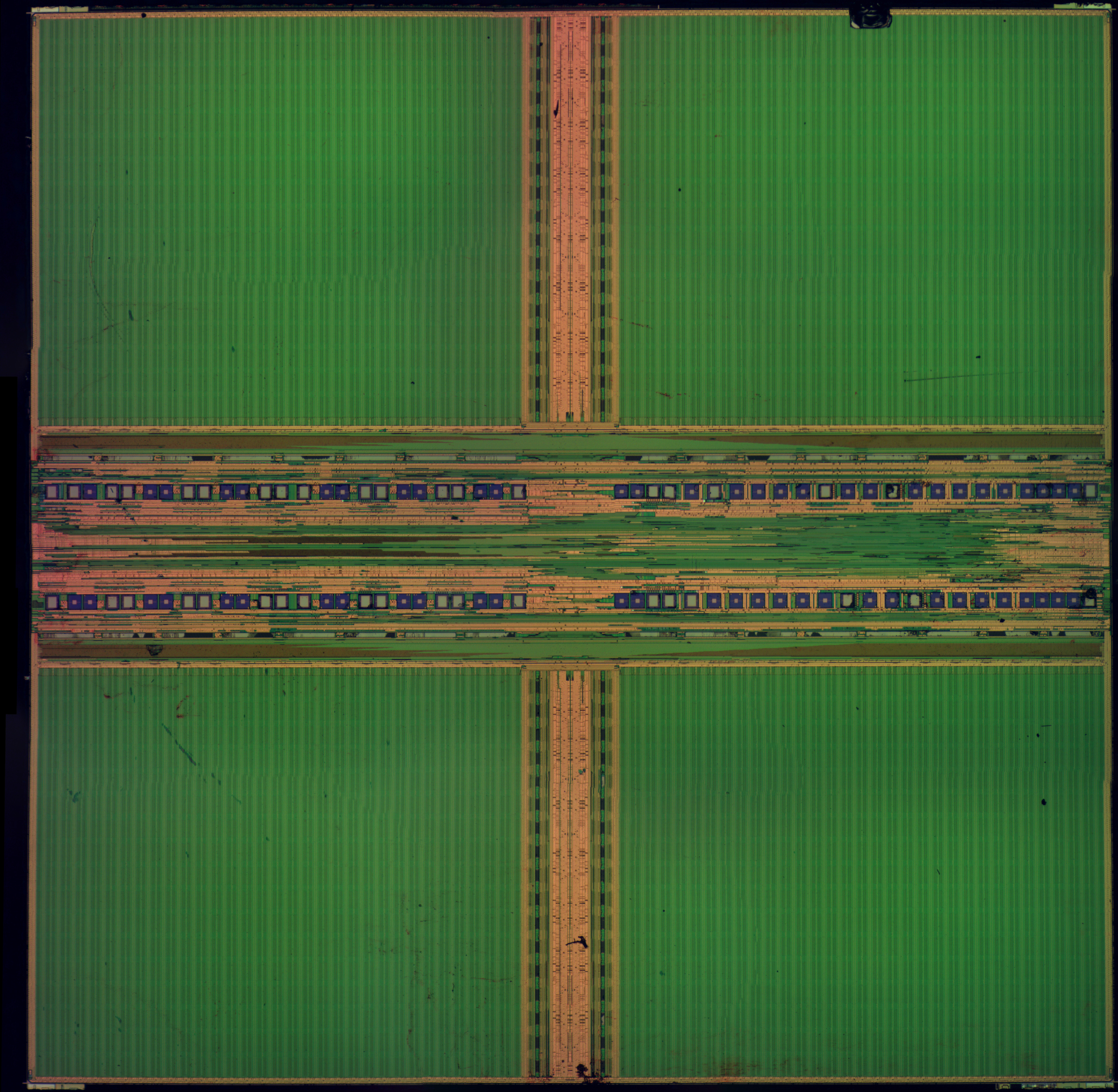

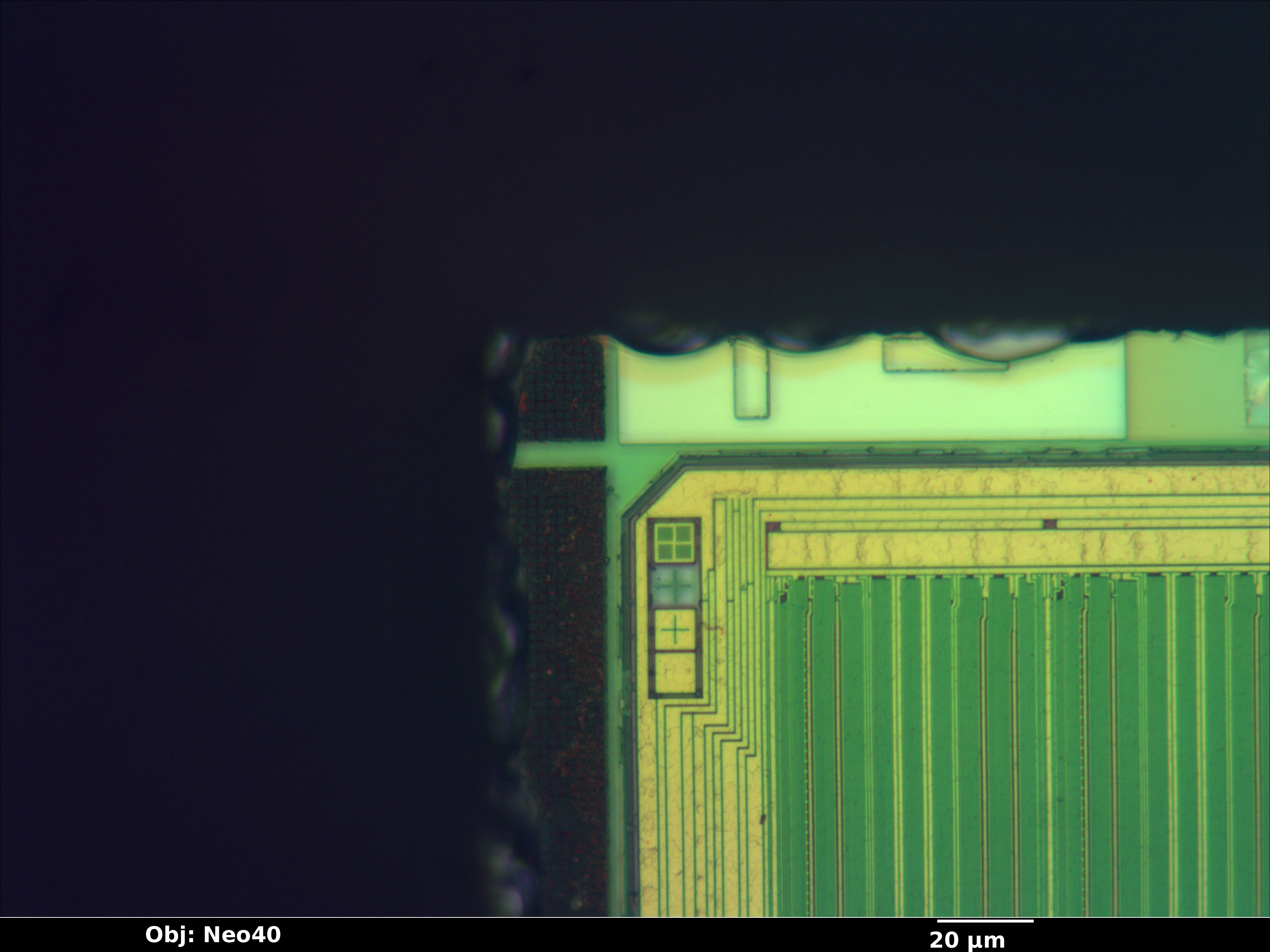

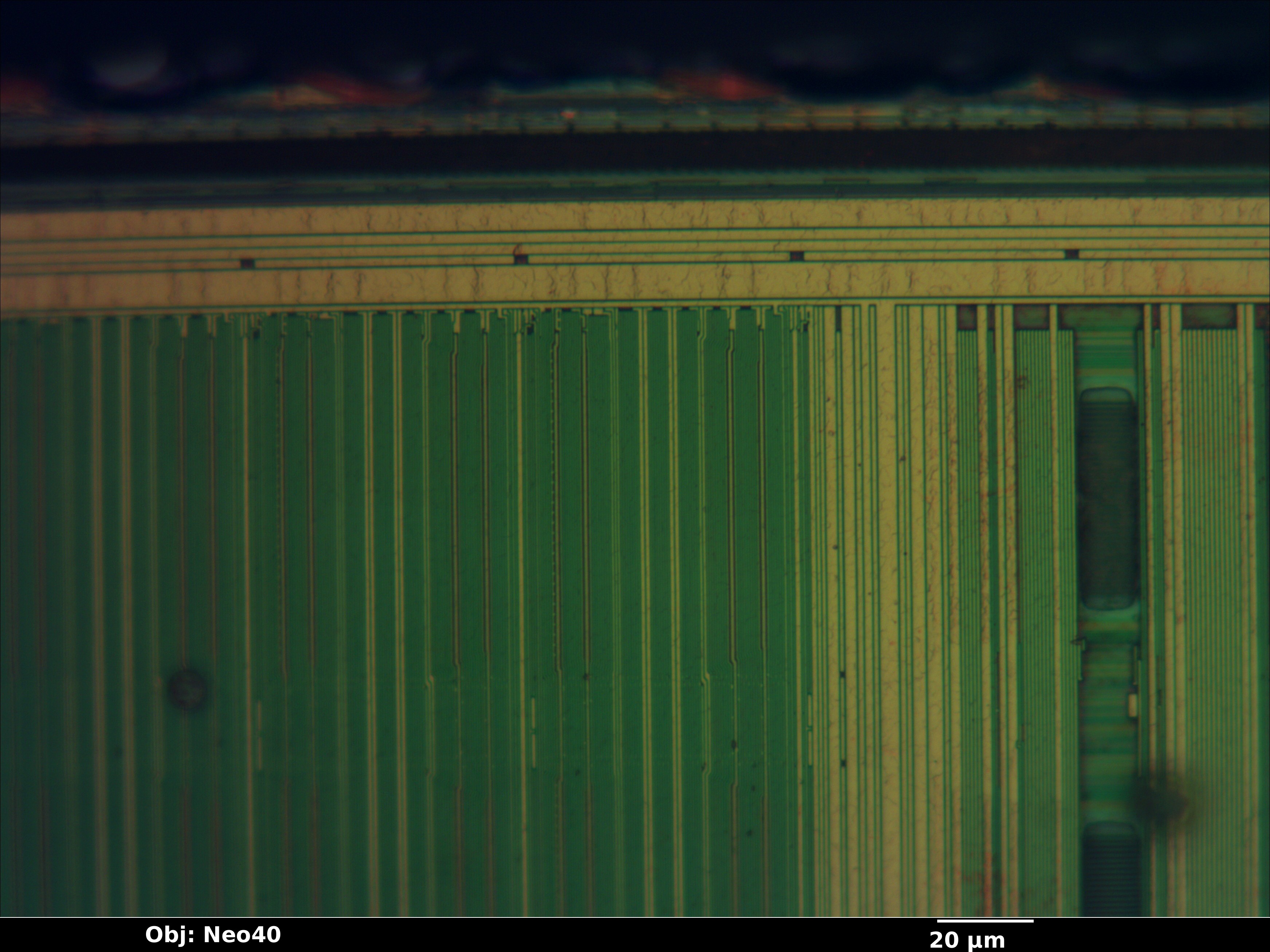

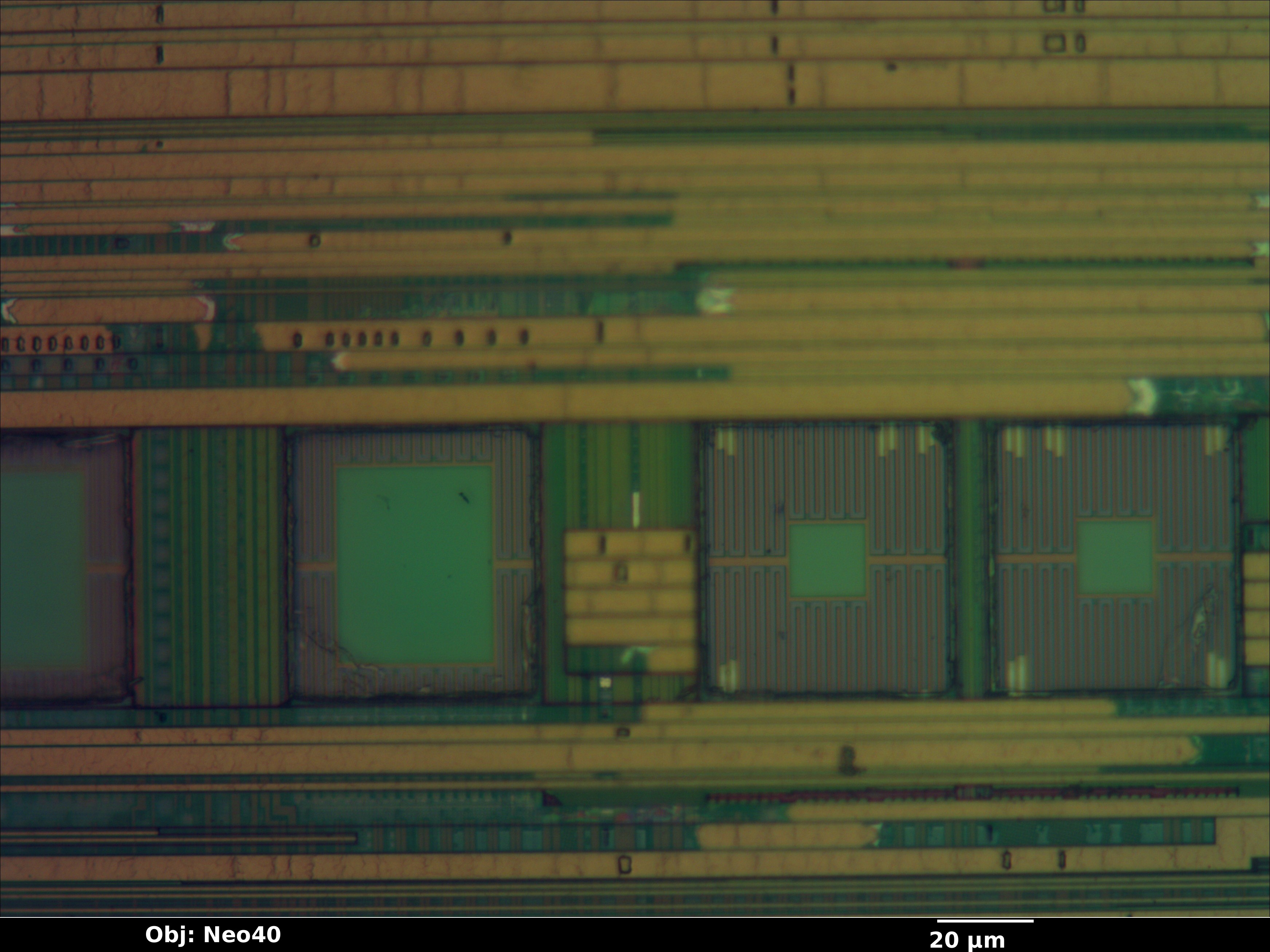

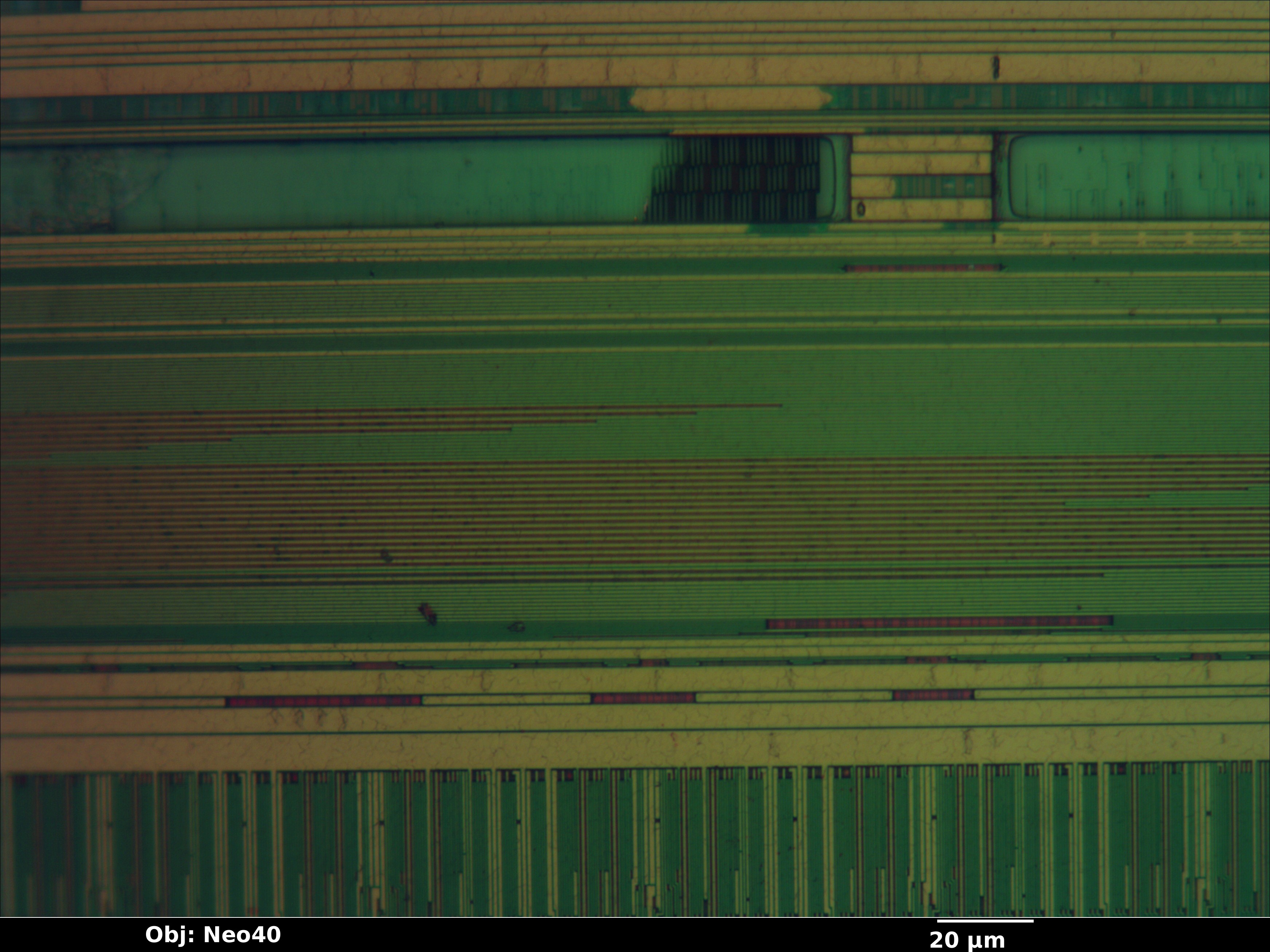

Die

Size is approximately 4200 x 4100 μm (17.2 mm²).
