azonenberg:worldsemi:ws2811
Worldsemi WS2811 LED controller, found inside a WS2812 RGB LED+controller. Looks like 500nm 1-metal planarized CMOS.

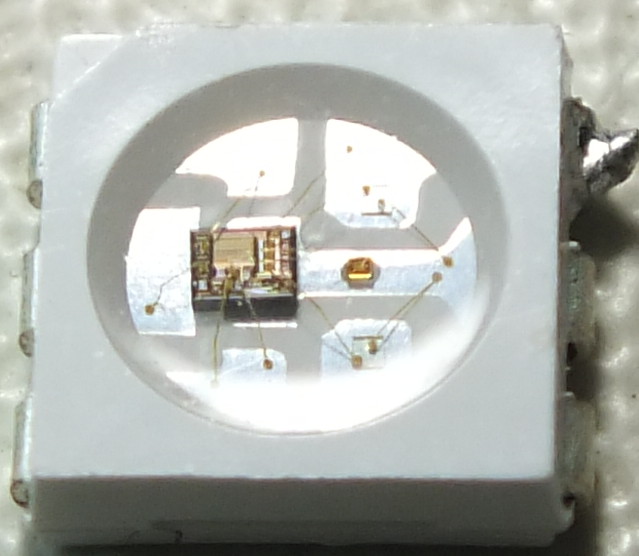

Package
Die
Size is approximately 940 x 710 μm (0.67 mm2)

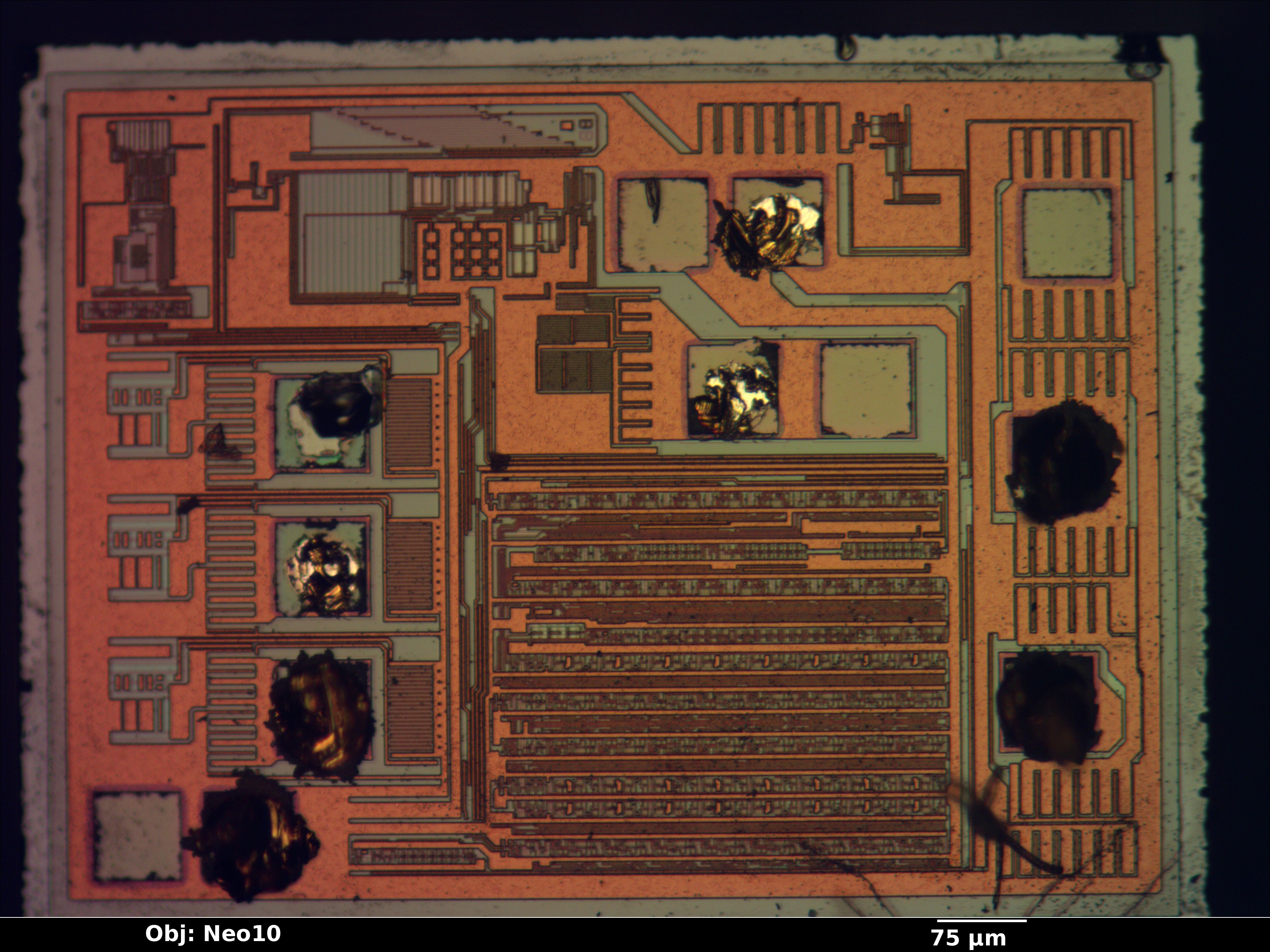

Overview

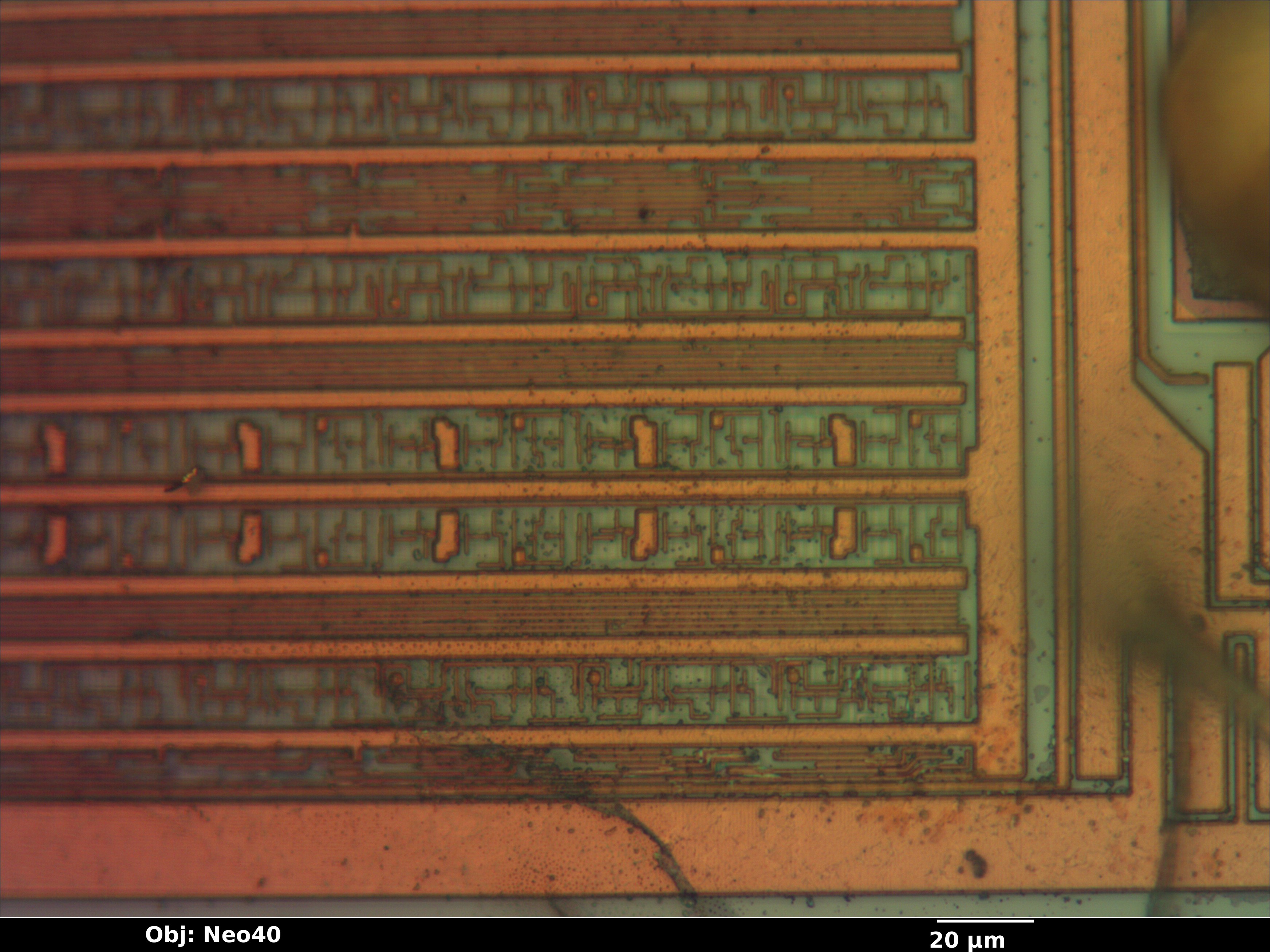

Closeup, focal plane on metal

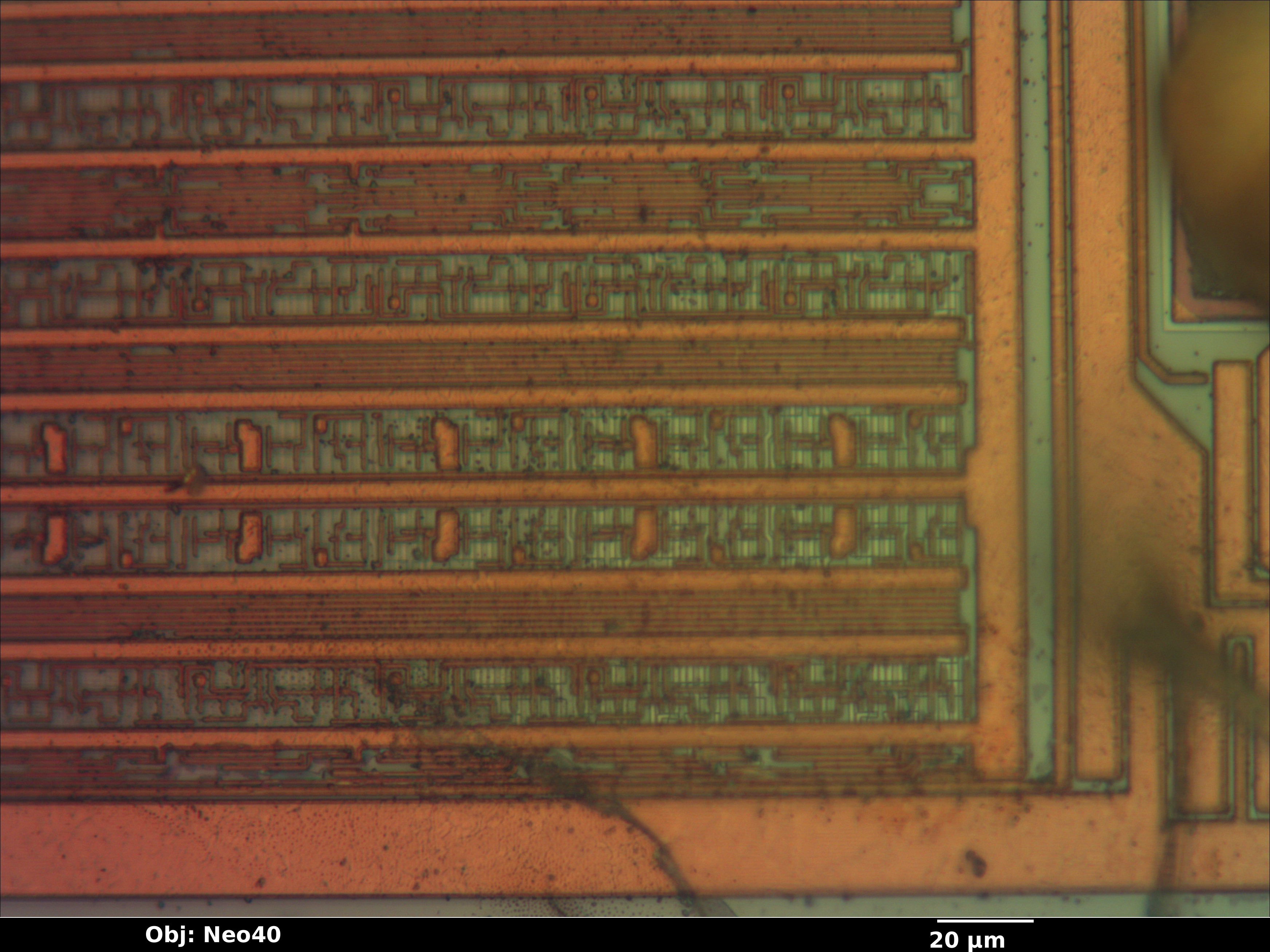

Closeup, focal plane on poly
