Xilinx CoolRunner-II CPLD with 128 macrocells (eight function blocks). Die revision B.

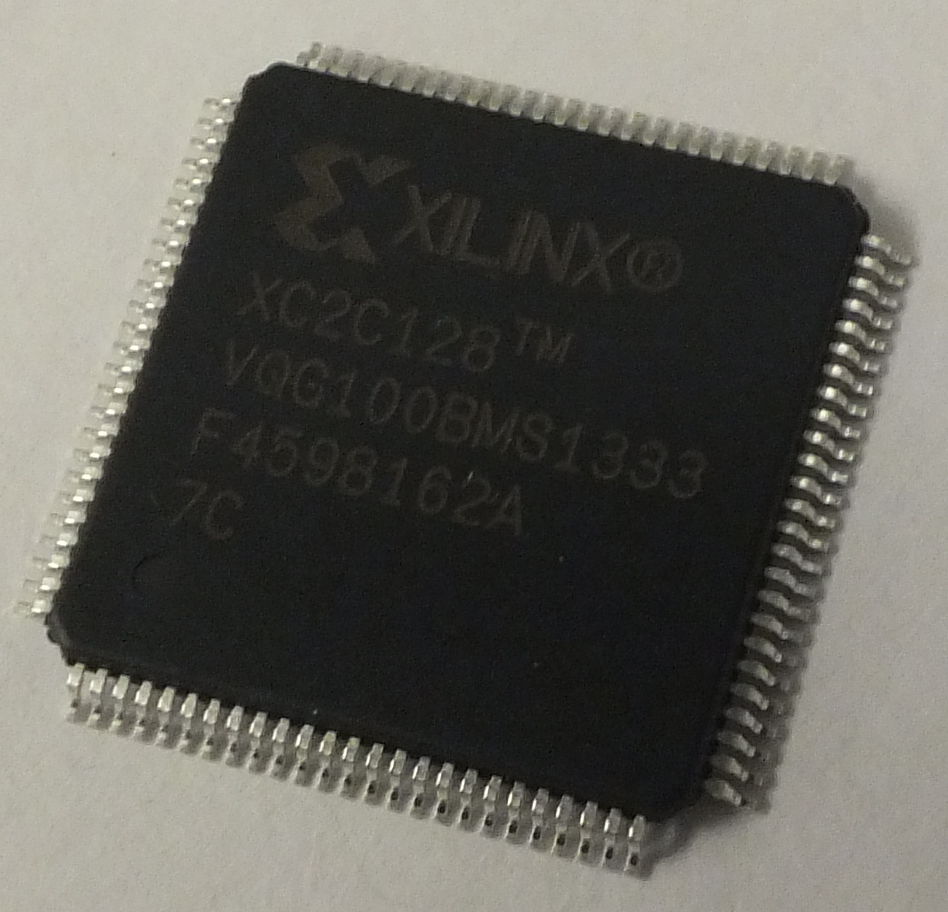

Package

VQG100 - 100-pin 0.5mm TQFP

Markings:

[Xilinx logo] 2C128 (TCM)
VQG100BMS1333
F4598162A
7C

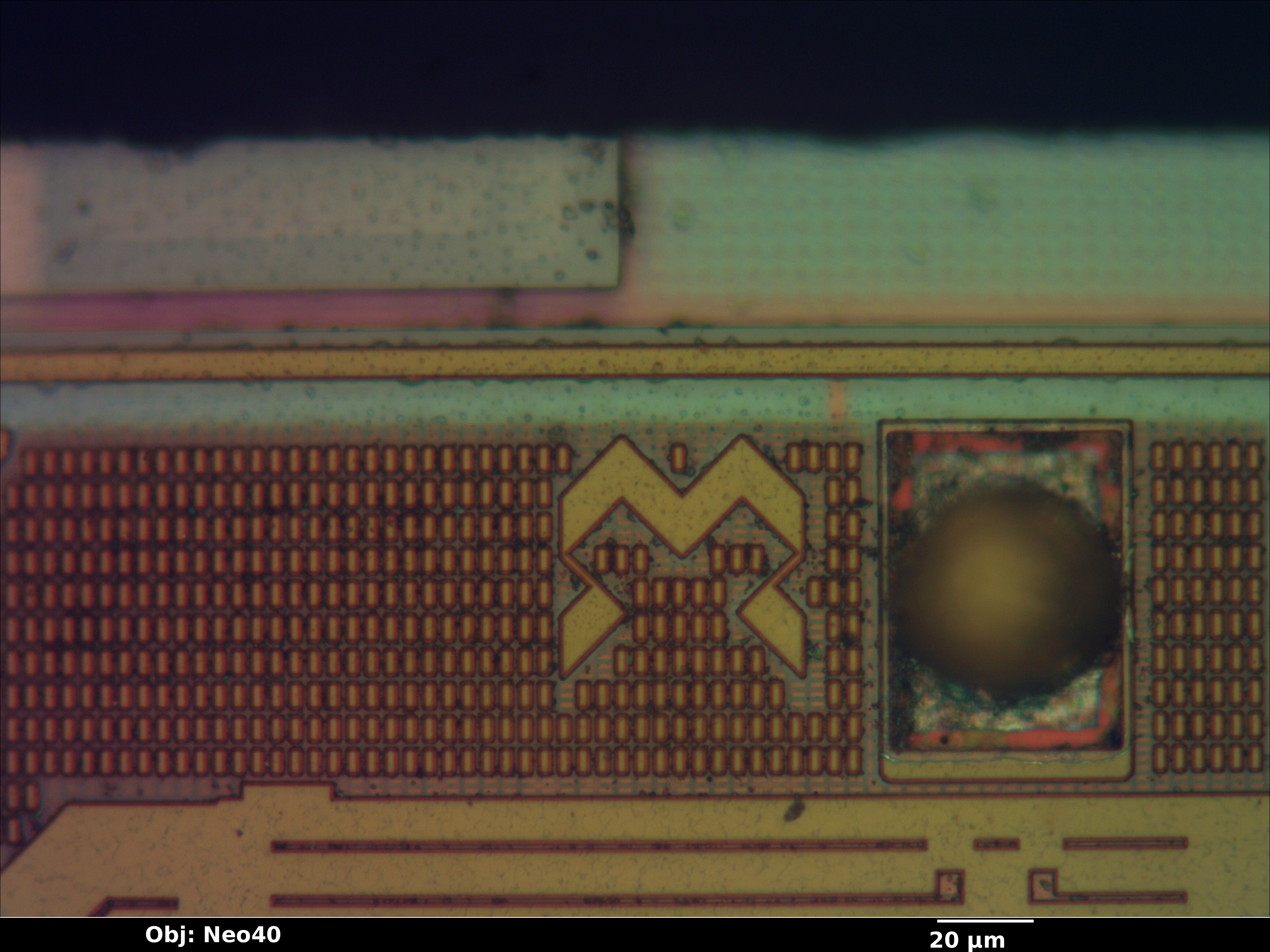

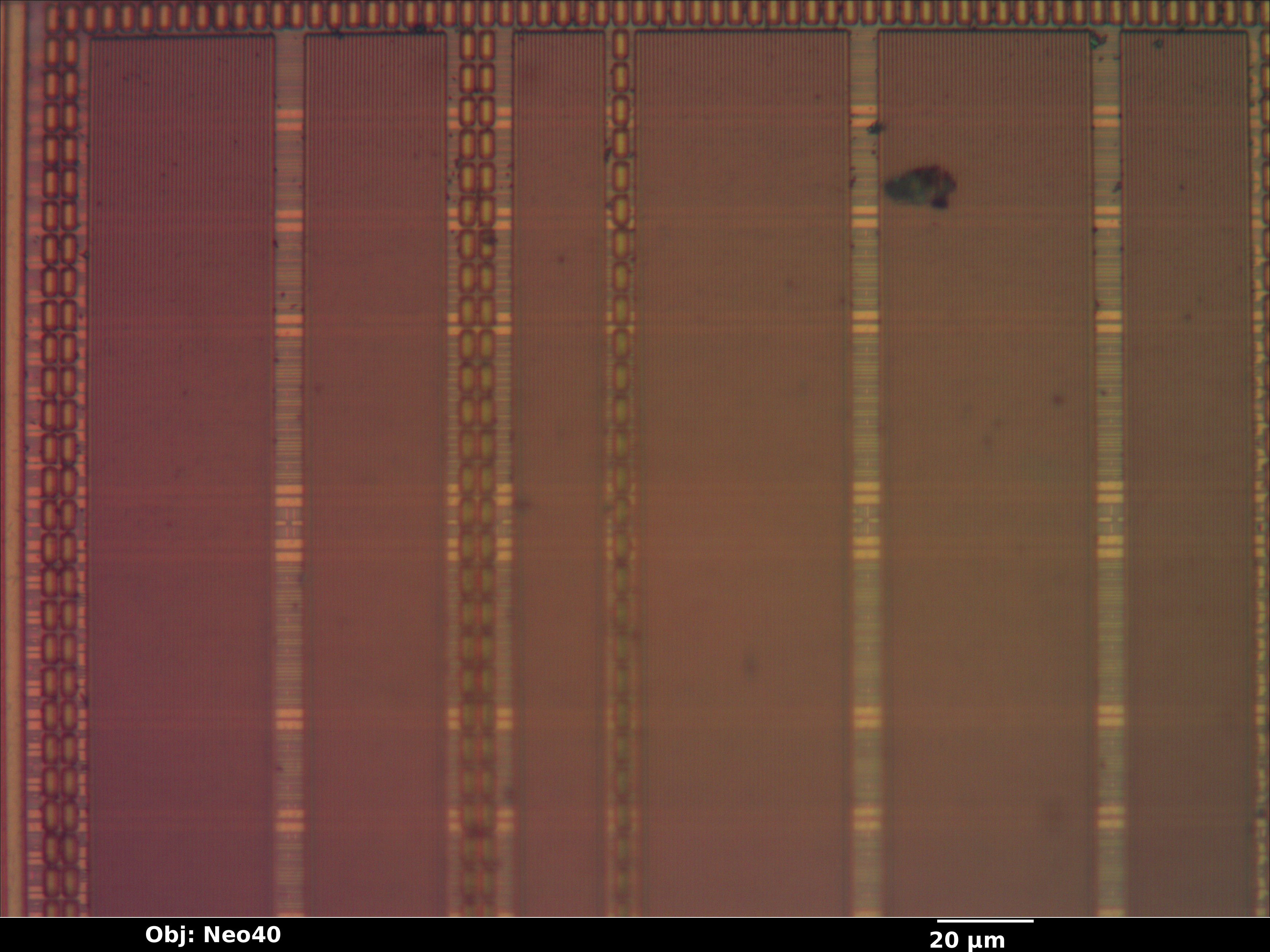

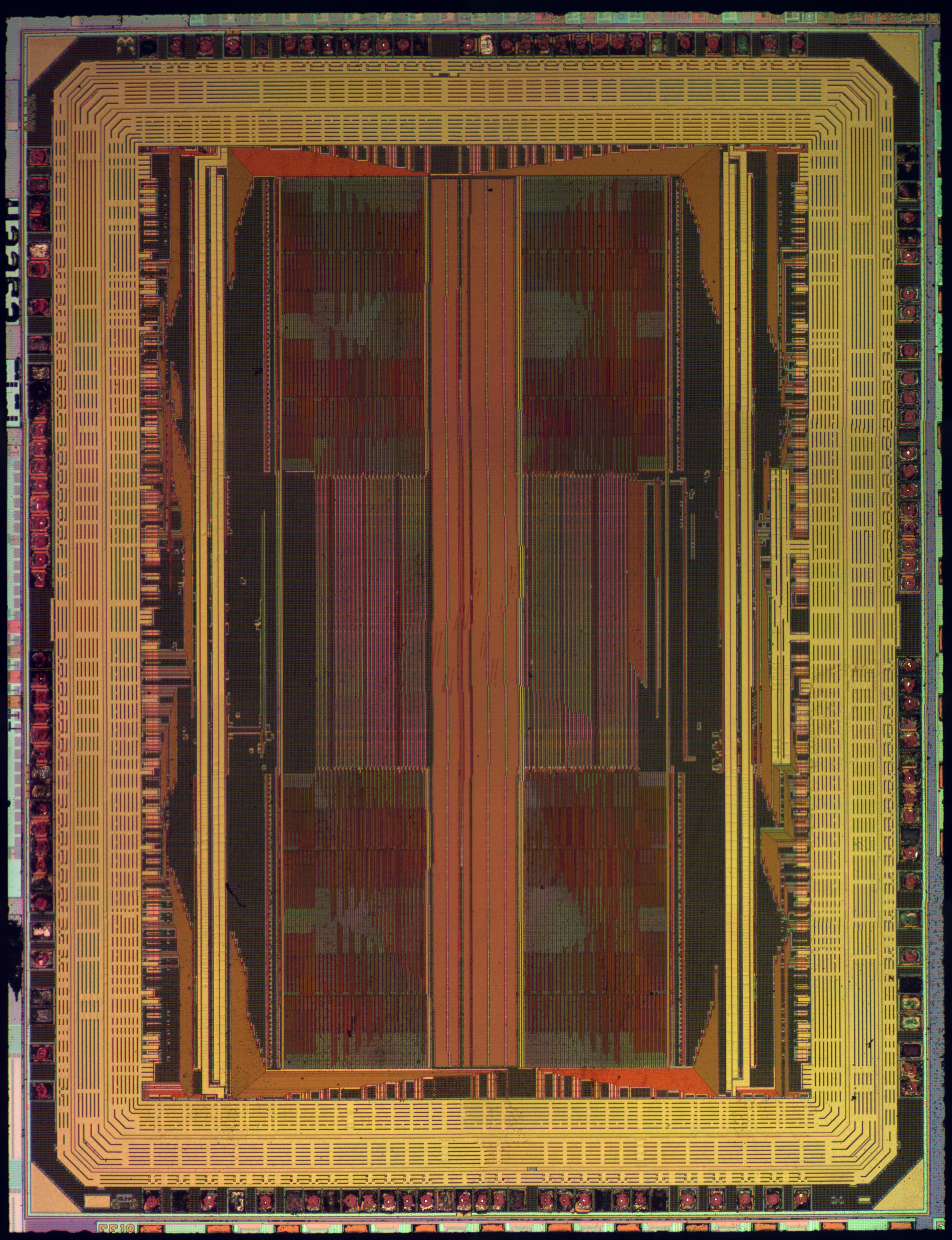

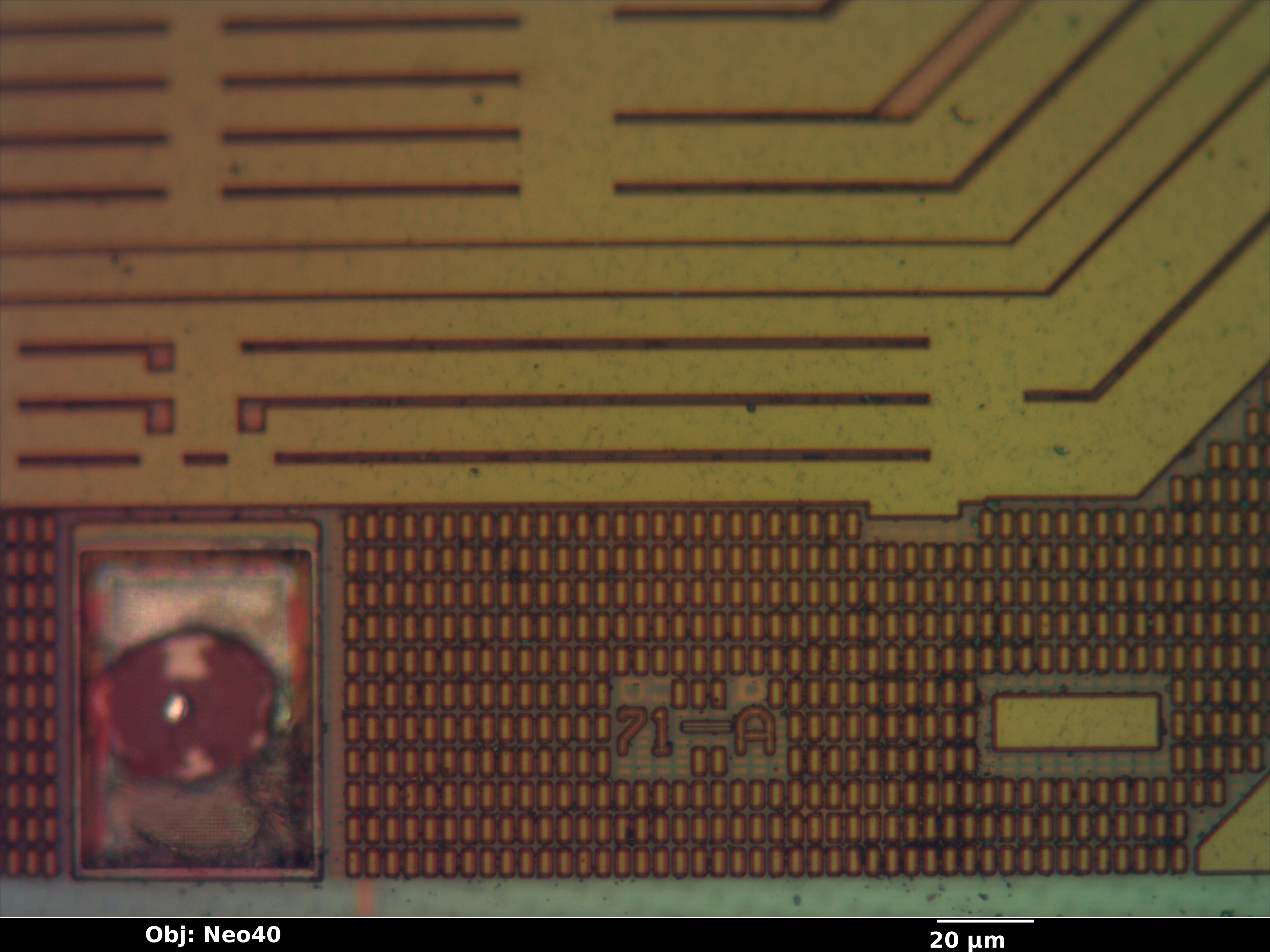

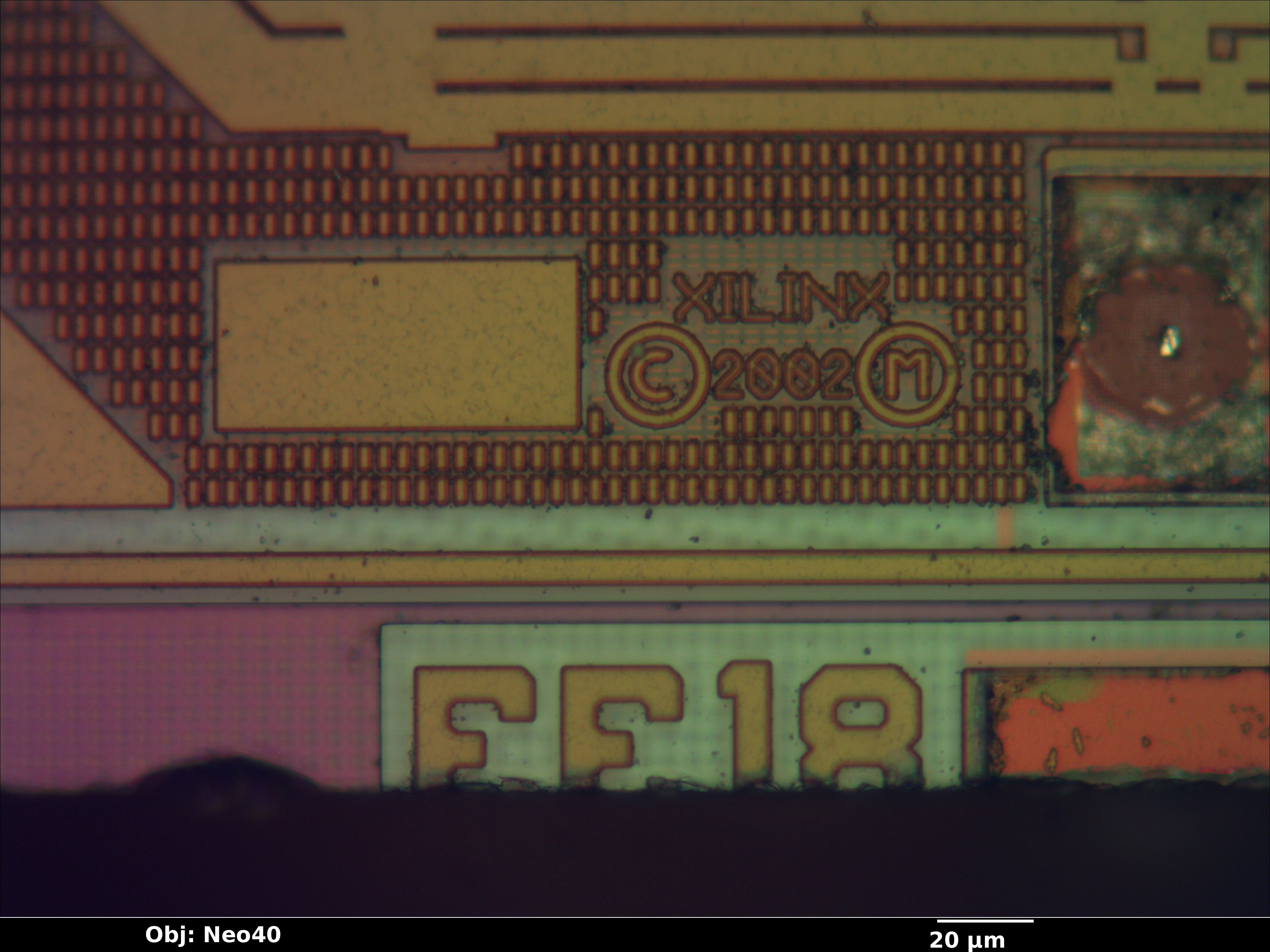

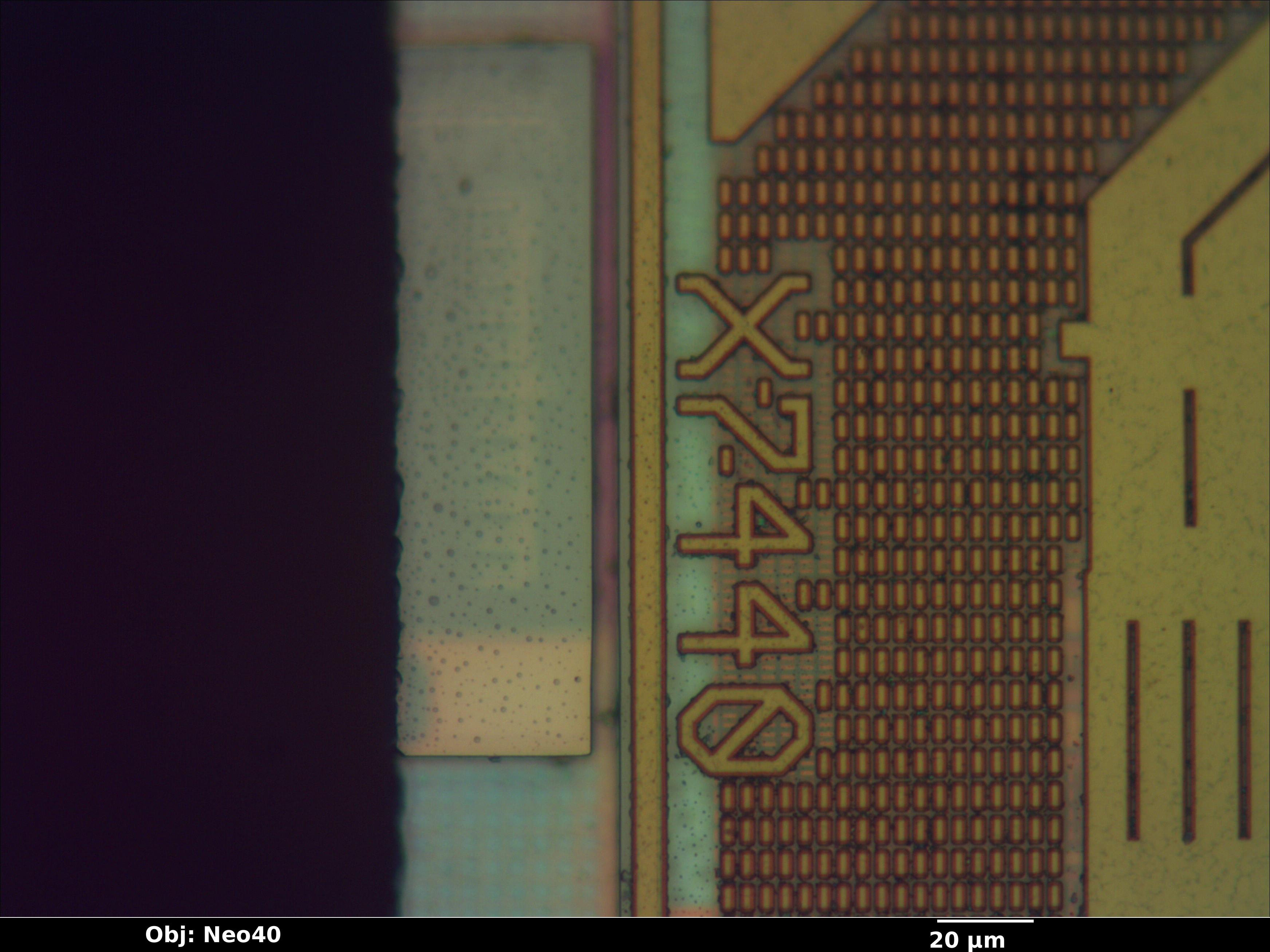

Die

Die size: 2710 x 3540 μm (9.59 mm^2)

Map

TODO
