azonenberg:xilinx:xc95144xl
144-macrocell / 3200 gate Xilinx XC9500XL series CPLD.
Decapped on 2/4/2014 by lab group B of CSCI 4974/6974 at RPI.

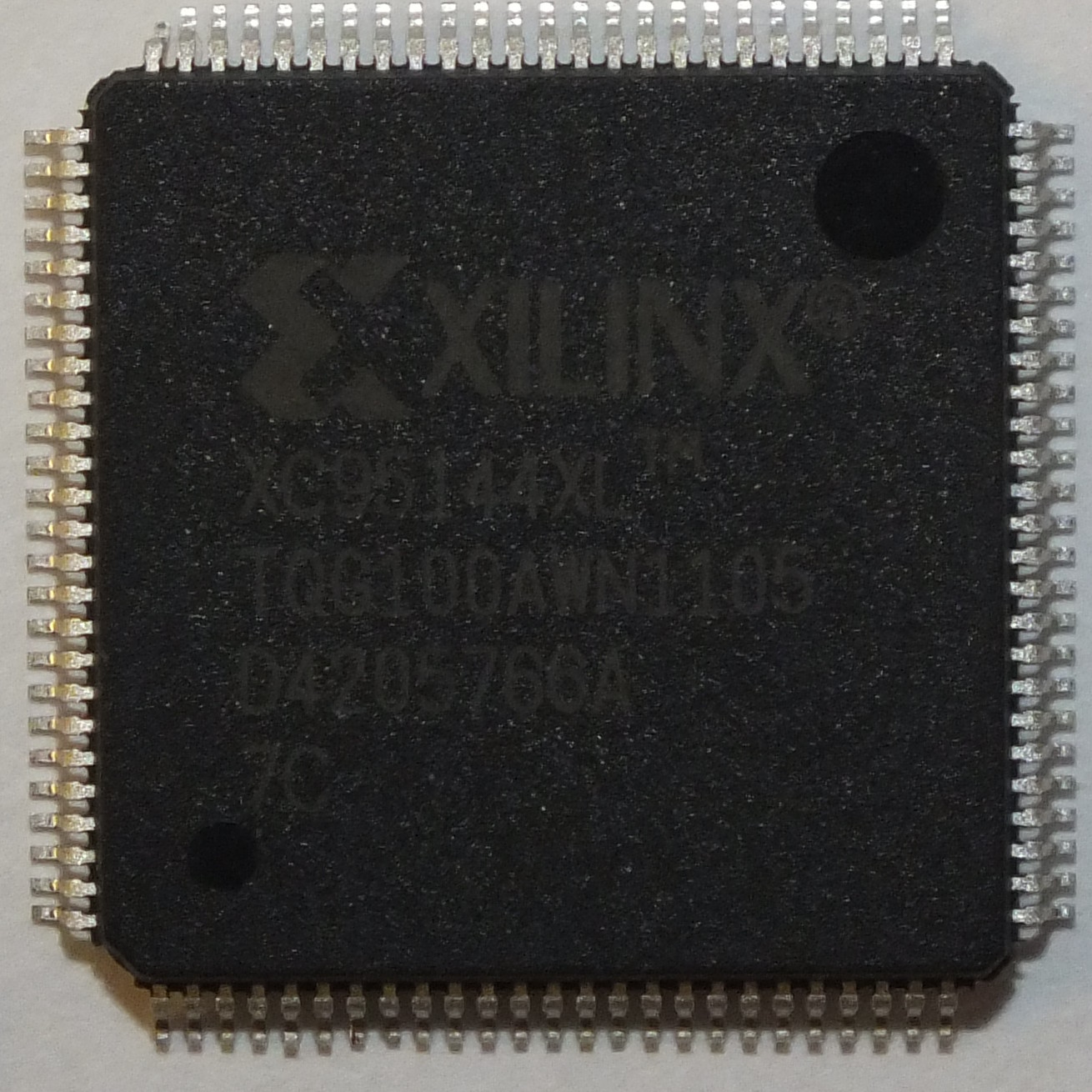

Package
Markings:
(X) XILINX (R) XC95144XL (TM) TQG100AWN1105 D4205766A 7C

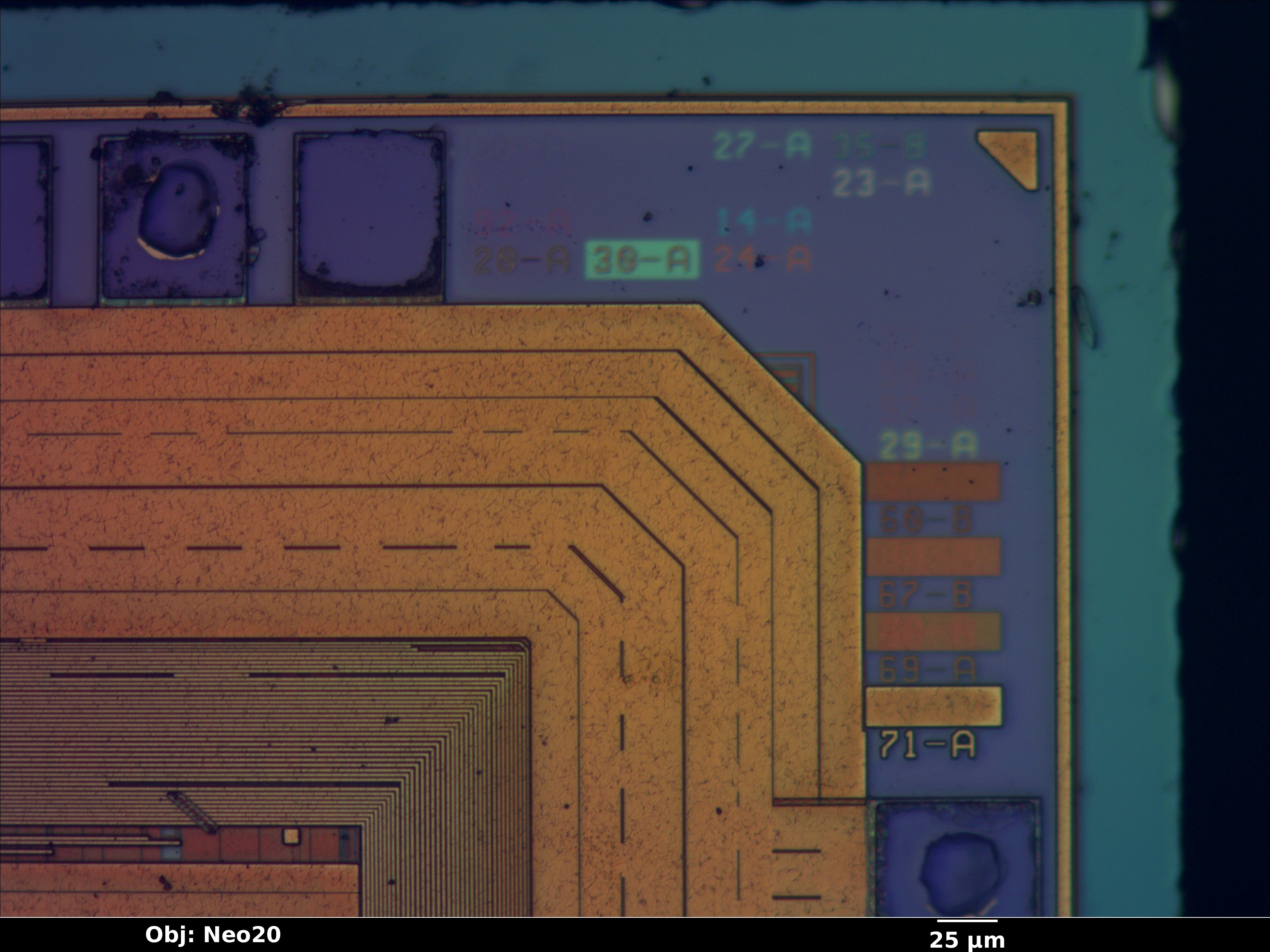

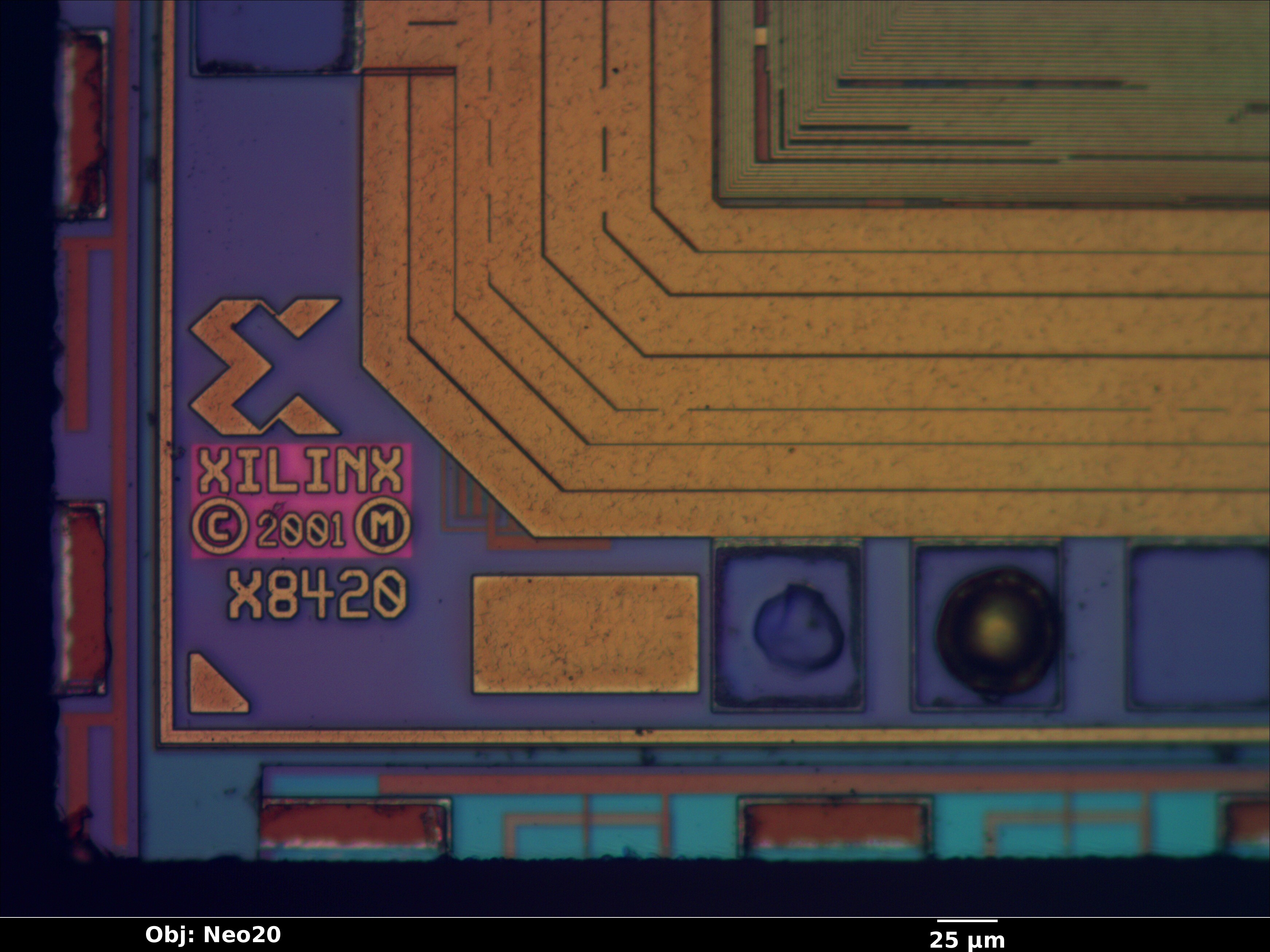

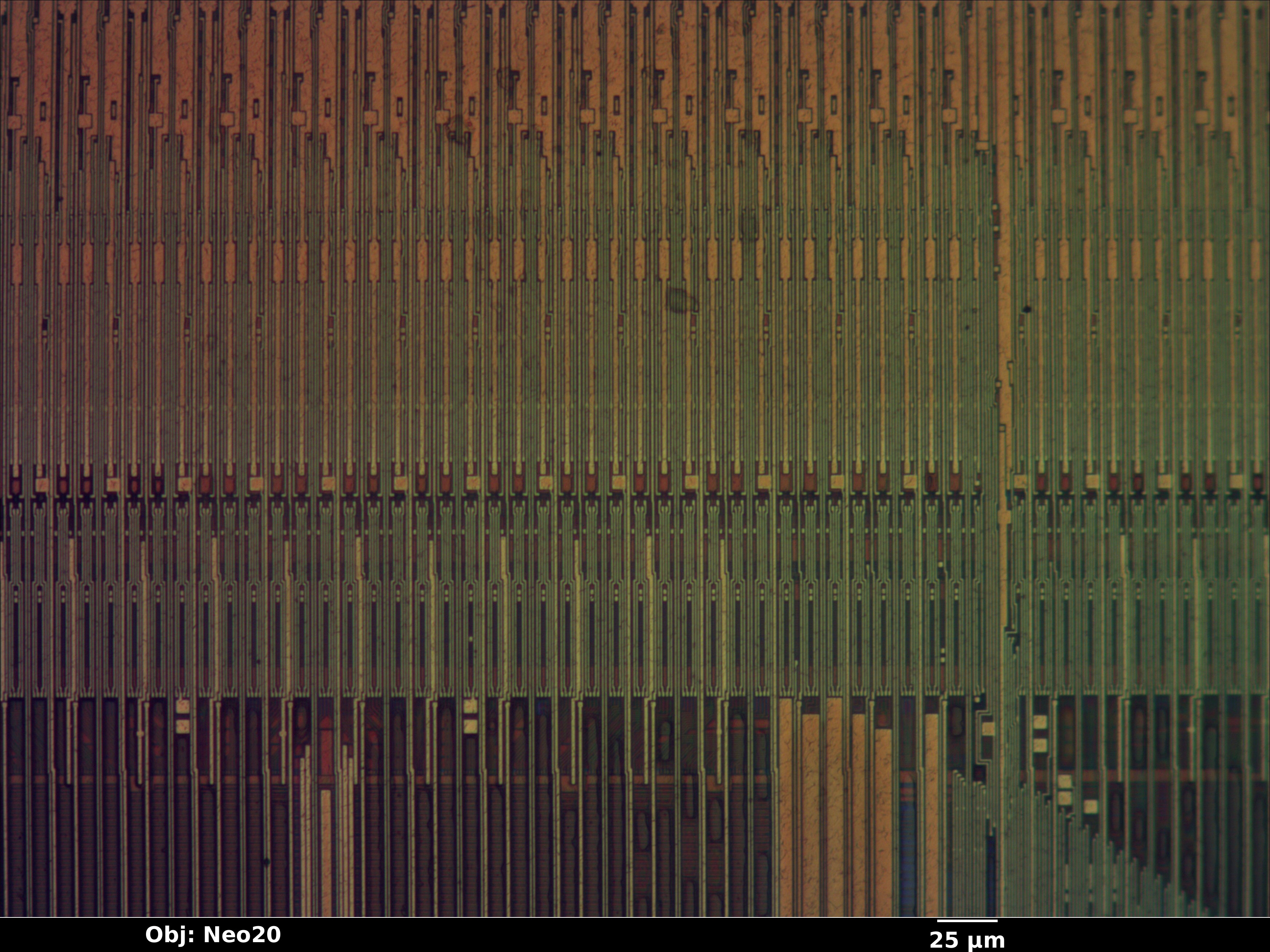

Die

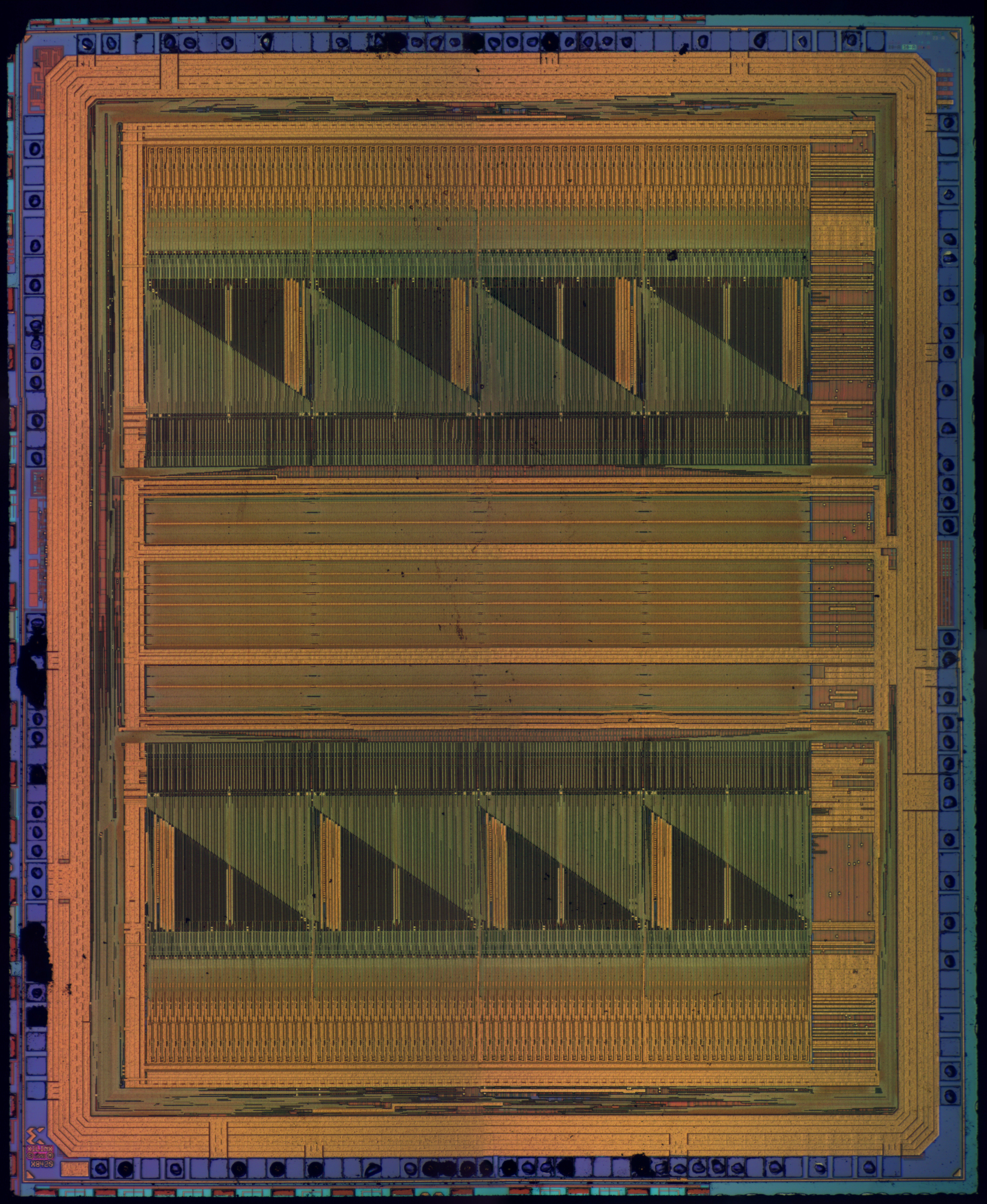

Die size: 3290 x 4000 μm (13.16 mm^2)
