azonenberg:xilinx:xcr3064xl
Family has been manufactured by both Philips and UMC. Given the 2014 date code it is believed that this die was made at UMC.

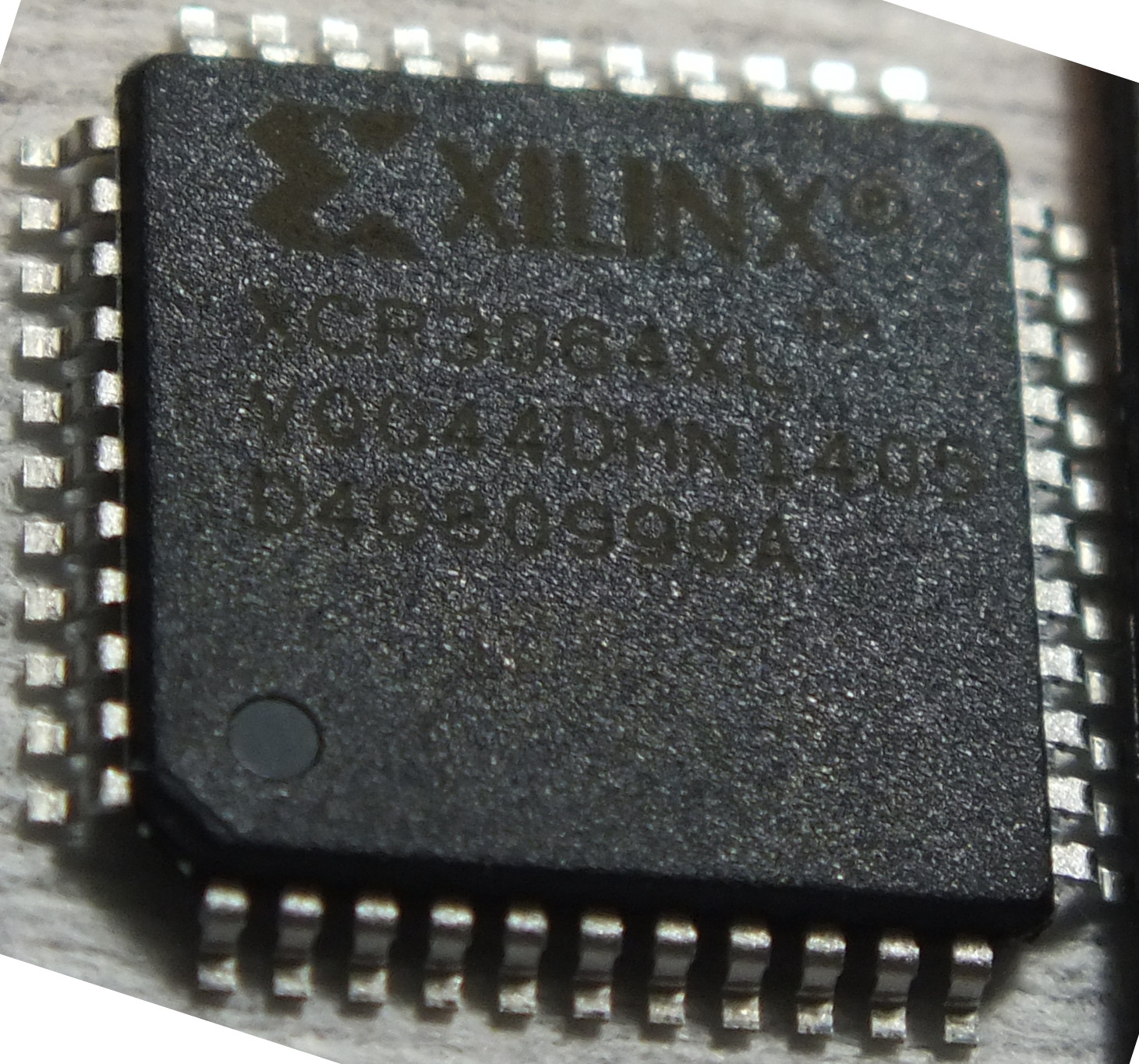

Package
Markings:
(X) XILINX (R) XCR3064XL (TM) VQG44DMN1406 D4680999A

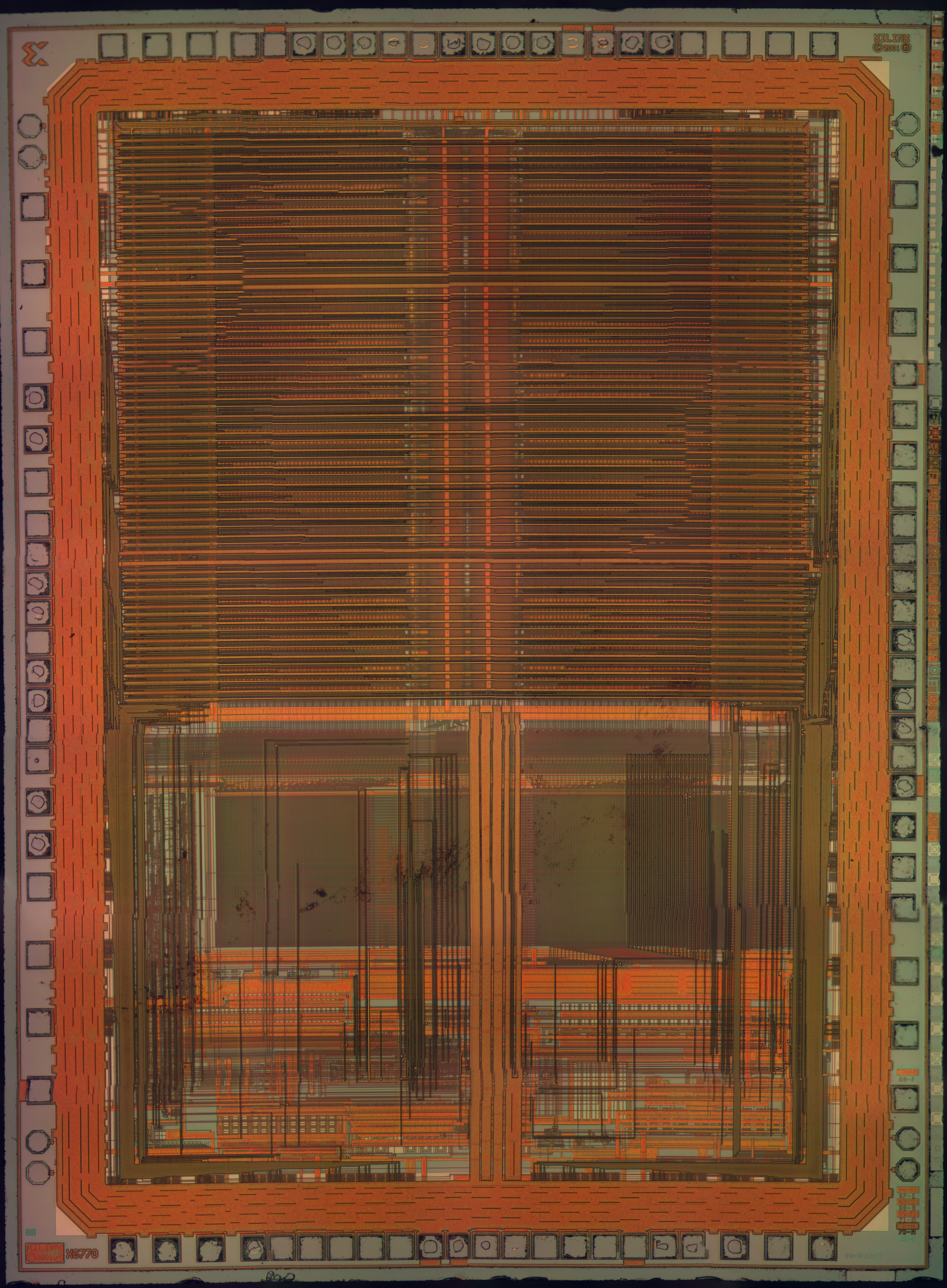

Die
Size is approximately 2880 x 3920 μm (11.29 mm2)

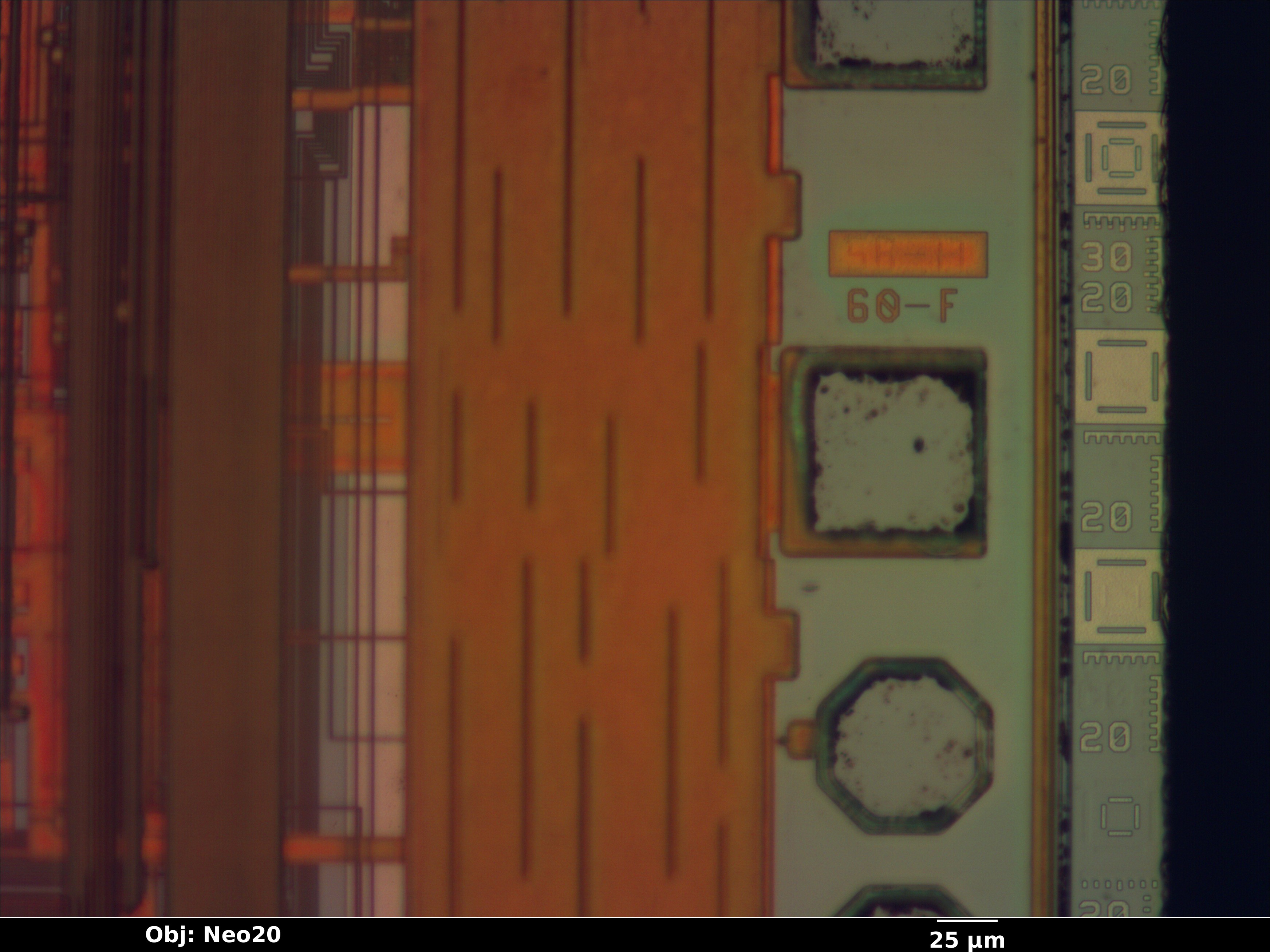

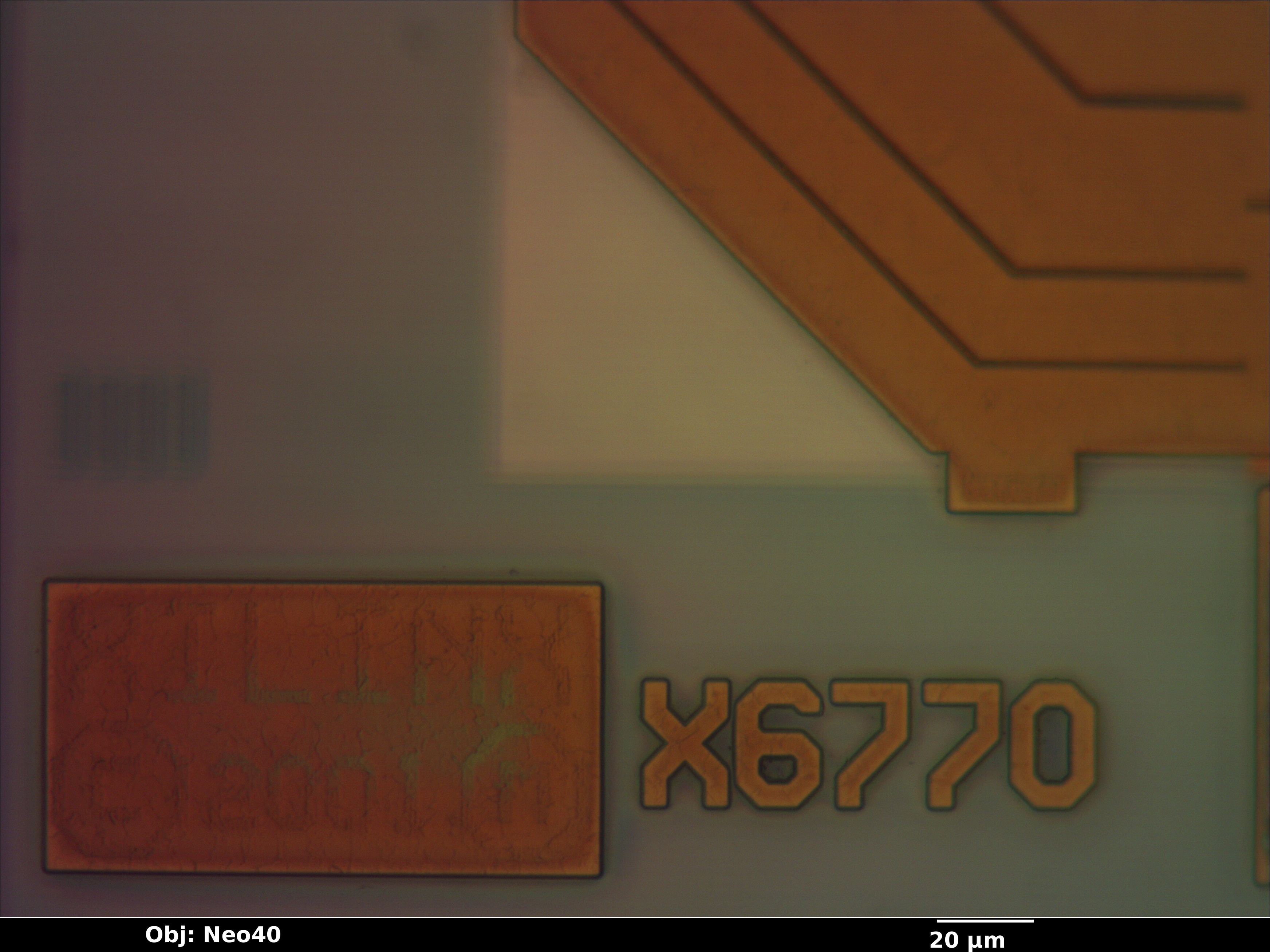

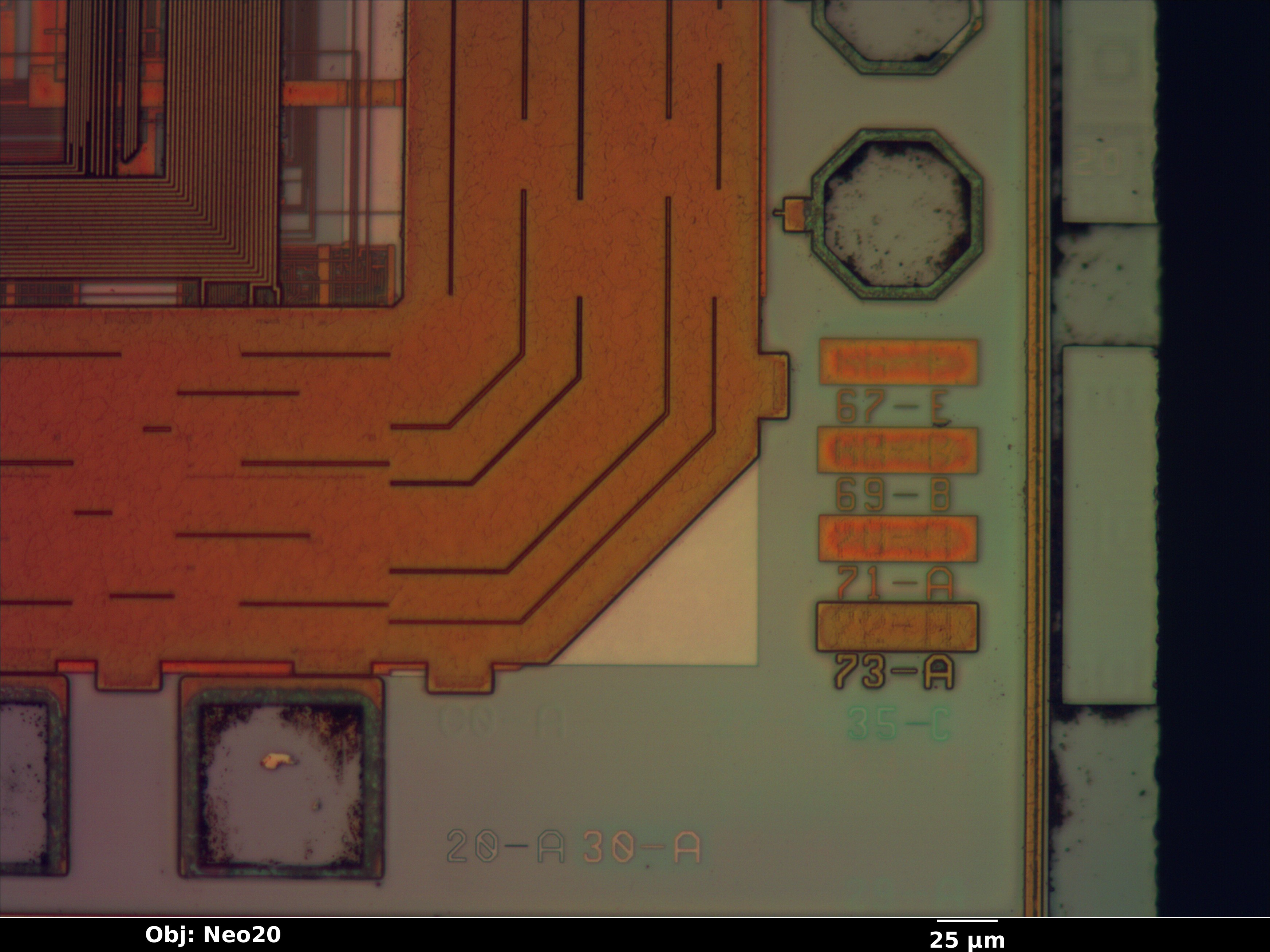

Mask revision markings

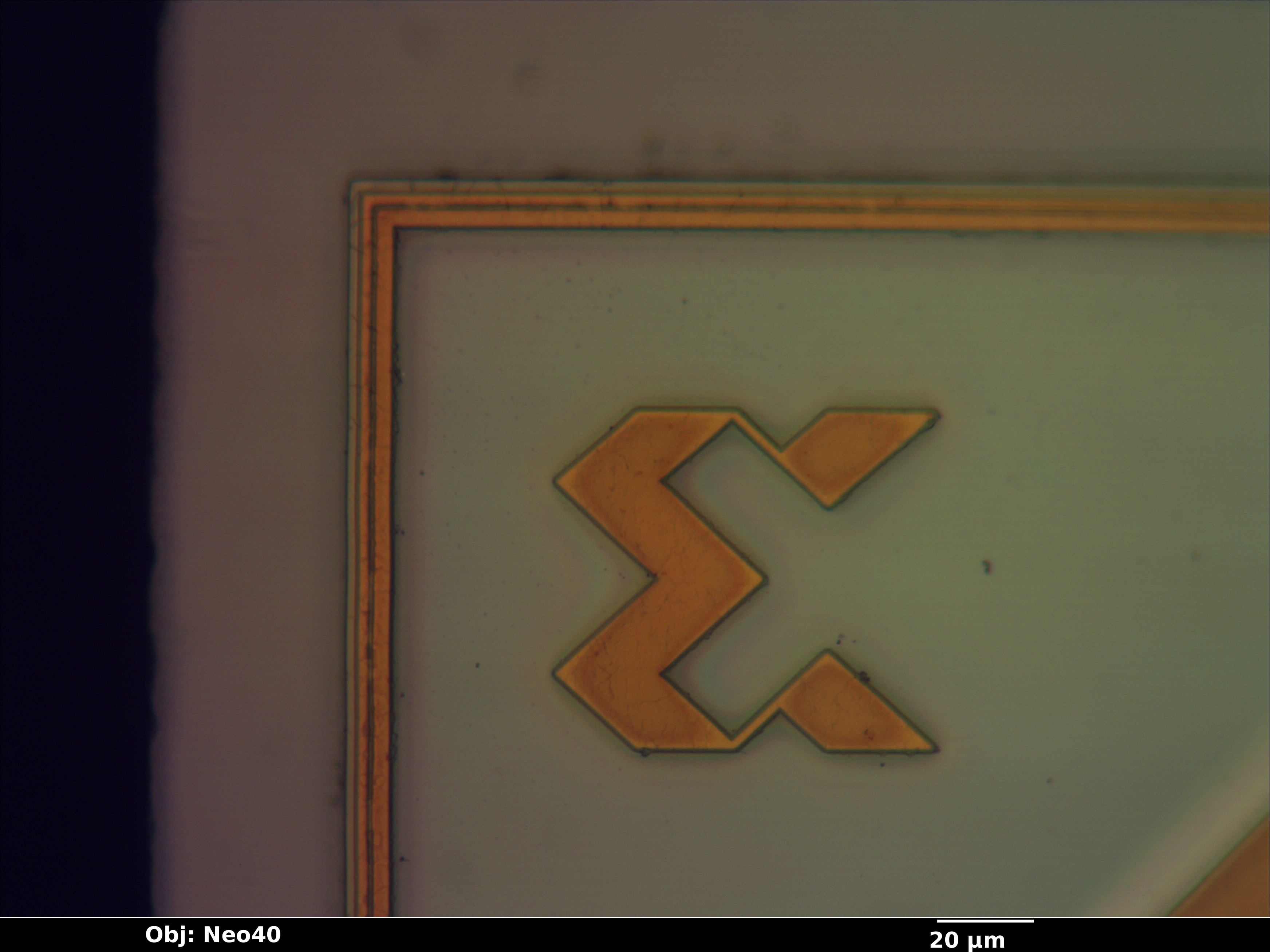

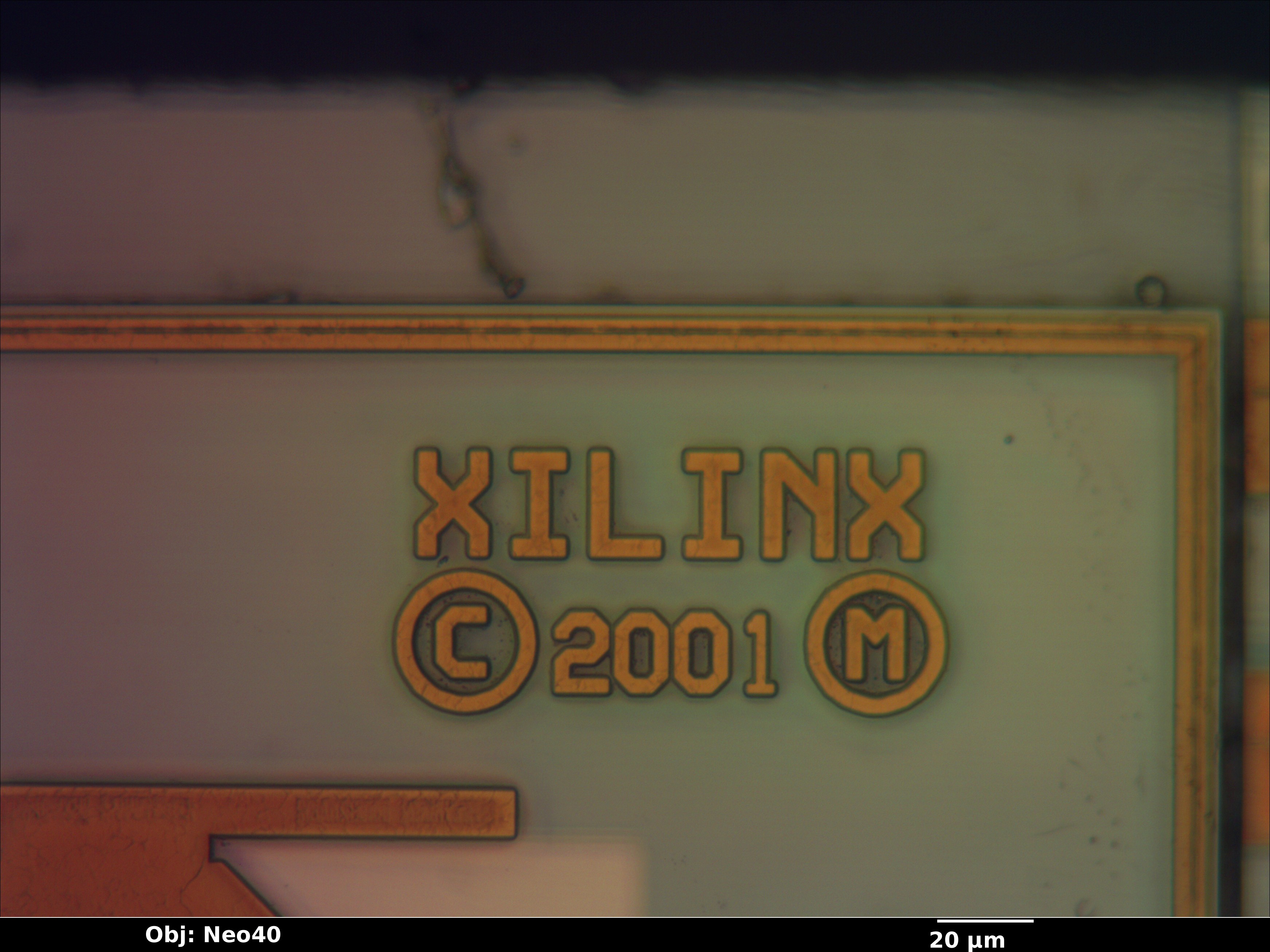

Logos

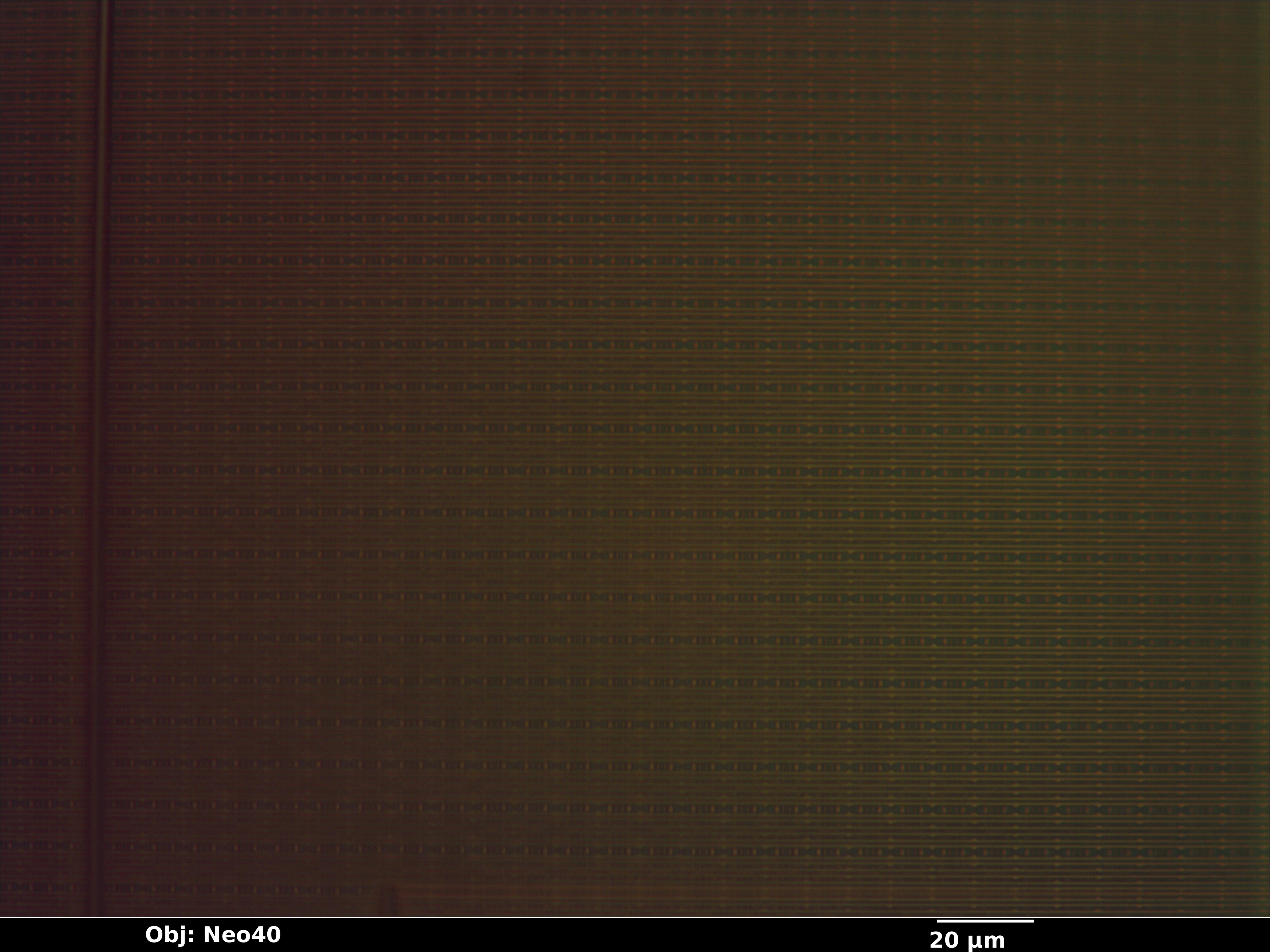

Random logic array stuff

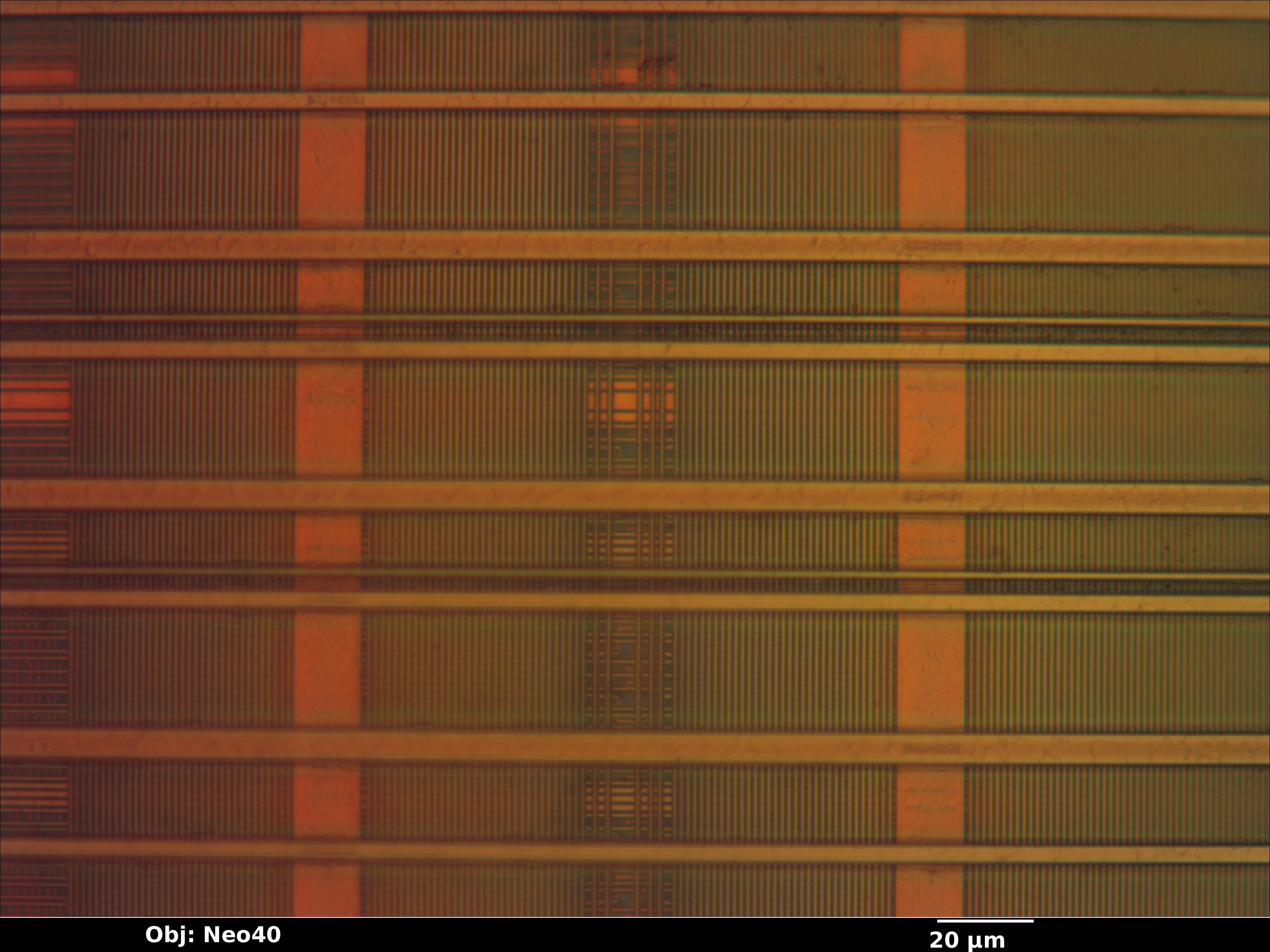

Big bus down the center spine, probably the ZIA
