bercovici:sunplus:spcp16a
Source: https://web.archive.org/web/20210524210759/https://twitter.com/Siliconinsid/status/1396861900663791626 Text: SunPlus SPCP16A (2004) The SPCP16A is a 8-bit microcontroller with integrated low speed USB interface and PS/2, 64 bytes of RAM, and 4.5k of ROM, specifically designed for computer mouse applications. The 8-bit core is a 65N02 (6502 compatible) - middle right part of the die.

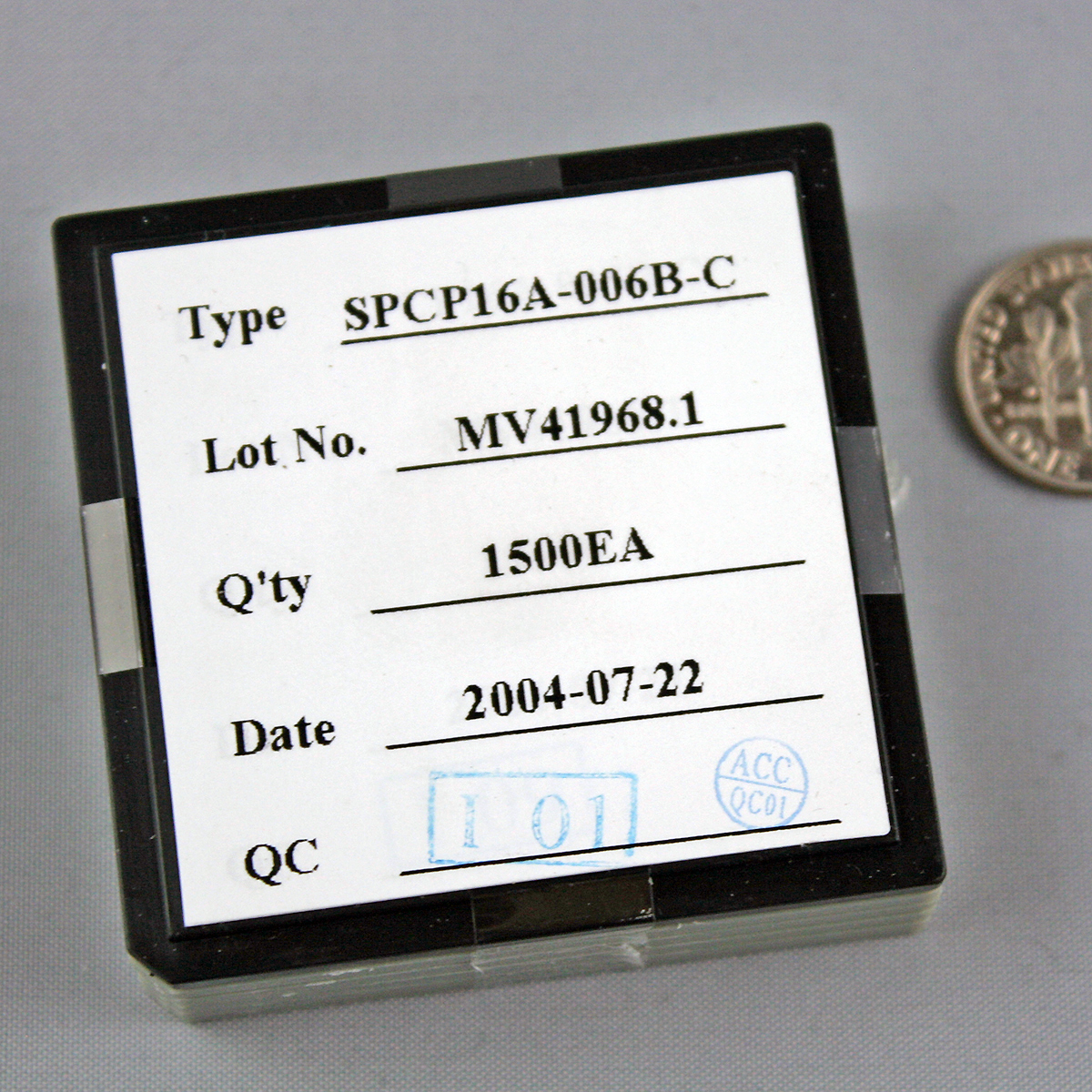

Package
Type SPCP16A-006B-C Lot No. MV41968.1 Q'ty 1500EA Date 2004-07-22 QC 1 01 ACC QC01

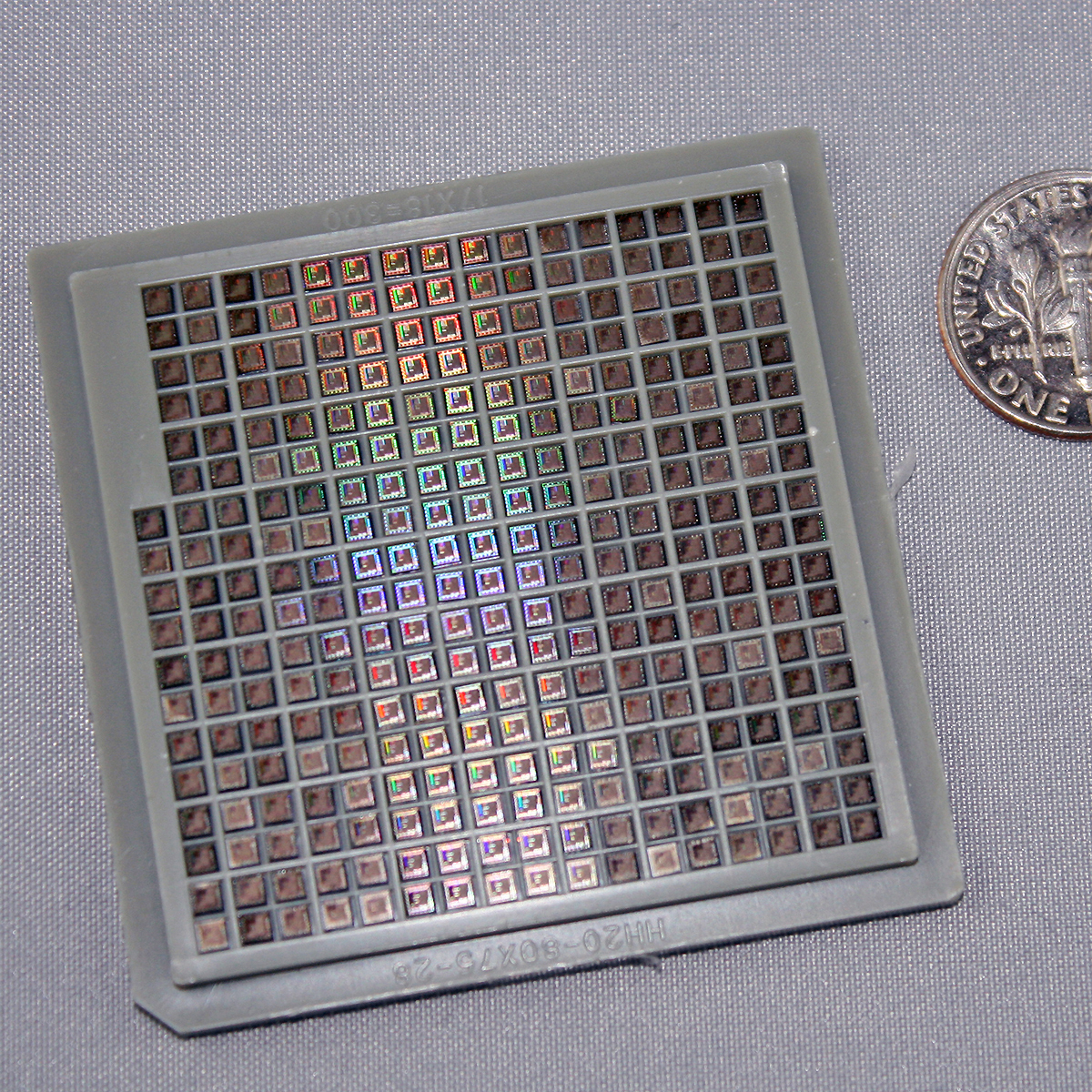

17x18=300 HH20-80x75-28

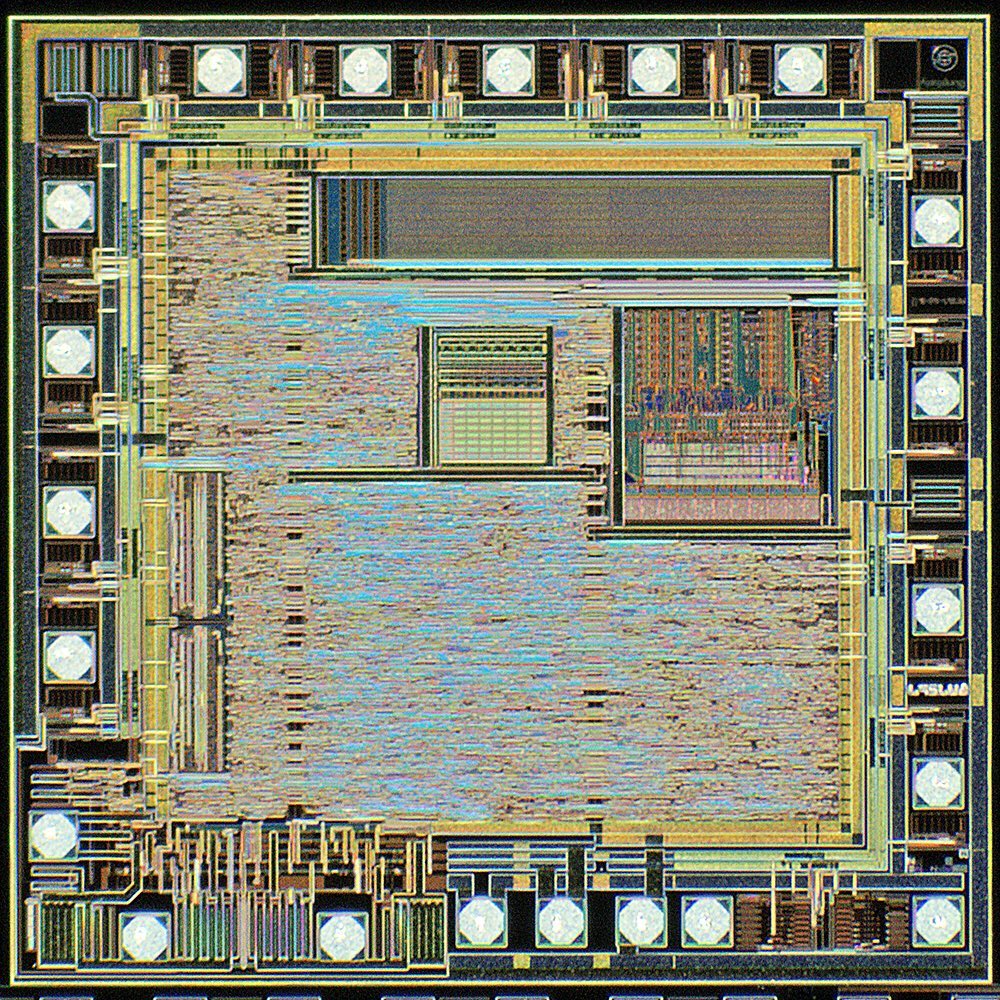

Die
