infosecdj:amd:am2903dc

collection infosecdj, vendor amd, type unknown, year unknown, foundry unknown

This is a 4-bit ALU slice from the Am2900 family. It is implemented in low-power Schottky TTL.

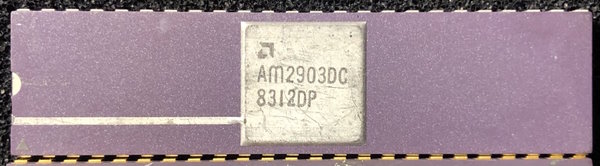

Package

(Logo)
AM2903DC
8312DP

Die

(C) (Logo)
3703A

Top metal imaged with LMplan 10x

Single (16203×13398, 61.1559MiB)
