infosecdj:dec:19-18073-00

collection infosecdj, vendor dec, type unknown, year 1987, foundry unknown

An ASIC fabricated from a gate array.

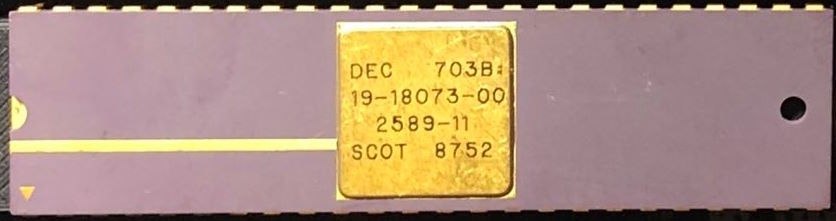

Package

DEC 703B
19-18073-00
2589-11
SCOT 8752

Die

DC700
DC703

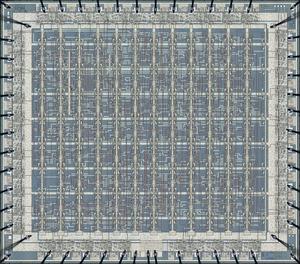

Map of top metal taken with LMplan 10x

Single (20027×17613, 83.3578MiB)
