collection infosecdj, vendor siemens, type unknown, year unknown, foundry unknown

Apparently, Visa Cash implementation by Siemens, revision A3.

Package

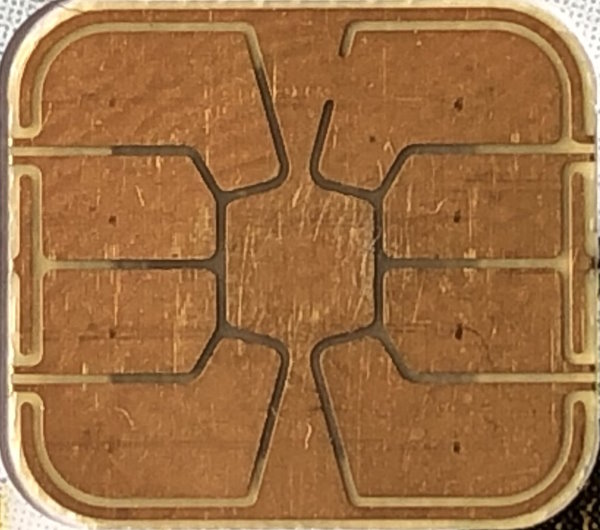

Siemens module M2.2.

Die

SIEMENS
M1327A3
VISA66
001

Mask revision codes:

212
113446

Top metal

Map taken with Carl Zeiss Planapo 40x/1.0

Single (21346×21335, 88.1123MiB)

Deprocessing attempt 1

Map taken with Carl Zeiss Planapo 40x/1.0

Single (21340×21182, 81177200B)

Deprocessing attempt 2

Map taken with Carl Zeiss Planapo 40x/1.0

Single (20704×20660, 79.8356MiB)

Deprocessing attempt 3

Map taken with Carl Zeiss Planapo 40x/1.0

Single (21298×21263, 87.5195MiB)

Substrate

Map taken with Nikon 20x ELWD

Single (8205×8174, 12.6957MiB)
