infosecdj:siemens:m1327a3

This is an old revision of the document!

, , , ,

Apparently, Visa Cash implementation by Siemens, revision A3.

Package

Siemens module M2.2.

Die

SIEMENS
M1327A3
VISA66
001

Mask revision codes:

212
113446

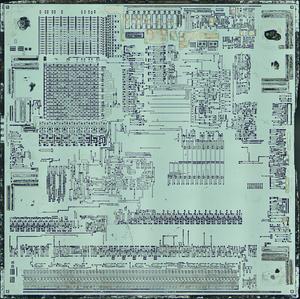

siliconpr0n.org_map_siemens_m1327a3_single_siemens_m1327a3_infosecdj_mz_czpa40x.thumb.jpg

Top metal

  • Single (21346×21335, 88.1123MiB)

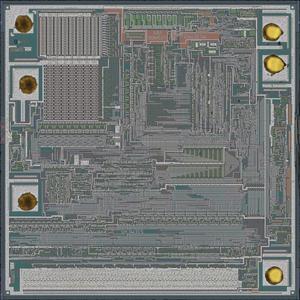

siliconpr0n.org_map_siemens_m1327a3_single_siemens_m1327a3_infosecdj_mz_czpa40x_s1.thumb.jpg

mz_czpa40x_s1

  • Single (21340×21182, 81177200B)

siliconpr0n.org_map_siemens_m1327a3_single_siemens_m1327a3_infosecdj_sub_nikon20x.thumb.jpg

sub_nikon20x

  • Single (8205×8174, 12.6957MiB)

siliconpr0n.org_map_siemens_m1327a3_single_siemens_m1327a3_infosecdj_poly2_czpa40x_s1.thumb.jpg

poly2_czpa40x_s1

  • Single (20704×20660, 79.8356MiB)
