infosecdj:toko-america:tk14583

collection infosecdj, vendor toko-america, type unknown, year unknown, foundry unknown

This is a FM IF IC developed for high speed communication, including mixer (up to 500MHz) and IF (up to 12MHz).

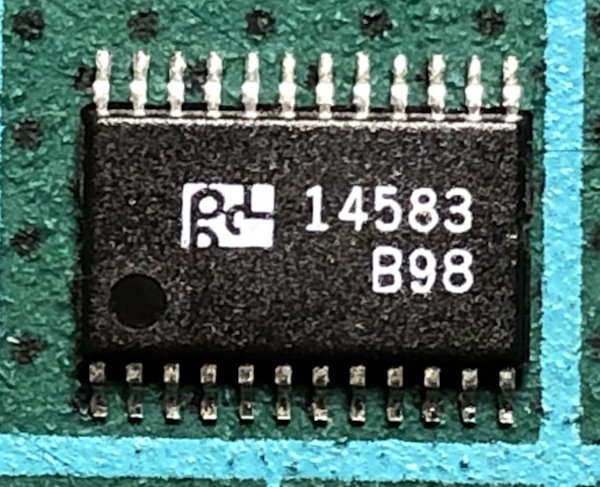

Package

(Logo) 14583
B98

Die

14583A

Top metal imaged with Nikon PlanApo 20x/0.75

Single (12663×15240, 41.4933MiB)
