infosecdj:zilog:z84c0006peg

collection infosecdj, vendor zilog, type processor microcontroller z80, year 1991, foundry unknown

The venerable Z80 CPU, its CMOS variant.

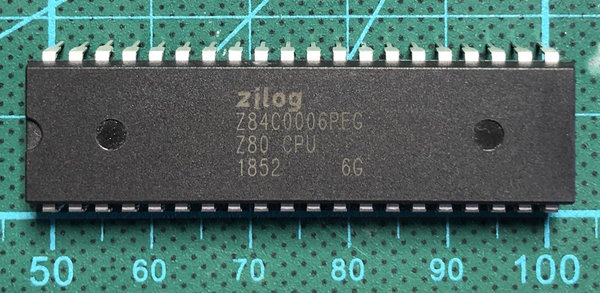

Package

zilog
Z84C0006PEG
Z80 CPU
1852 6G

Die

84C00
(M)(C) '75, '87, '91
ZILOG

Top metal imaged with Nikon 20x

Single (17979×15284, 47.3225MiB)
