Table of Contents
NOTE: between photos I changed the gains on my microscope and made some processing improvements (R2 corroded, R1 isn't). All that aside, they are still different here and there

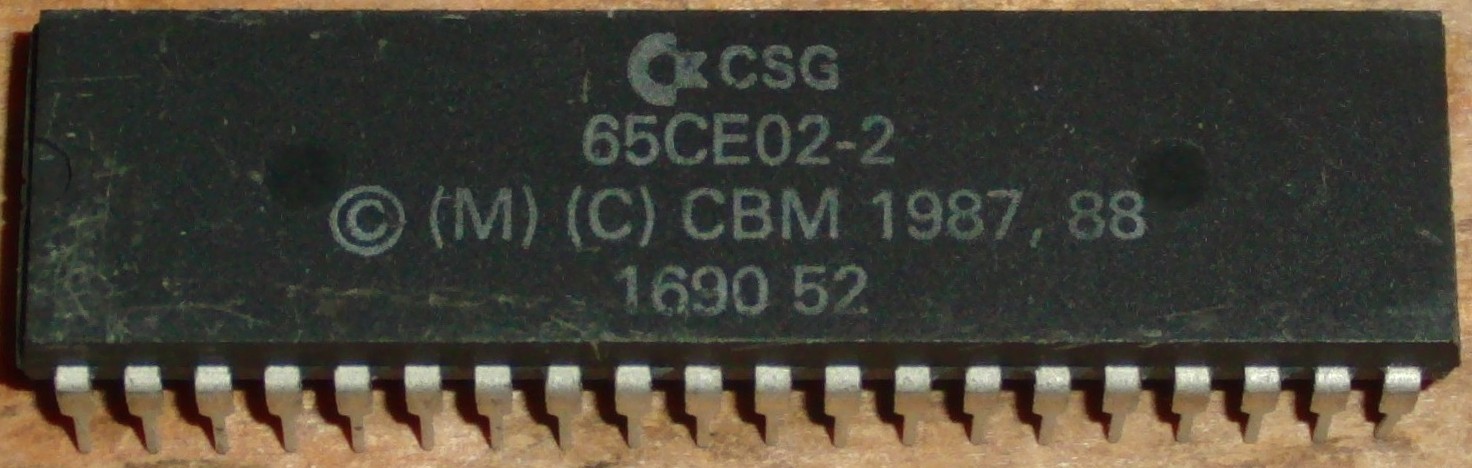

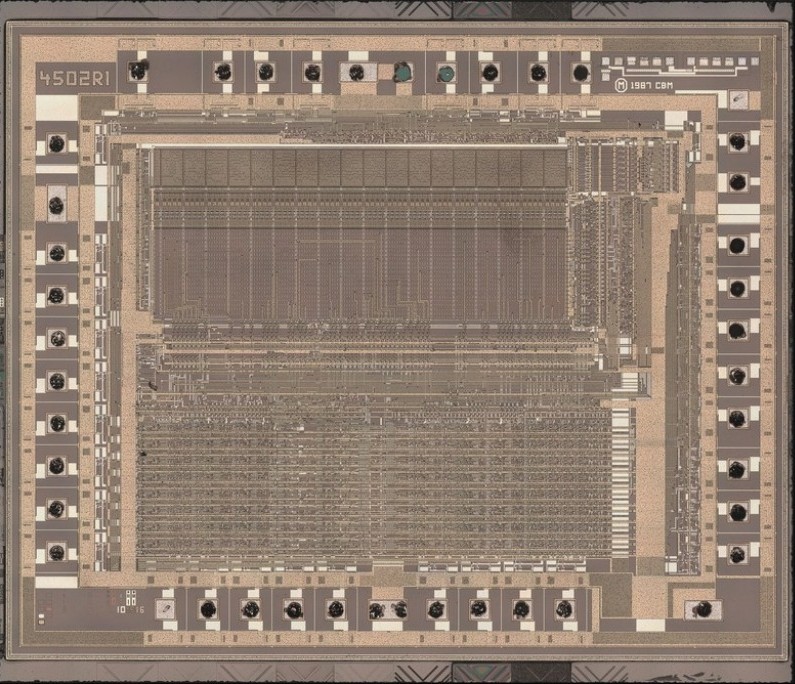

R1

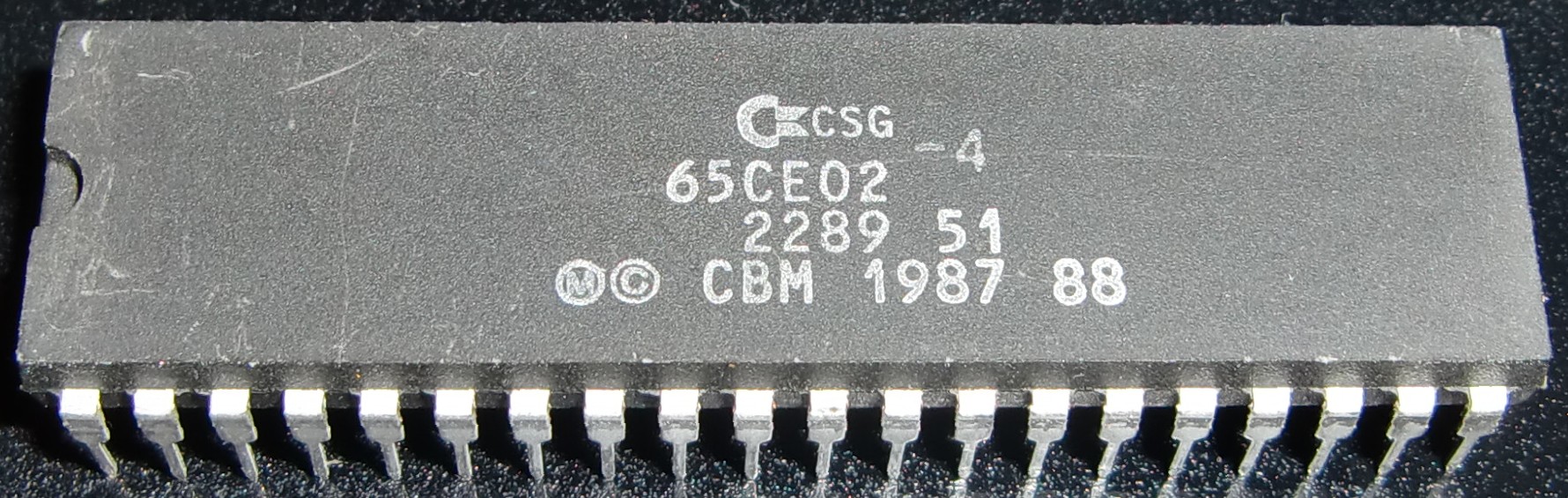

R2
About
Samples courtesy of Andreas Brandmair.
Tech [65CE02 microprocessor]:
- 2 um
- 2 metal
- CMOS
Pin compatible with 6502
References
- 65CE02 microprocessor: http://archive.6502.org/datasheets/mos_65ce02_mpu.pdf
