mcmaster:mos:6510
“8-bit microprocessor designed by MOS Technology, Inc., and is a modified form of the very successful 6502”
Package

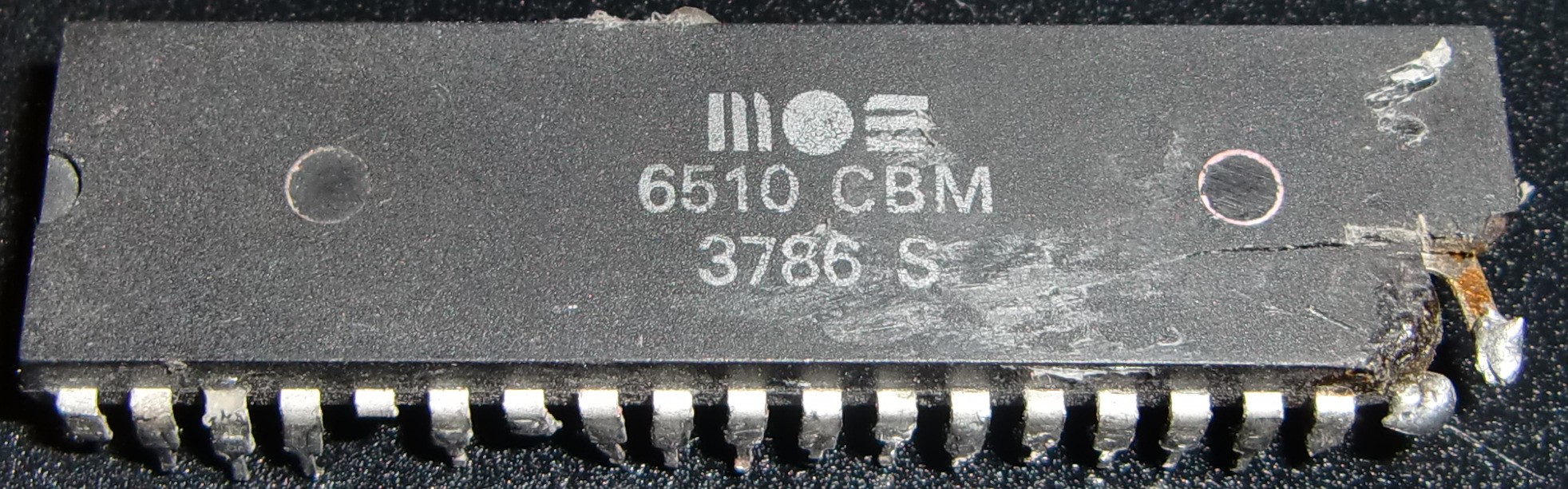

Top:
MOS 6510 CBM 3786 S

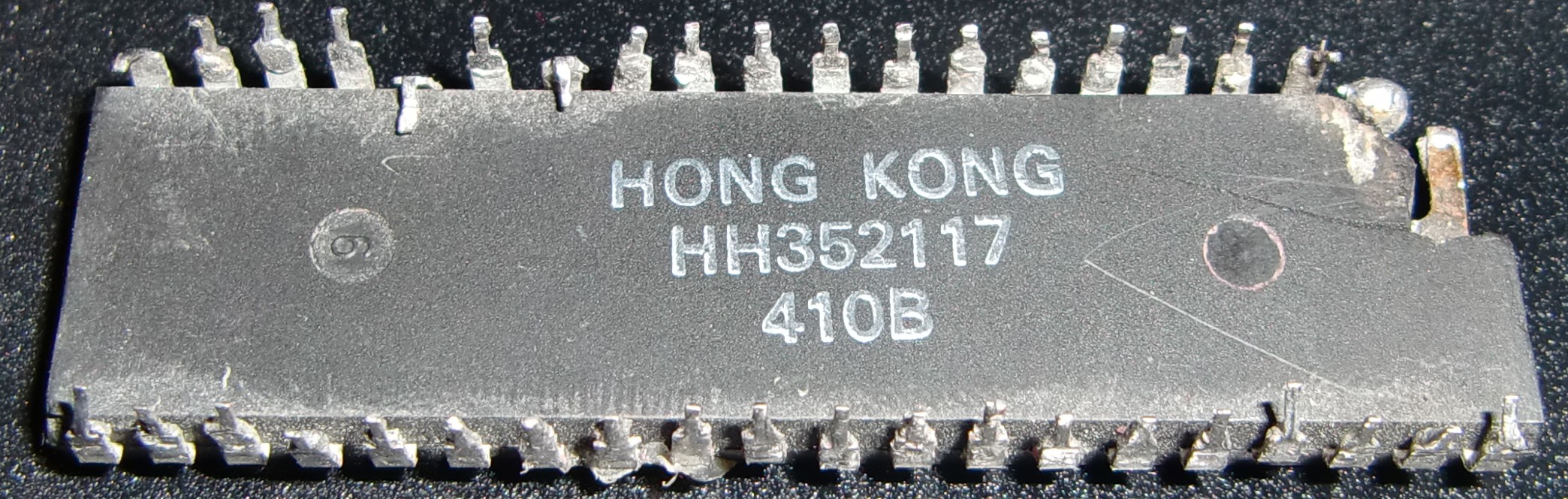

Bottom:
HONG KONG HH352117 410B
The package seems to have been roughed about, cracking the die. However, the cracks were only on the edge and the die was still imaged
Die
Label:
MOS 6510R6
Map
- Single (10594×11400, 49MB)
