mcmaster:motorola:mc68000p8-a72e
I believe this was the unit that was delayered. It was chosen over the original unit decapped because it is the same die revision that v6502 imaged.
Package

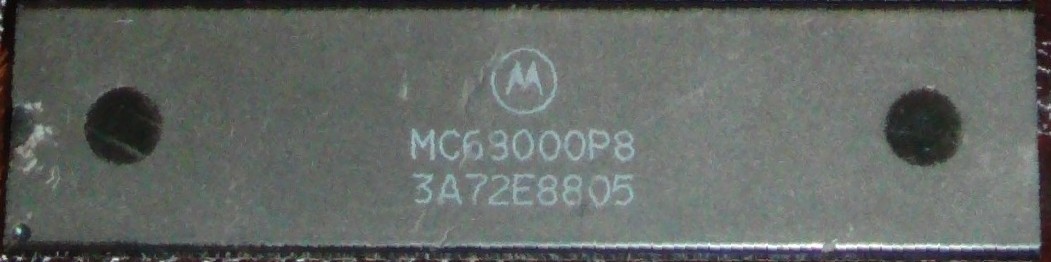

Label (top):
MC68000P8 3A72E8805
Die
Map
- A bit redundant since v6502 already had an image, but someone was going to do a lot of work on it so it made sense to be sure we had a record to confirm it really was the same mask
