mcmaster:motorola:mc68010p8-c97r

This is an old revision of the document!

collection mcmaster, vendor motorola, year 1982, foundry unknown, tech unknown

Donated by Al Kossow

Package

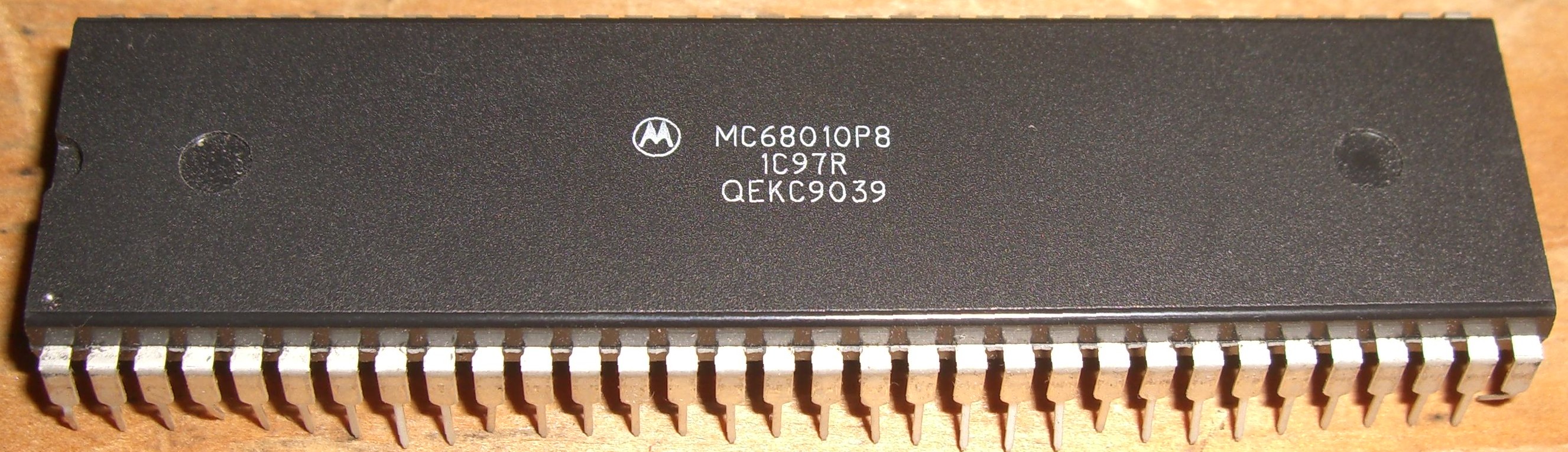

Label (top):

MC68010P8
1C97R
QEKC9039

Die

Label:

(C) 1982 (M)
MC68010
C97R

Top metal (mit20x)

Single (133MB, 17171×19489)
NOTE: faulty camera driver patch caused bad color. Did some crude color correction

Delayer (mit20x)

Single (71MB, 17083×19431)

Delayer w/ stain (mit20x)

Single (71MB, 17083×19431)
