mcmaster:nintendo:s-dsp

Table of Contents

Package
Die
Map

collection mcmaster, vendor nintendo, vendor sony, year unknown, nintendo shvc, tech unknown, foundry unknown

Package

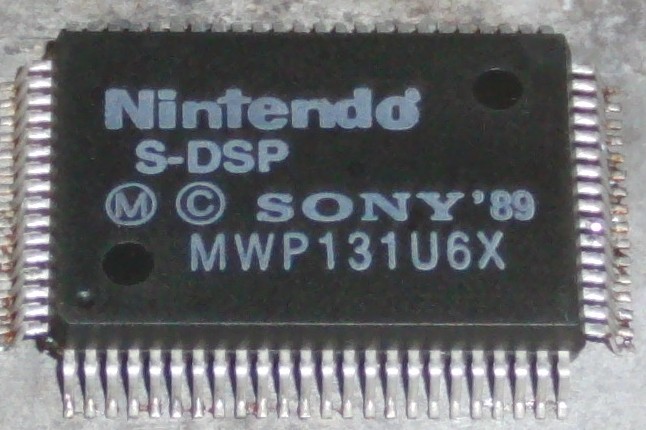

Label (top):

NINTENDO
S-DSP
(M) (C) SONY '89
MWP131U6X

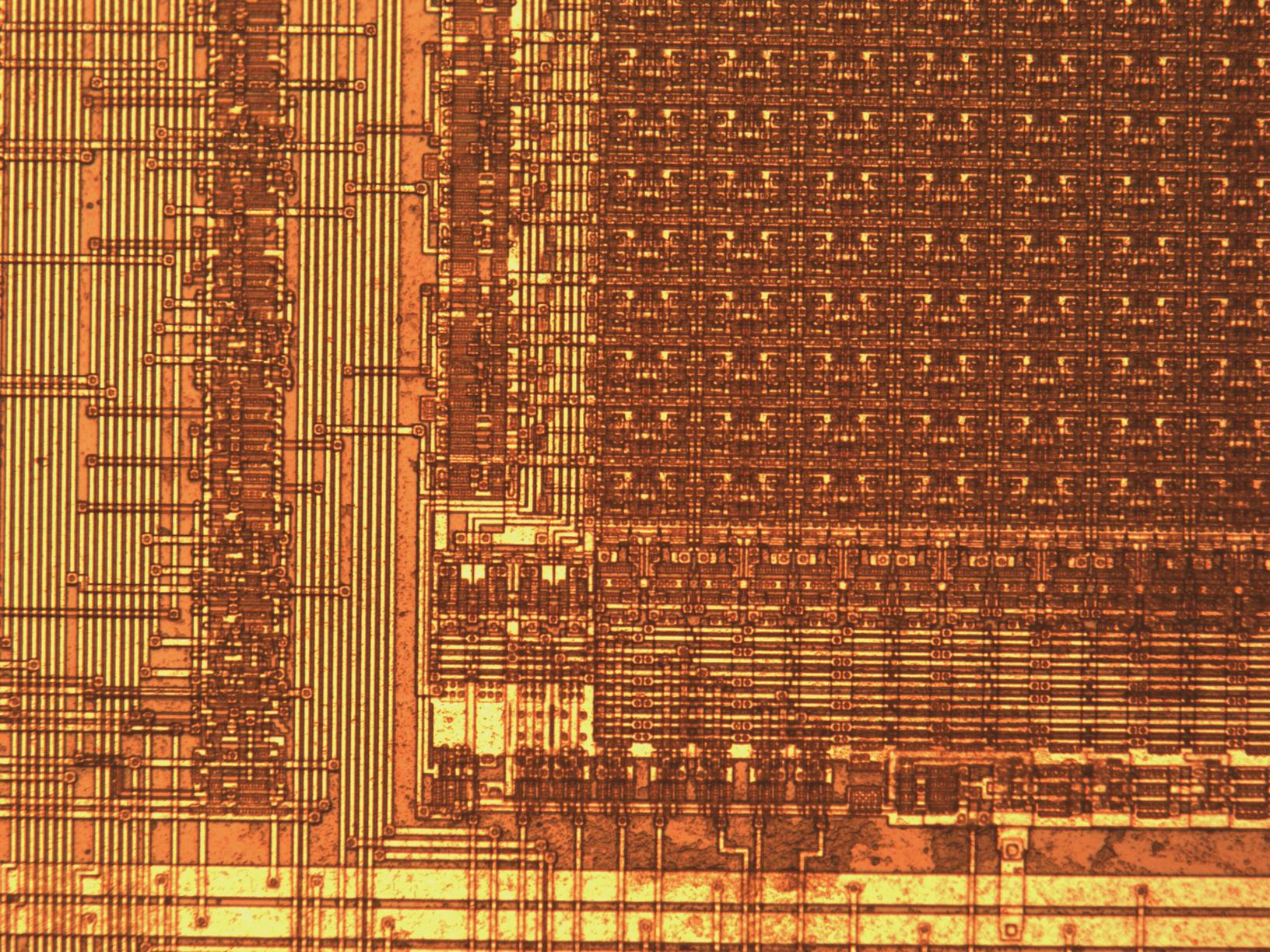

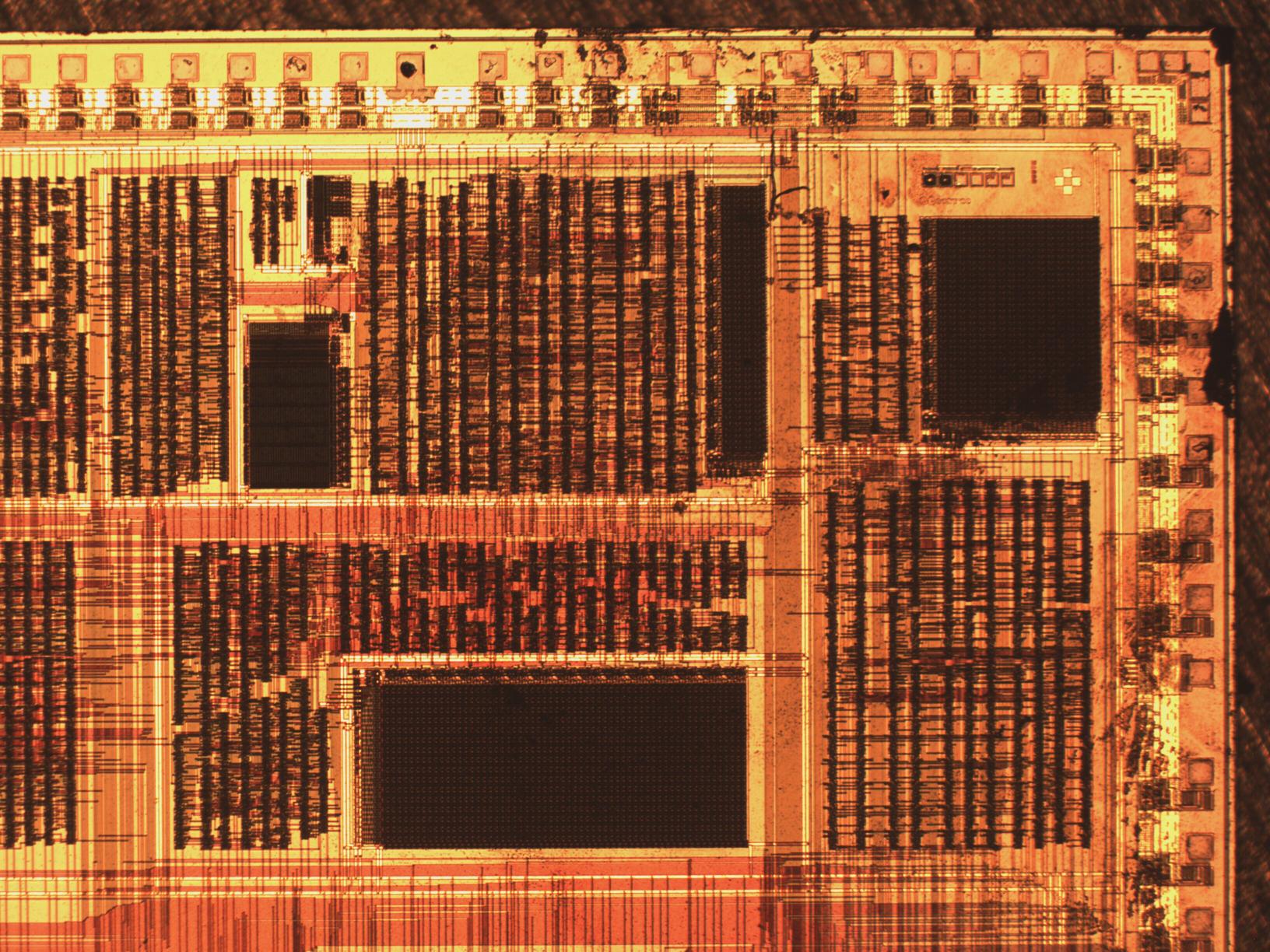

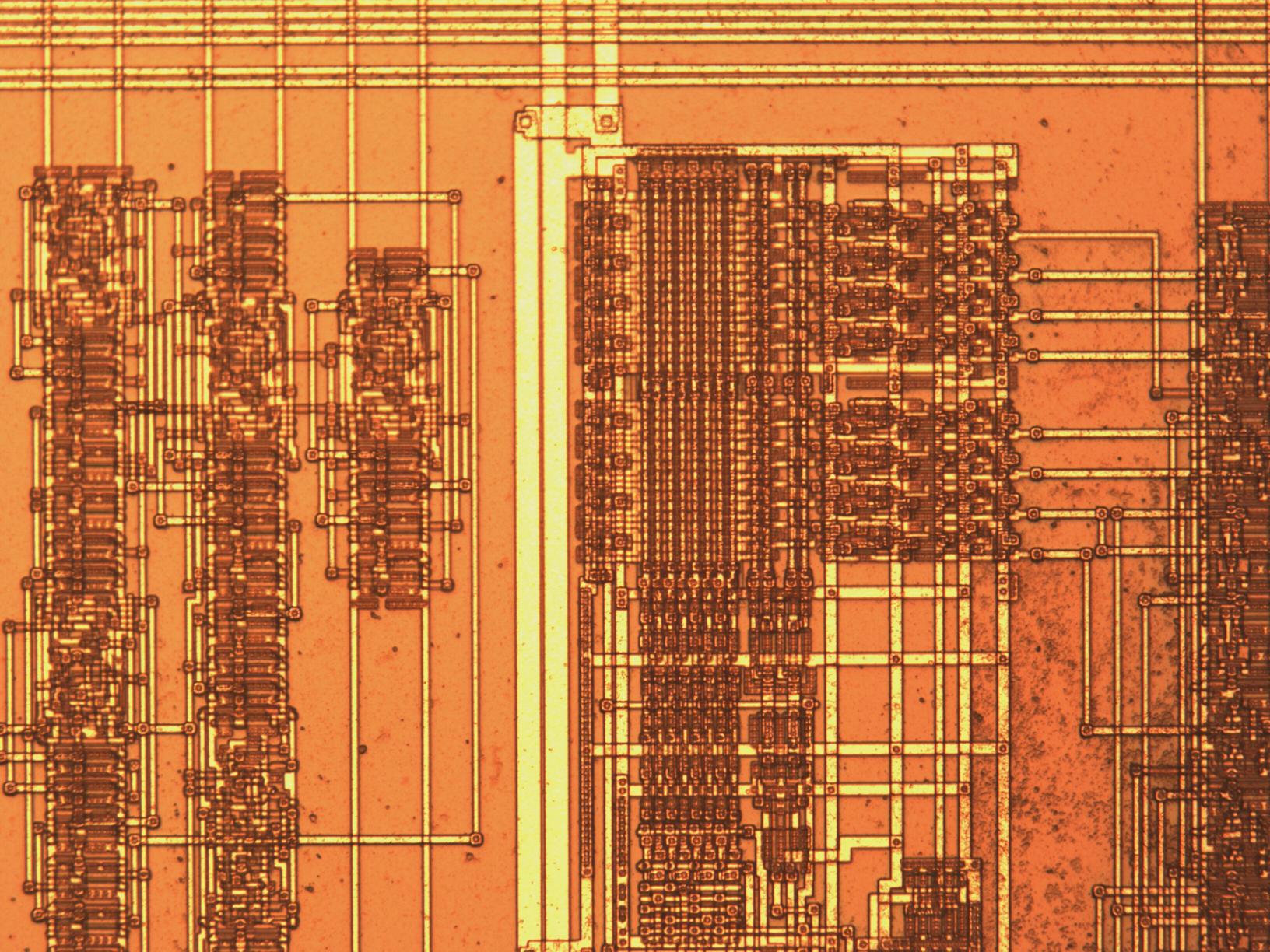

Die

Size: ? x ? um

Text:

(M) (C) SONY '89
D1222

This roughly matches up with Nintendo's internal part number (per leaked SNES schematics) of CxD1222

Map

Top metal @ mit20x: http://siliconpr0n.org/map/nintendo/s-dsp/mcmaster_mz_mit20x/
