mcmaster:nintendo:s-ppu1-5c77-01

collection mcmaster, vendor nintendo, vendor ricoh, type unknown, year unknown, foundry unknown

SNES Picture Processing Unit, “generates background character data, rotation, and scaling”: http://meseec.ce.rit.edu/551-projects/fall2014/3-1.pdf

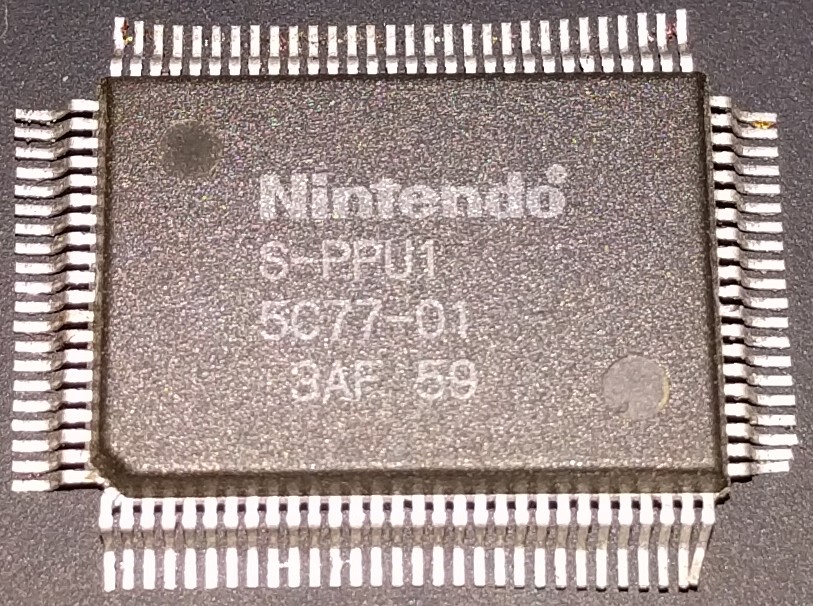

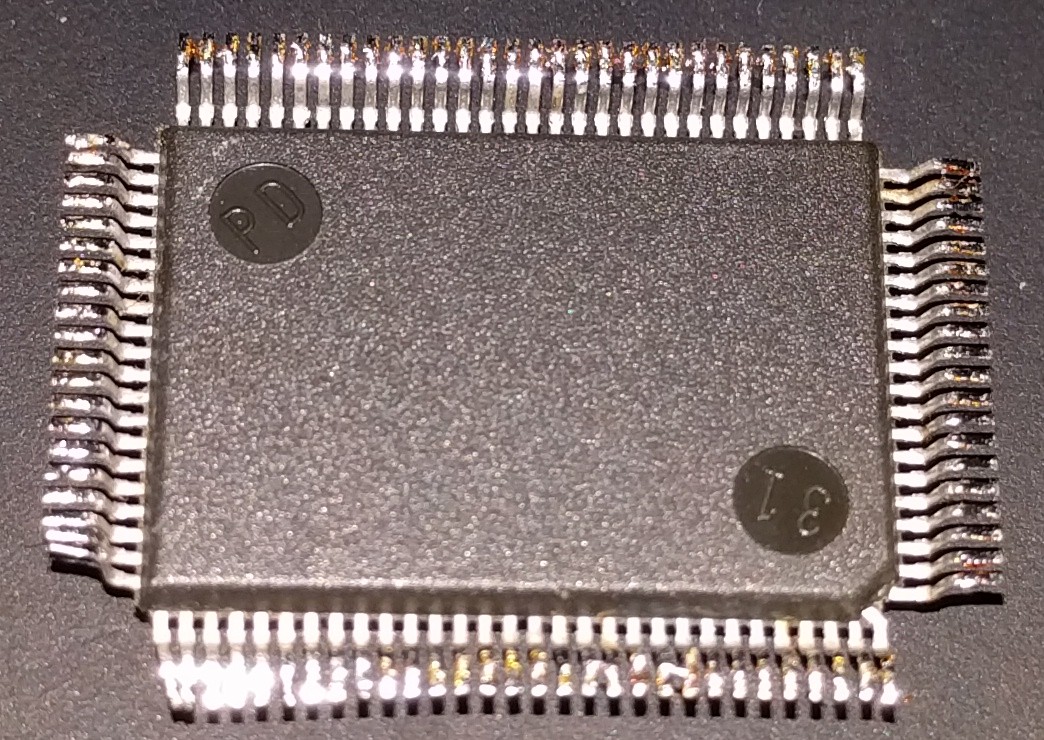

Package

Nintendo
S-PPU1
5C77-01
3AF 59

Die

RICOH
G5C77(M)(C)

Single (19407×19295, 146.3MB)

Note: images are actually from two different chips. “s1” is the chip pictured above
