Dual integrating sigma-delta ADC/DAC

NorTel CMOS41S process, 1.2 micron, double metal, double poly
spec'ed clock rate is 10.24 MHz
funtion is to test a double integration sigma delta modulated ADC and DAC
analog switched capacitor filters on front end
digital logic does decimation on ADC path and interpolation on DAC path

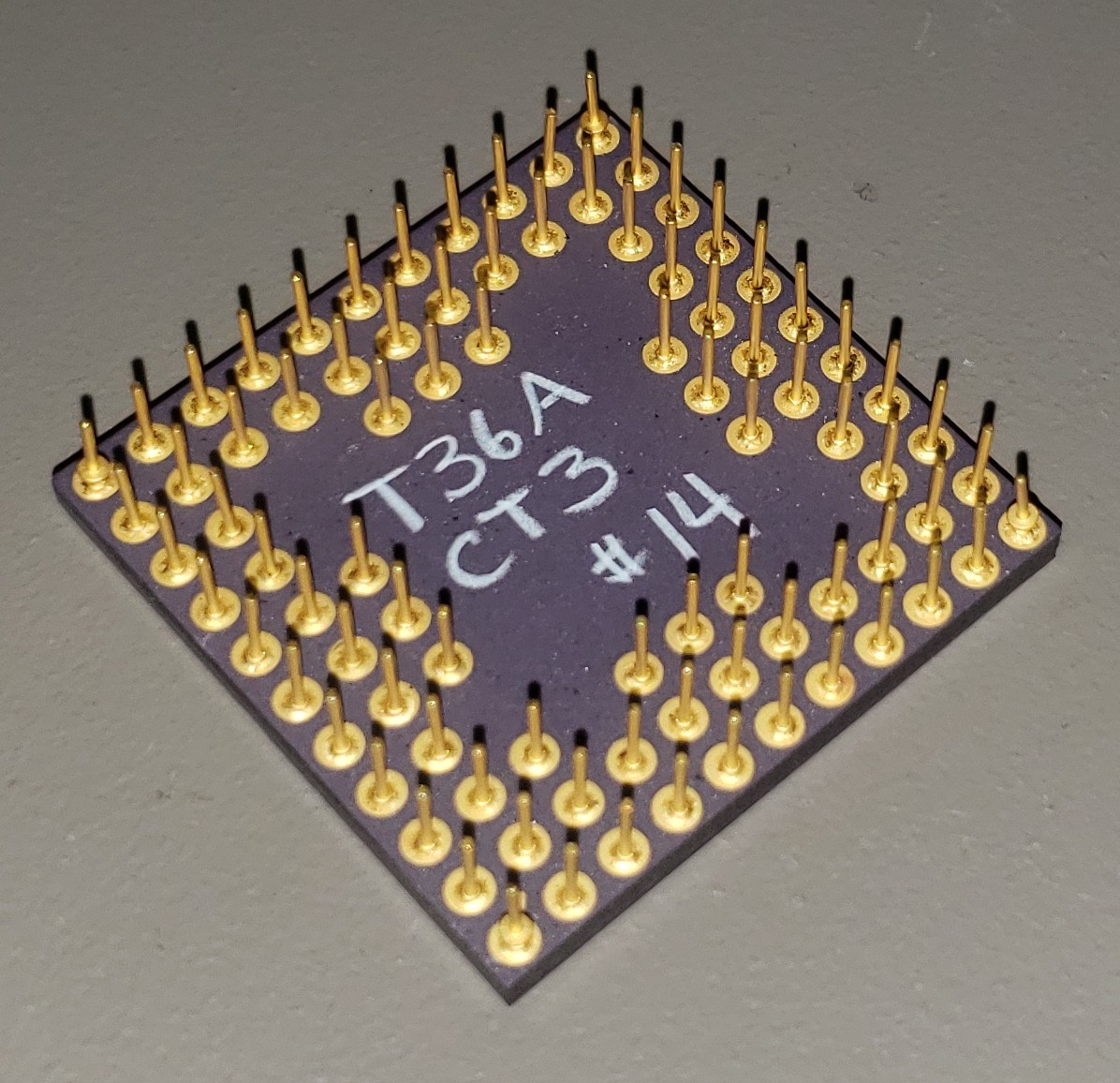

Package

T36A
CT3
  #14

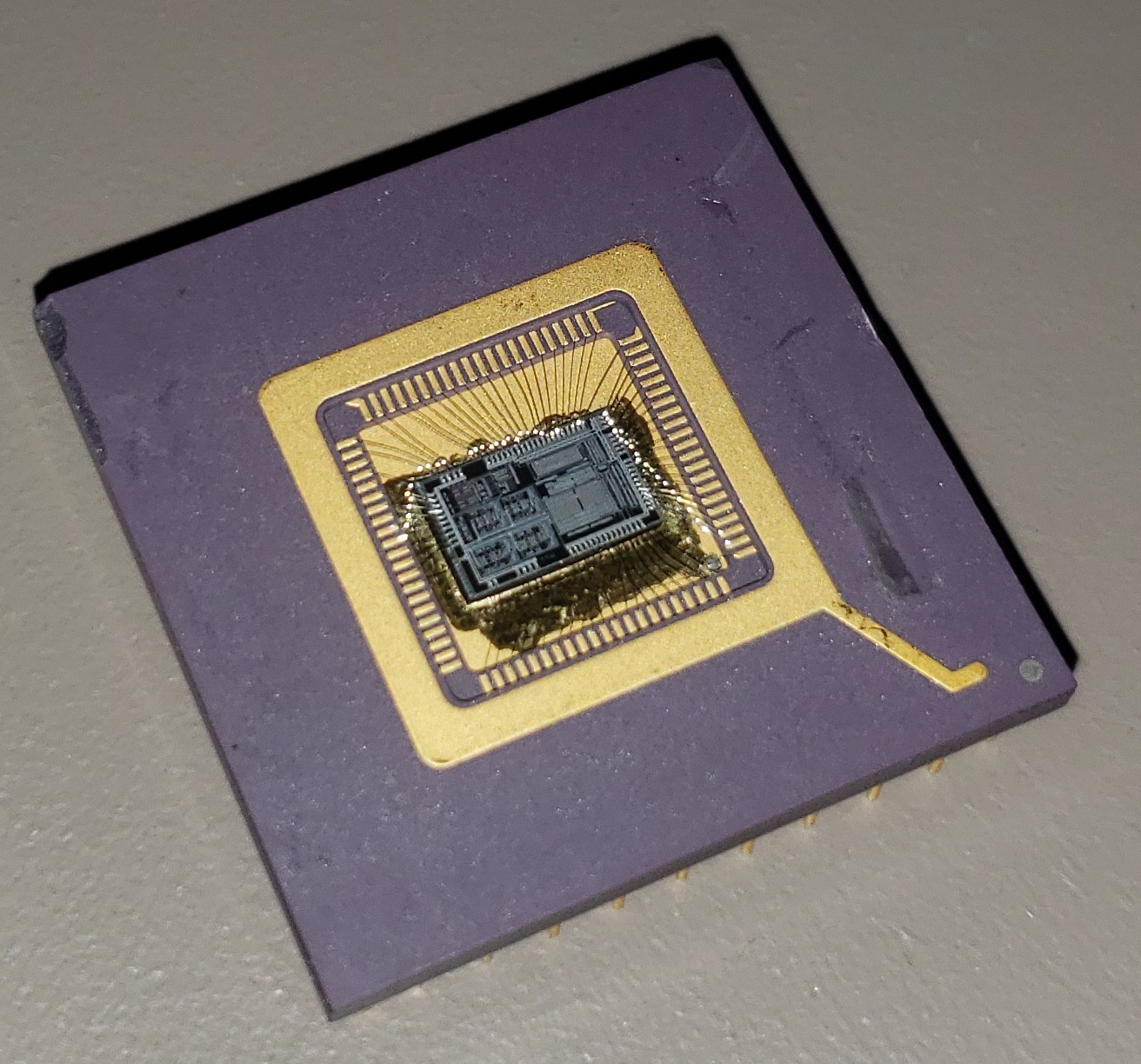

Die

T36A1 (C) 1987
(M) NT MT
 CT3
