mcmaster:ti:tms5100nl
Datasheet: “MOS INTEGRATED CIRCUITS FOR VOICE SYNTHESIS”
Package

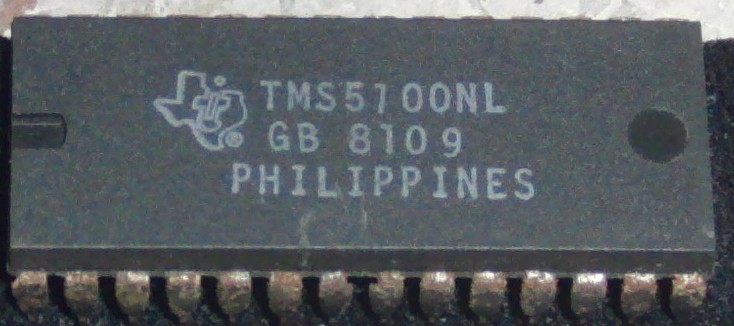

Label (top):
TMS5100NL GB 8109 PHILIPPINES

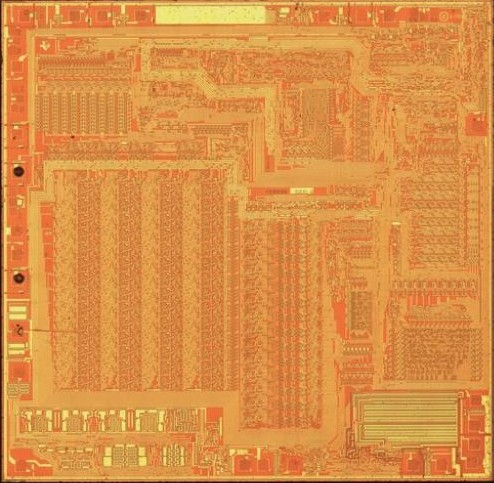

Die
Size: 5288 x 5388 um
Text:
(C)3-78 TO280B 0281 A
Top metal: http://siliconpr0n.org/map/ti/tms5100nl/mcmaster_mz_mit20x/
- Single (72 MB, 15529×15110): http://siliconpr0n.org/map/ti/tms5100nl/single/ti_tms5100nl_mcmaster_mz_mit20x.jpg
