collection mcmaster, vendor xilinx, year 1987, type logic, type logic/programmable, type logic/programmable/fpga, tech 800nm, foundry seiko

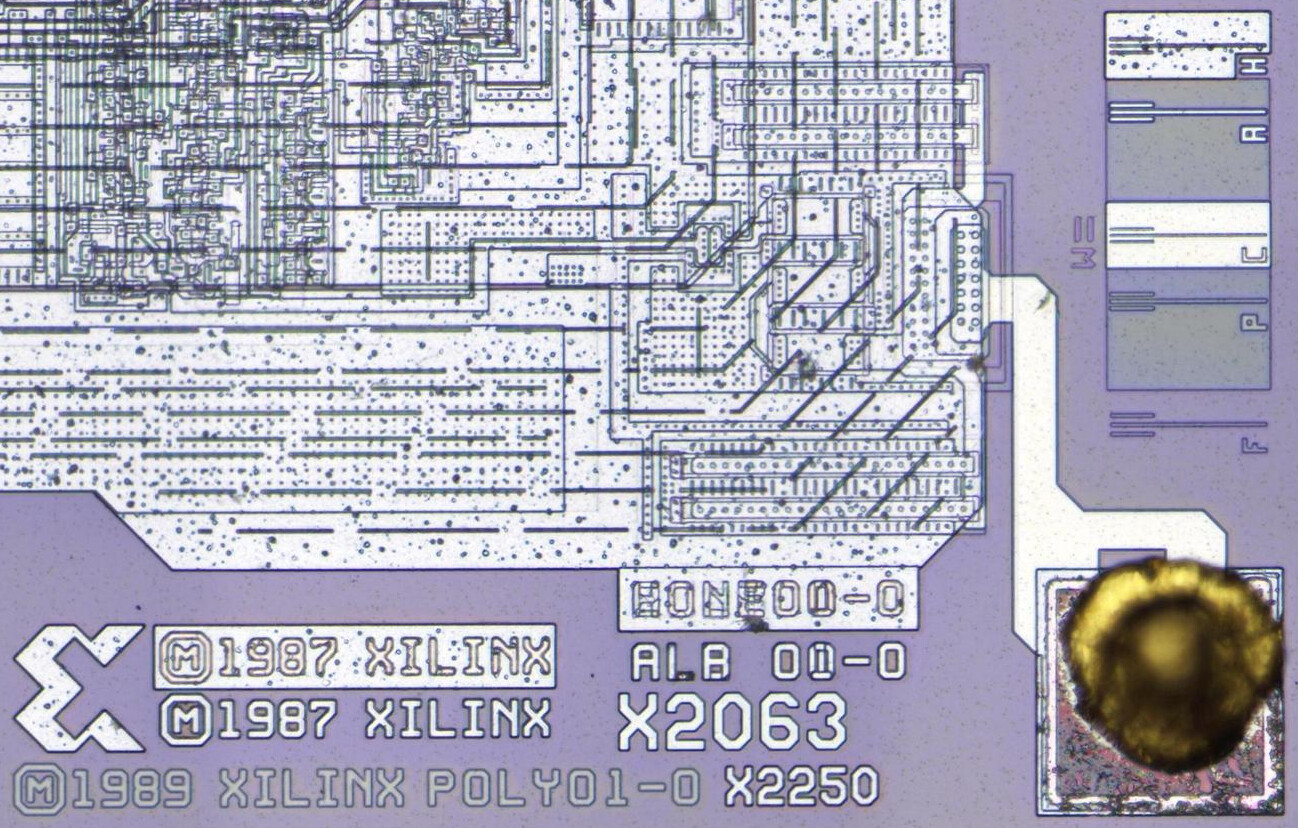

NOTE: there are two similar but distinct dies

X2063 (pure)
X2063 w/ X2250 third line

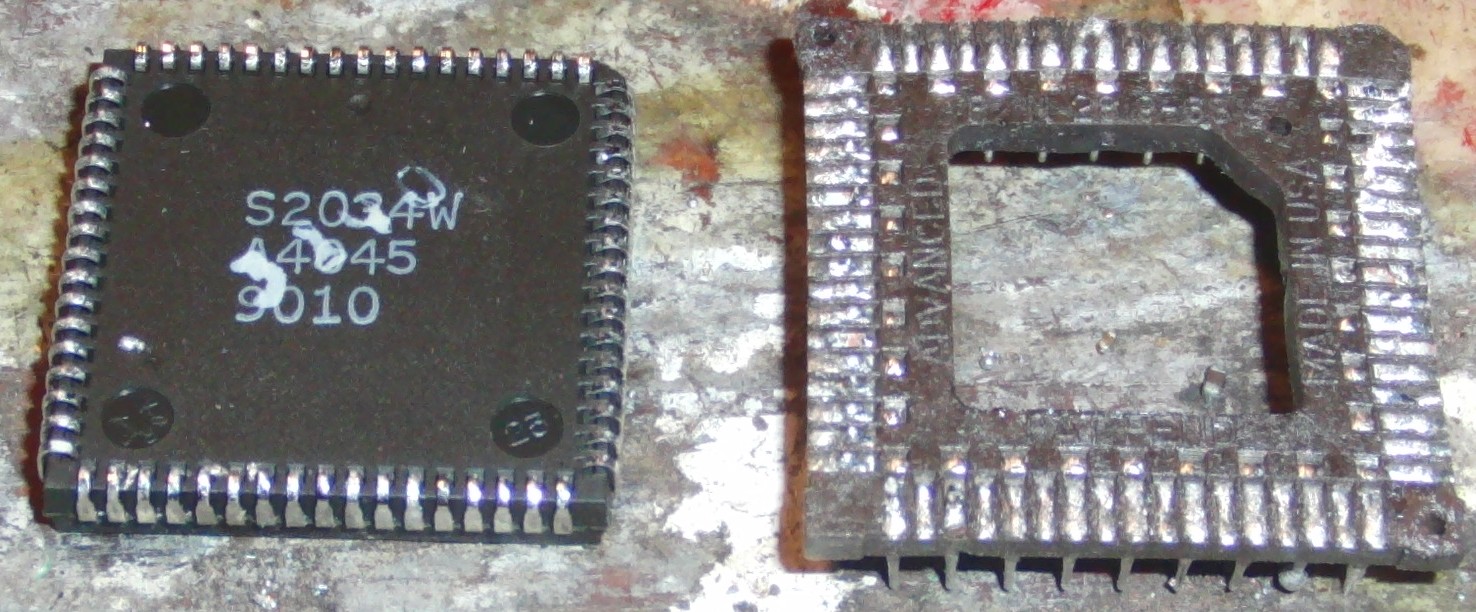

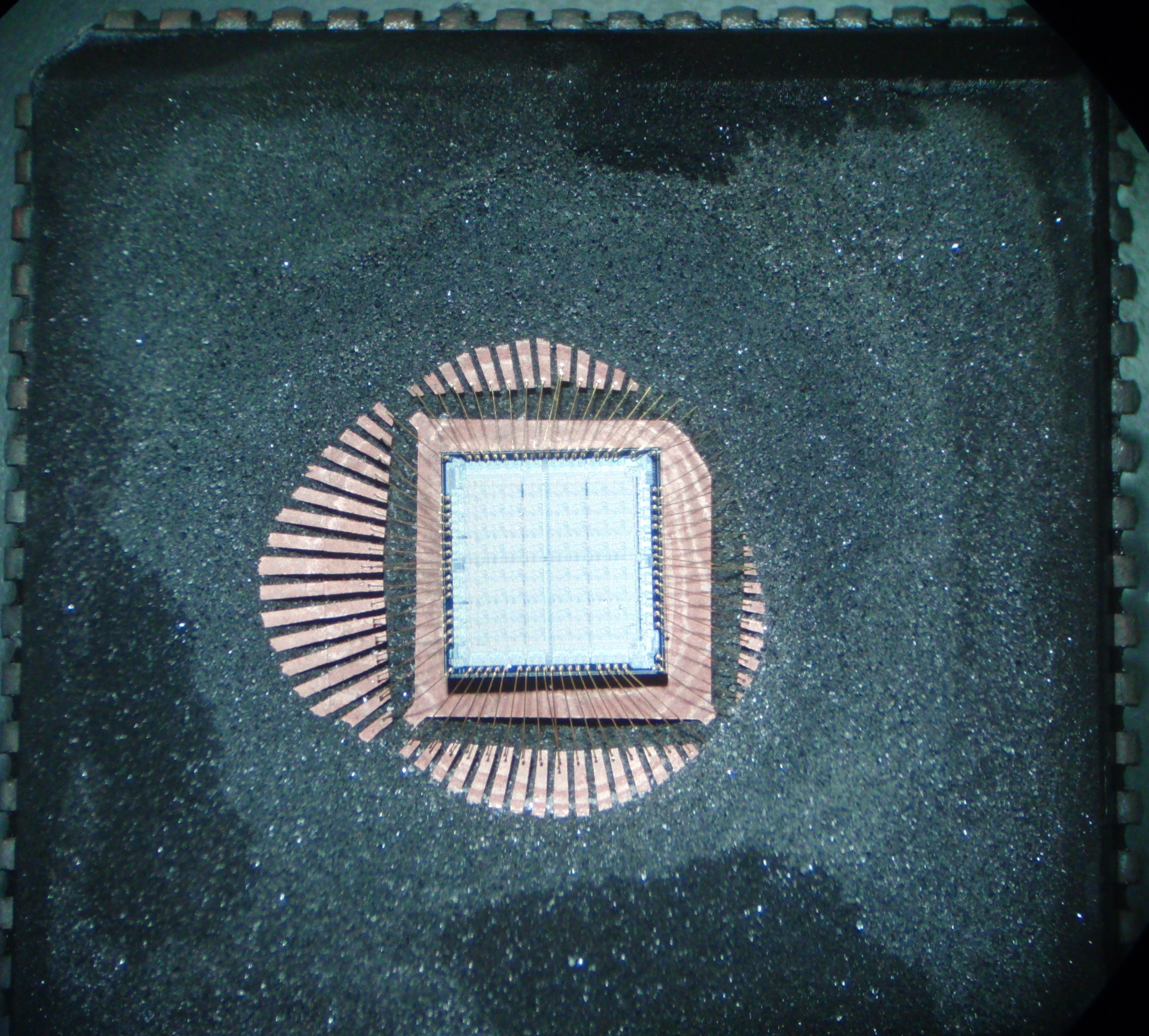

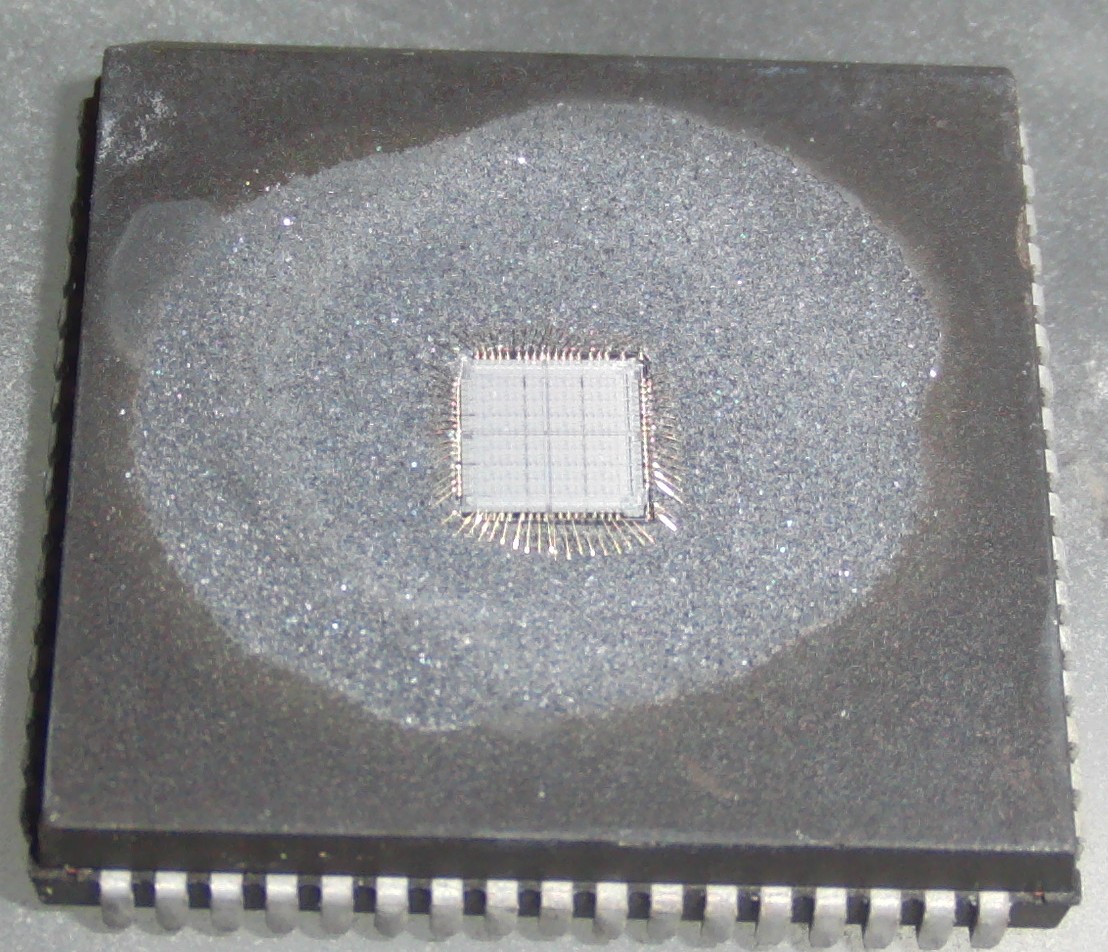

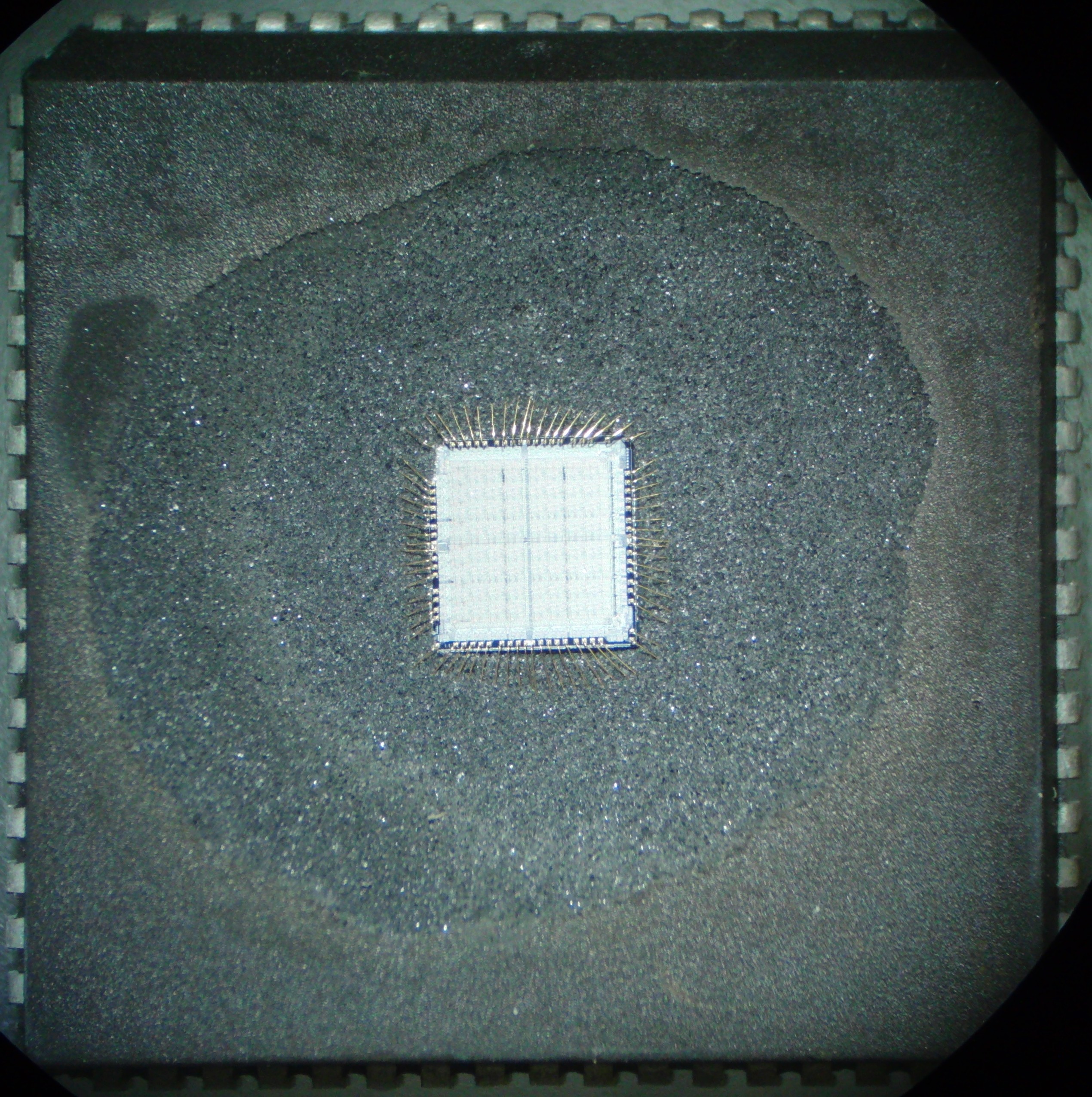

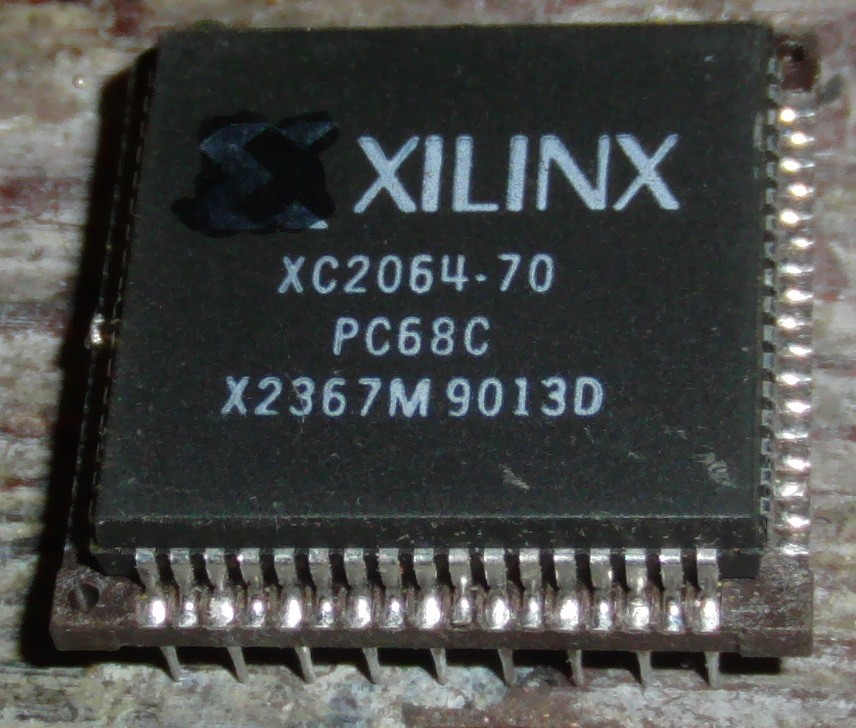

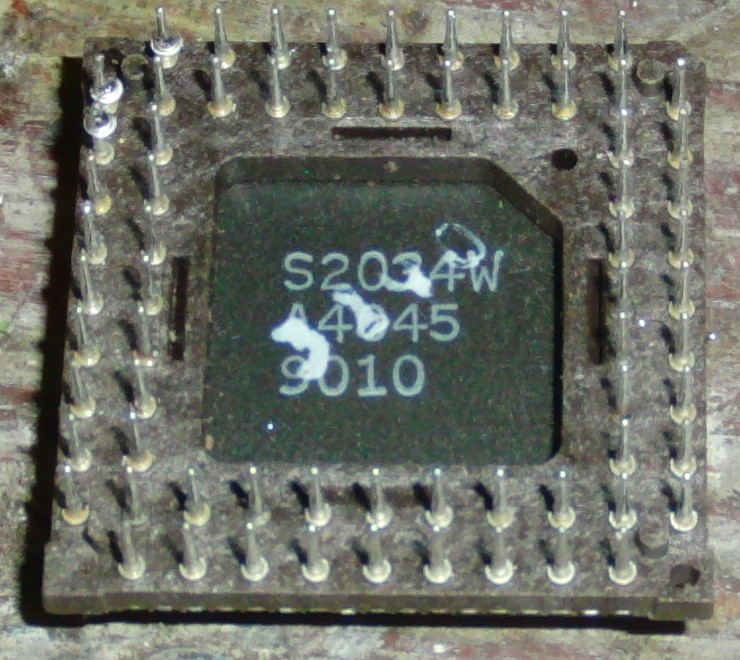

Package

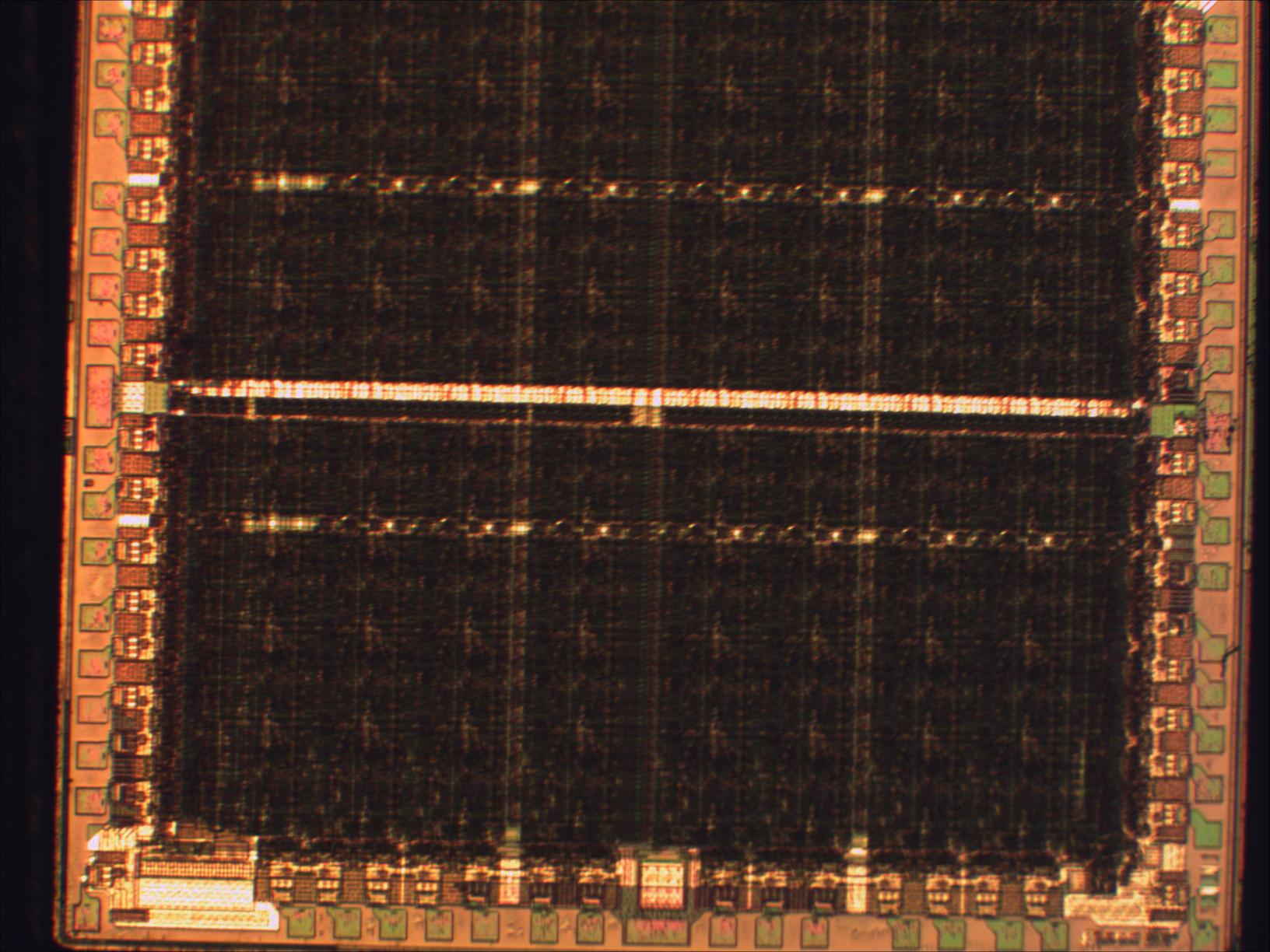

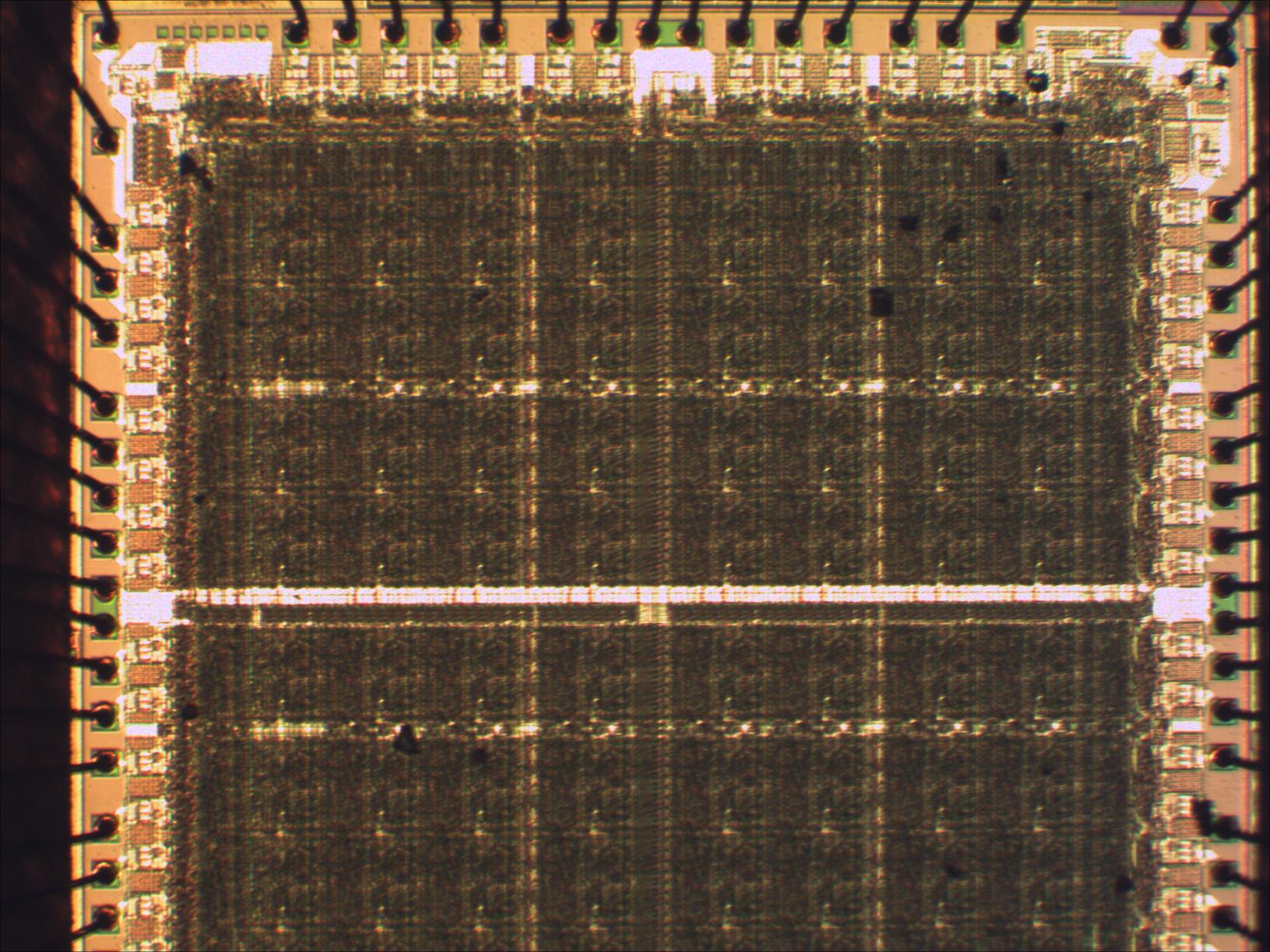

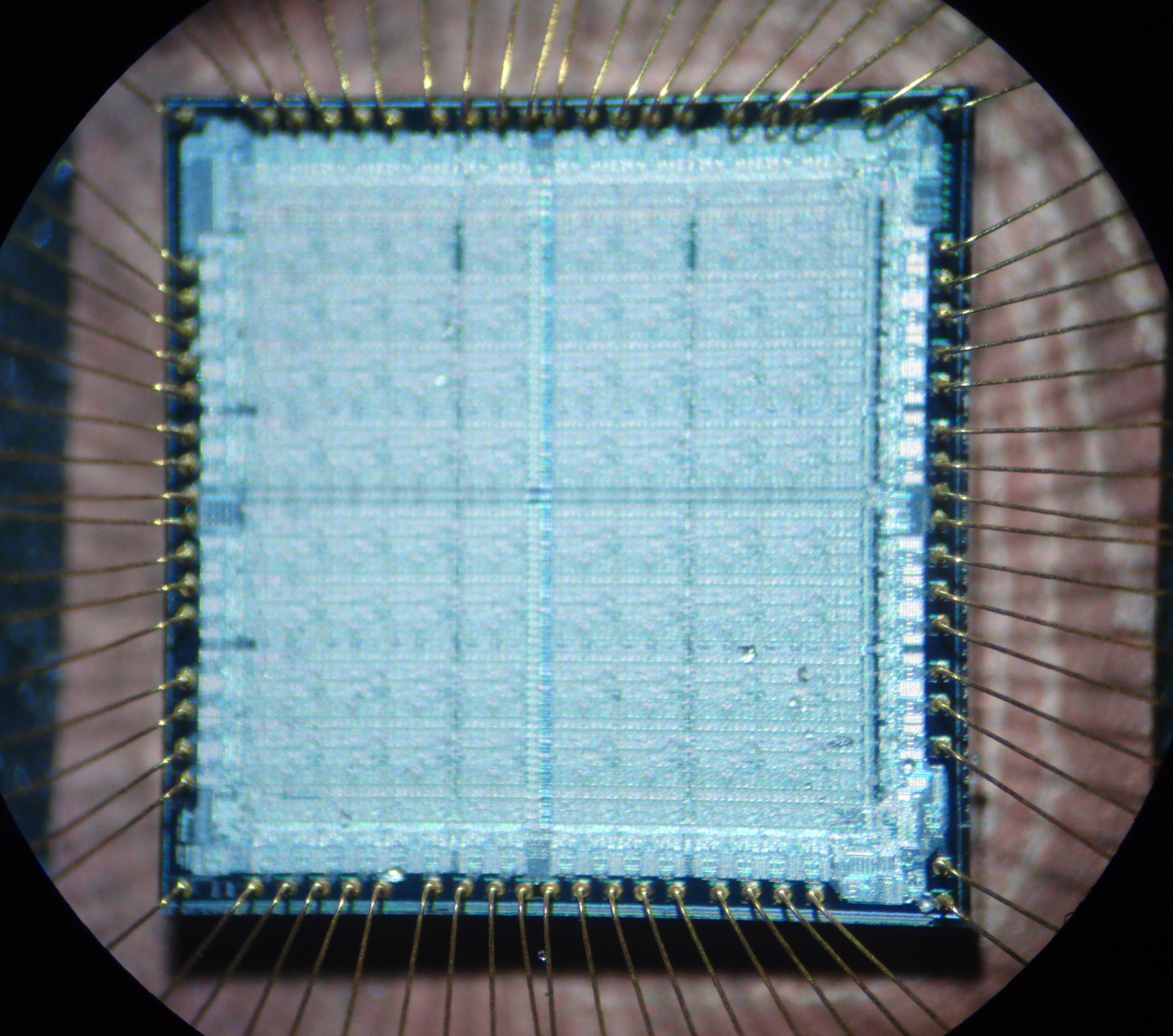

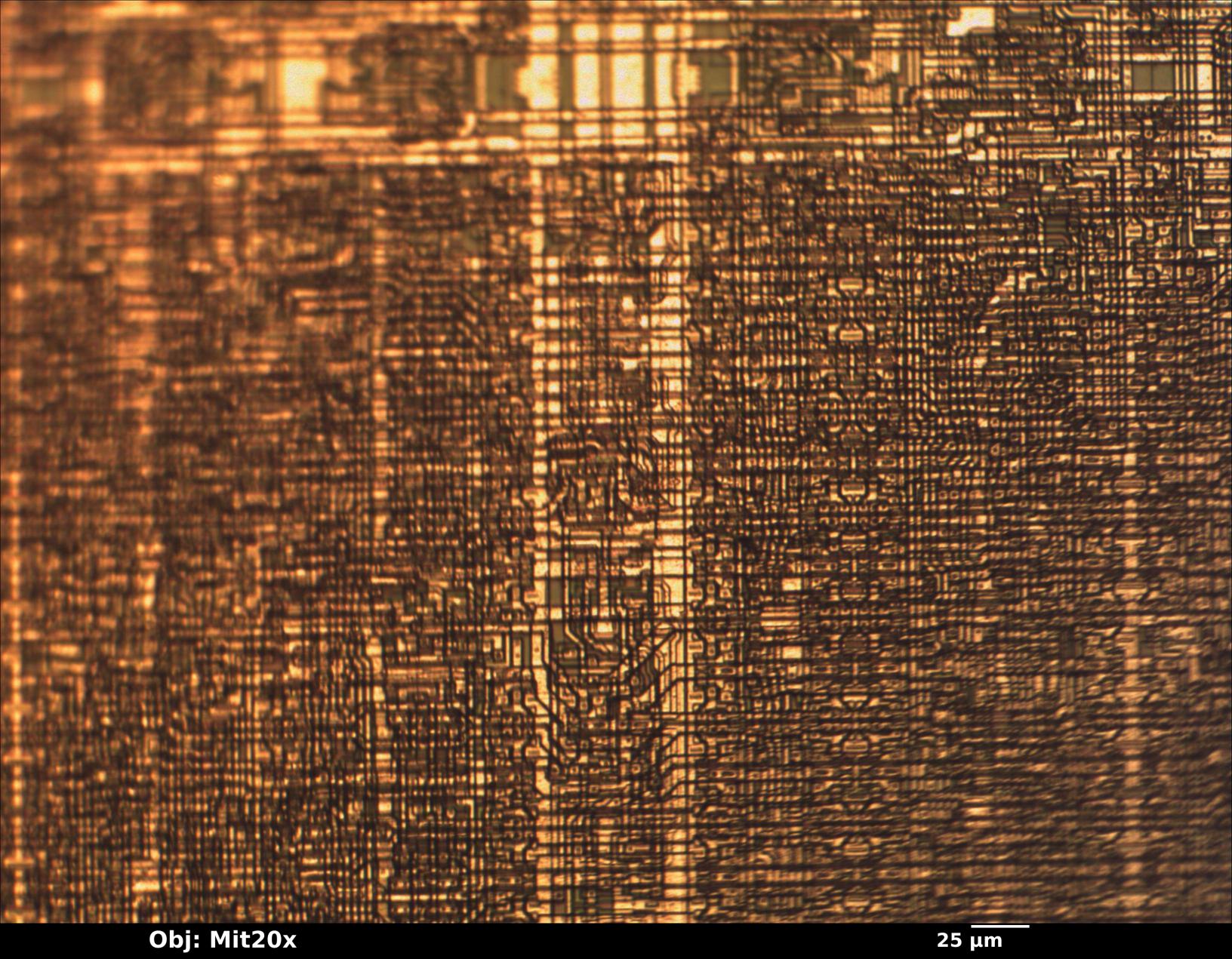

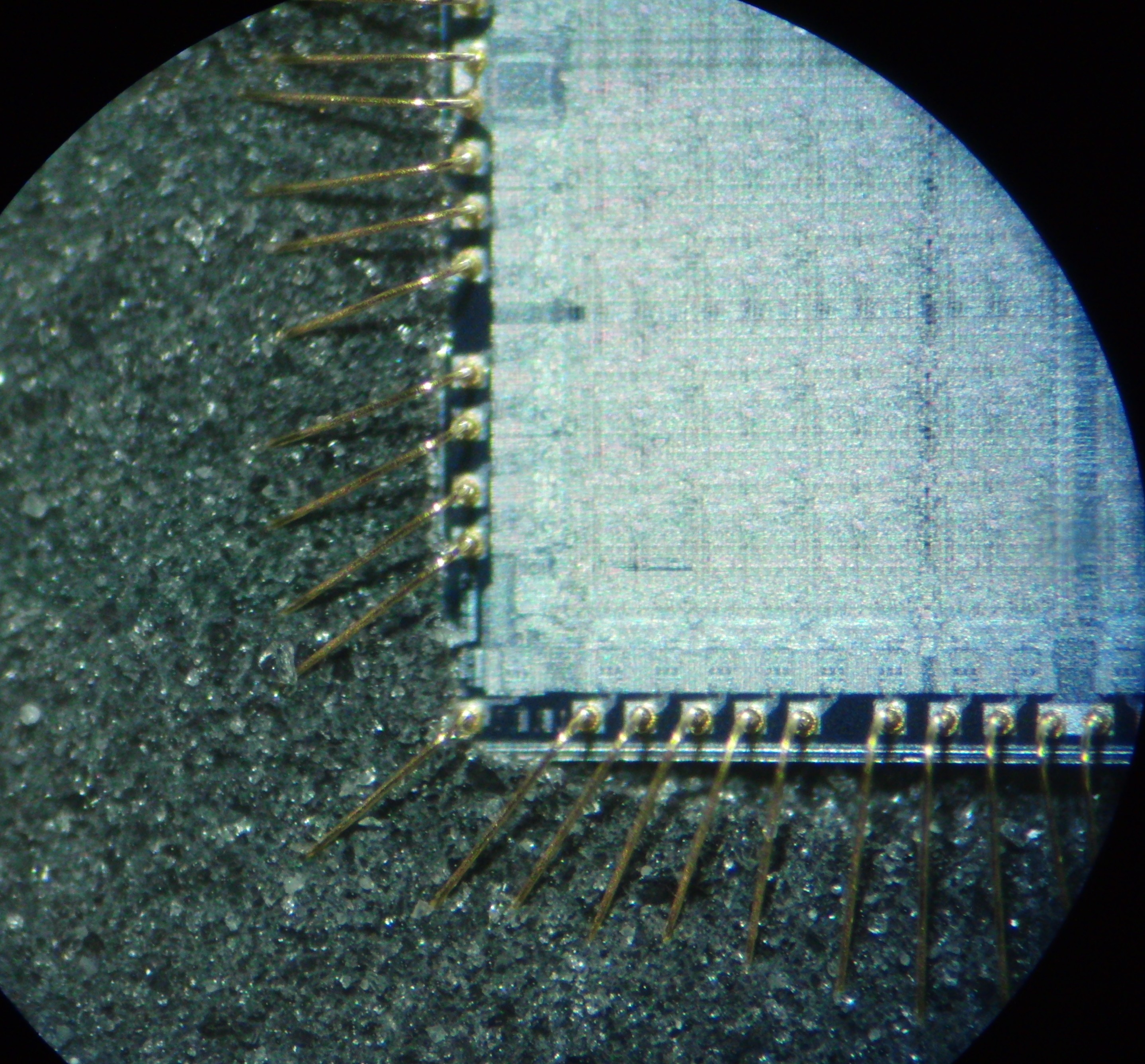

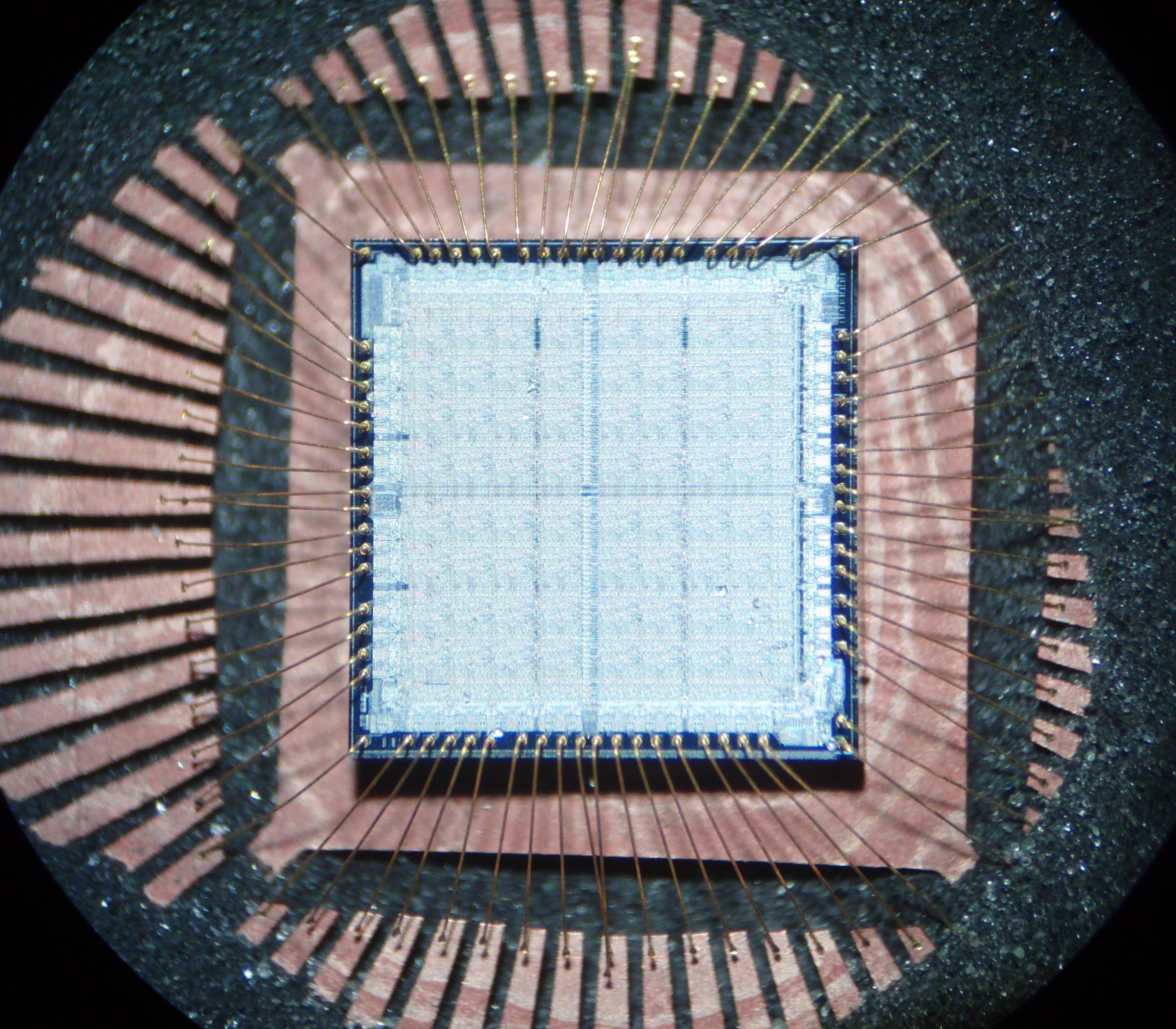

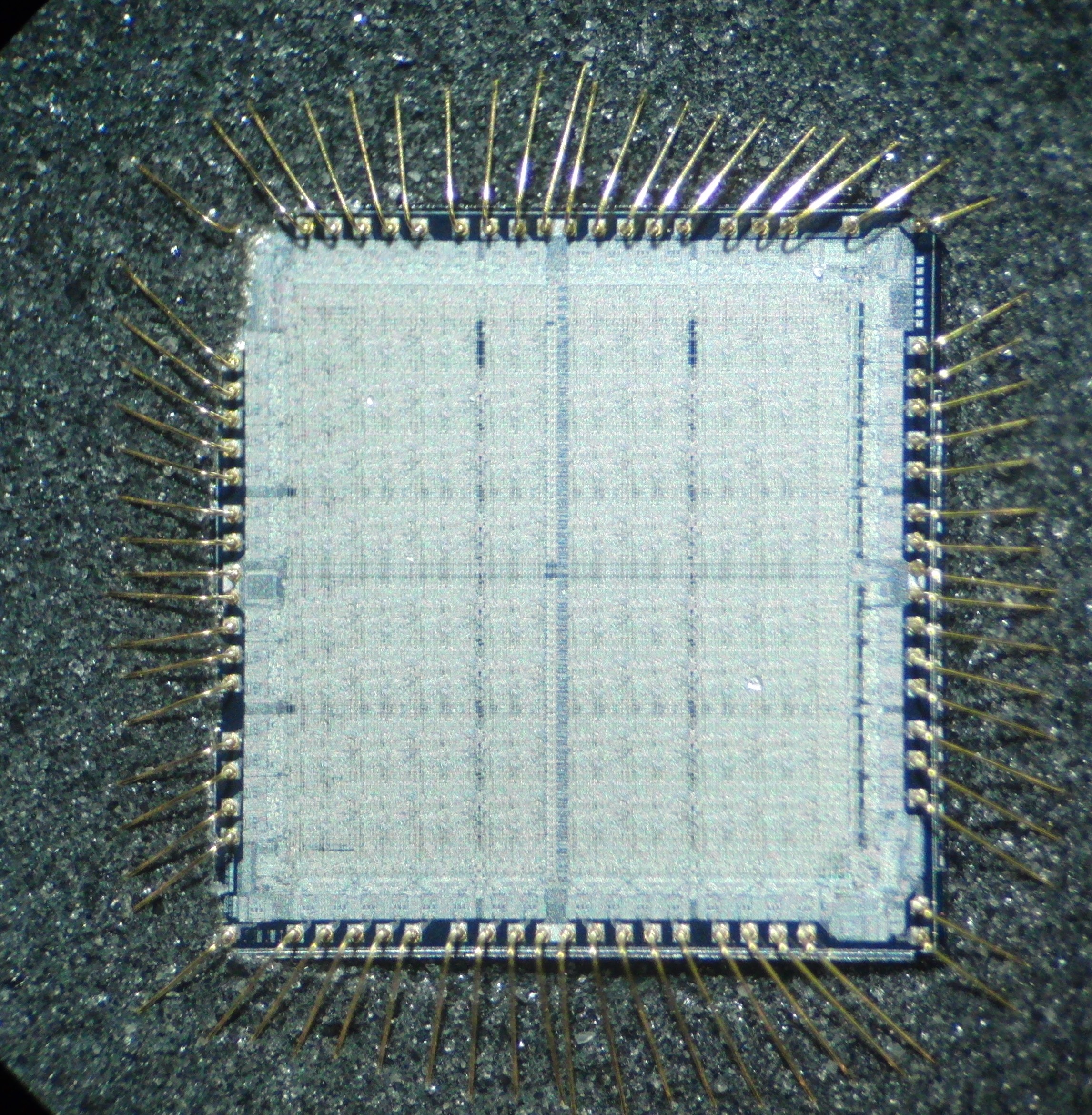

Die

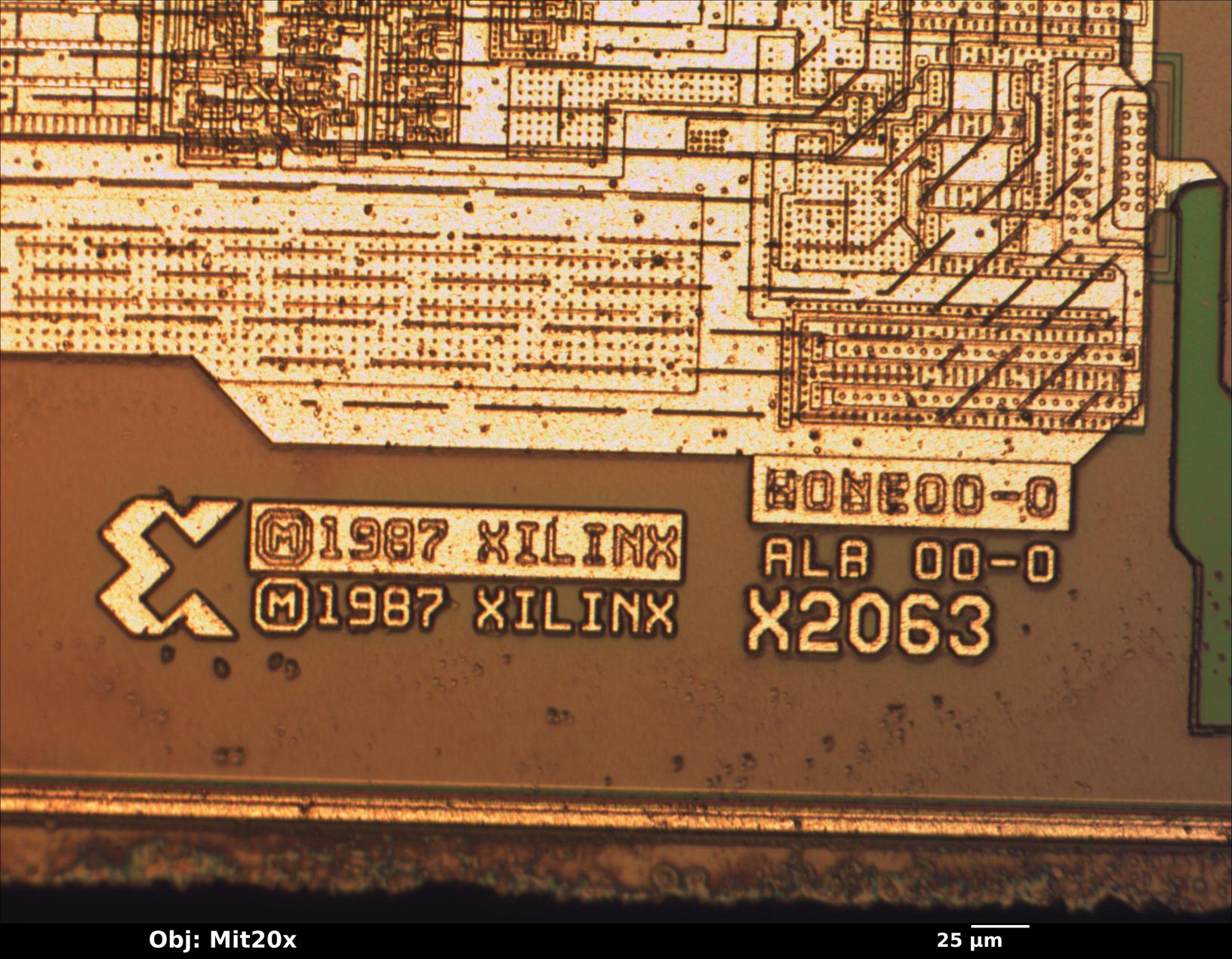

Die X2063 (original)

: pre-dates having single jpgs

Single

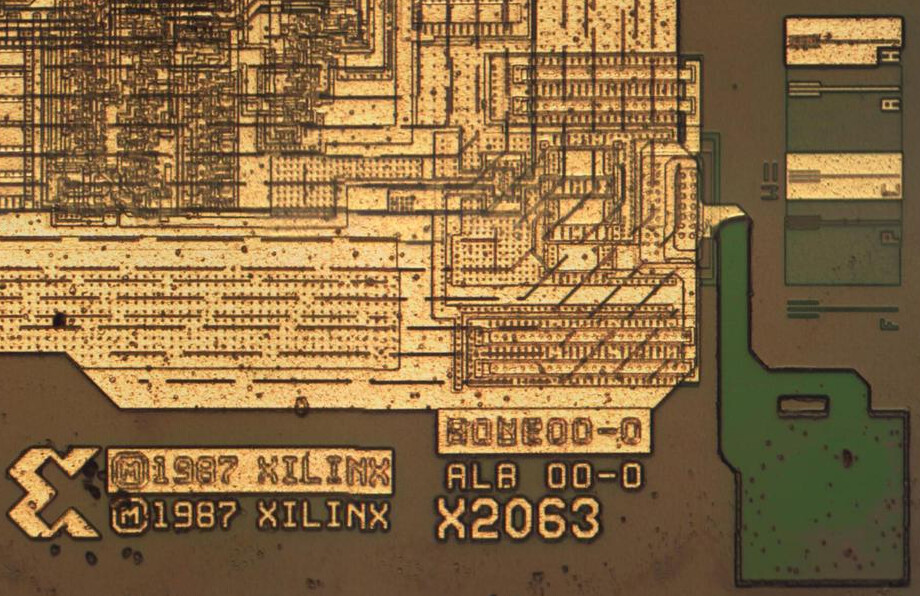

Die X2063 / X2250

Single (22170×21703, 85.5142MiB)
