Table of Contents
Package
Lot of 25 from Digikey

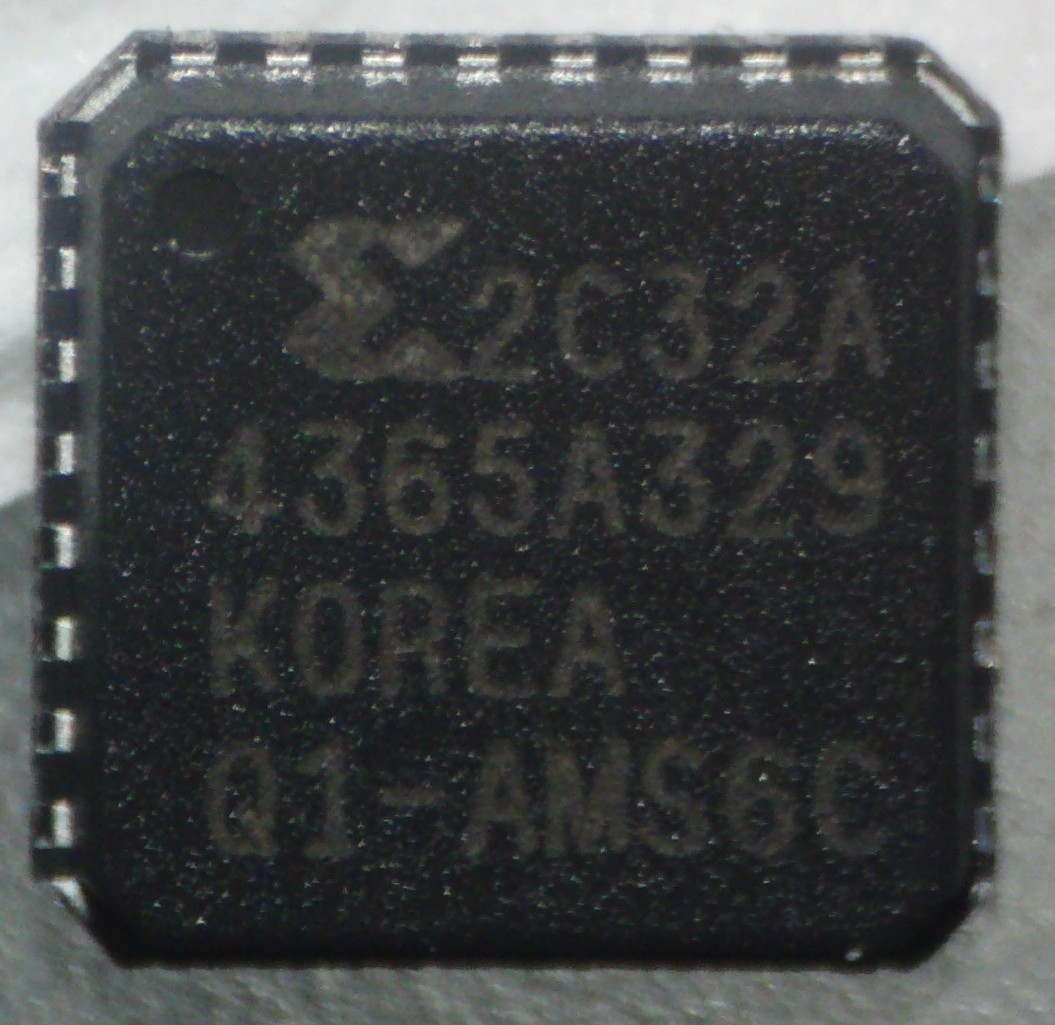

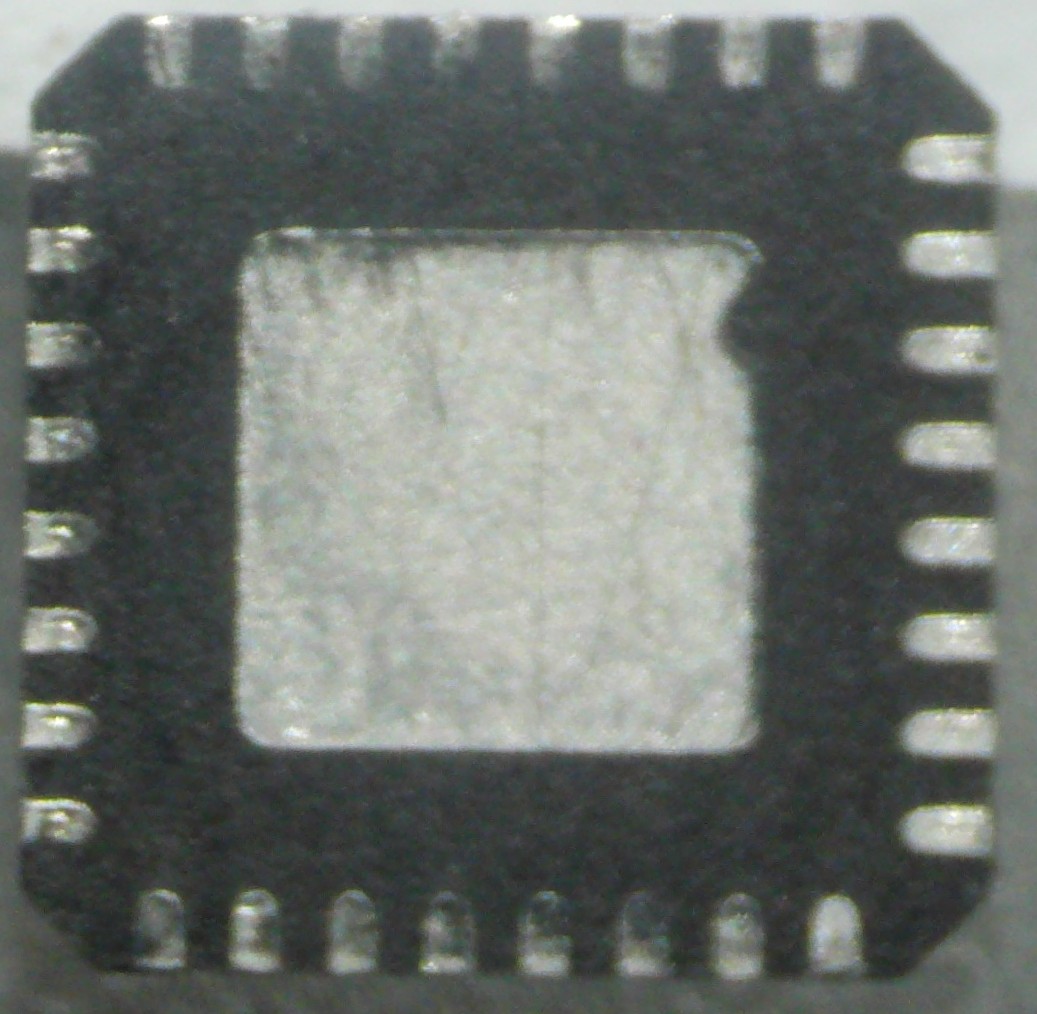

Sample markings:
[Xilinx logo] 2C32A 4365A329 KOREA Q1-AMS6C

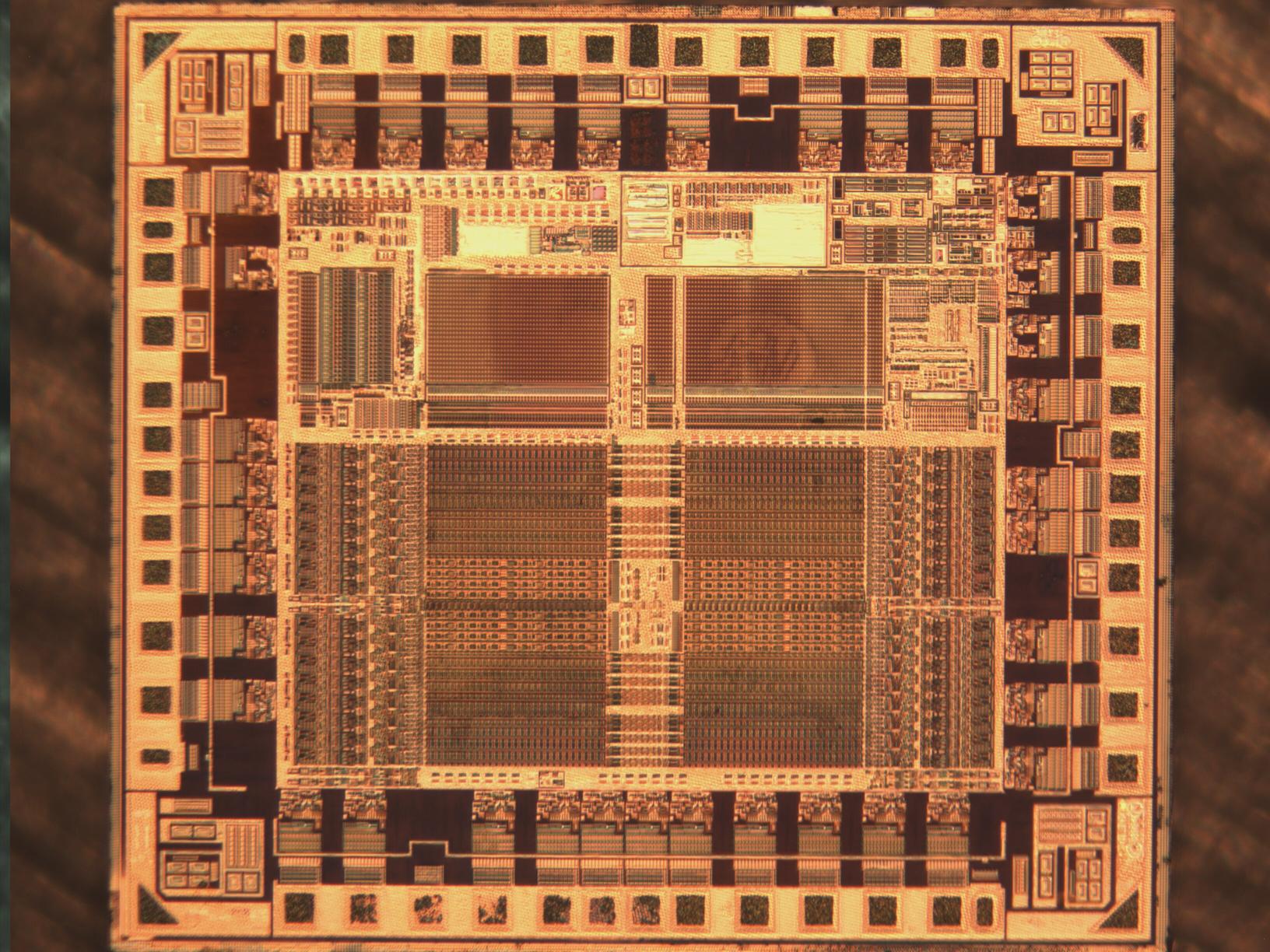

Die
The XC2C32A is previously imaged, this page is reference for these samples which will be used for R&D work

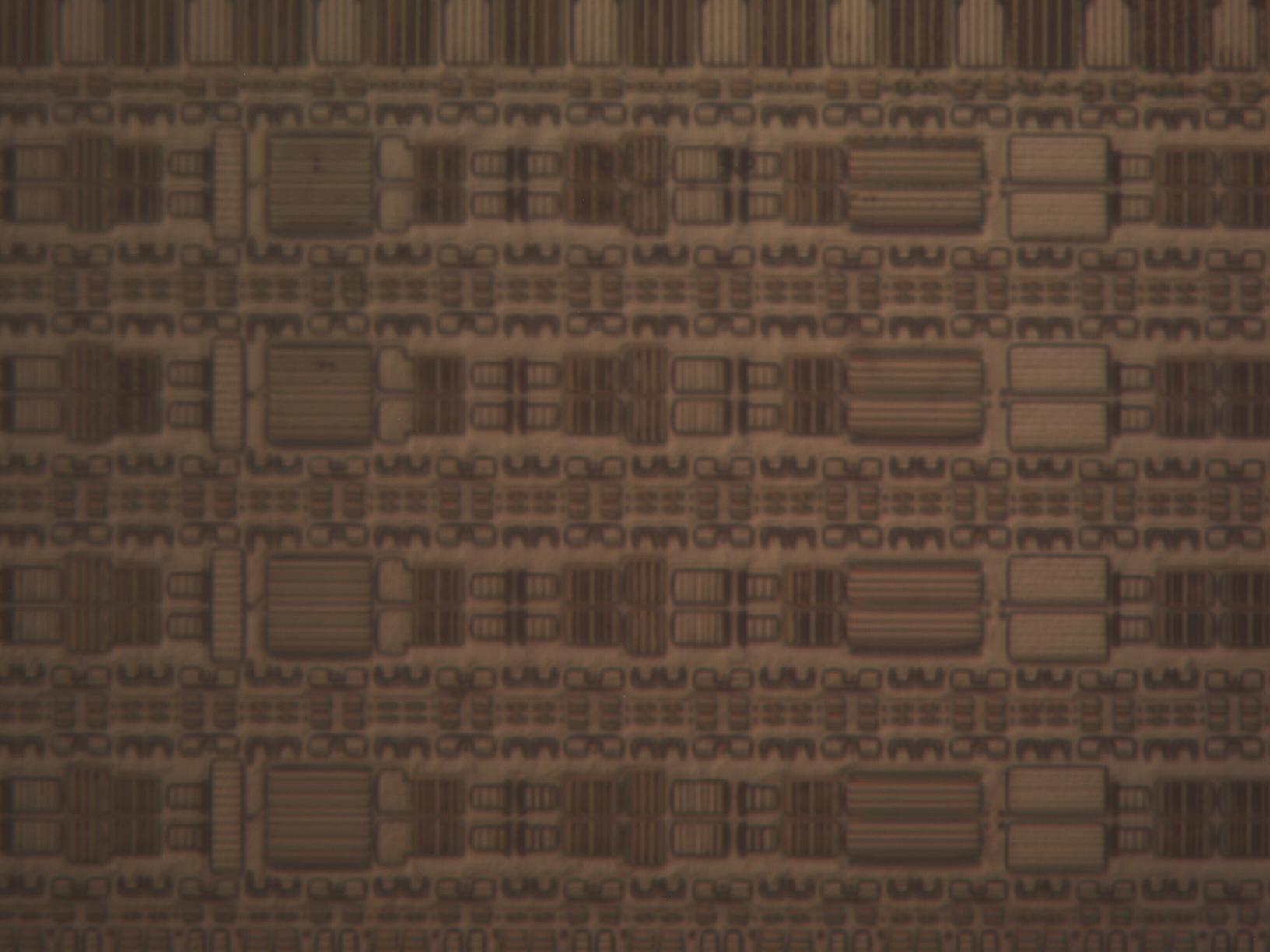

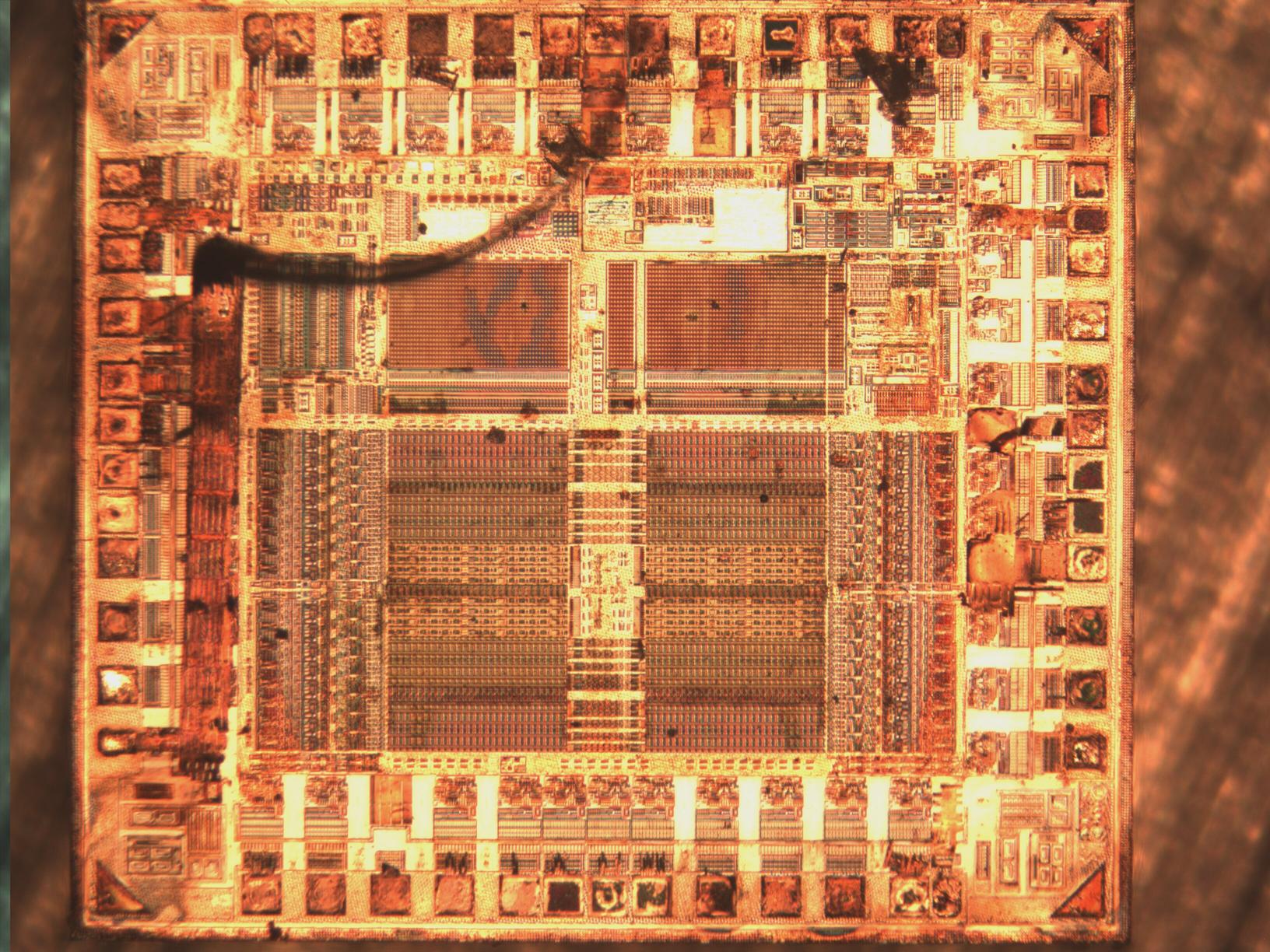

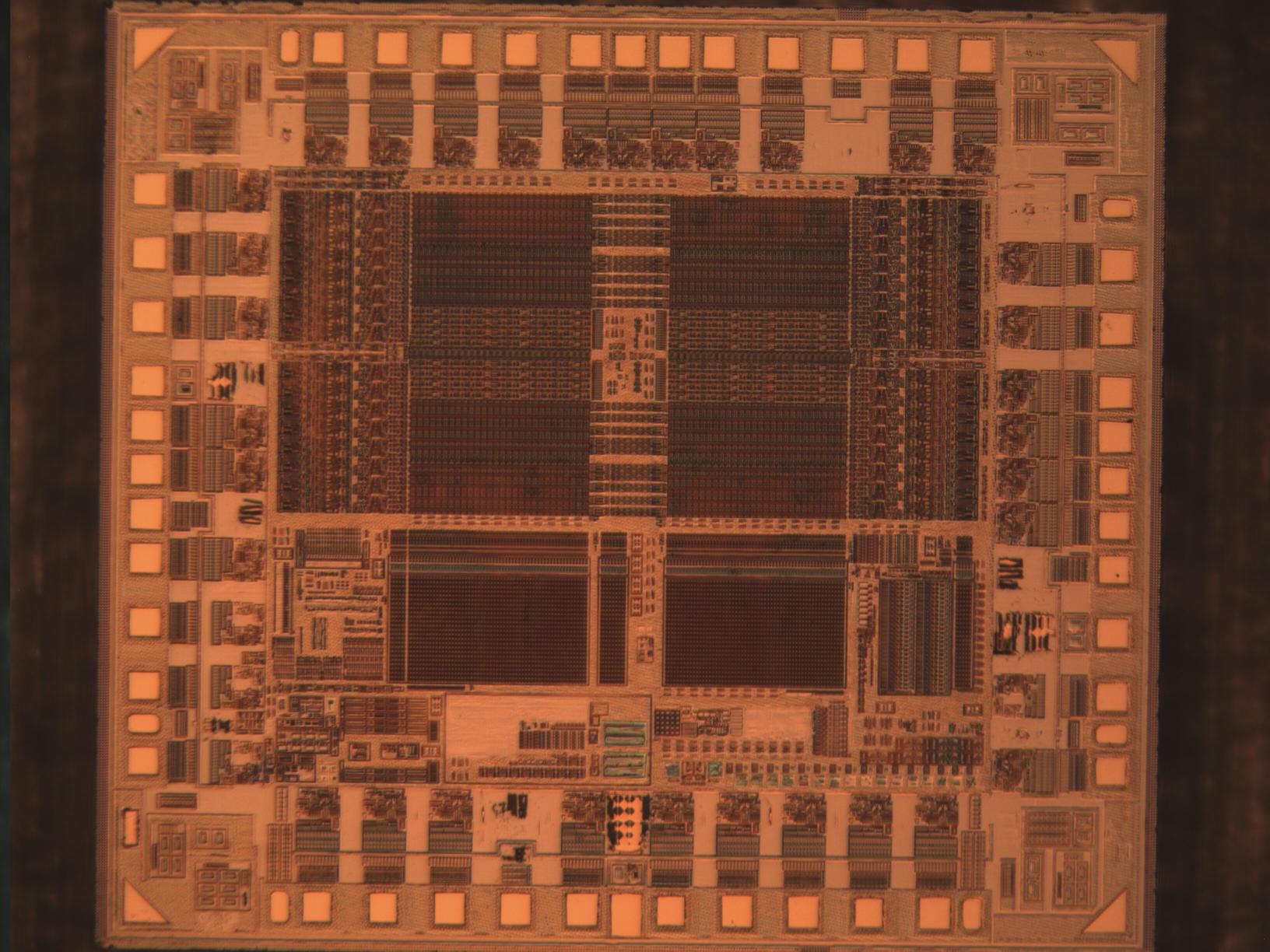

Half etch 09/26/2013

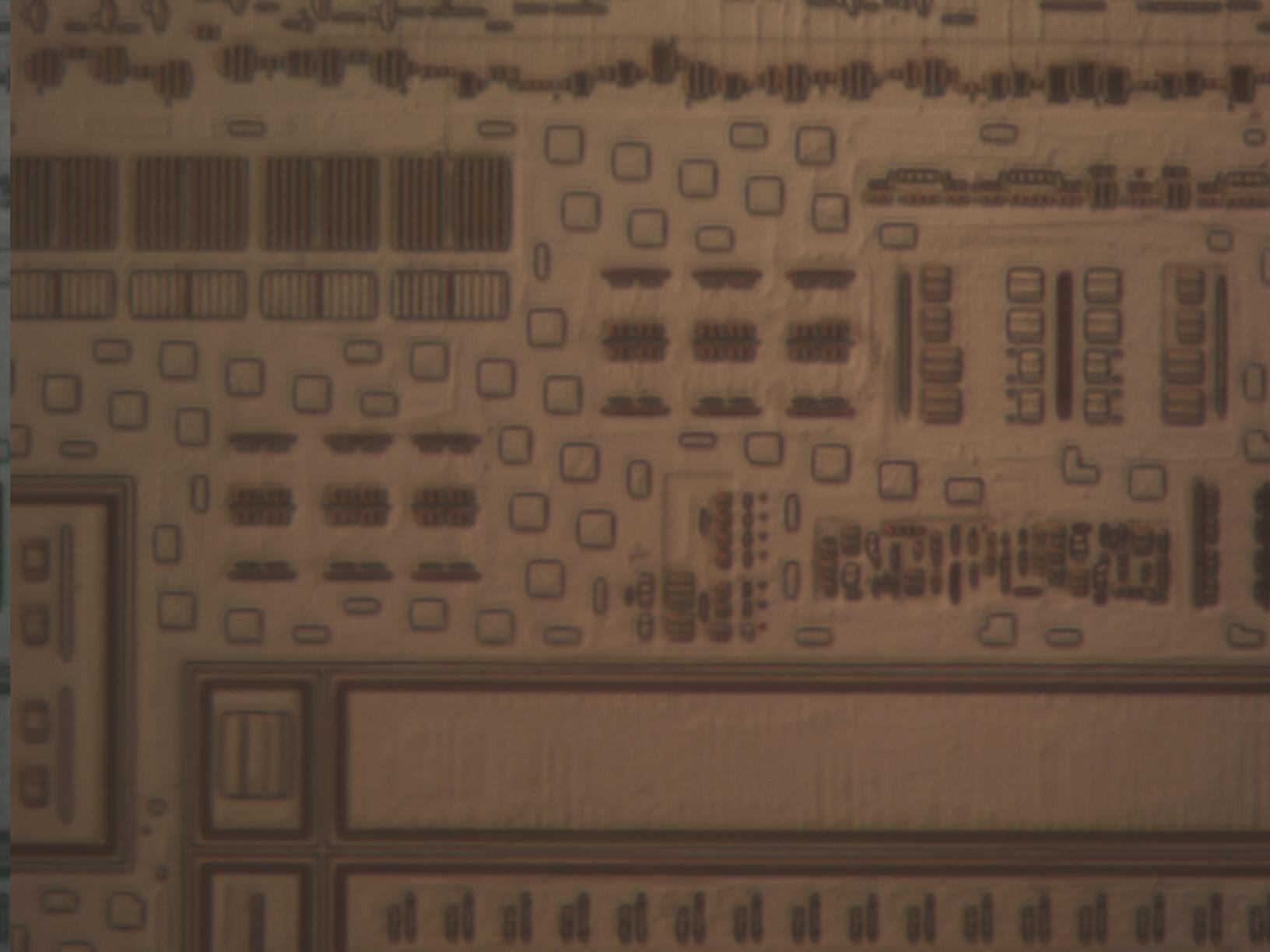

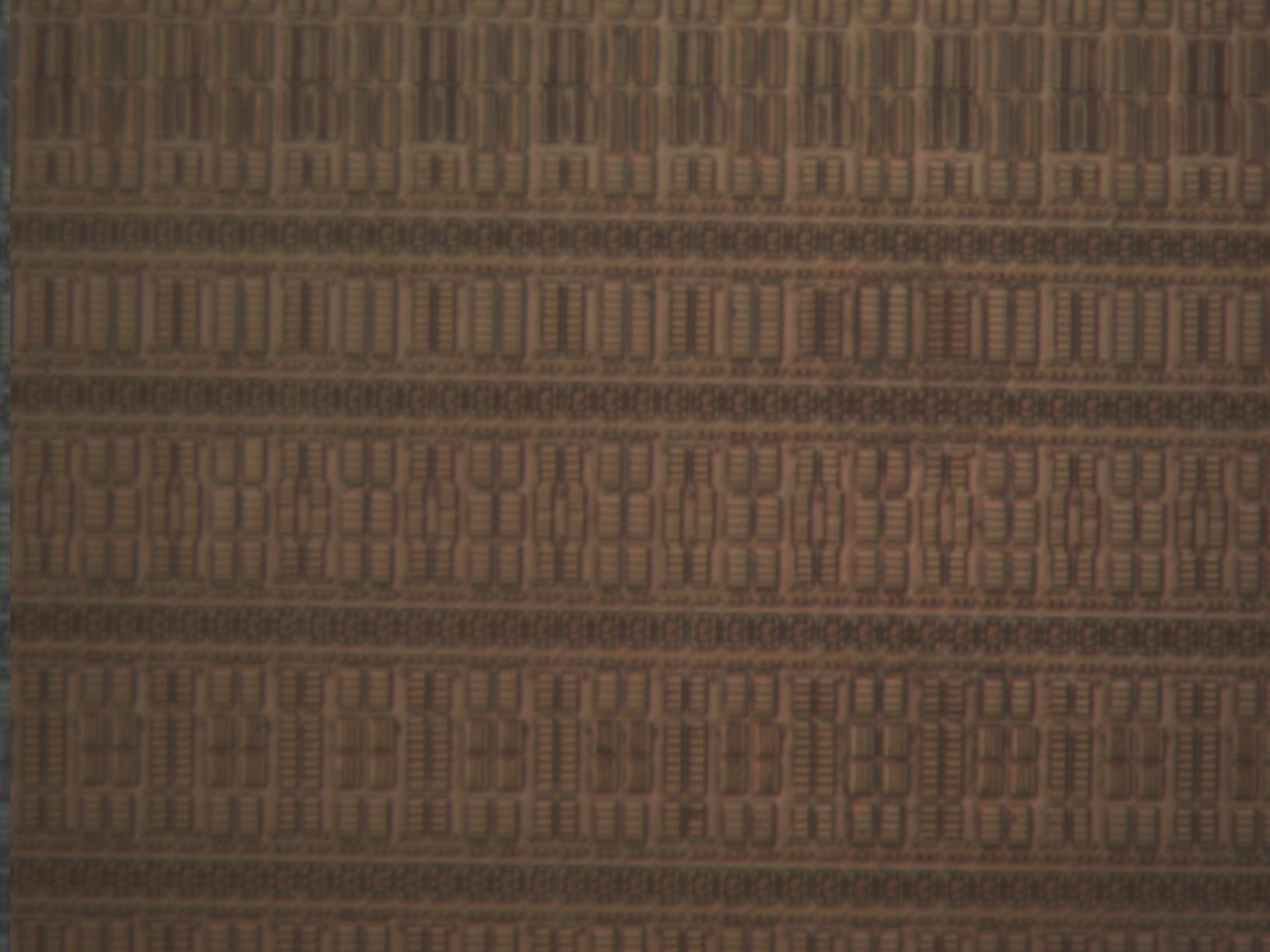

Ran out of time and had to go to sleep. Pictures requested by AZ

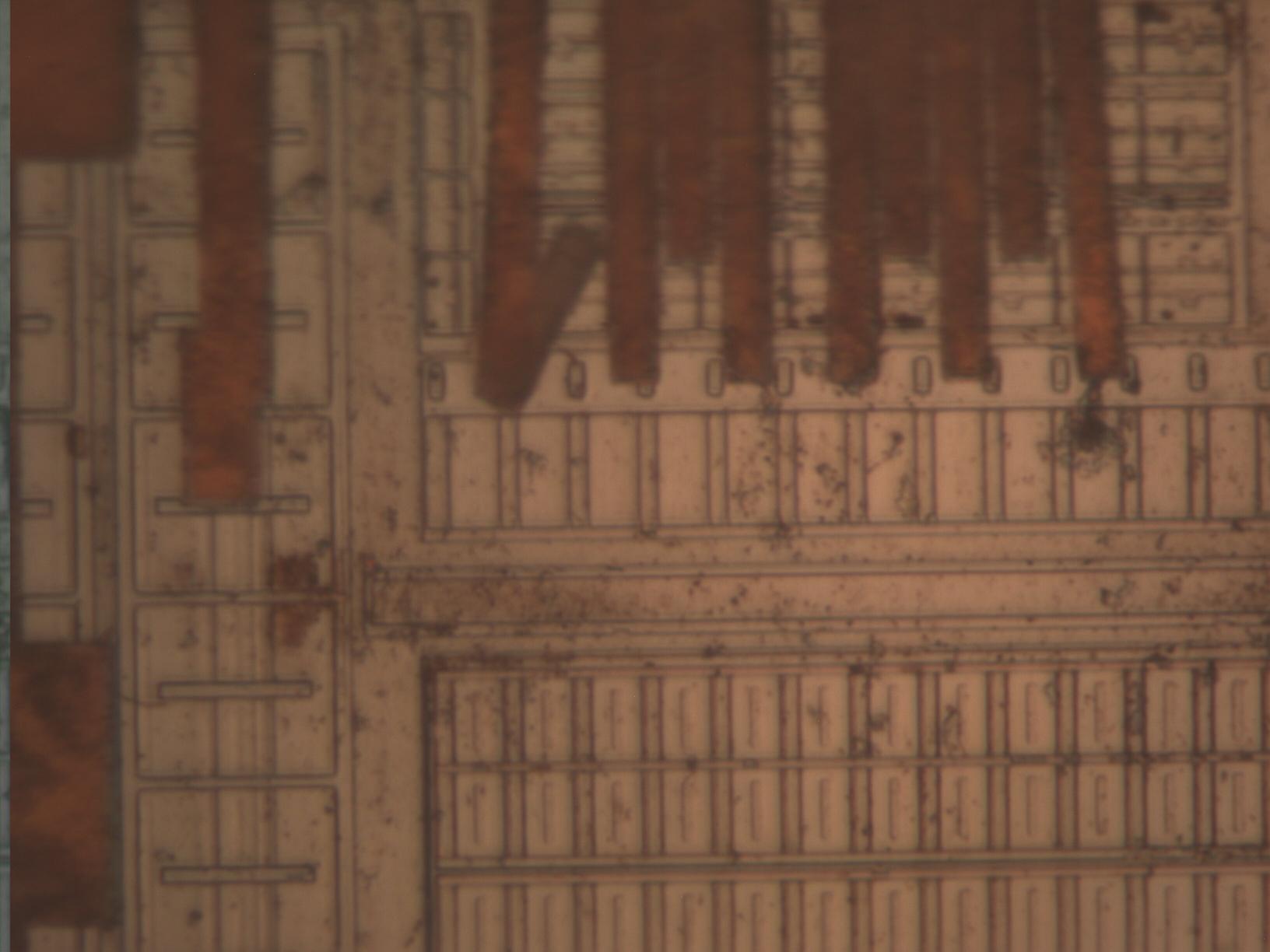

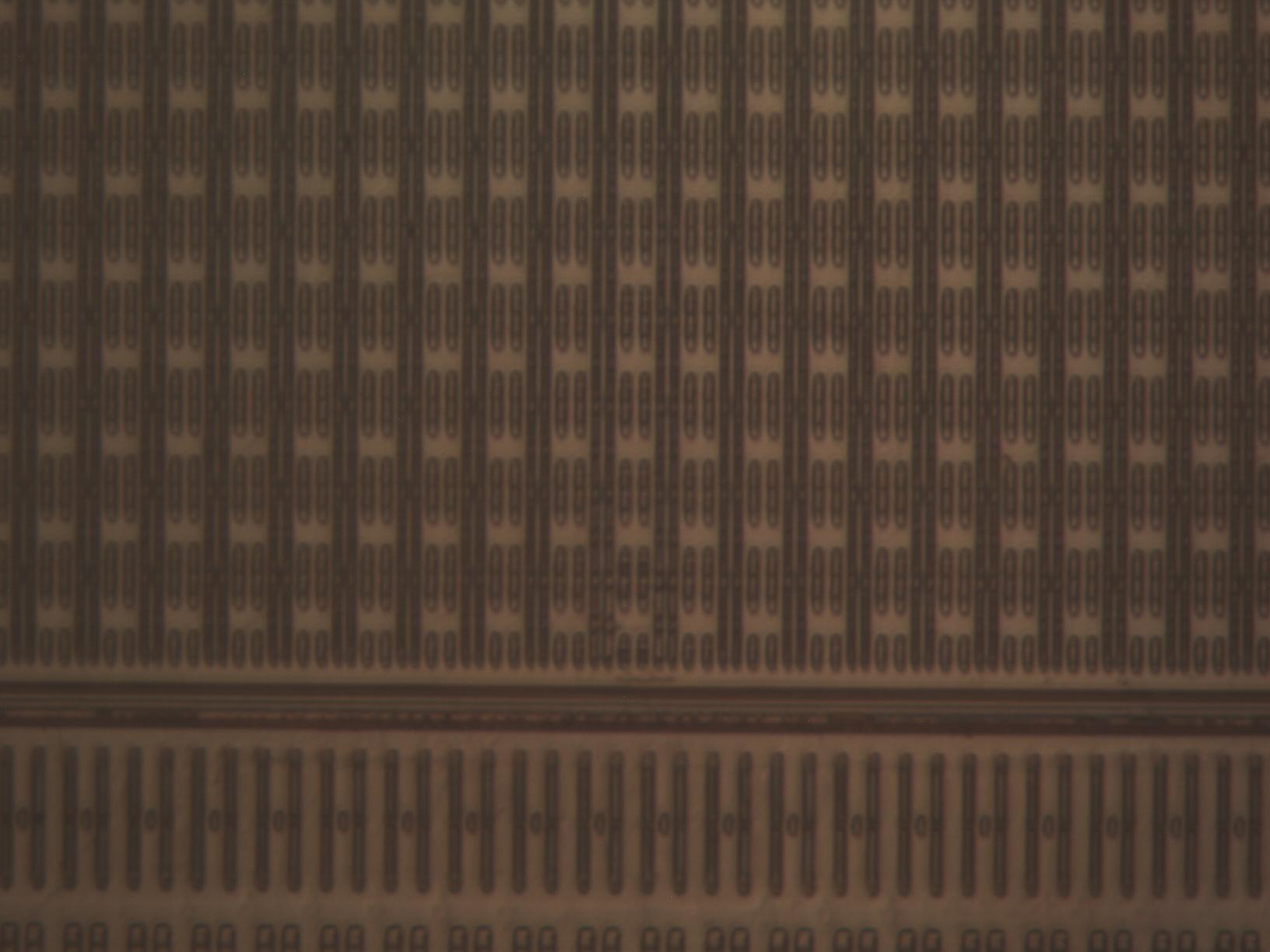

H2O2/HCl etch 09/27/2013

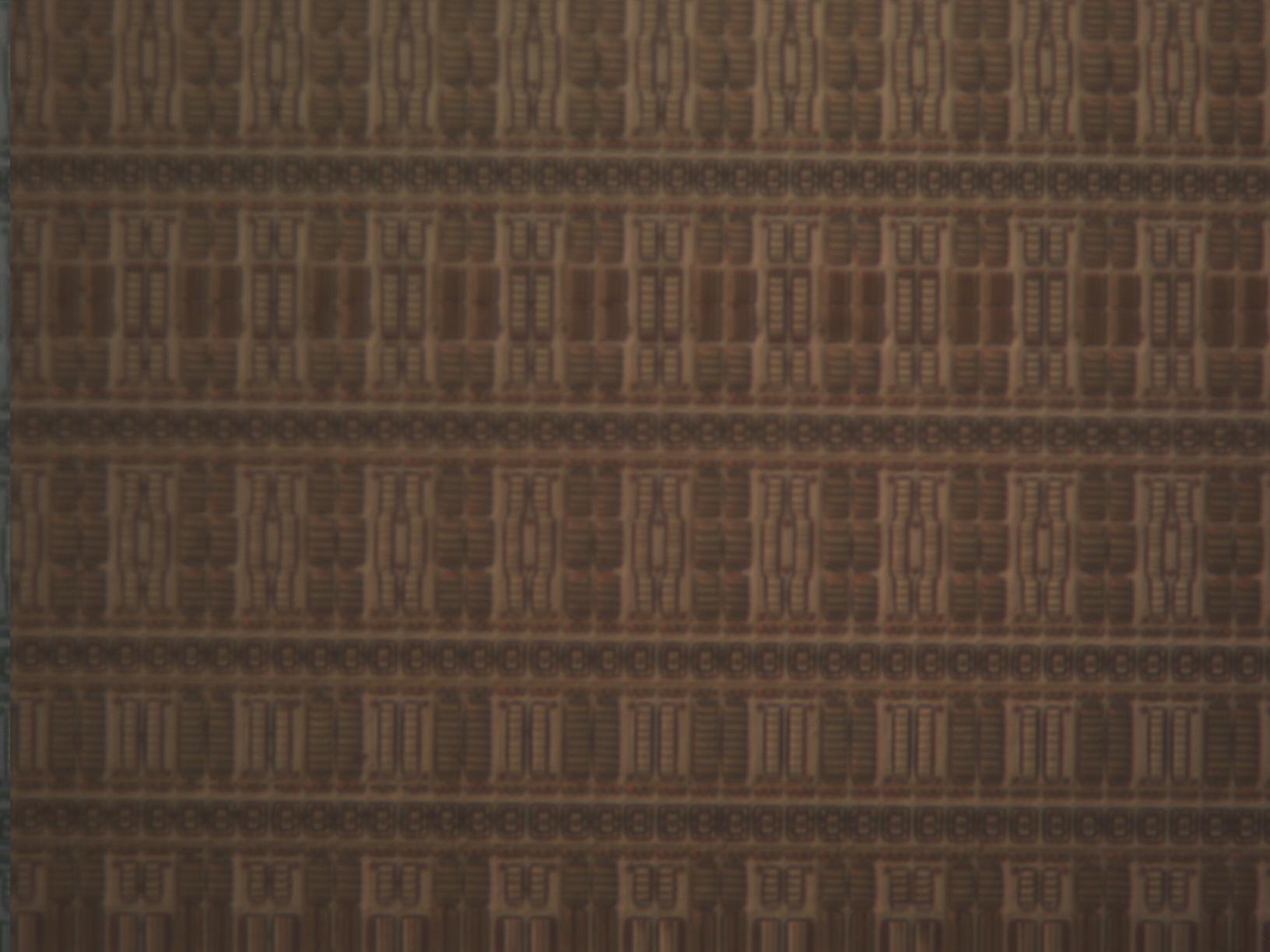

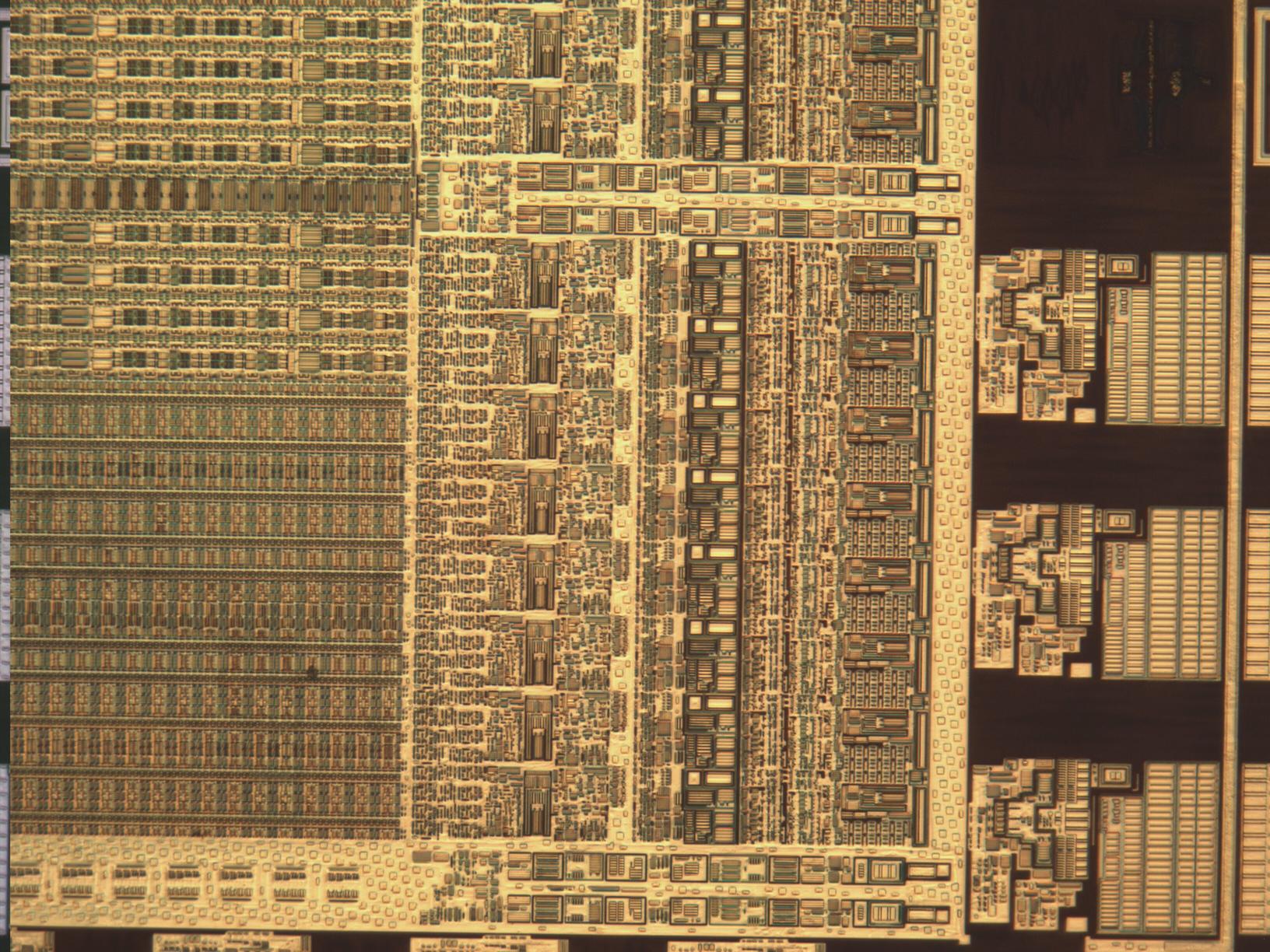

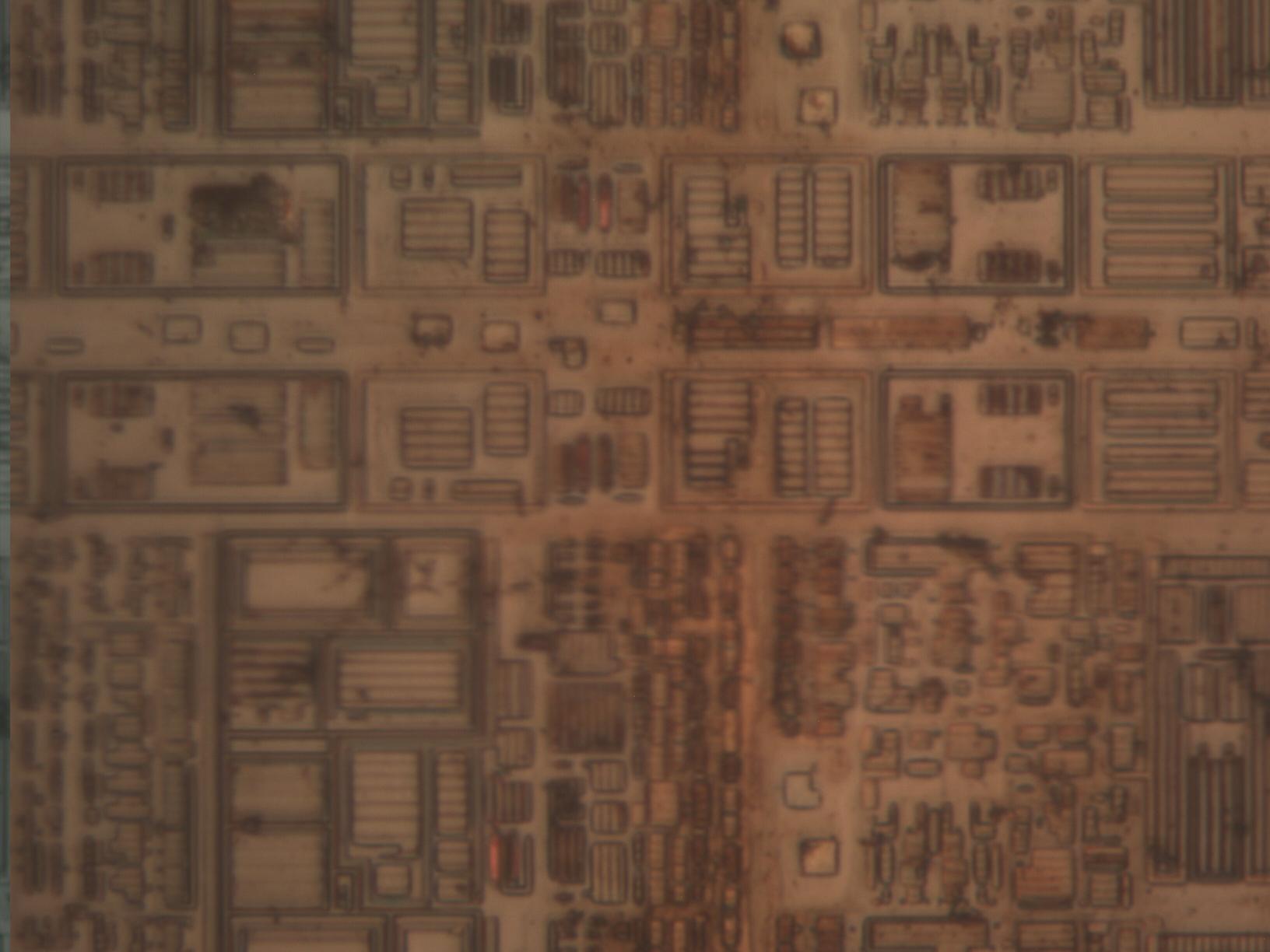

After putting above in H2O2 + HCl for a few min

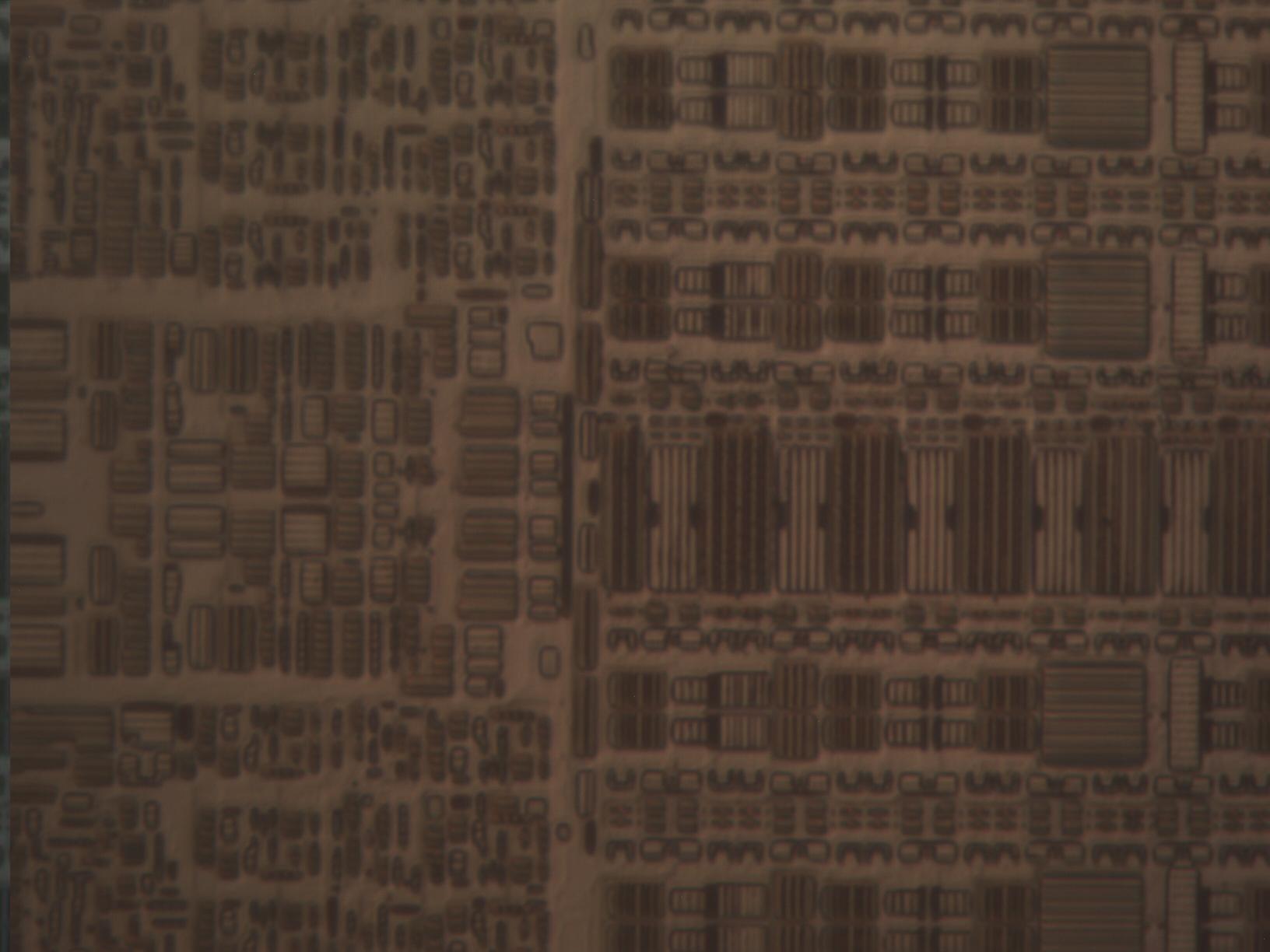

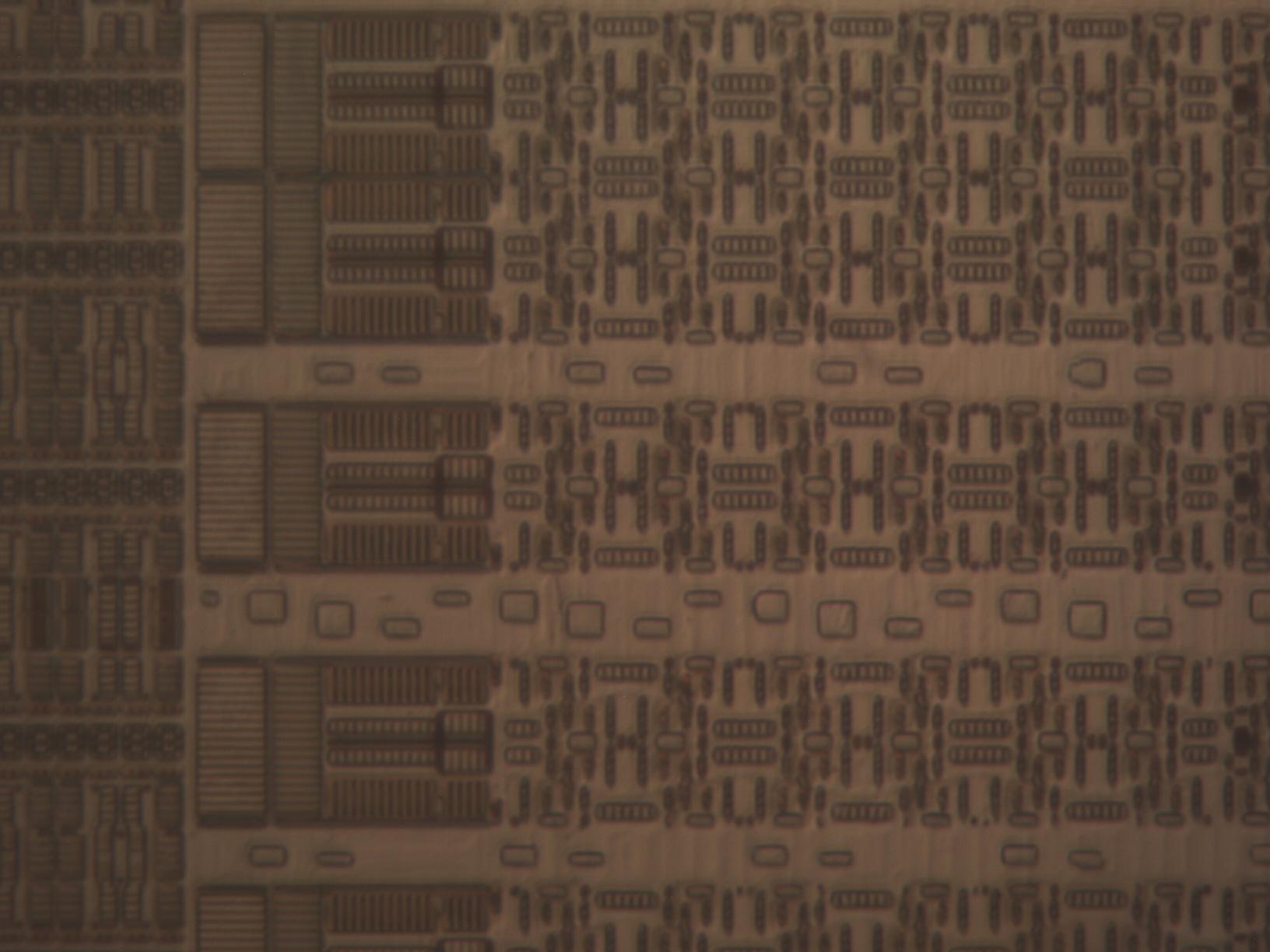

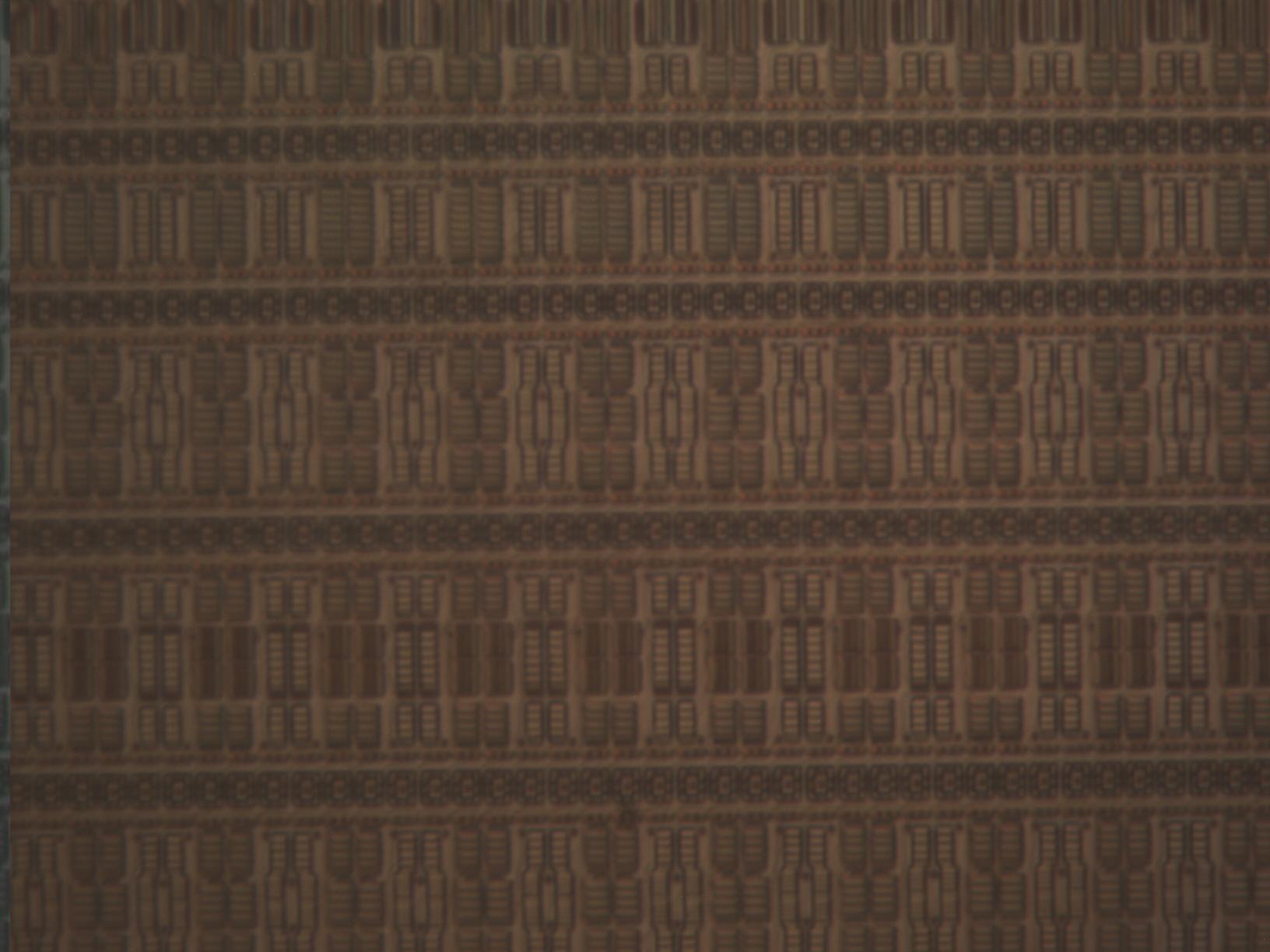

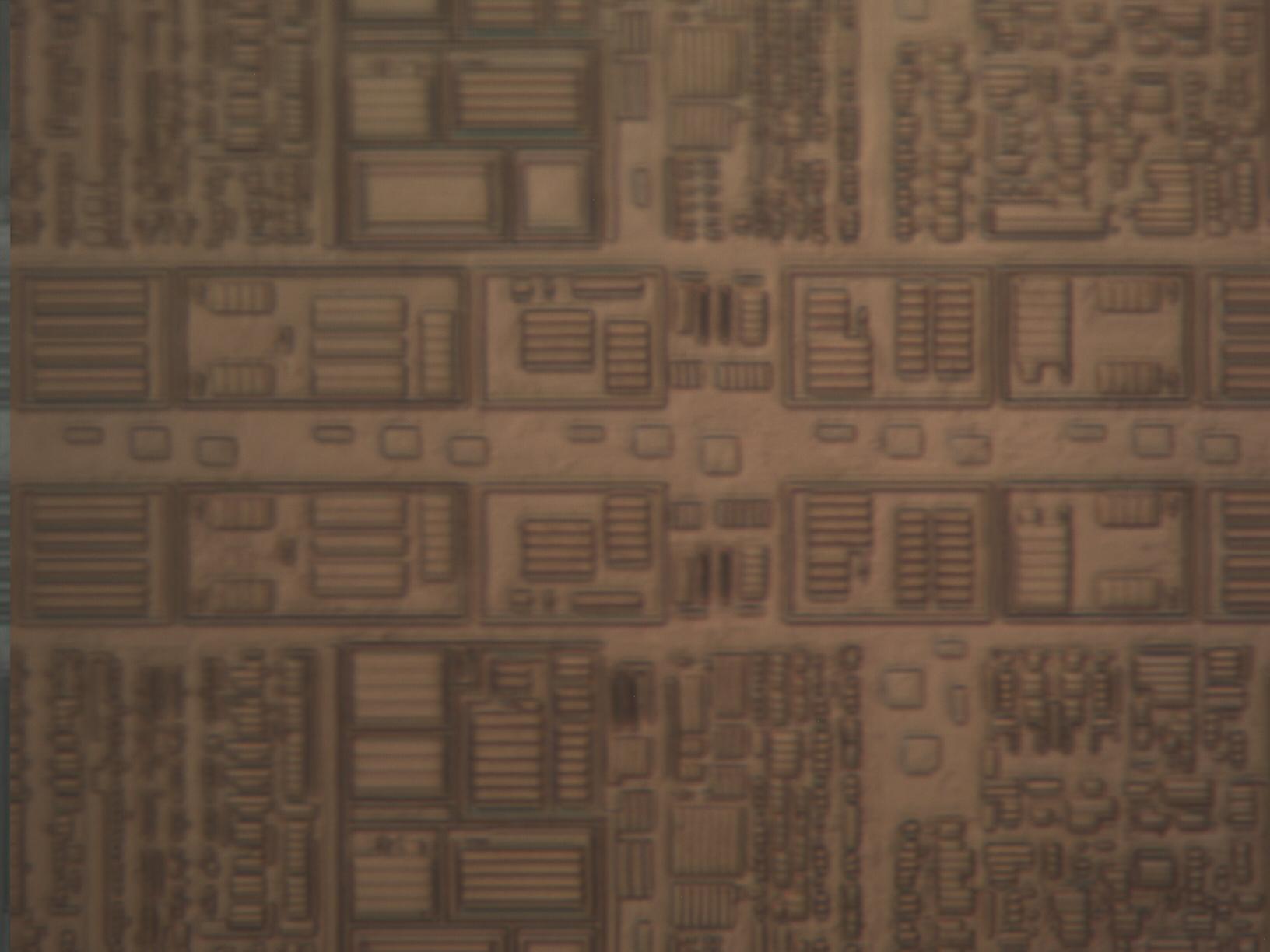

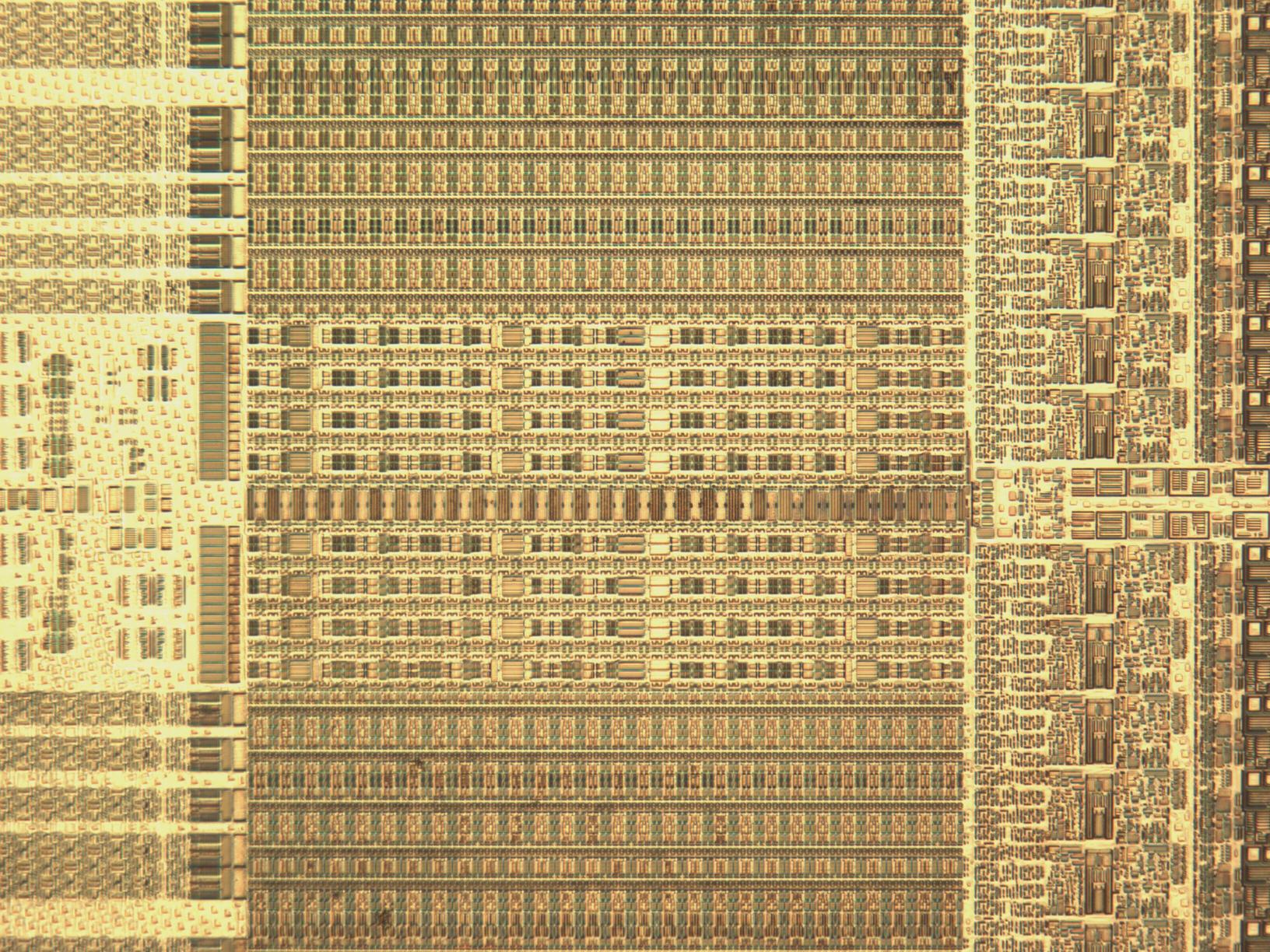

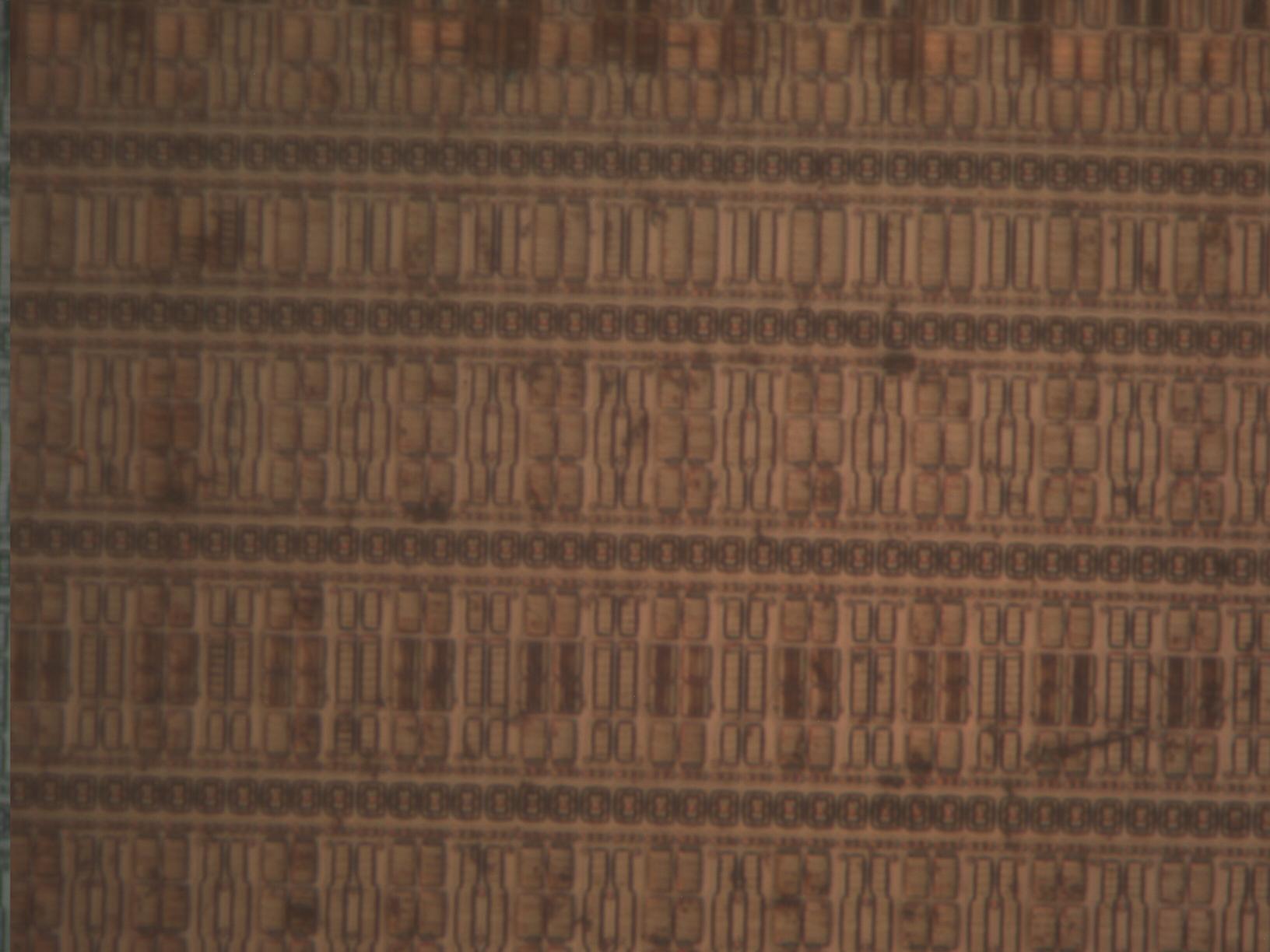

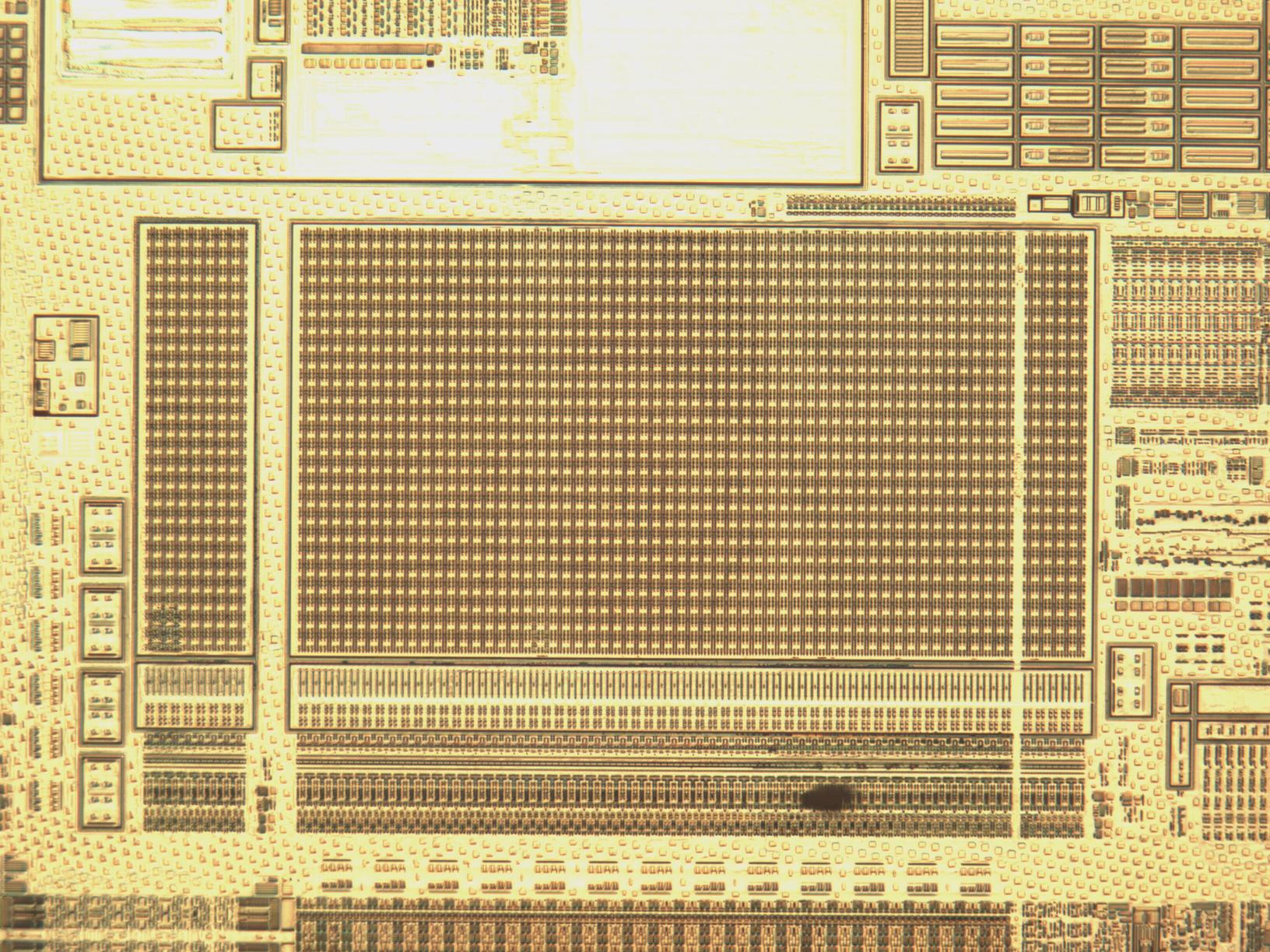

Dash etch 09/27/2013
Map

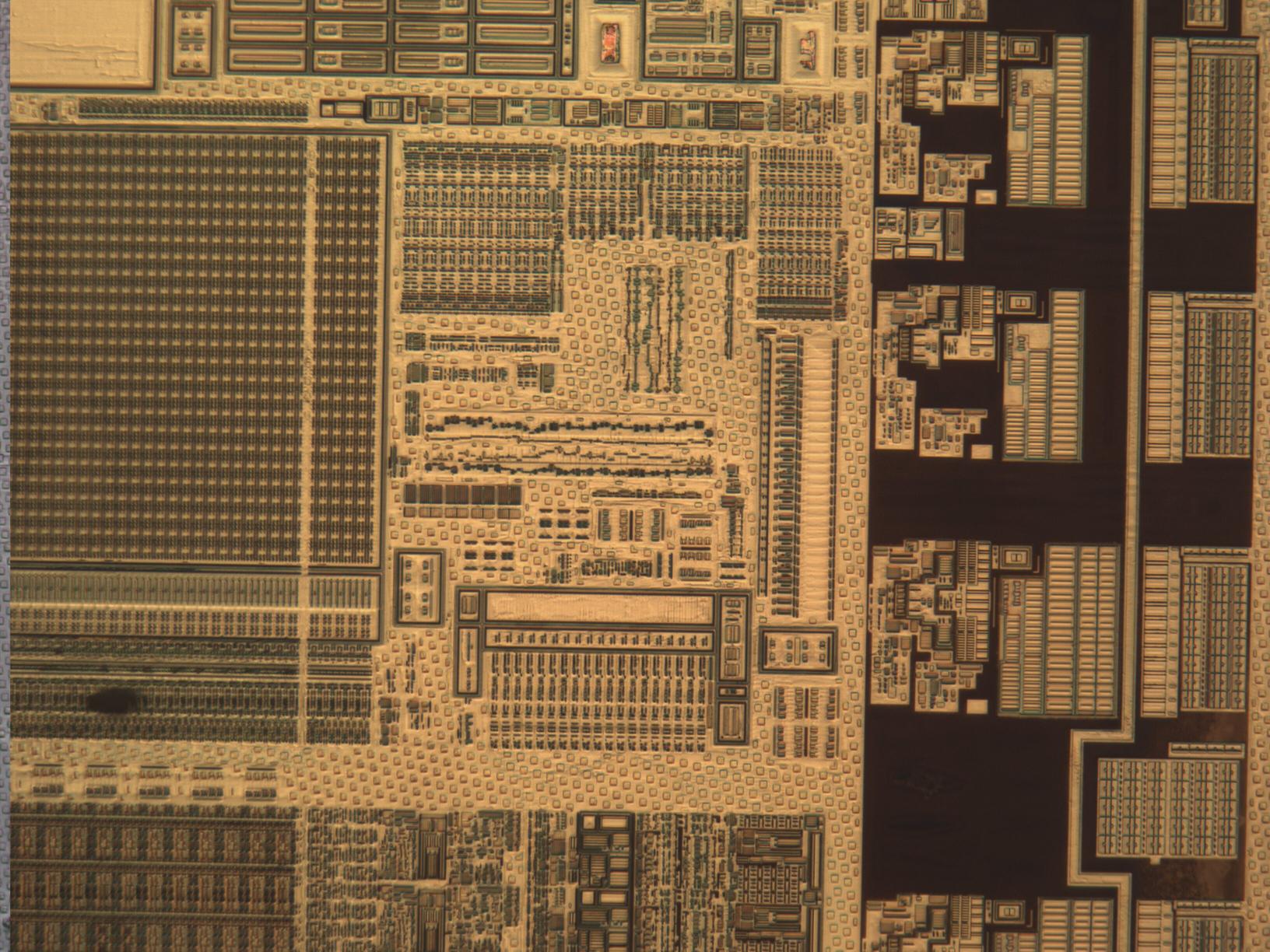

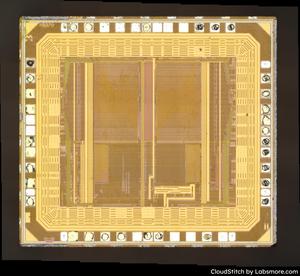

Top metal @ NS50xU: http://siliconpr0n.org/map/xilinx/xc2c32a/mcmaster_mz_ns50xu/
- Single (47.01MB, 15230×13630): http://siliconpr0n.org/map/xilinx/xc2c32a/single/xilinx_xc2c32a_mcmaster_mz_ns50xu.jpg

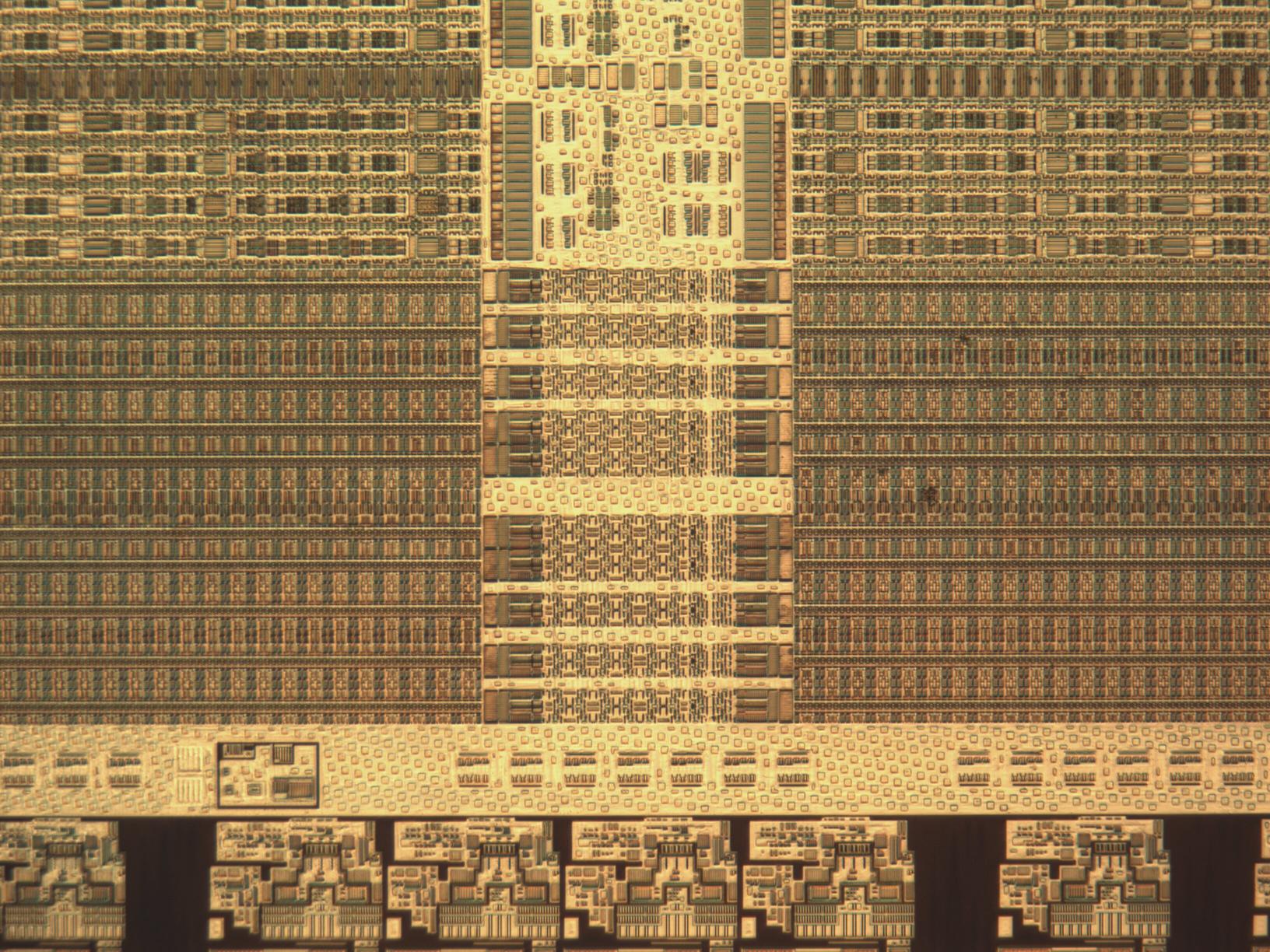

Top metal @ Mit100x: raw data captured but no plans to stitch

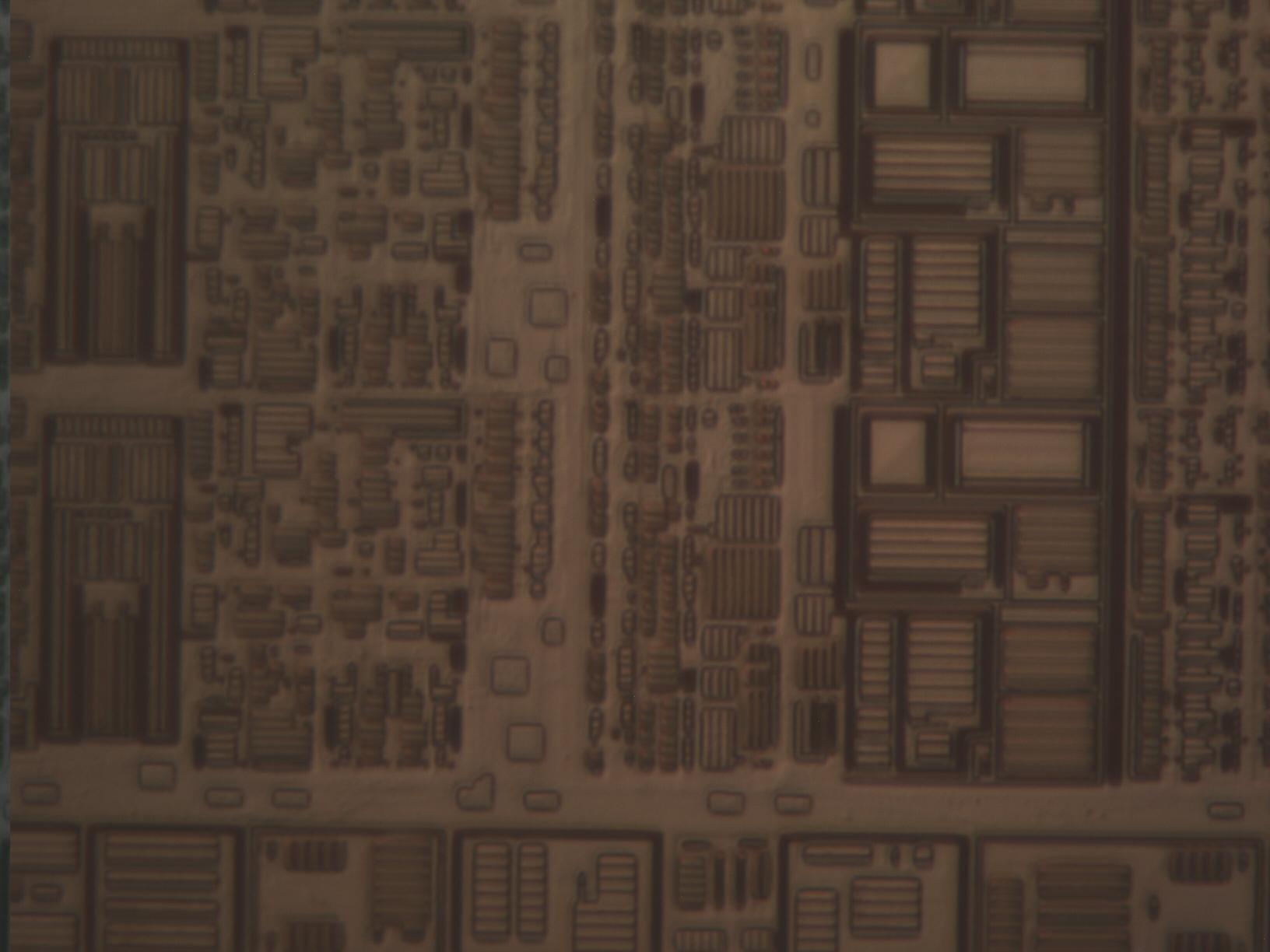

Stained @ NS50xU: http://siliconpr0n.org/map/xilinx/xc2c32a/mcmaster_stained_ns50xu/
- Single (54.17MB, 15227×13559): http://siliconpr0n.org/map/xilinx/xc2c32a/single/xilinx_xc2c32a_mcmaster_stained_ns50xu.jpg

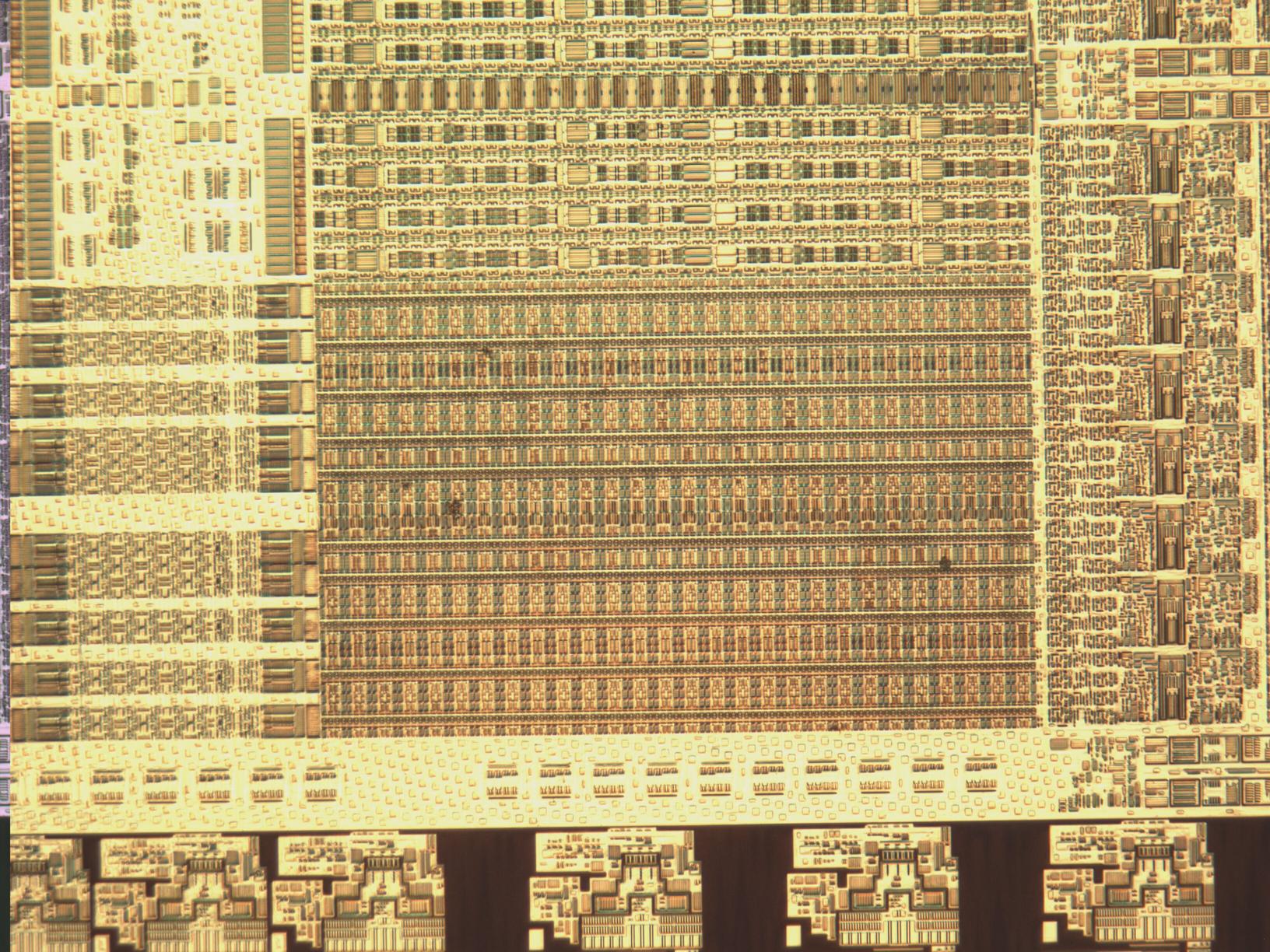

Stained @ Mit100x: raw data captured, stitching in progress
- Single (9386×8630, 10.053MiB)
