collection mcmaster, vendor xilinx, year 1993, year 1998, foundry tsmc, foundry seiko, tech 600nm, tech 800nm

Made on either 600nm Seiko or 800nm TSMC (both were used in the family). Not sure which this example is.

Datasheet: “XC7300 CMOS EPLD Family”

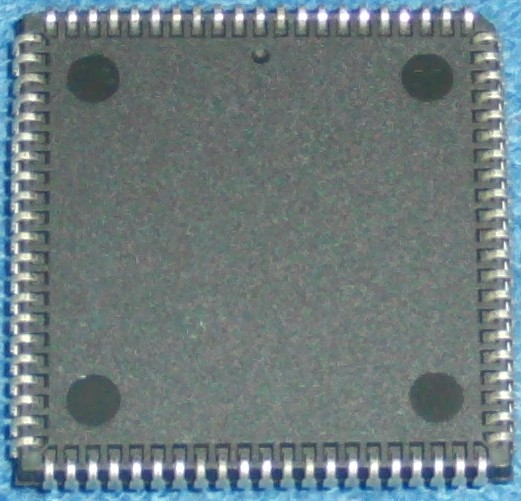

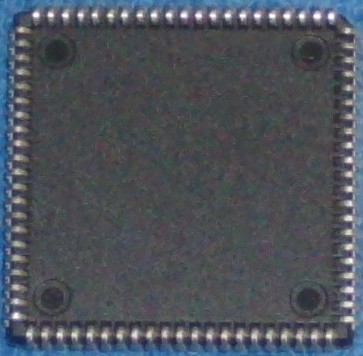

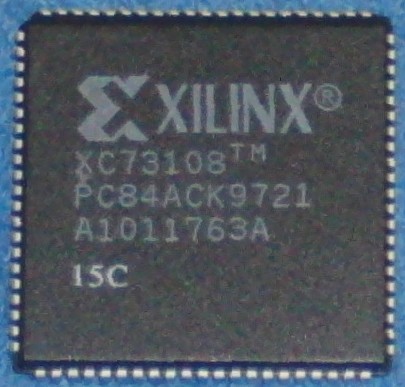

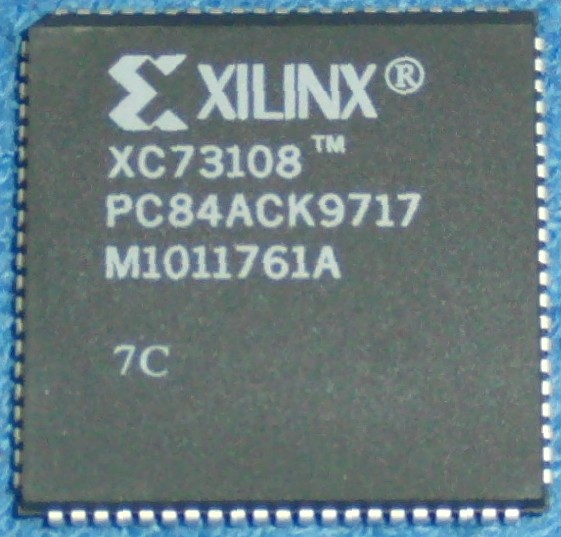

Package

Both have identical dies

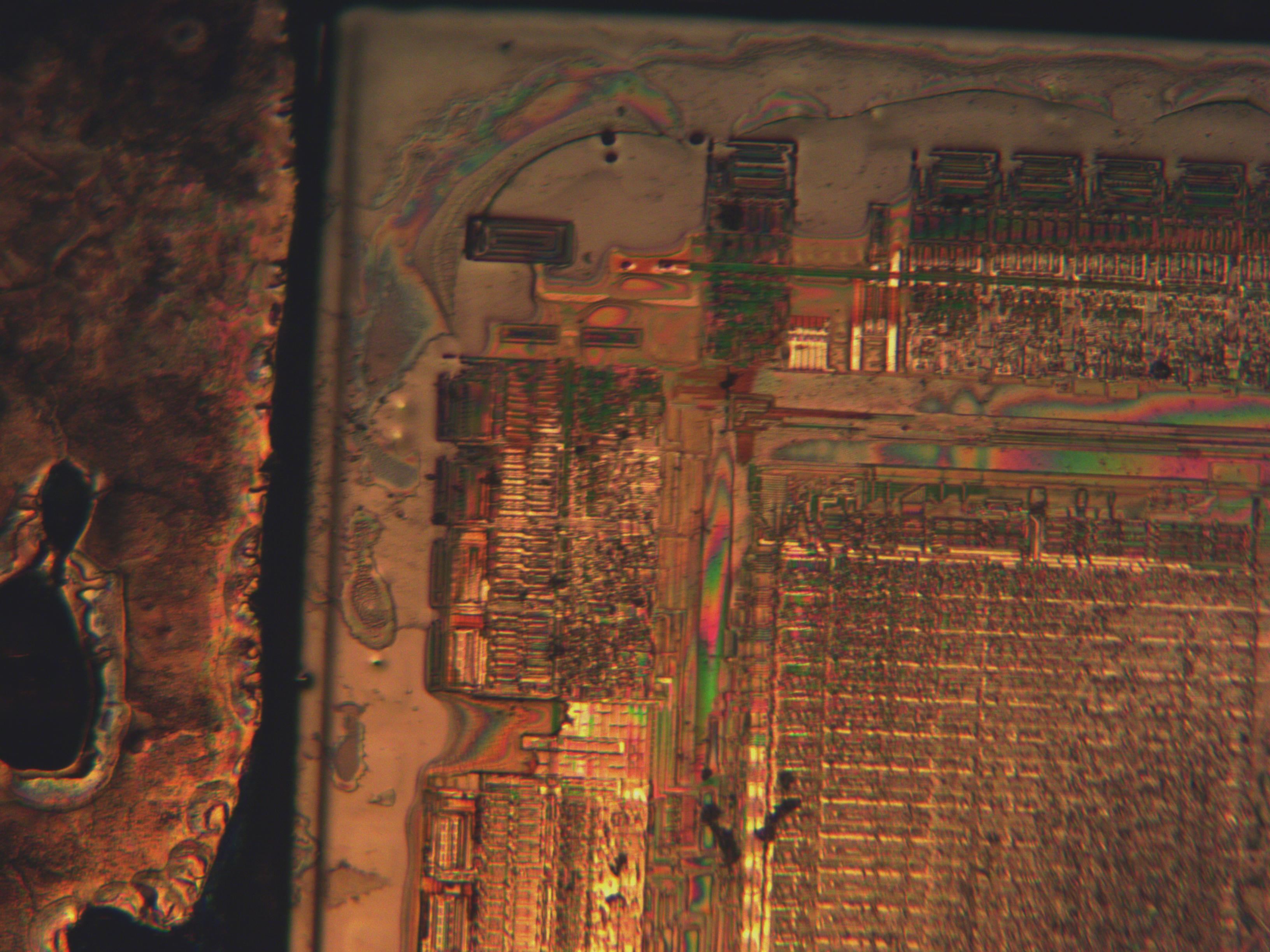

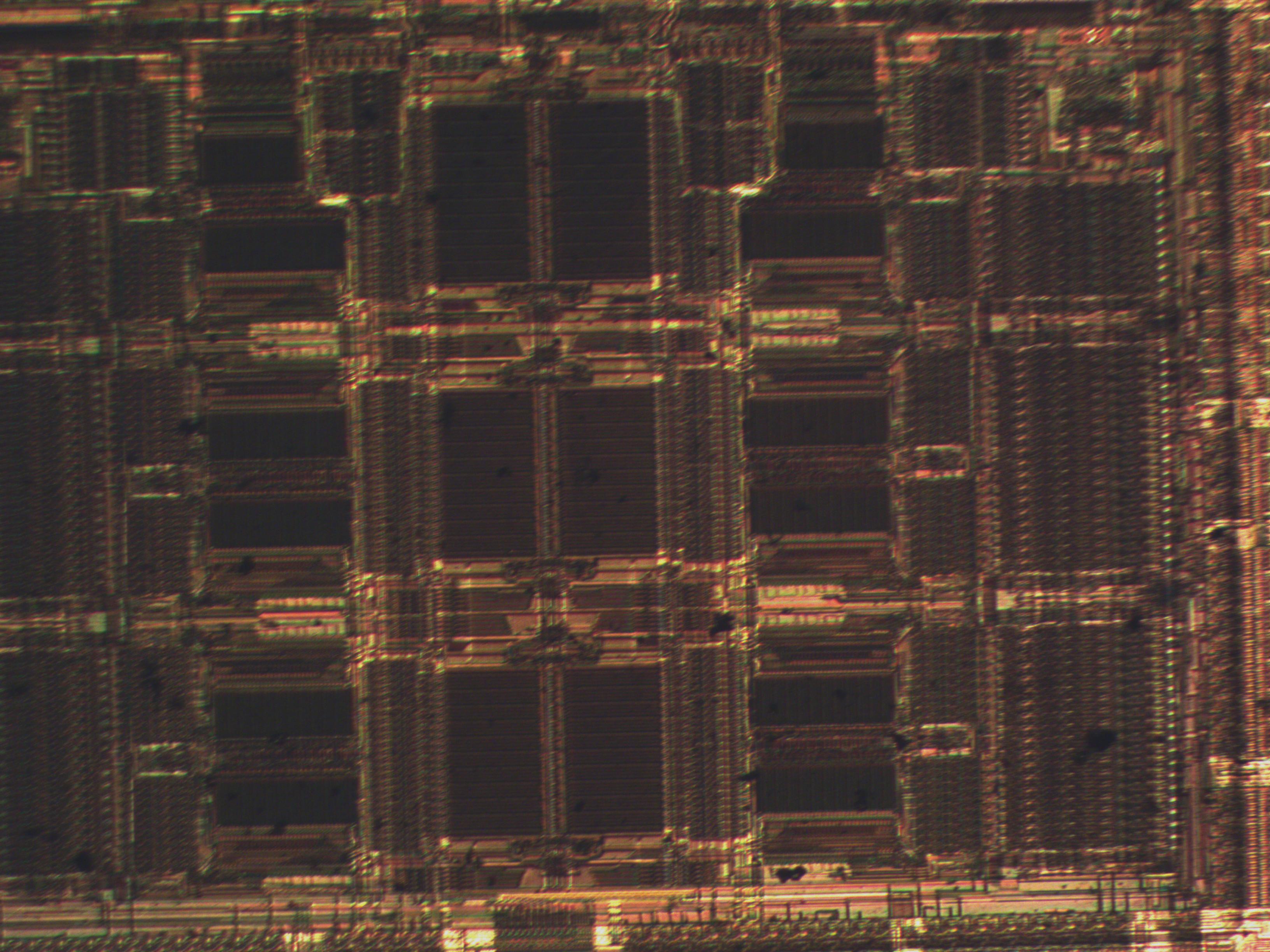

Die

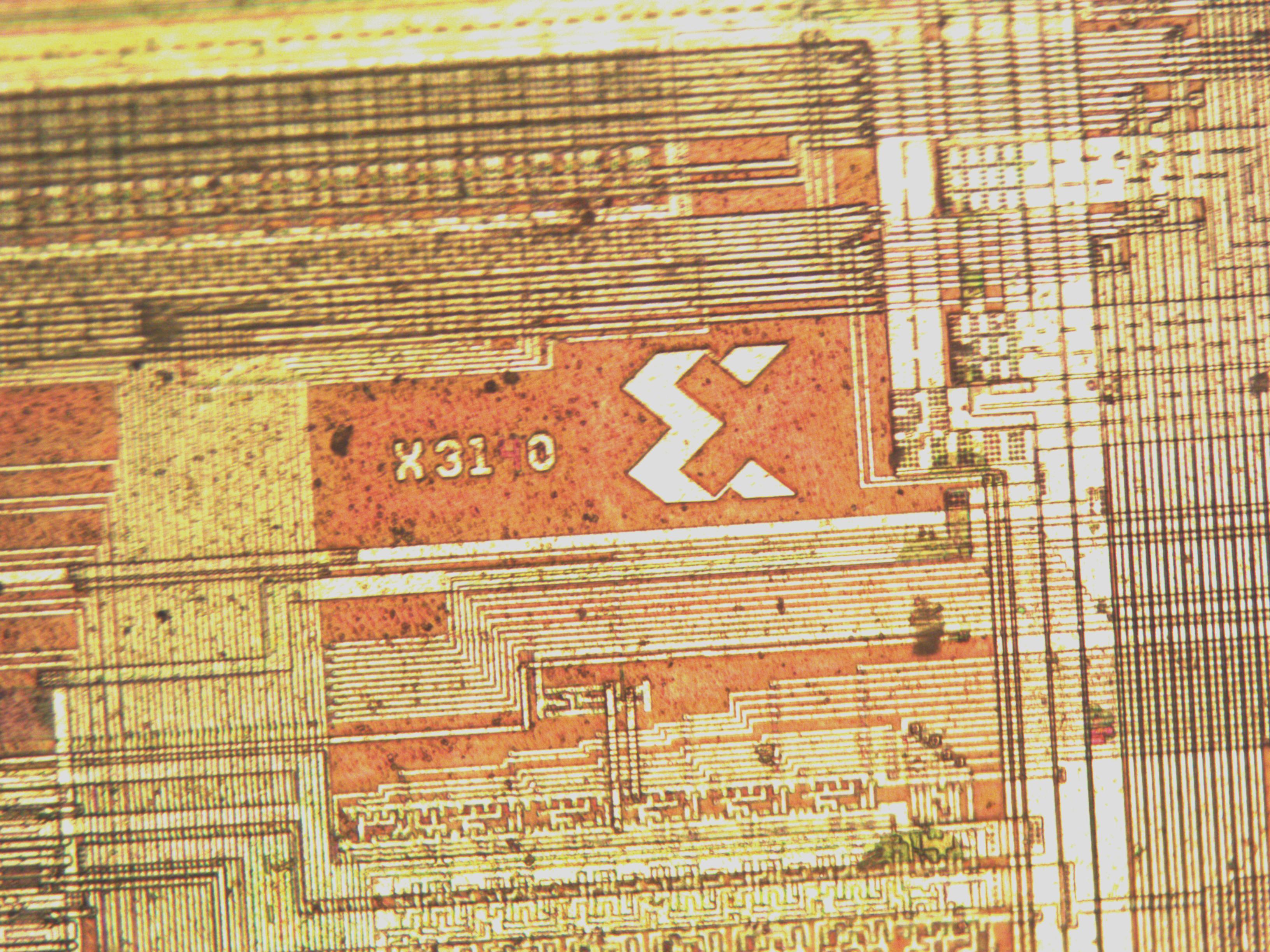

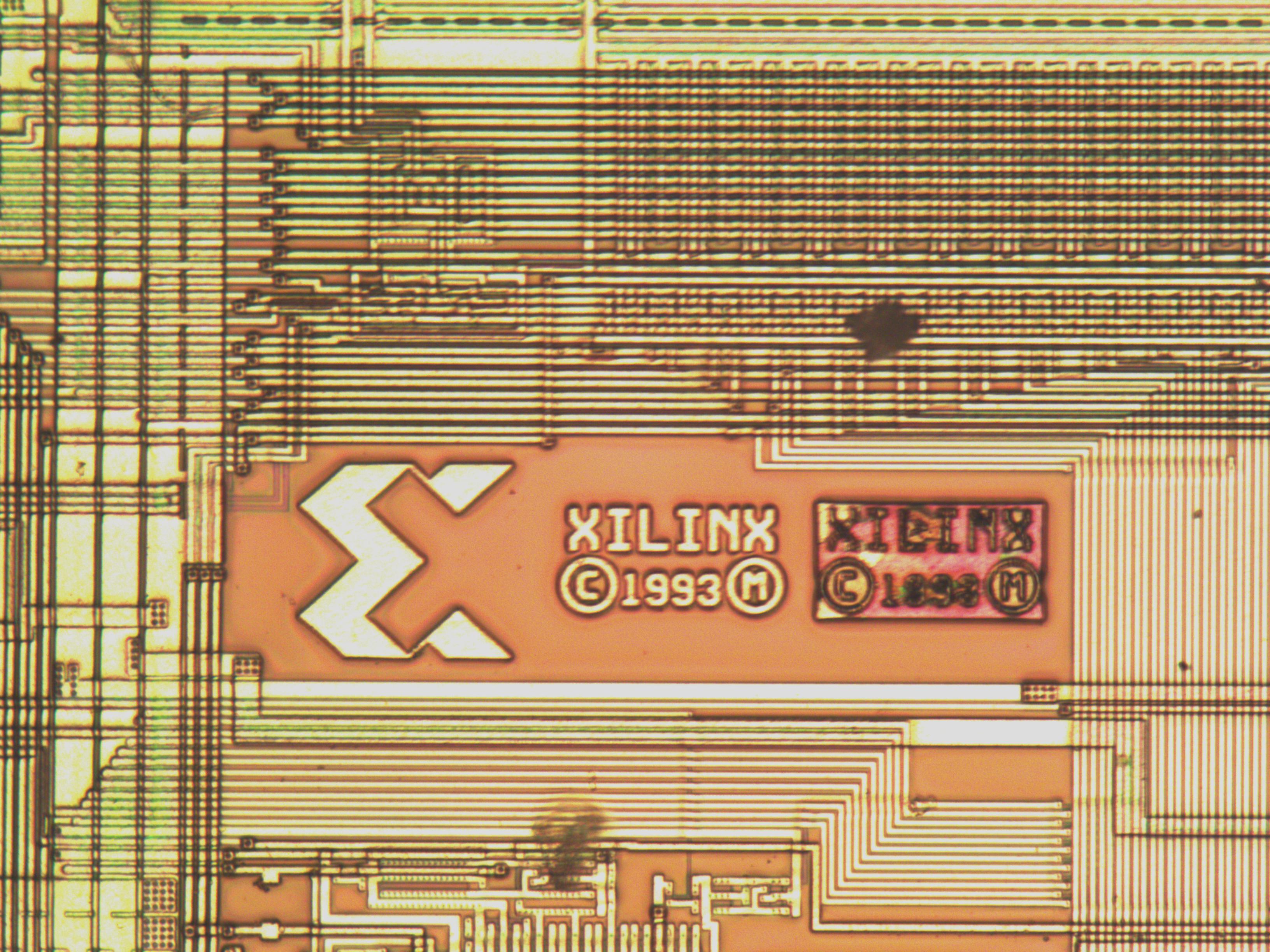

Text:

XILINX
(C)1993(M)
X3140

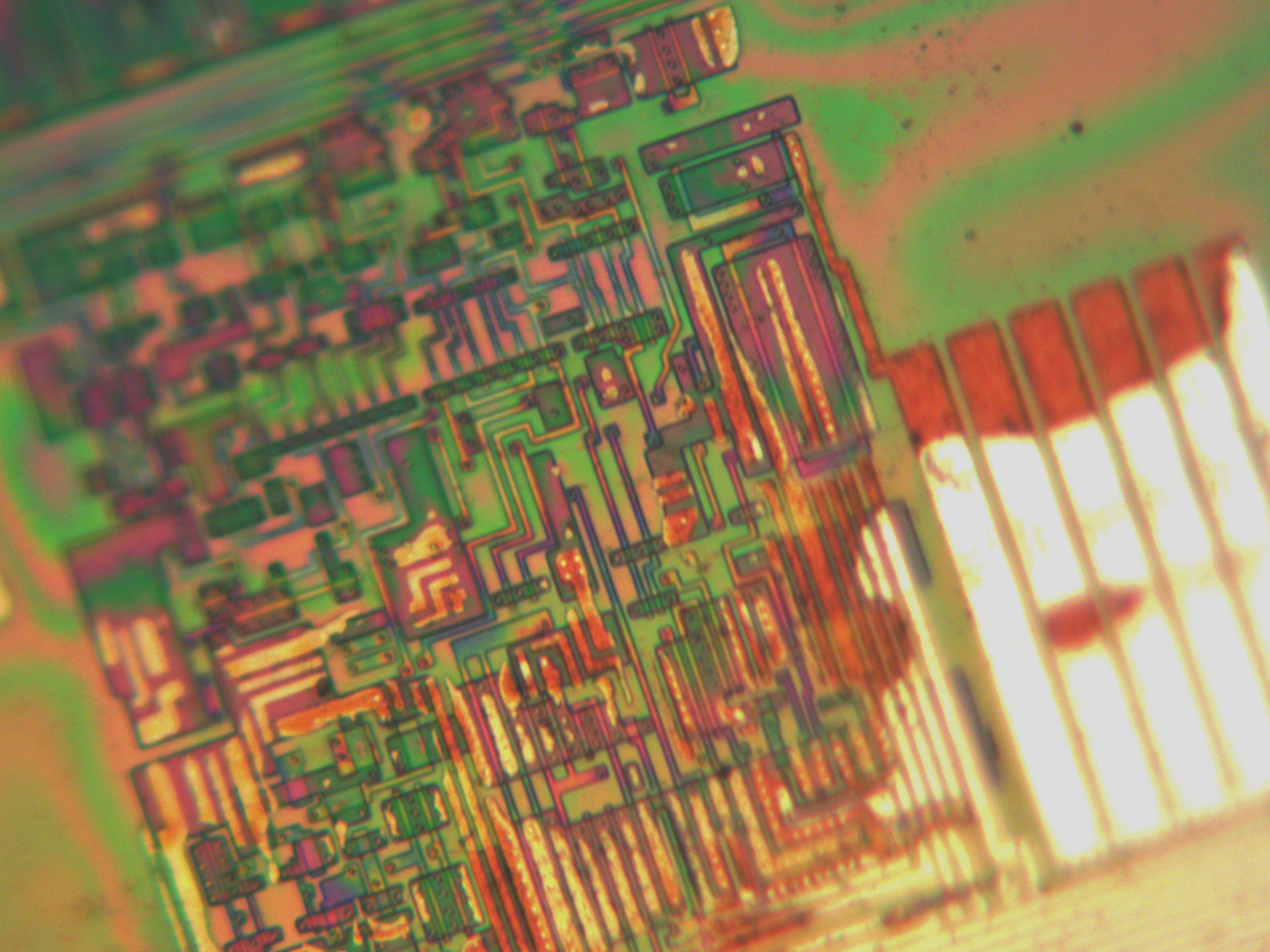

Lapped
