Originally this was what we called the “black SecurID” but these have 2C dies in them as well.
Sanyo LC573718A
securid-1c573718a-1p39
- Single (24933×26552, 145MB)
securid-1c573718a-1p95
- Single (24573×26388, 176.3MB)
- Single (24605×26354, 112.9MB)
- Single (24681×26526, 175.1MB)
- Single (, MB)
Cells
Sector 1: (CPU) cells

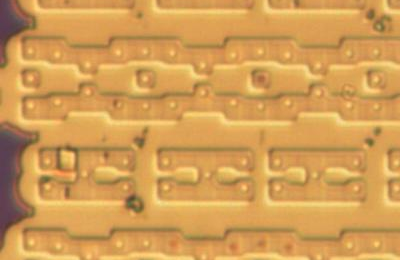

Main standard cell area. Probably what one would call the “CPU”
Sector 2: cells
Standard cells in two columns. The left column is solid and the right is maybe 4 discrete areas
Sector 3: cells
Standard cells
Sector 4: cells
Standard cells
Memory
RAM
SRAM

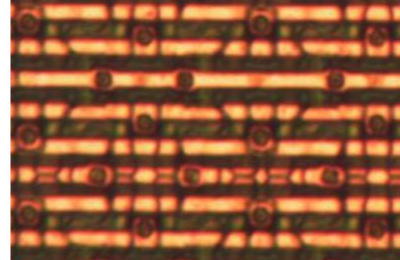

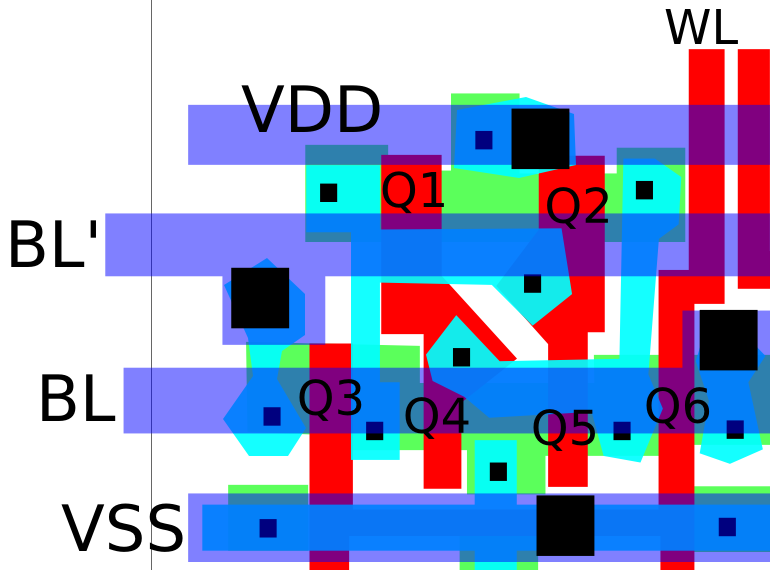

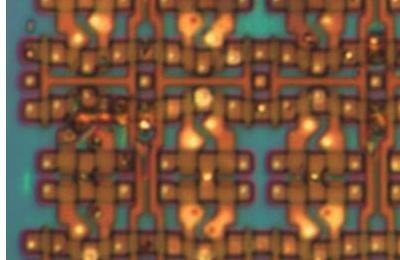

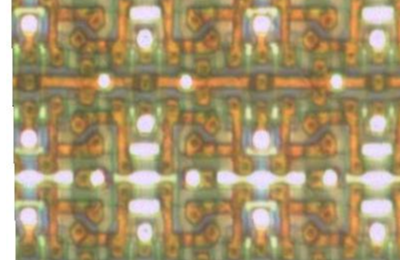

There are essentially 4 different types that are mirror images of each other. This is the upper left hand cell and the others can be derived from it pretty easily.
Composite polygons:
Raw layers:
Project: final.tar.bz2
ROM
Mask ROM. Optically visible. delayered1 shot makes this easily readable.
Sector 5: osc?
Looks like analog circuitry. Could be the clock.
Sector 6: markings
The only text on the die. Reads:
SMSC 1C 1C 1C573718A -1P95
Sector 7: ?
Sector 8: LCD decoder?
Sector 9: LCD driver?
Sector 10: ?
Pads
Scattered like roaches. The padframe is on all four sides. The left side is non-linear as it has two distinct blocks.
