Source

Came off a yellow educational plaque off of eBay.

Overview

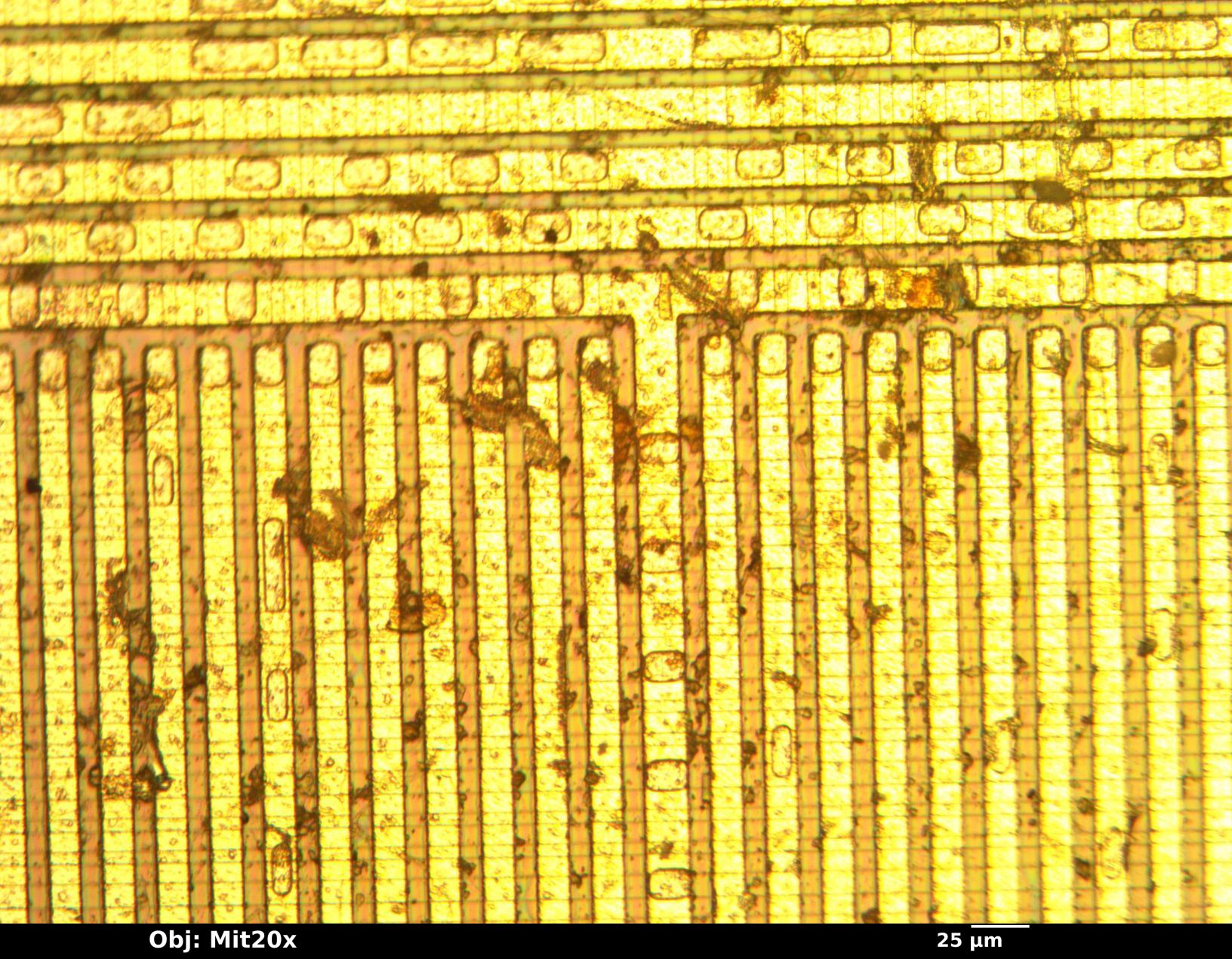

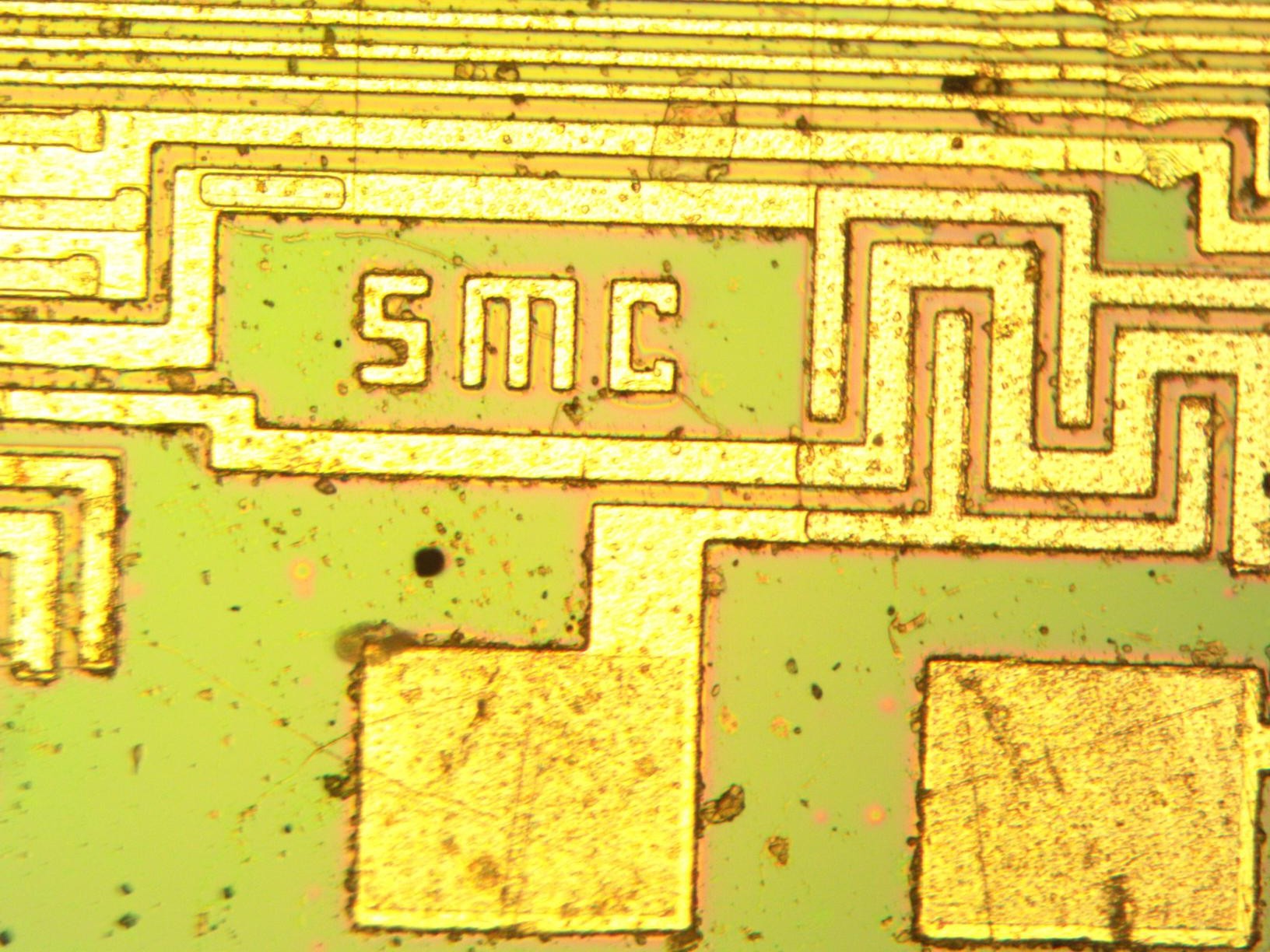

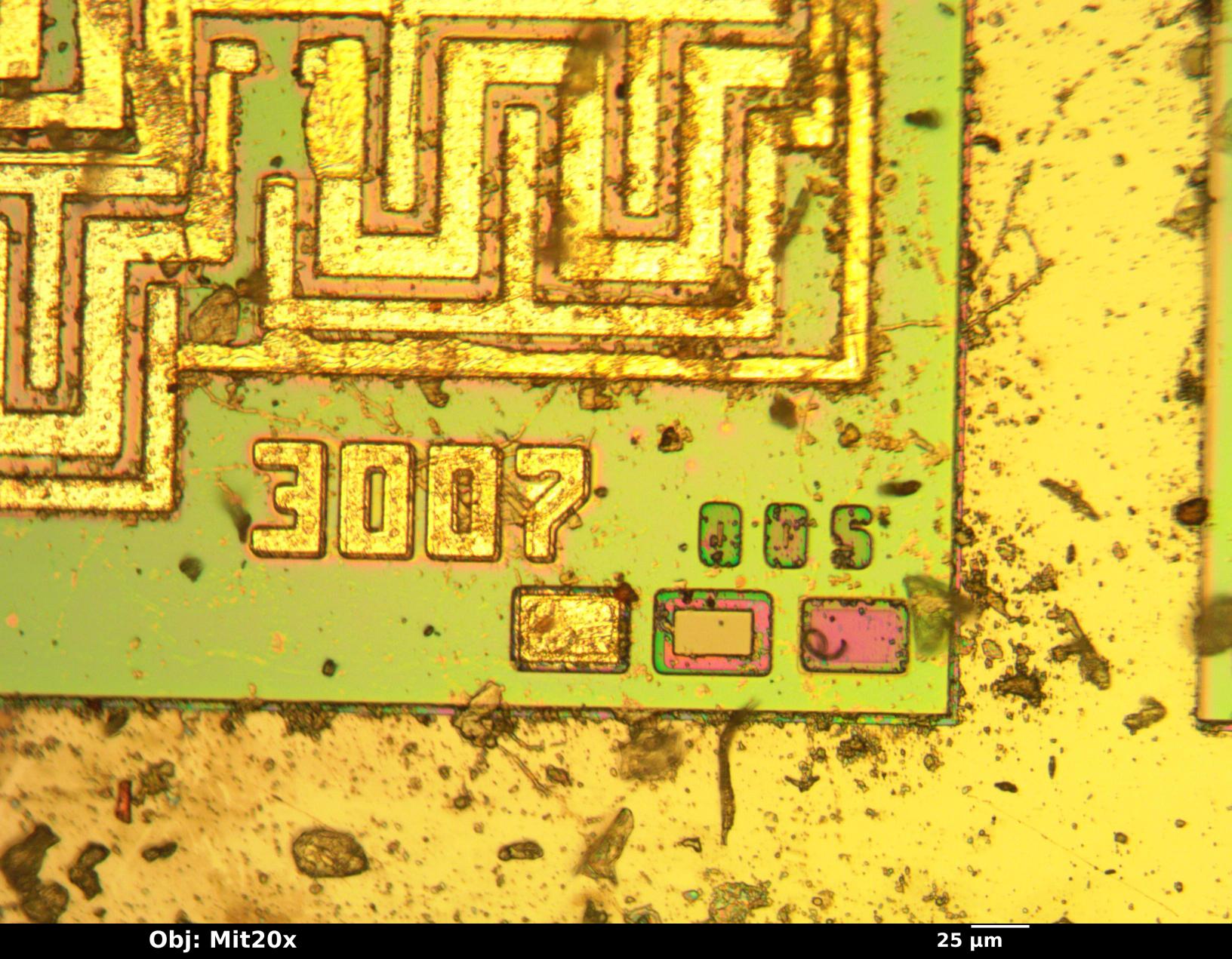

Right wafer. Wafer has markings SMC and 3007, I found a chip picture possibly matching it. I can't figure out who SMC is though if thats the manufacturer. Maybe the layout engineer's initials? Based in micrographs I'd guess mask ROM.

Die

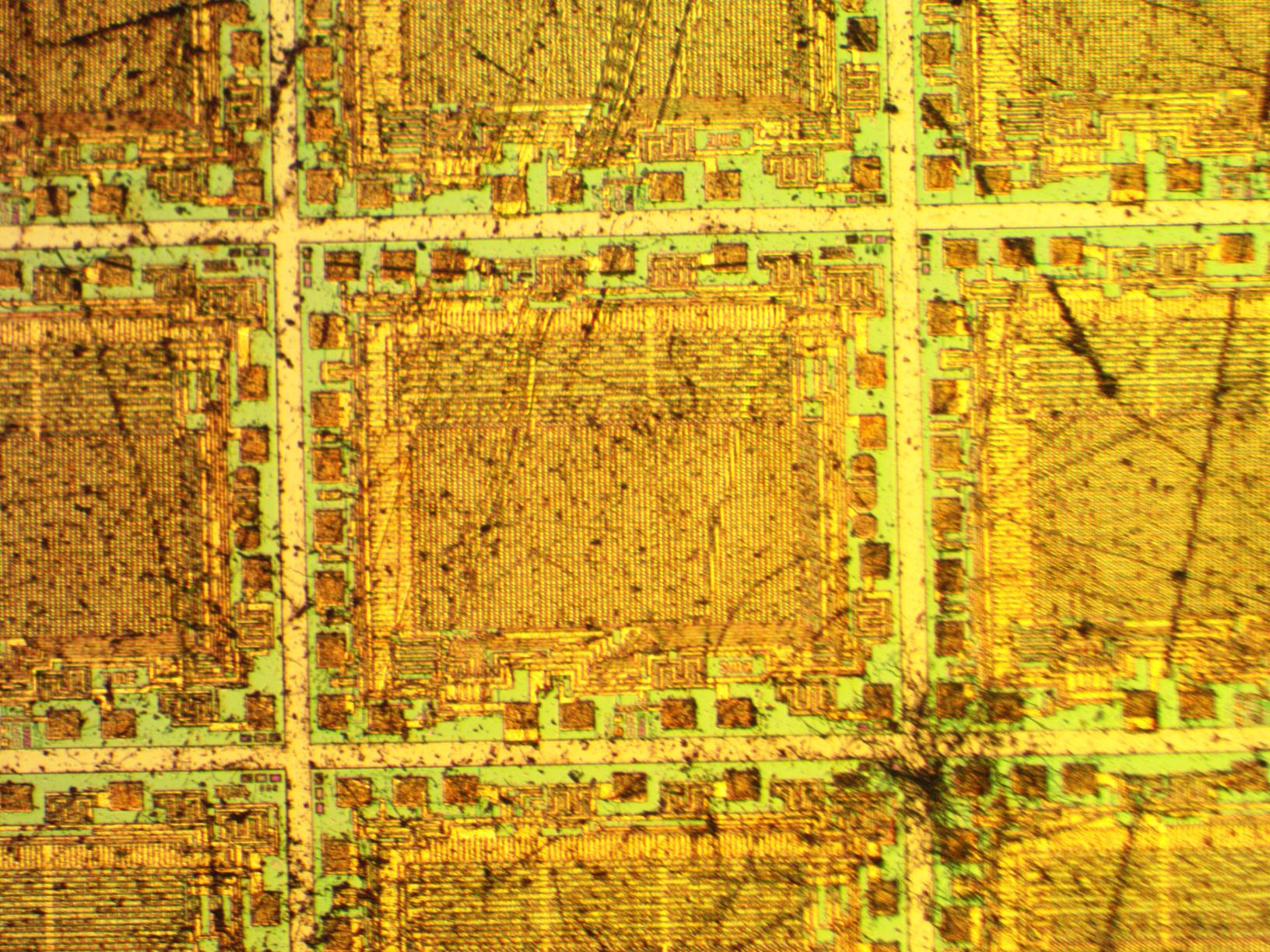

overview_mit2x.jpg logo0_mit20x.jpg logo1_mit20x.jpg sample_mit20x.jpg
