collection mcmaster, vendor sony, type unknown, year unknown, foundry unknown

Package

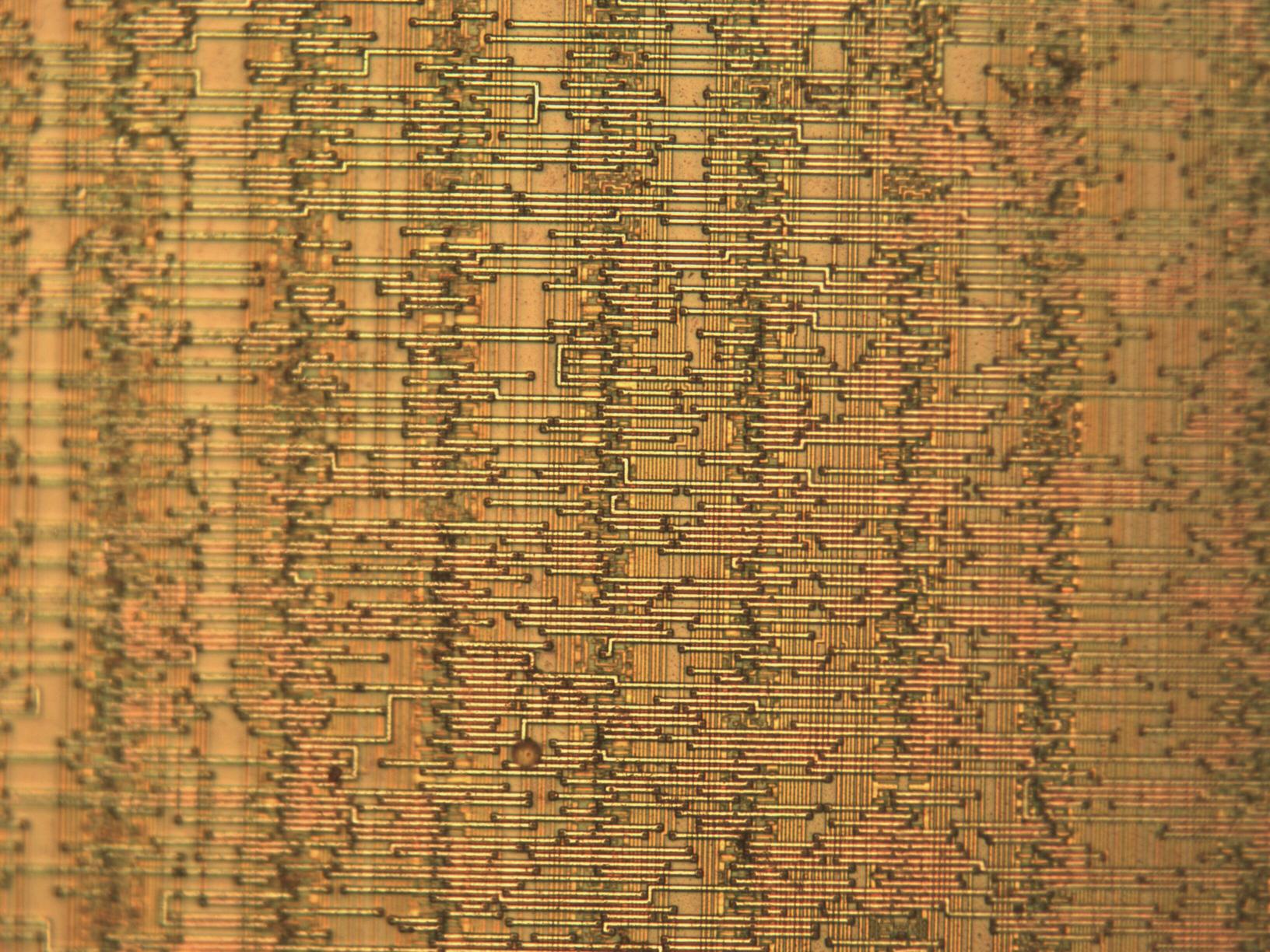

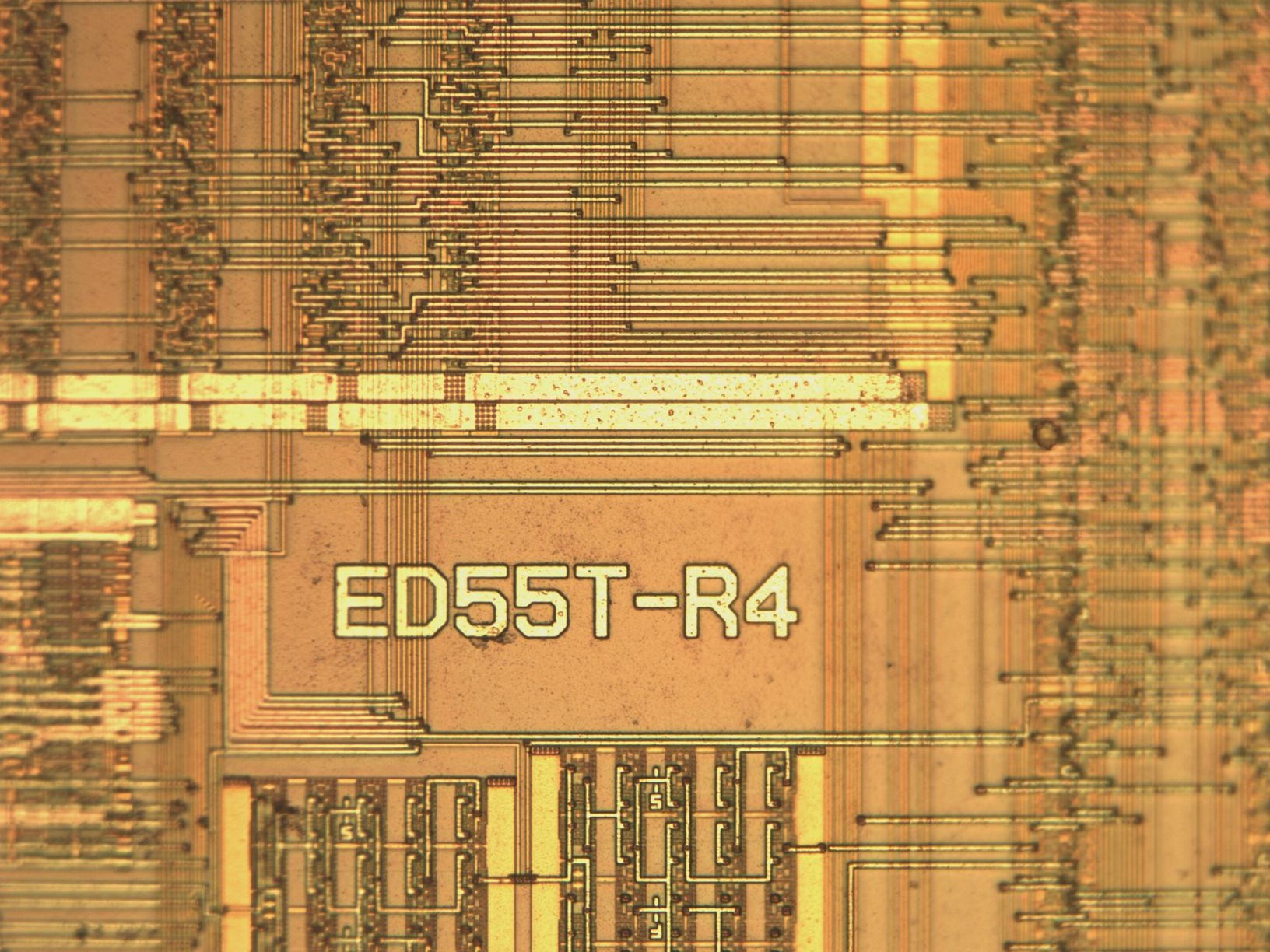

Die

Single (5617×5396, 11.3141MiB)

collection digshadow, vendor sony, year unknown, foundry unknown, tech unknown

Datasheet: unknown

Purpose : graphics processor (GPU)

Type : semi custom, standard cells, bi-metal CMOS

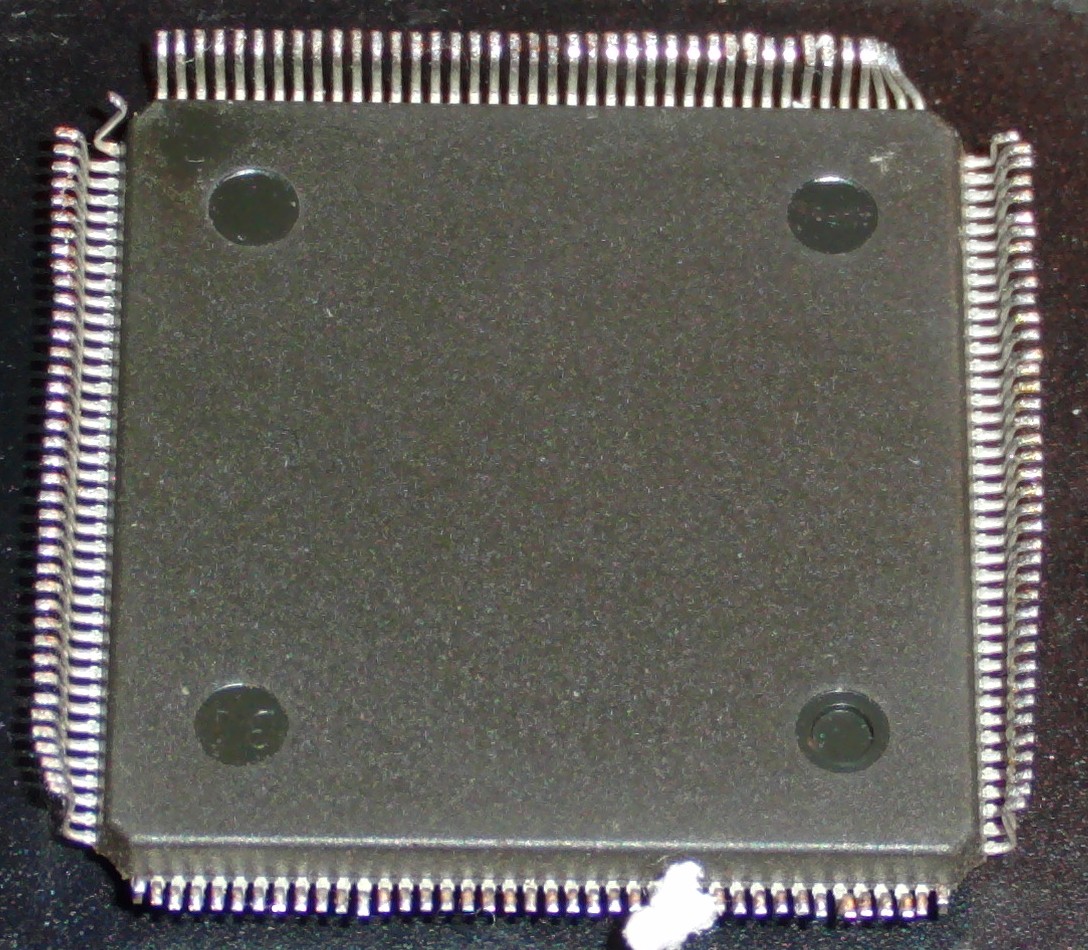

Package

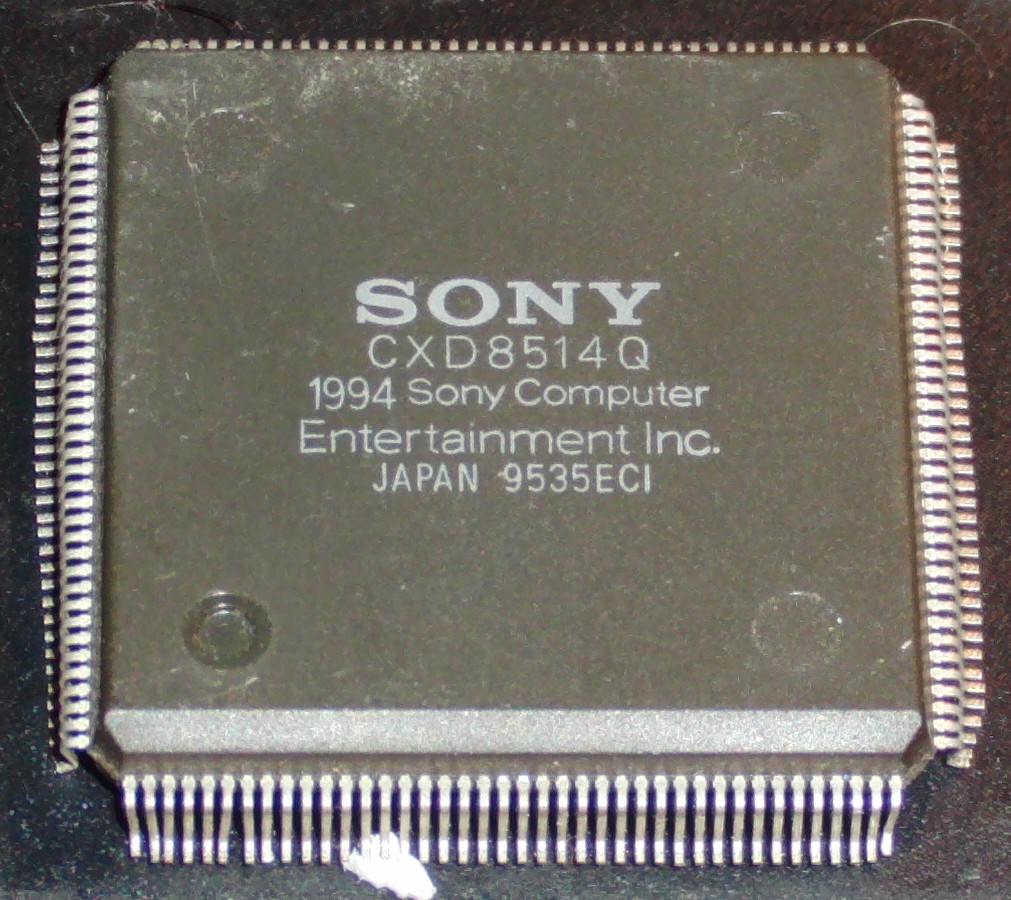

Label (top):

SONY
CXD8514Q
1994 Sony Computer
Entertainment Inc.
JAPAN 9535ECI

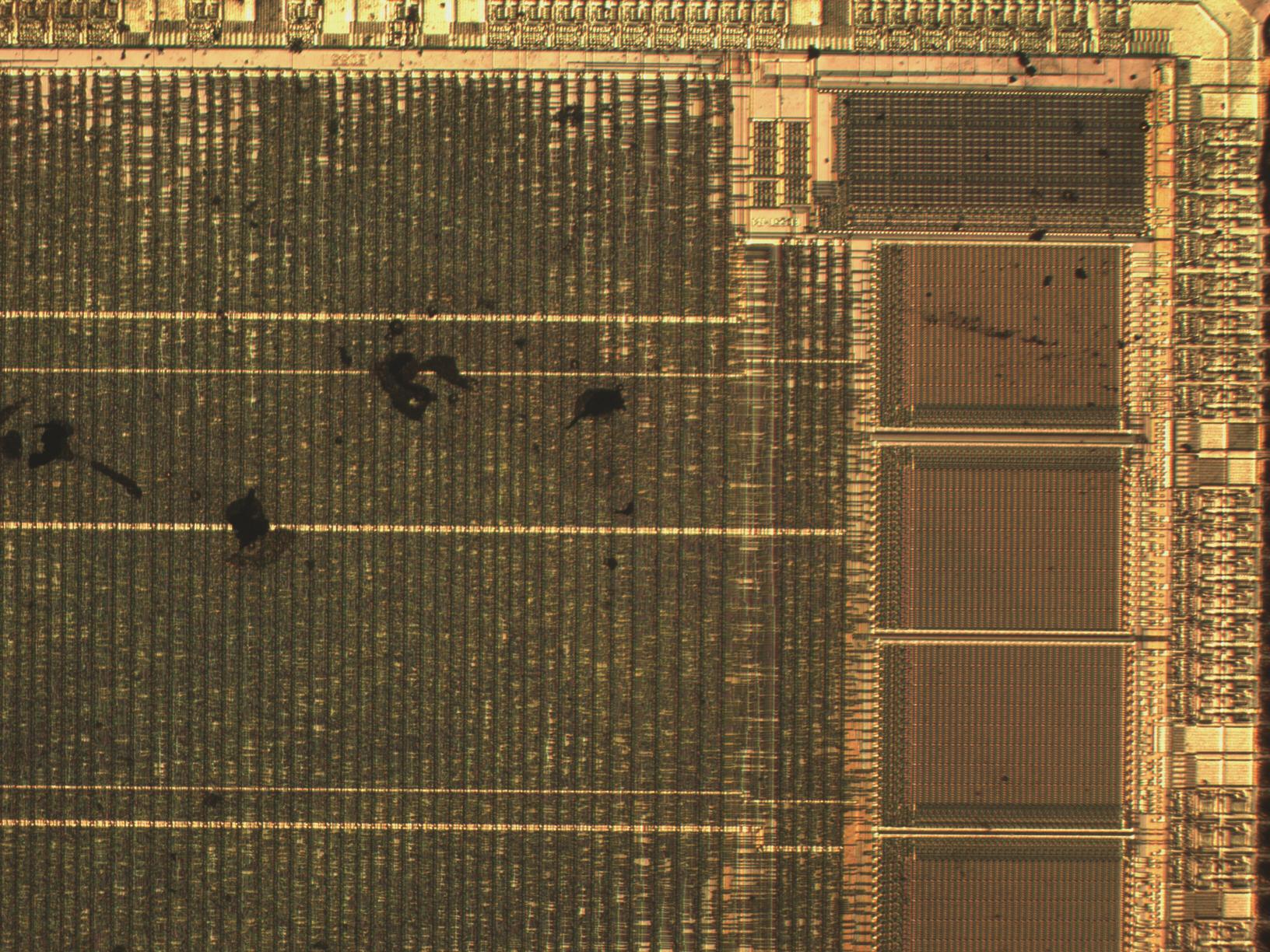

Die

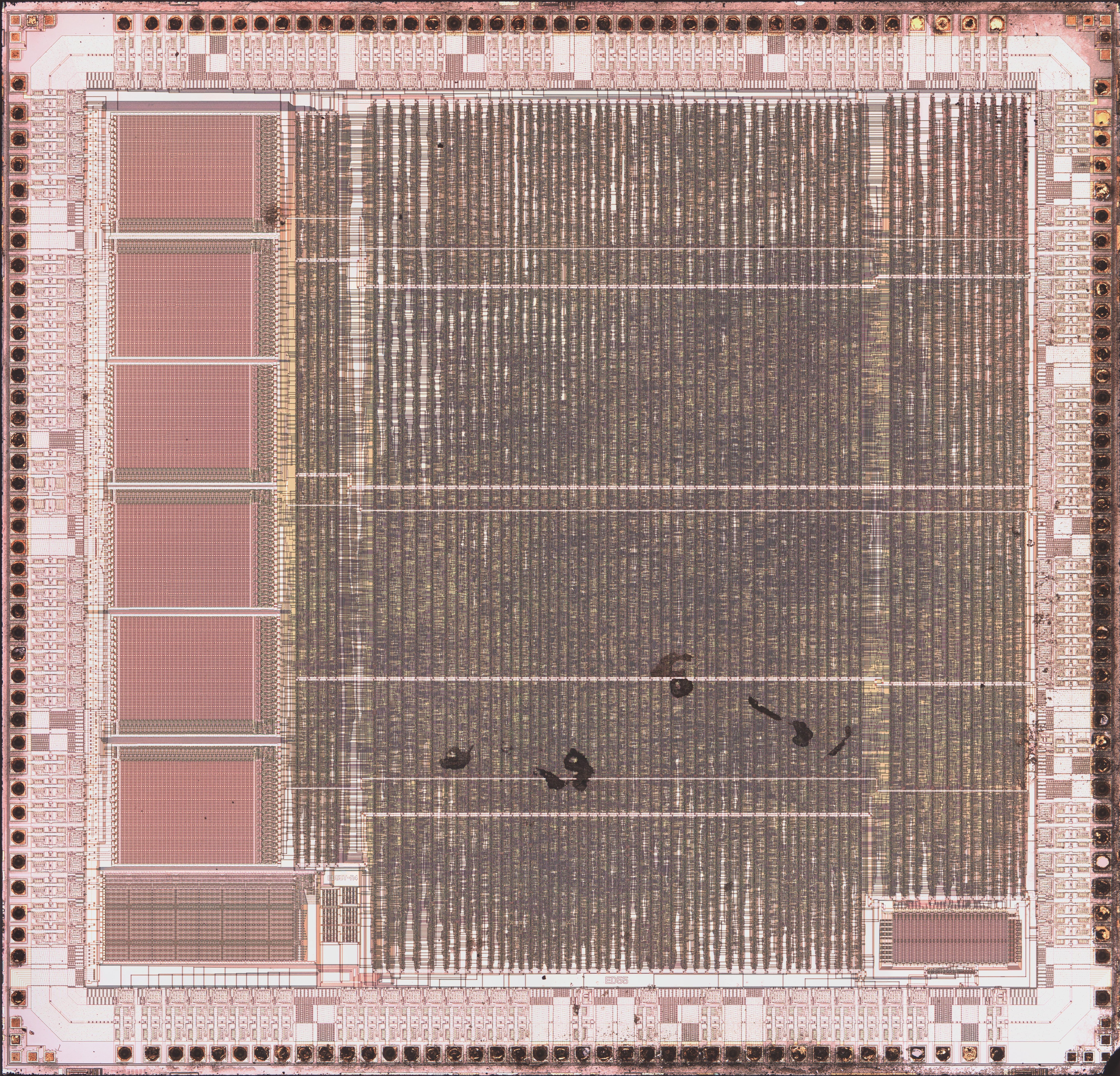

Map

Top metal @ Mit20x: http://siliconpr0n.org/map_fixme/cxd8514q/mz_mit20x/

Unstitched source images: http://siliconpr0n.org/map_fixme/cxd8514q/mz_mit20x_raw/
