BP series

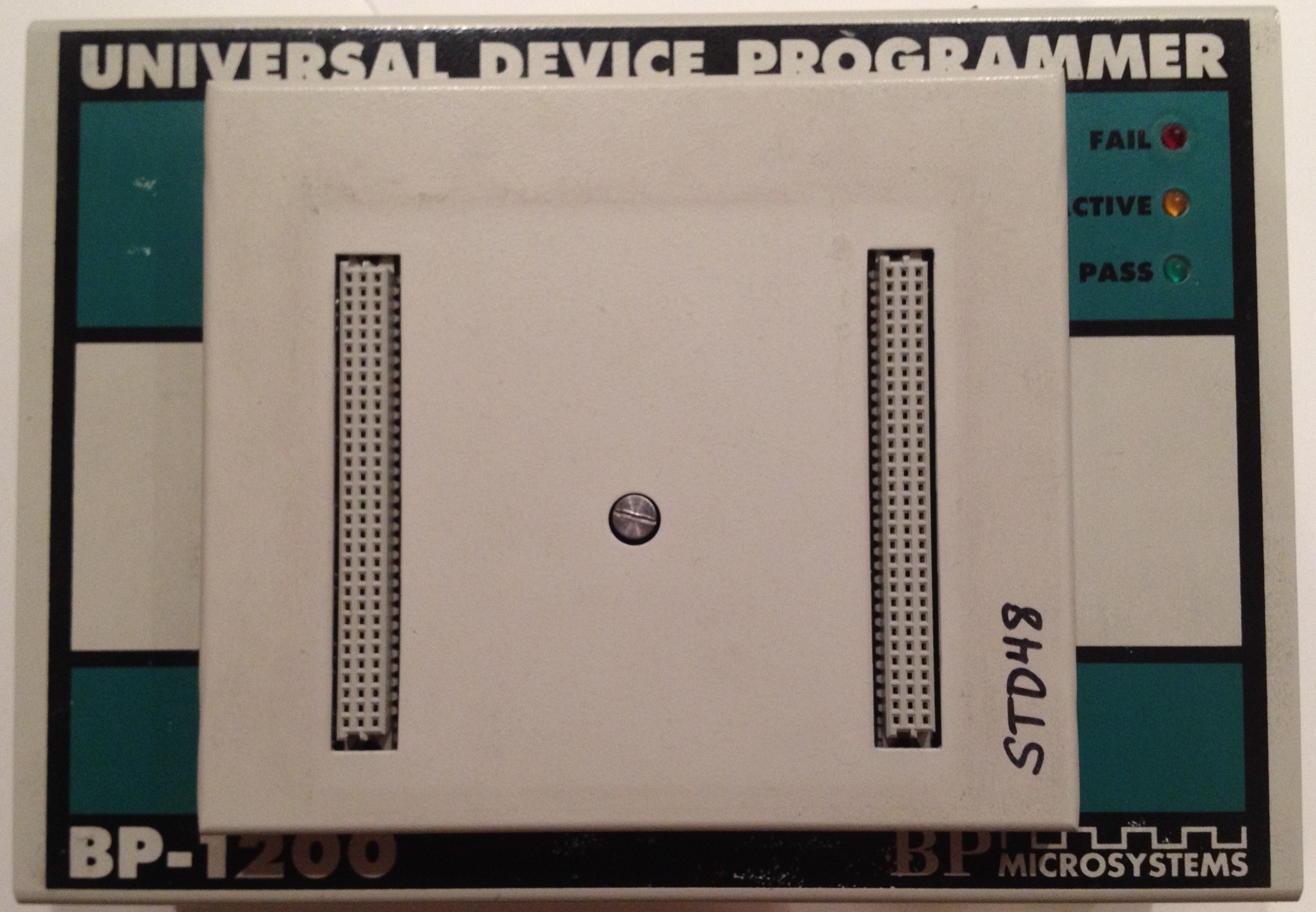

(11:36:56 PM) Lord_Nightmare: the main processor [of the bp1200] is an 80286-16, with a 32mhz xtal (11:37:07 PM) Lord_Nightmare: [the board labeled] std48, it would [I assume] normally have [std48] printed on it nicely (11:37:22 PM) Lord_Nightmare: this one was a refurbished unit and i guess they used an unprinted metal case for that pcb (11:37:37 PM) Lord_Nightmare: std48 is the 'relay pcb' (11:37:38 PM) digshadow: but whats the point (11:37:52 PM) Lord_Nightmare: i think it controls which pins are powered with what [rail] but am not sure (11:38:06 PM) digshadow: gotcha (11:38:07 PM) Lord_Nightmare: the bp1200 it is a 'separate' pcb on top of the unit (11:38:13 PM) digshadow: but its basically part of the unit right (11:40:54 PM) Lord_Nightmare: the bp1600 has the 'relay board' integrated as a board which sits on top of the rest of the inside of the unit inside the case (11:41:16 PM) Lord_Nightmare: i think the 1400 does as well (11:41:33 PM) Lord_Nightmare: while on the 1200 it sat on top of the unit (11:46:35 PM) Lord_Nightmare: the most basic bp unit was the bp-1148 "device programmer" (11:46:55 PM) Lord_Nightmare: note the case is identical to the 1200, and the only difference [in appearance] is 'universal' is blacked out on the wording (11:47:11 PM) Lord_Nightmare: http://vertassets.blob.core.windows.net/image/107fdcf5/107fdcf5-2dad-11d4-8c3d-009027de0829/bp1148.jpg (11:47:46 PM) Lord_Nightmare: that picture is a mockup, the std48 'layer' is missing (11:48:11 PM) Lord_Nightmare: http://thumbs.ebaystatic.com/d/l225/m/m1qMyAgqacqzlOo4KbeZLcw.jpg shows an actual 1148

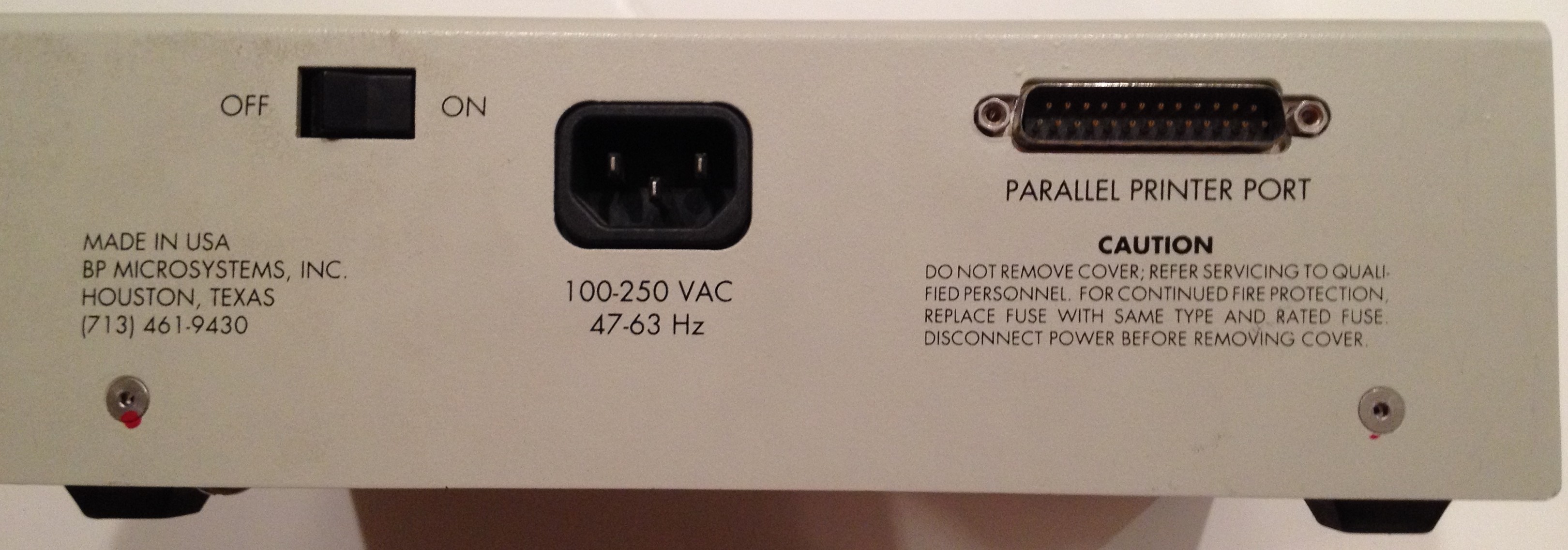

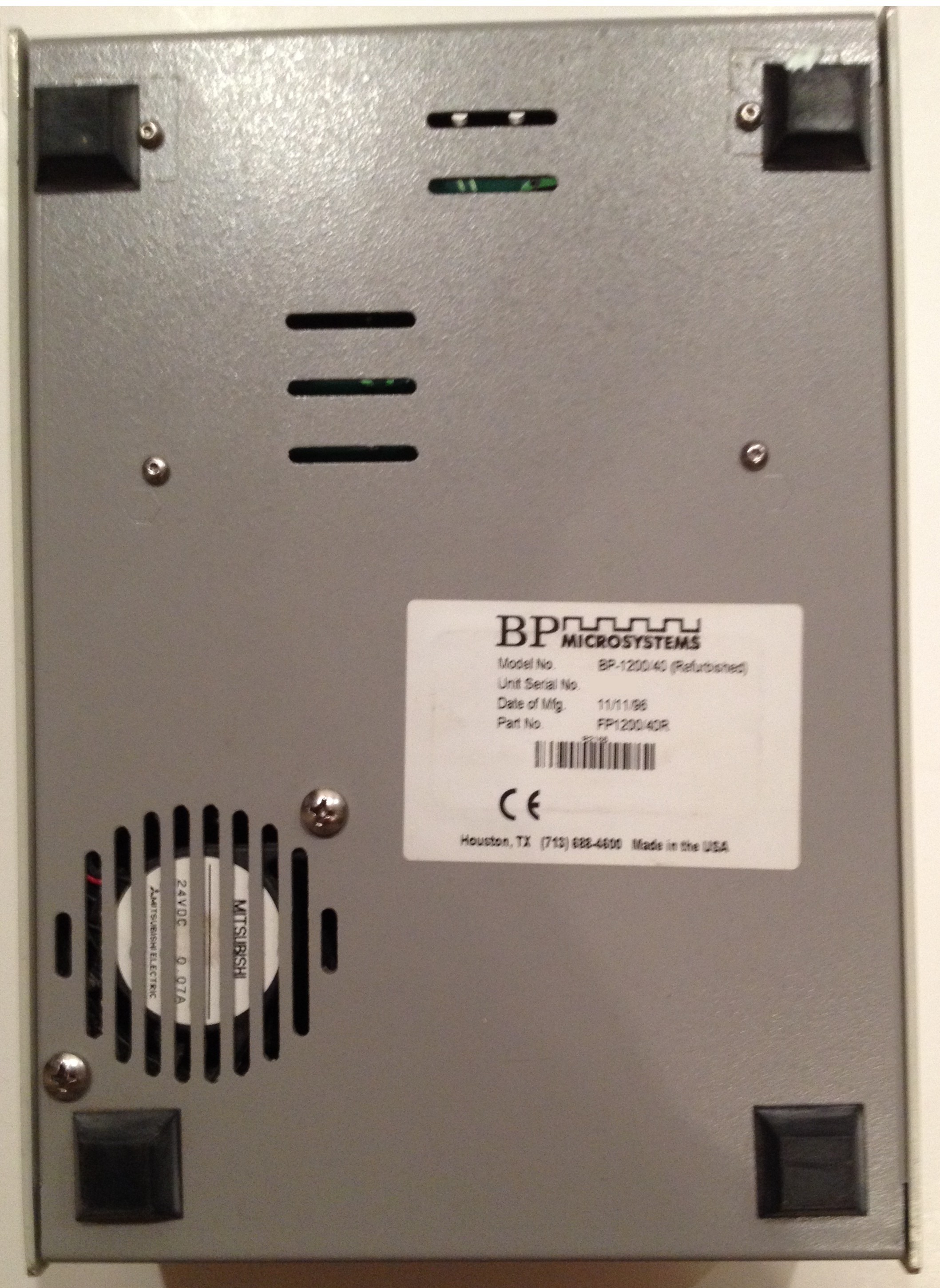

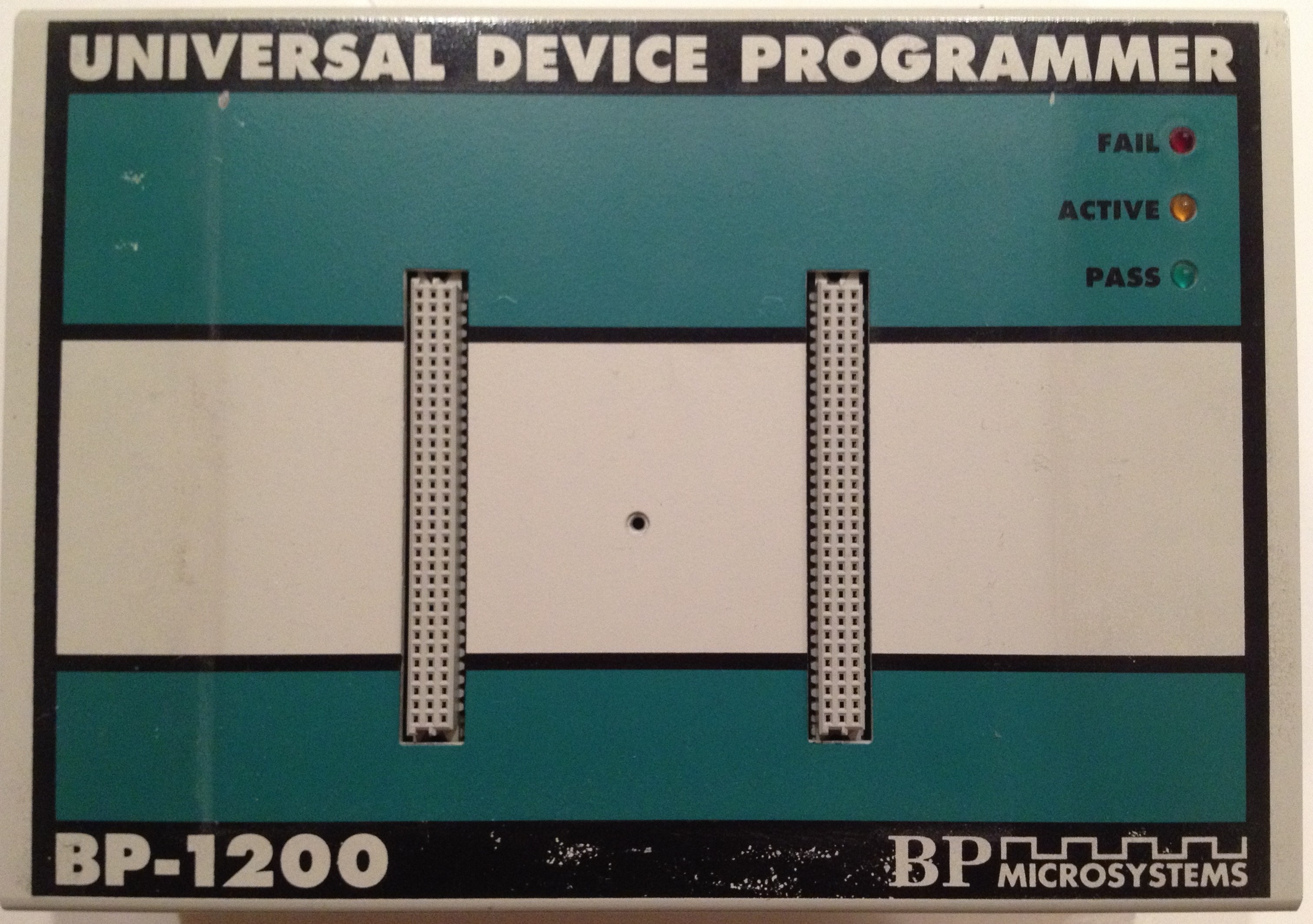

BP-1200
PC interface: parallel port
Chip interface: 2 plug SM
http://atariage.com/forums/topic/142884-bp-microsystems-eprom-programmer-a-cry-for-help/

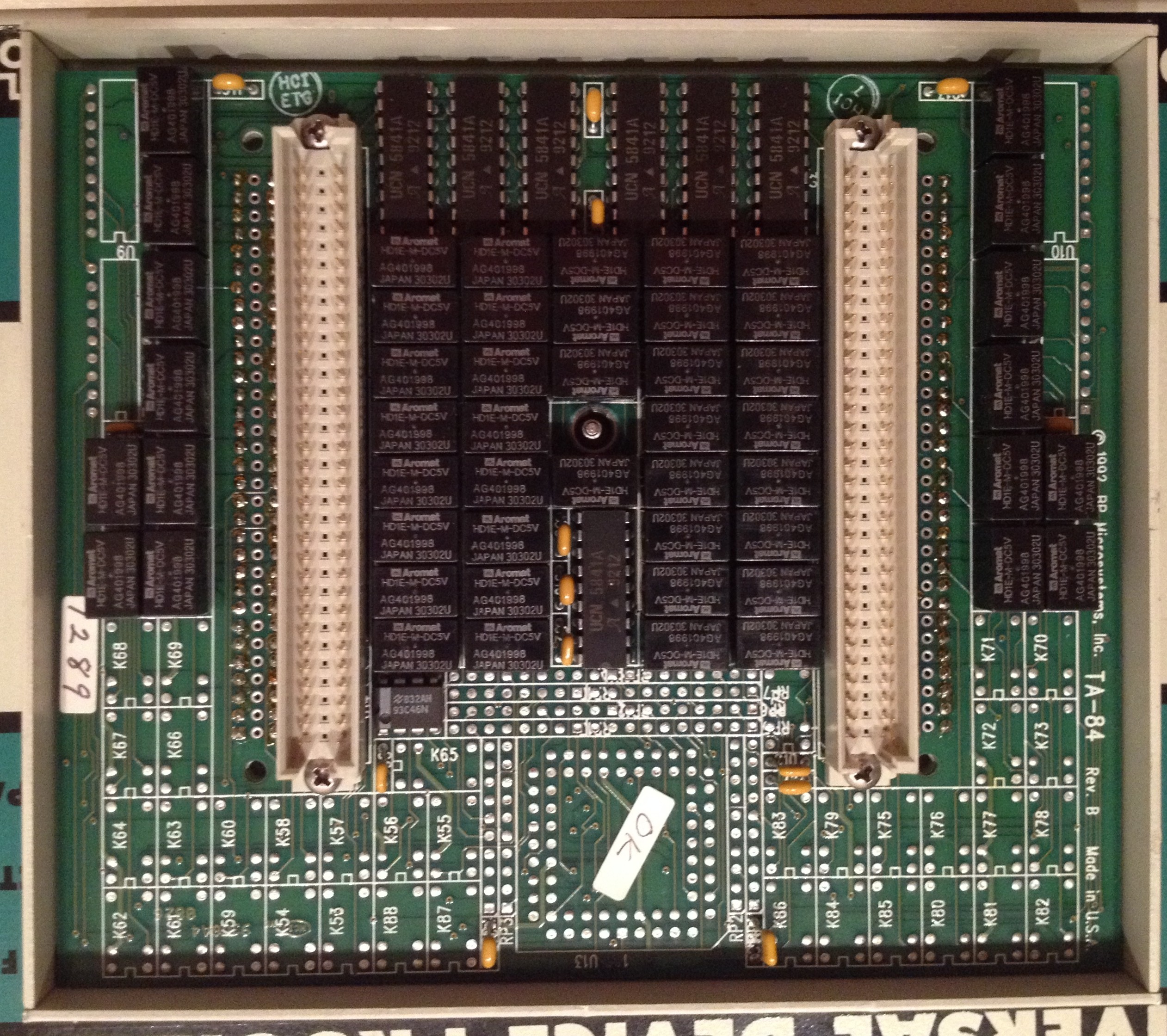

- IF you get a TA-84 pin driver module (and a SM48D 48-pin DIP module, but NOT the one that comes with the BP-1148) it will convert your BP-1148 to a BP1200/84.
BP-1400
PC interface: parallel port
Chip interface: 3 plug SM

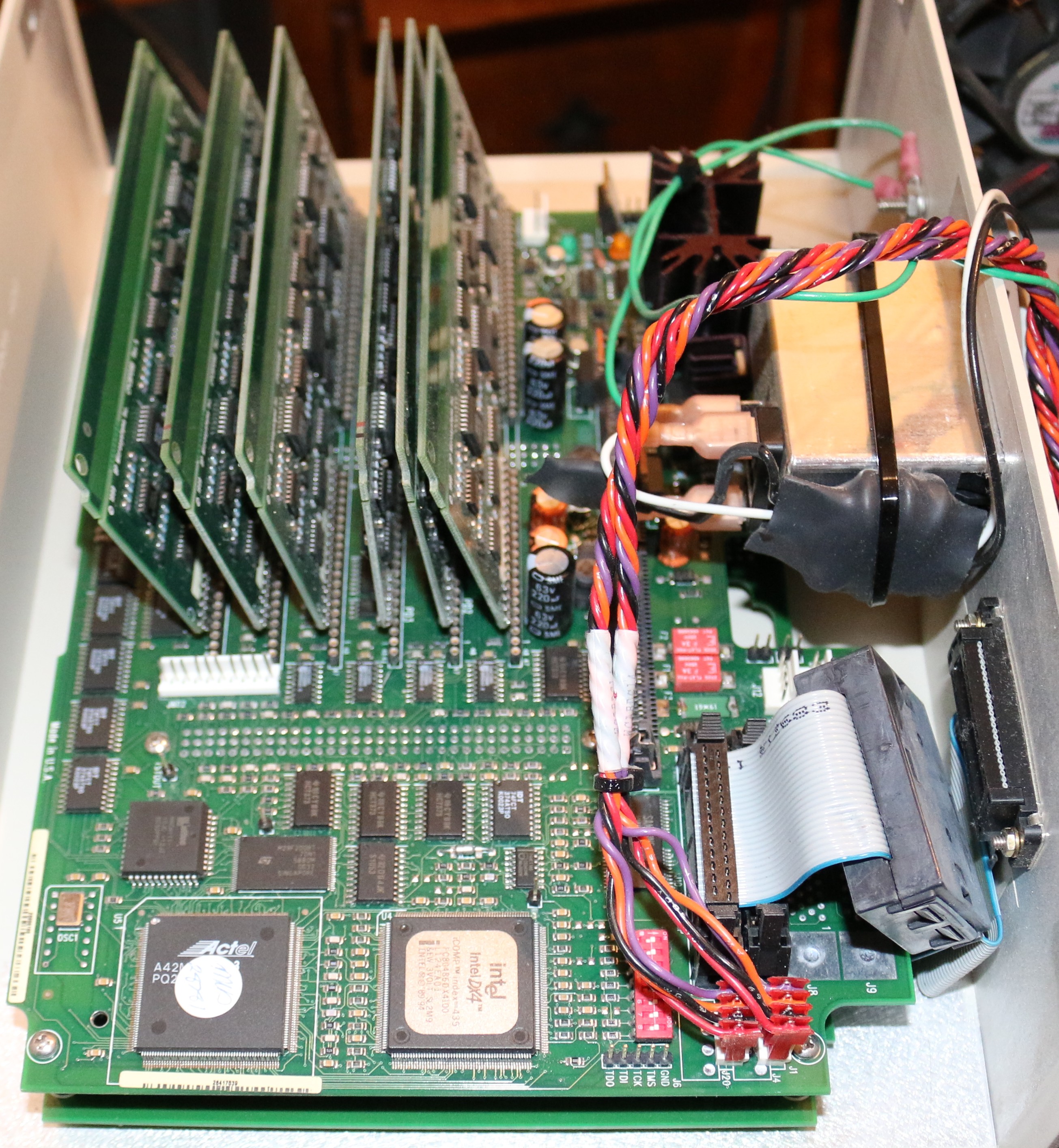

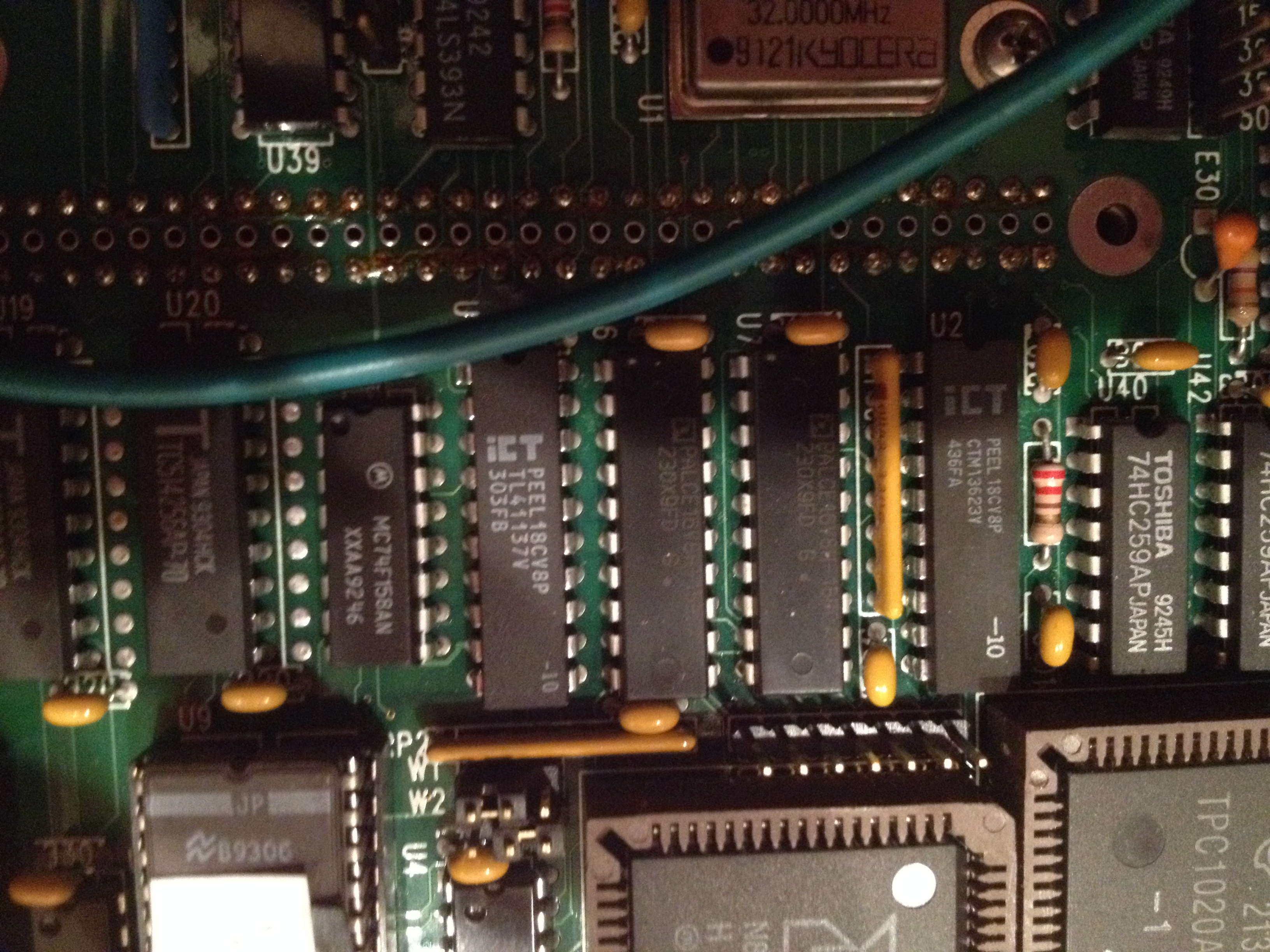

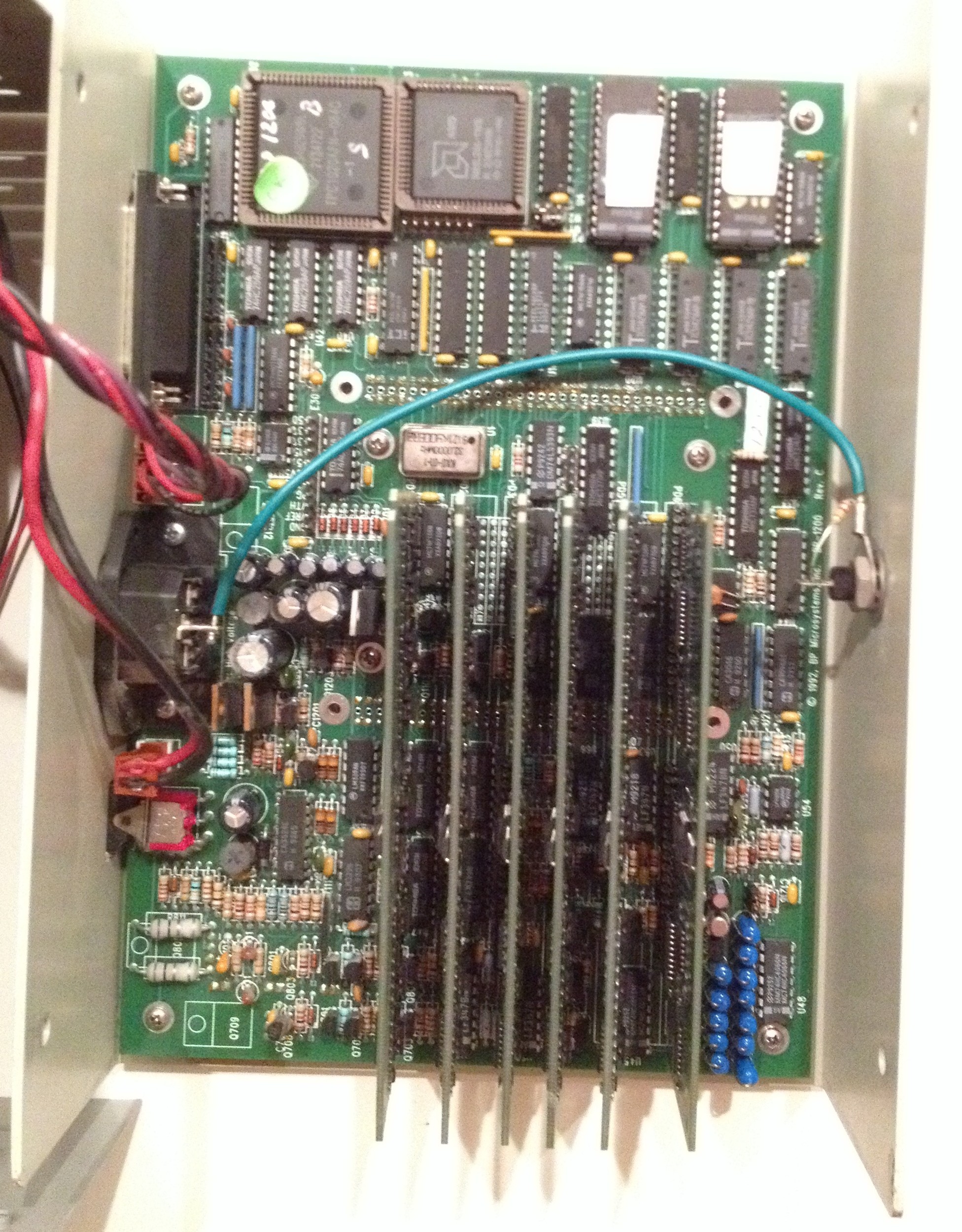

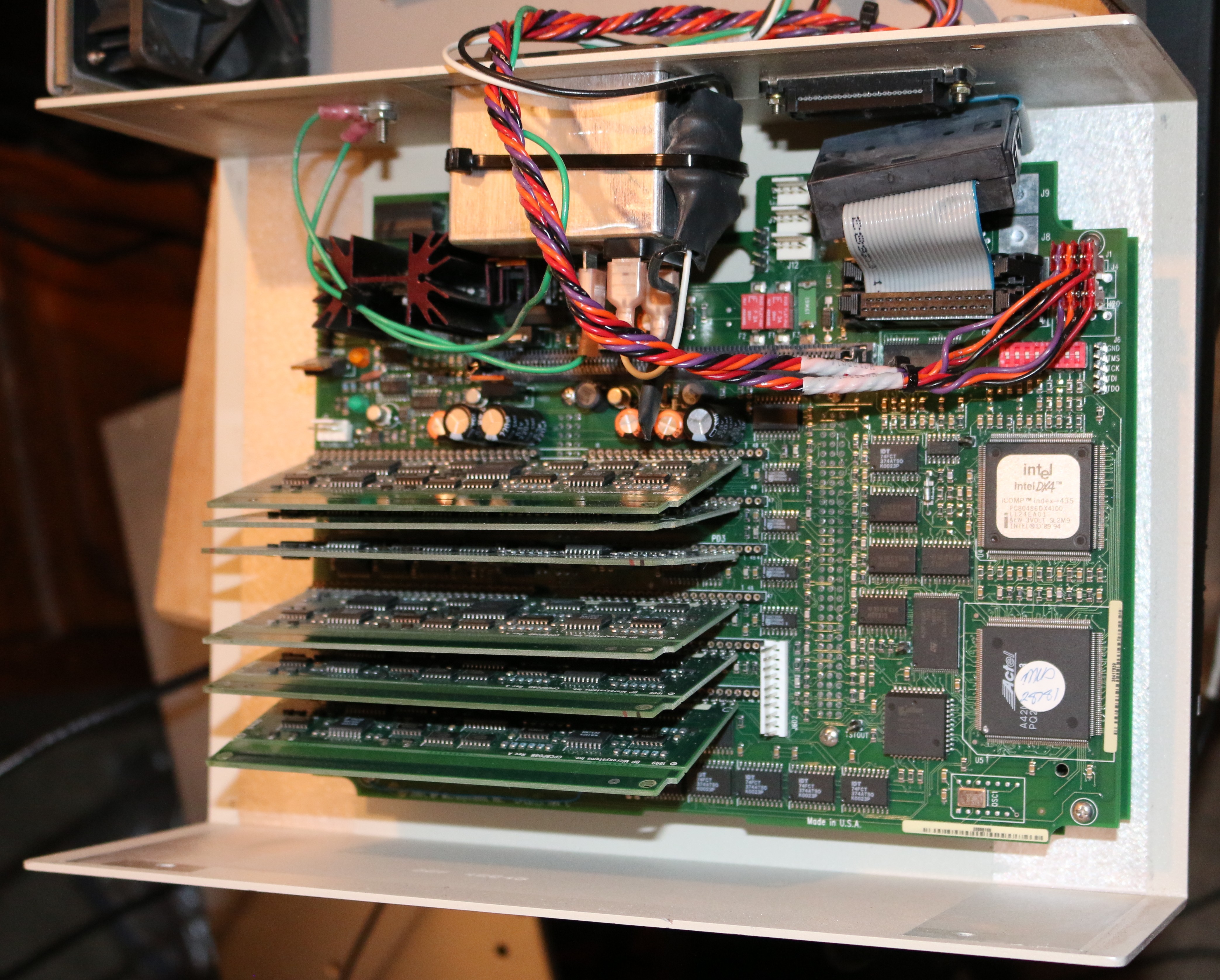

Motherboard

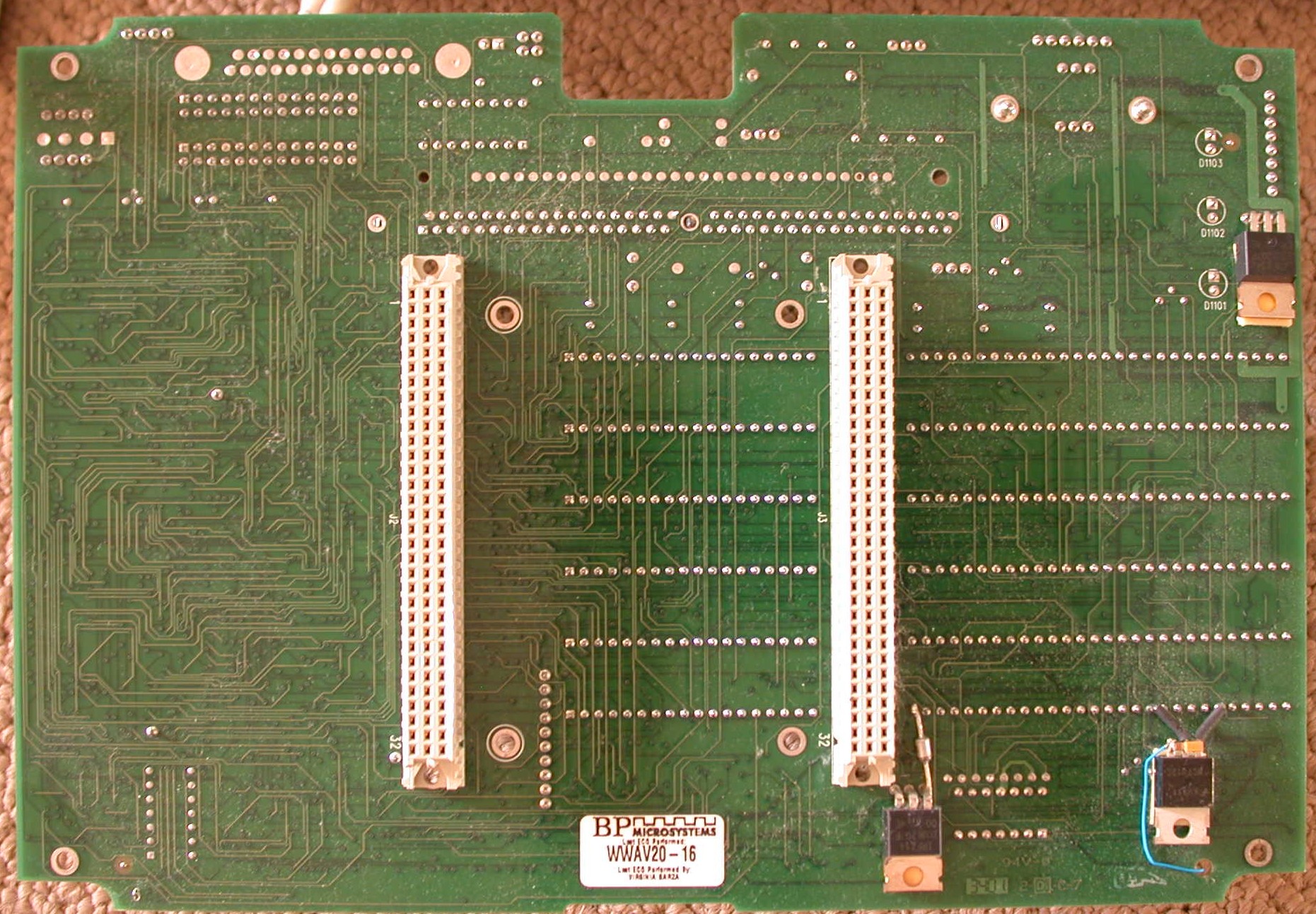

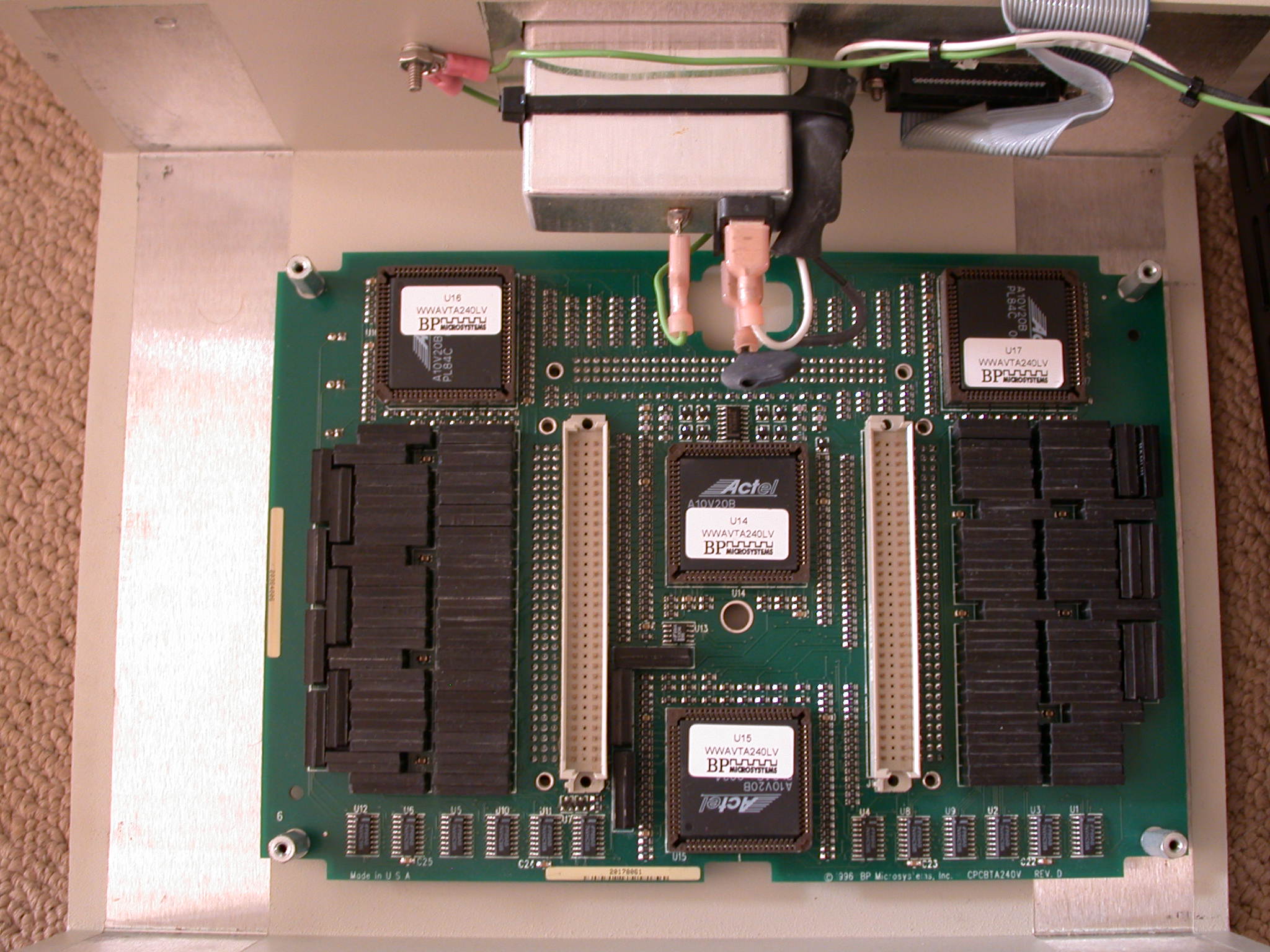

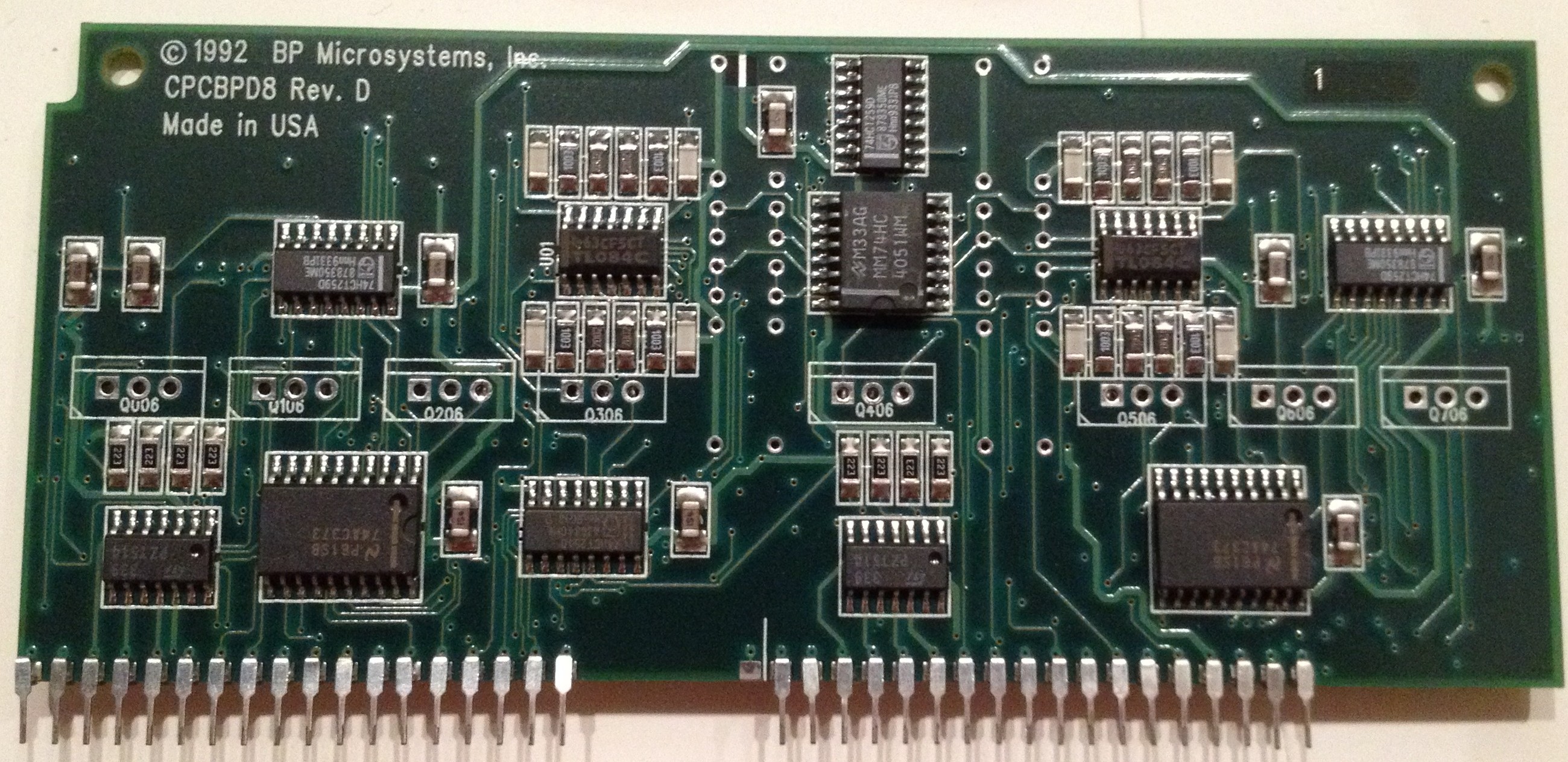

Mezzanine board:

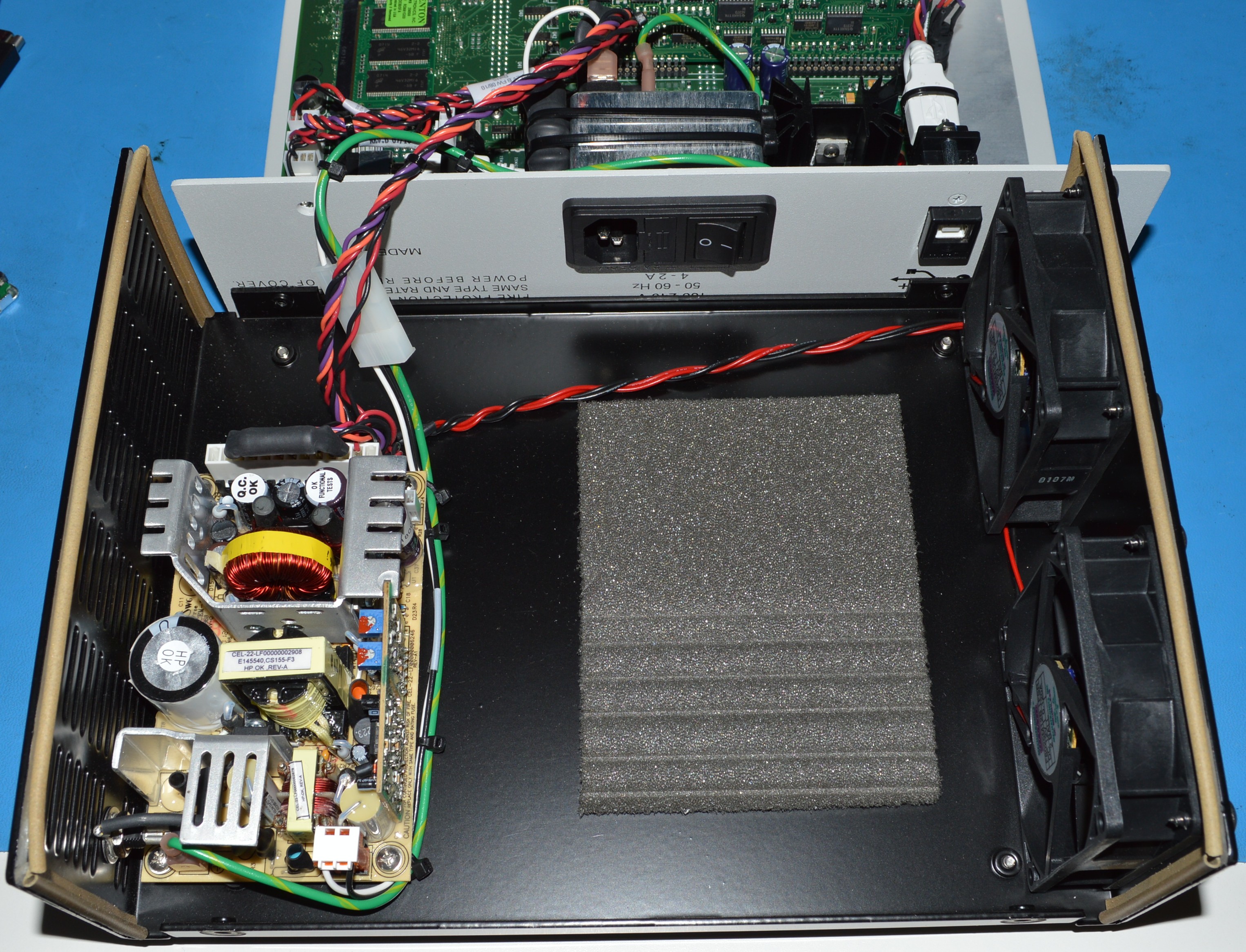

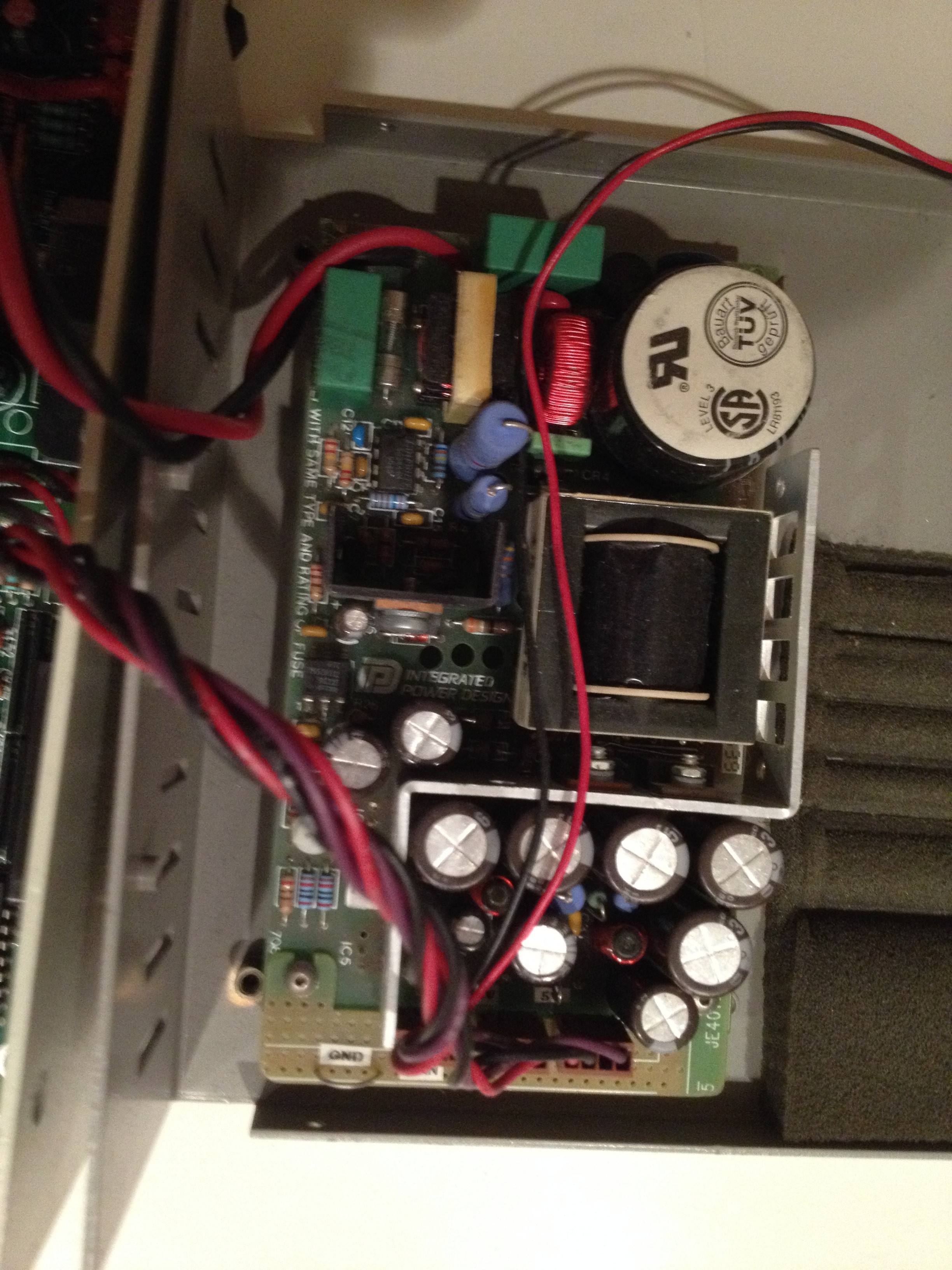

Power supply
BP-1410

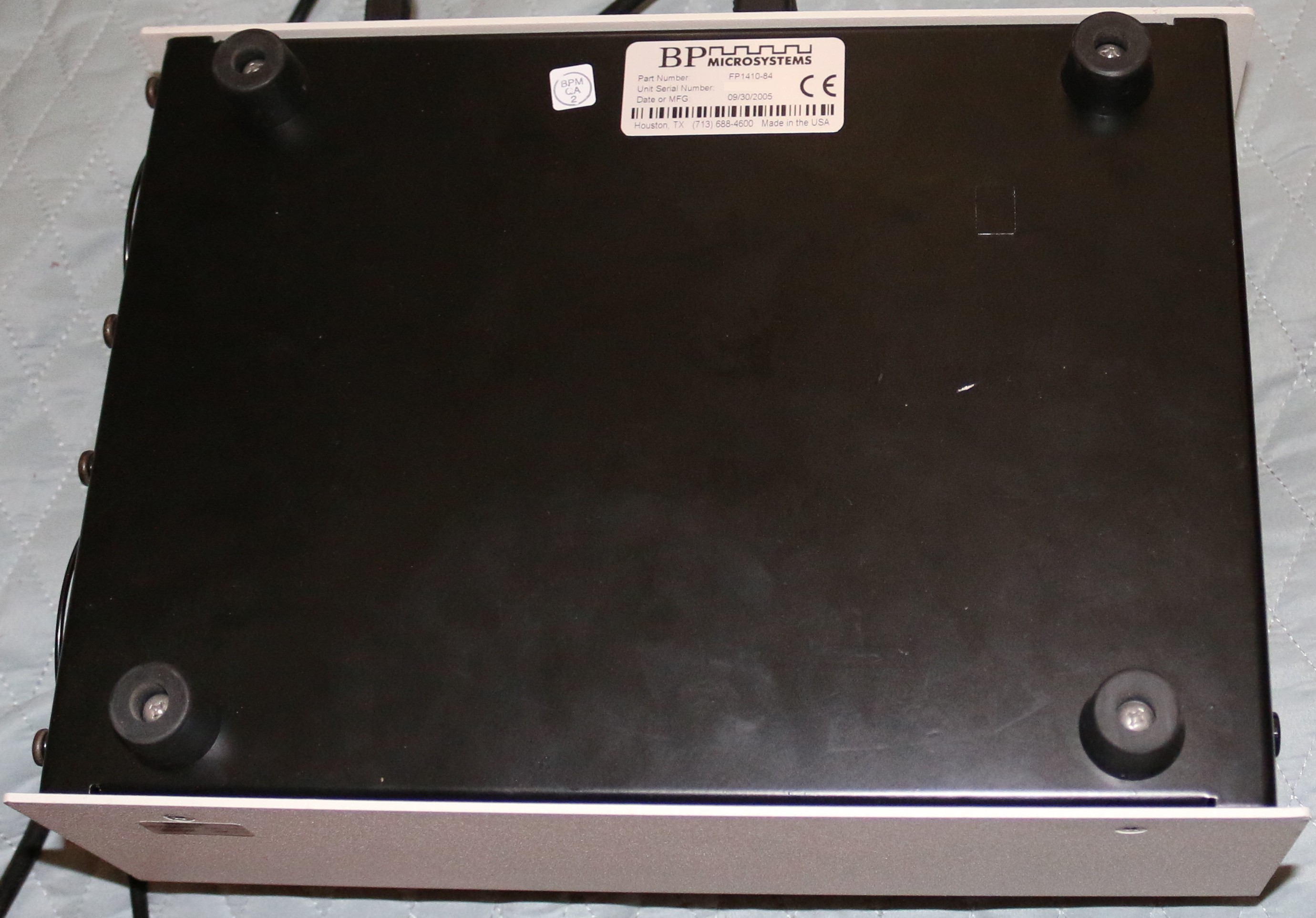

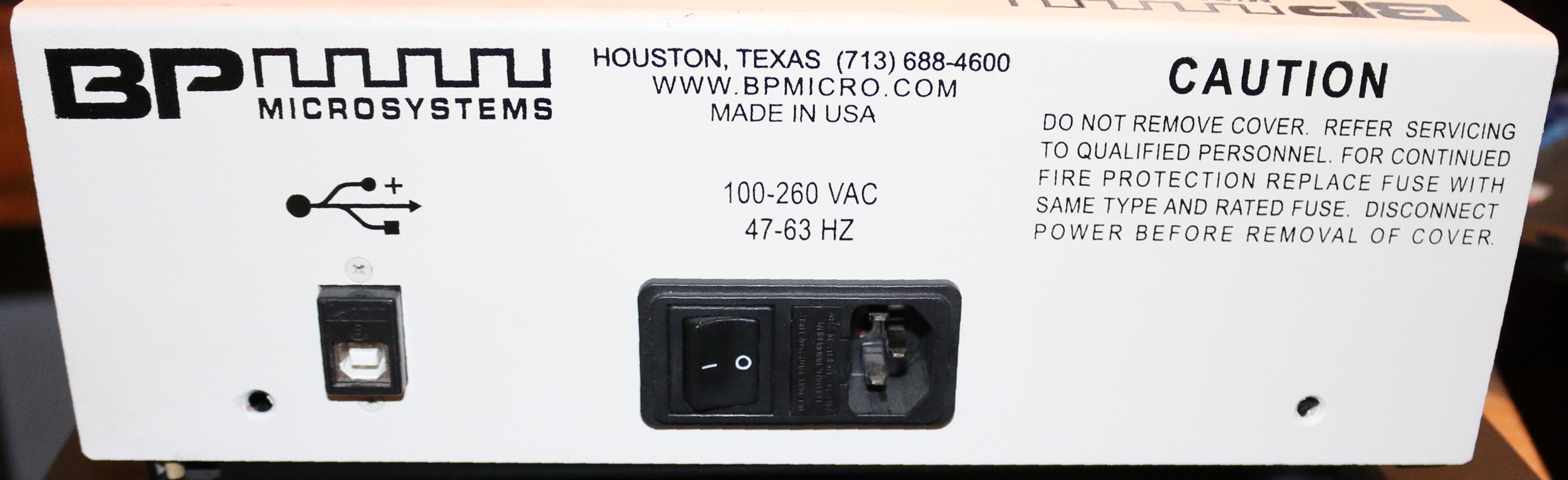

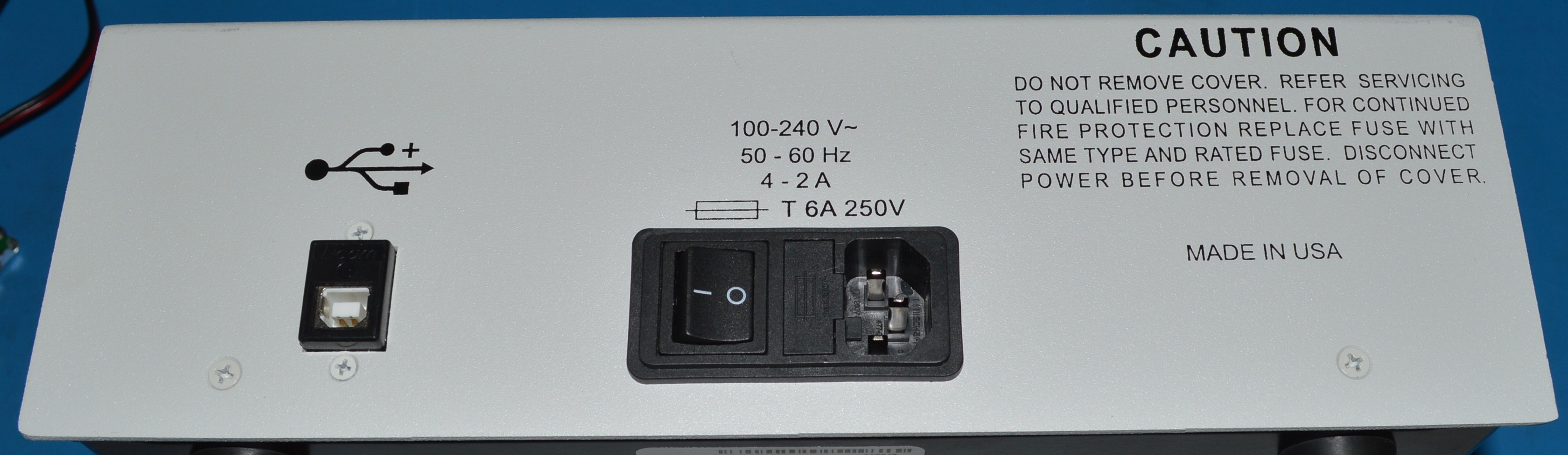

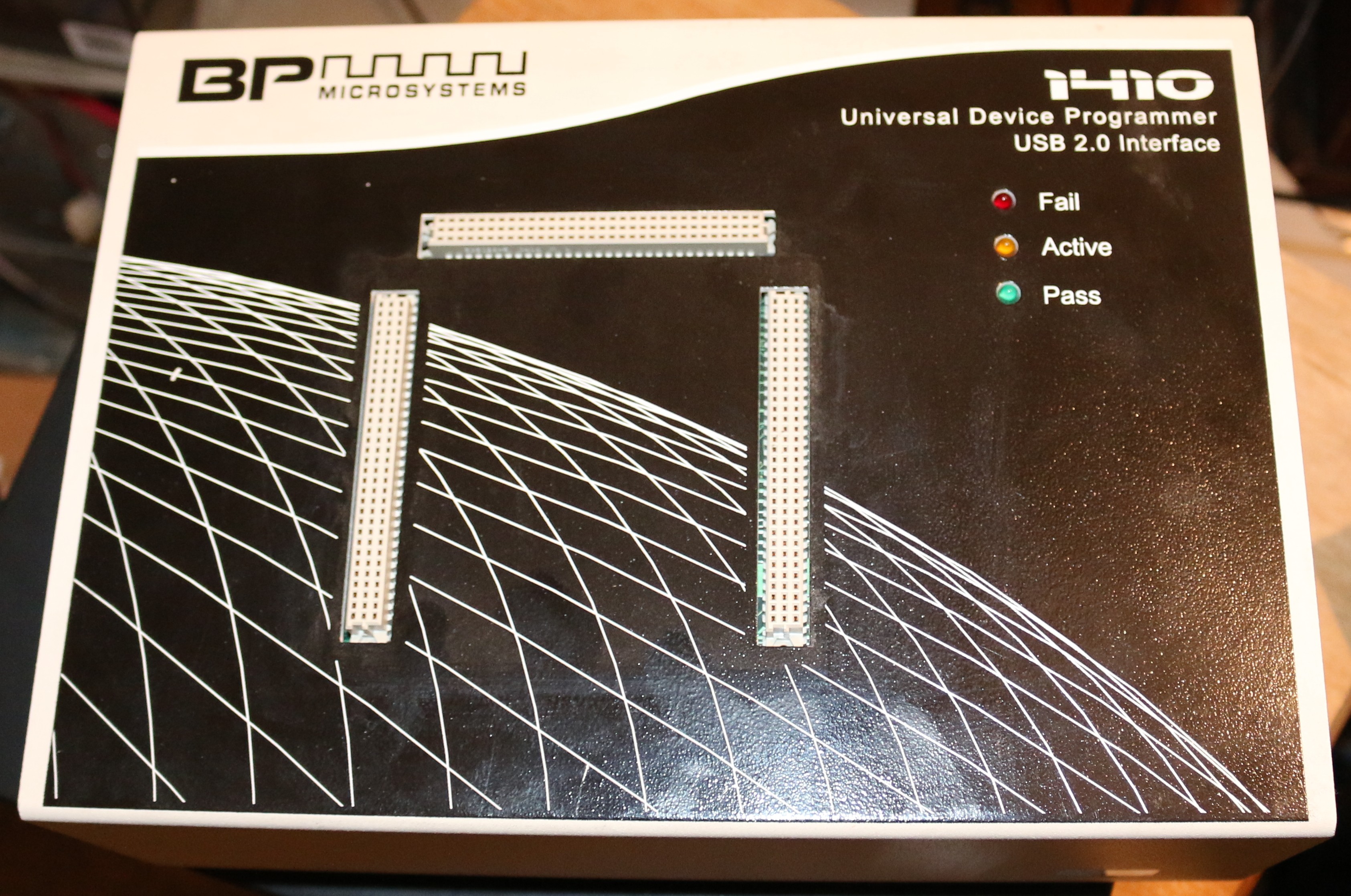

External:

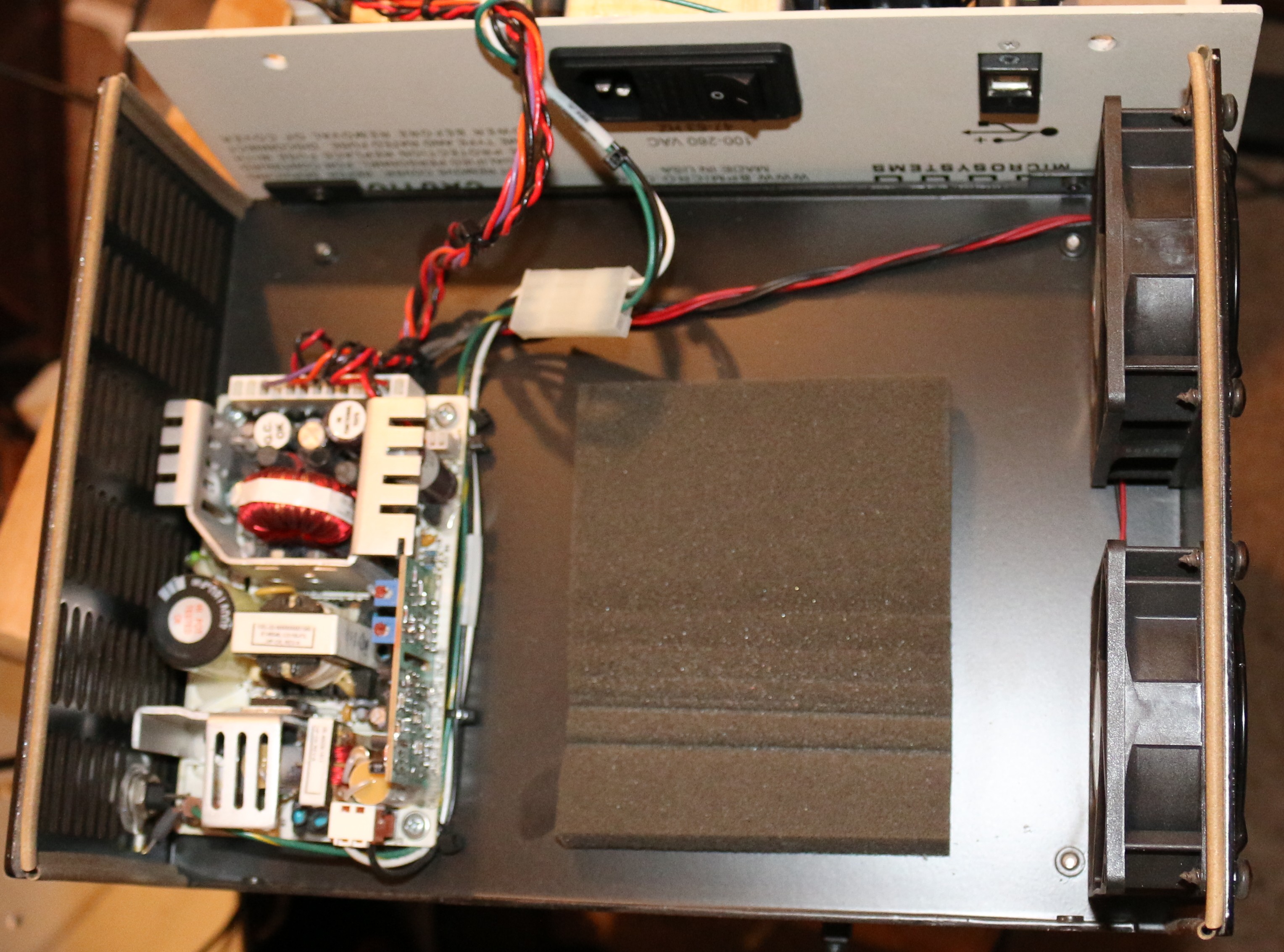

Power supply:
PC interface: USB
Chip interface: 3 plug SM
BP-1410/84 datasheet: http://web.archive.org/web/20060321214044/http://www.bpmicro.com/web/bphome.nsf/webpages/141084-PDF/$FILE/1410_84.pdf
BP-1410/240 datasheet: http://web.archive.org/web/20060321214333/http://www.bpmicro.com/web/bphome.nsf/webpages/1410240-PDF/$FILE/1410_240.pdf

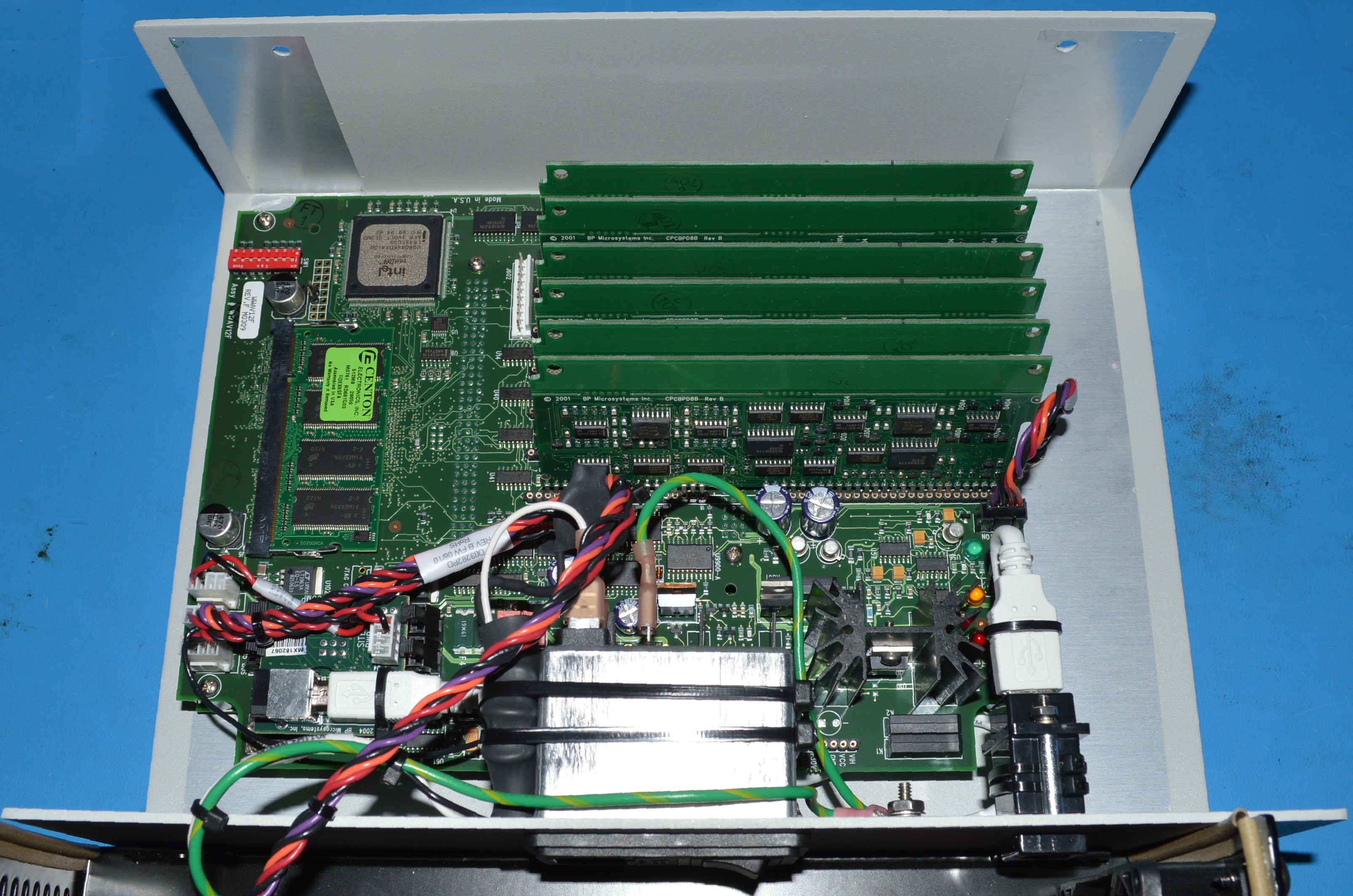

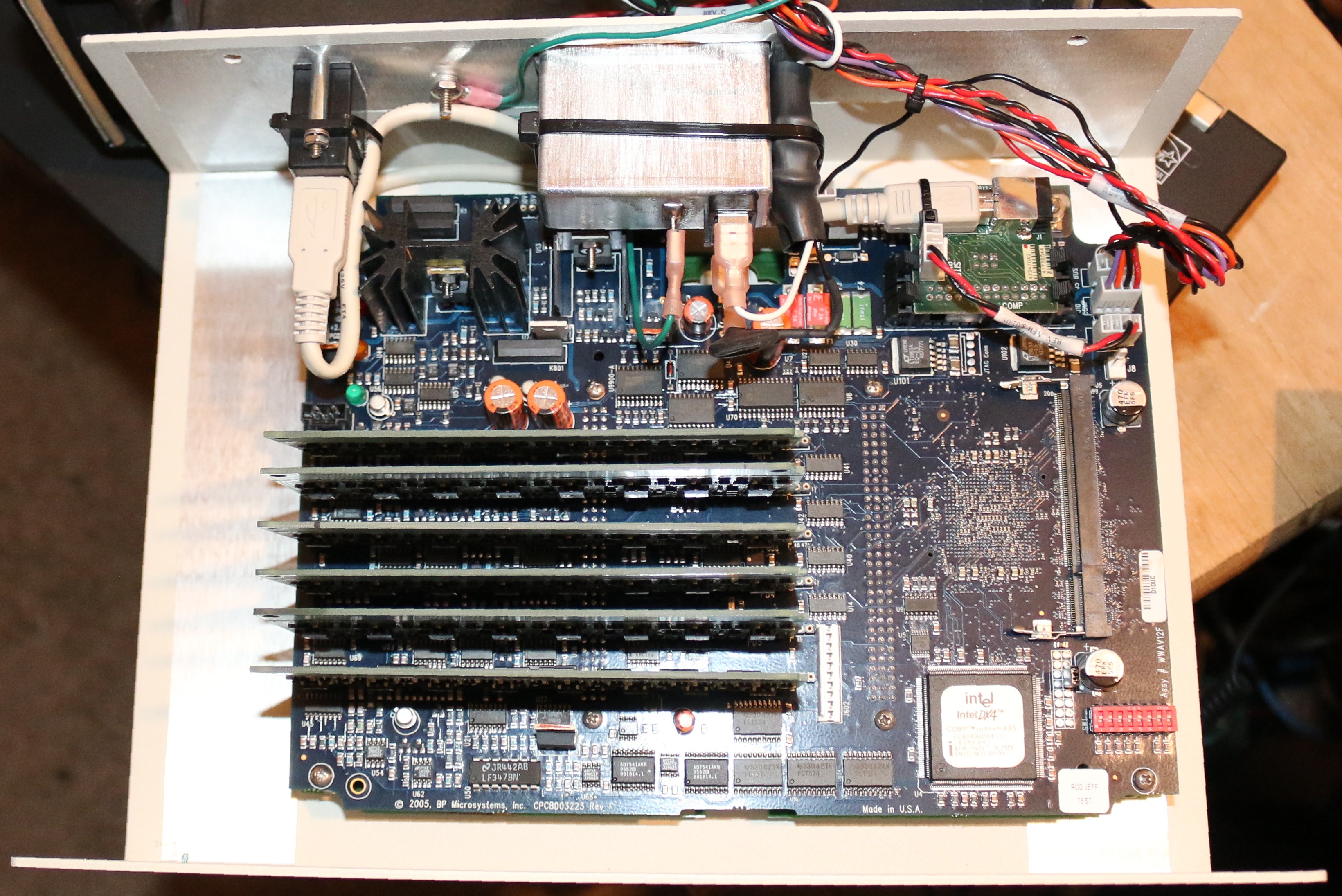

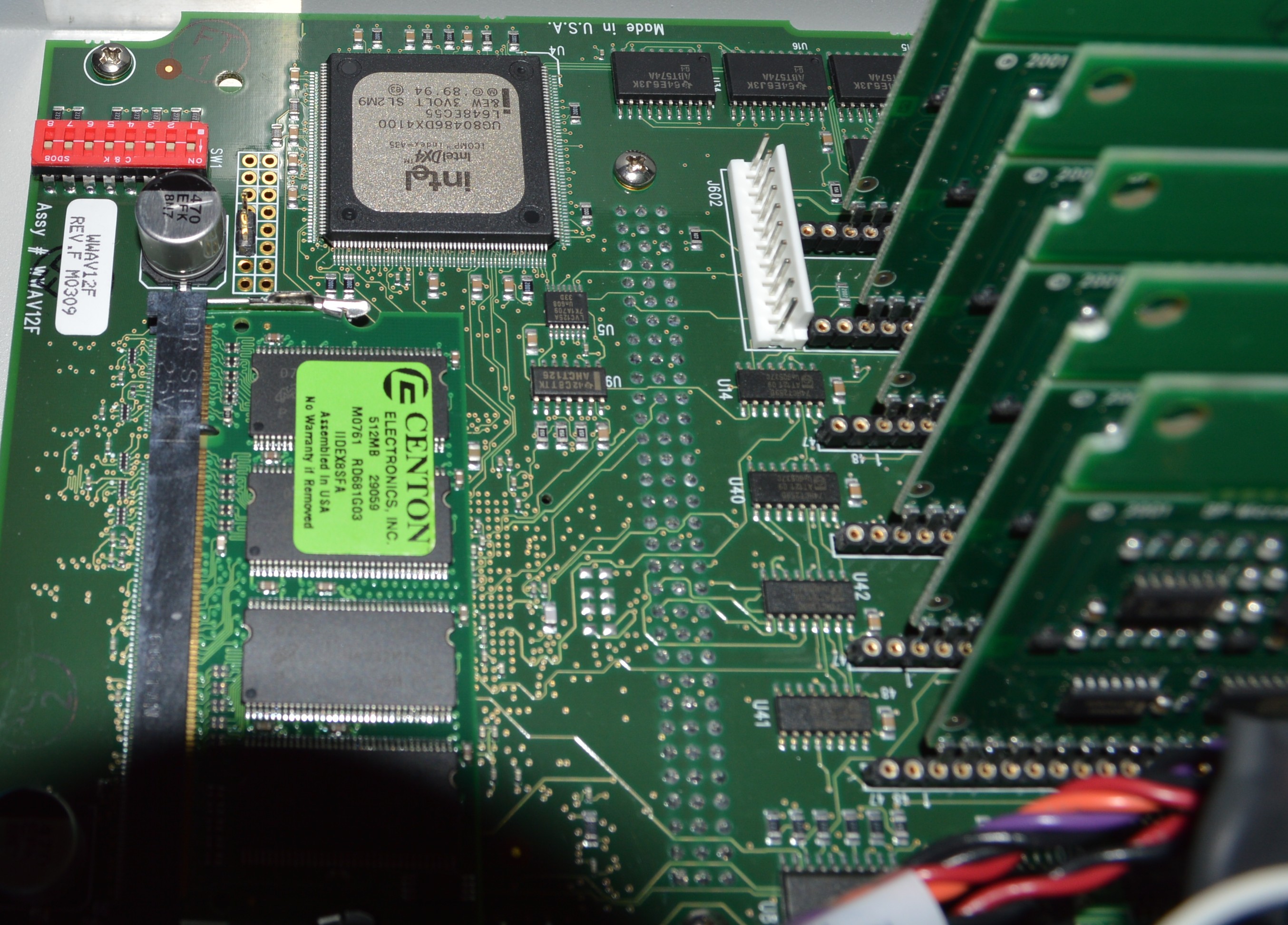

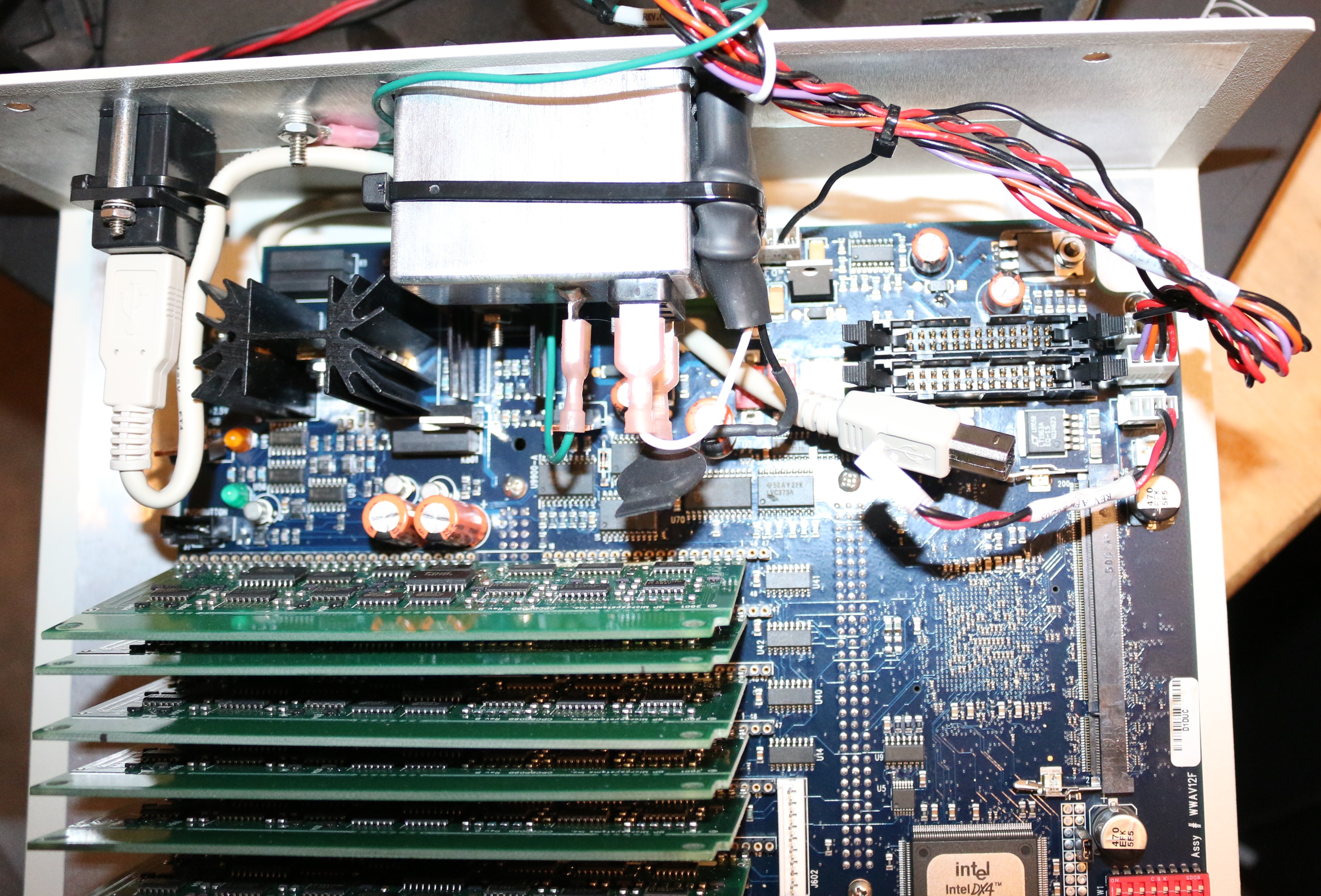

Motherboard

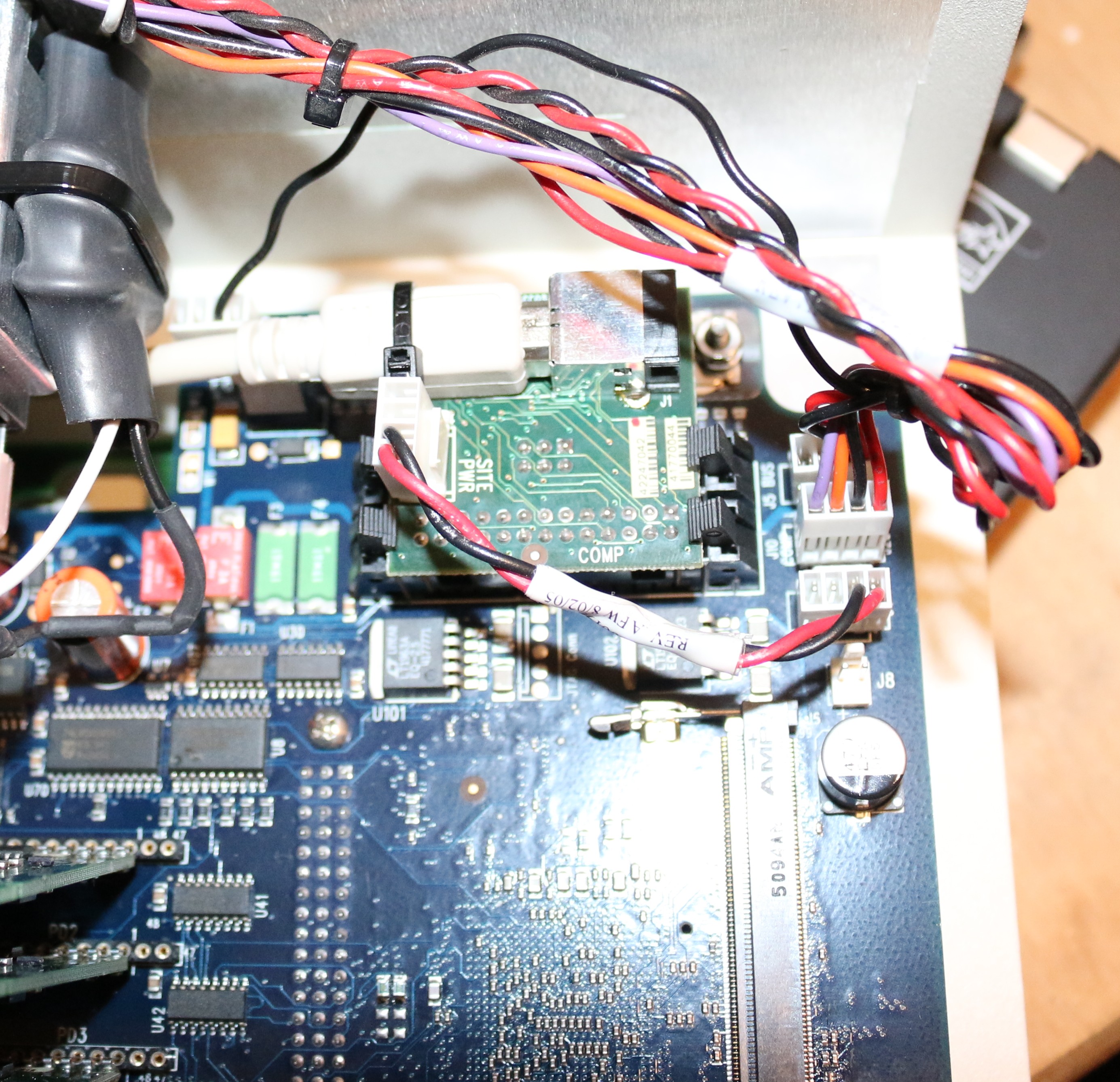

Motherboard USB connector:
Actel Silicon Sculptor 3
This appears to be a crippled BP-1410 (however, it has the front-panel button and the 512MB of RAM present in the BP-1710). No analysis has been done to figure out where the devices differ (firmware, FPGA, host, etc)

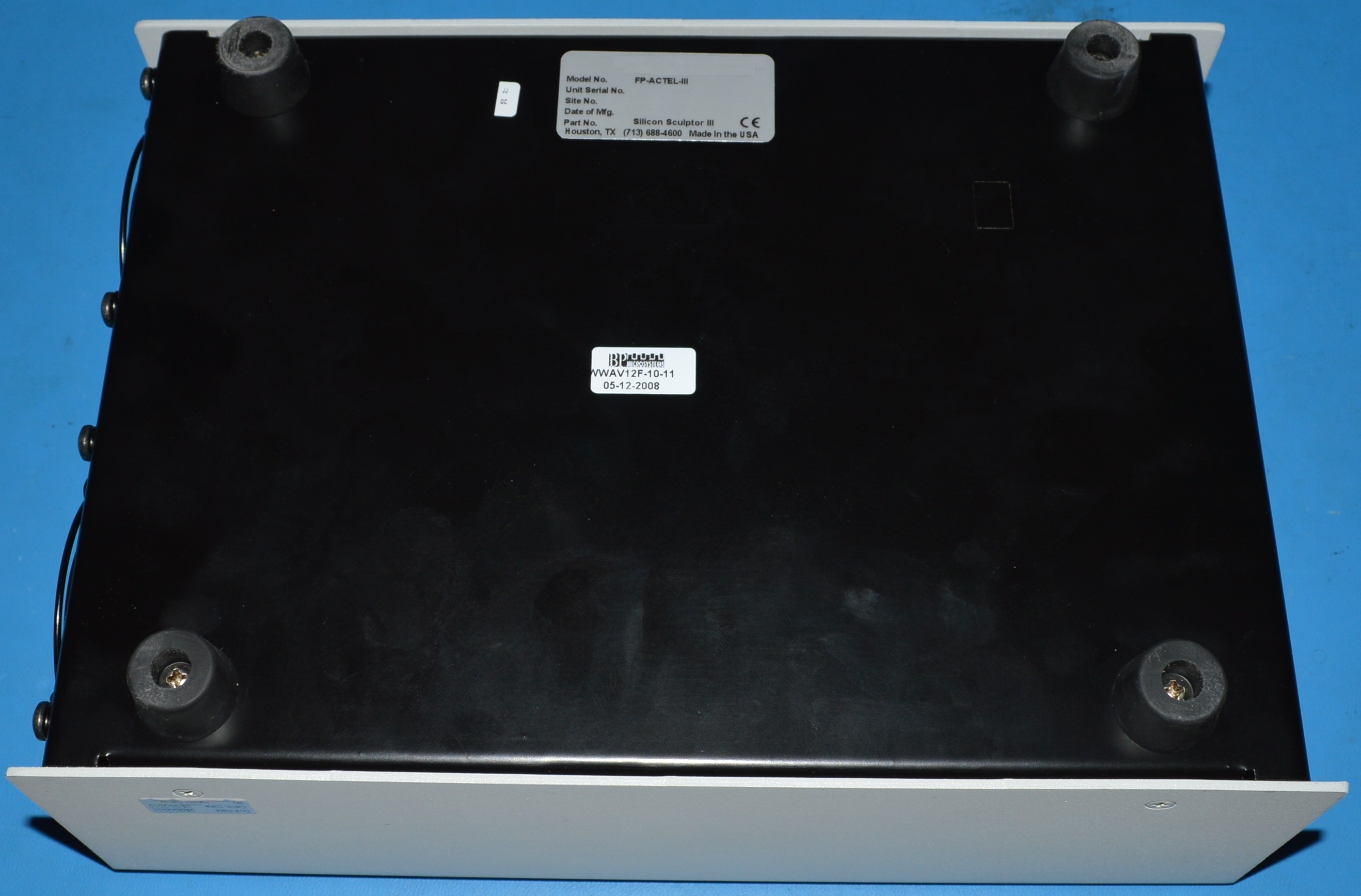

External

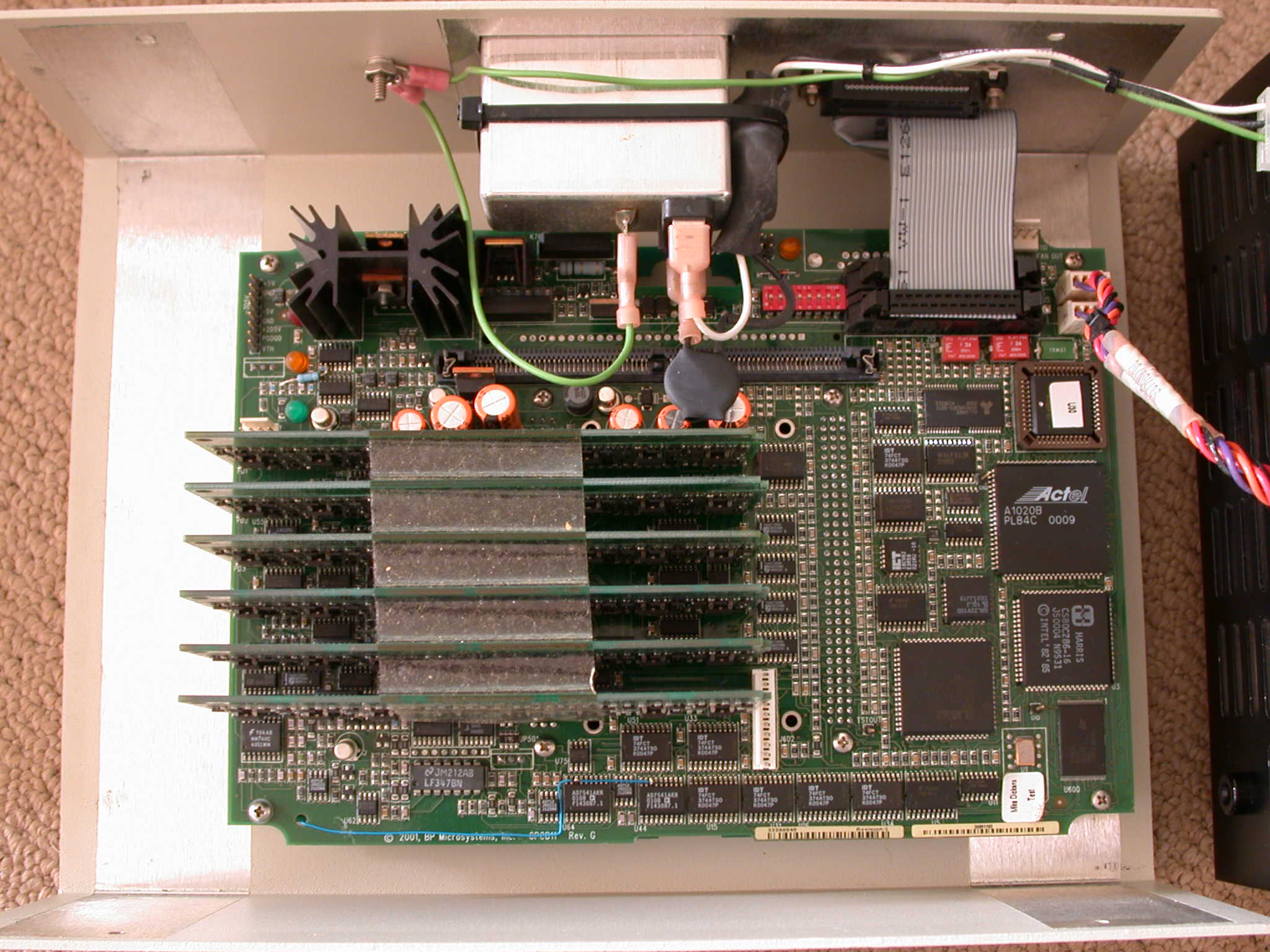

Motherboard

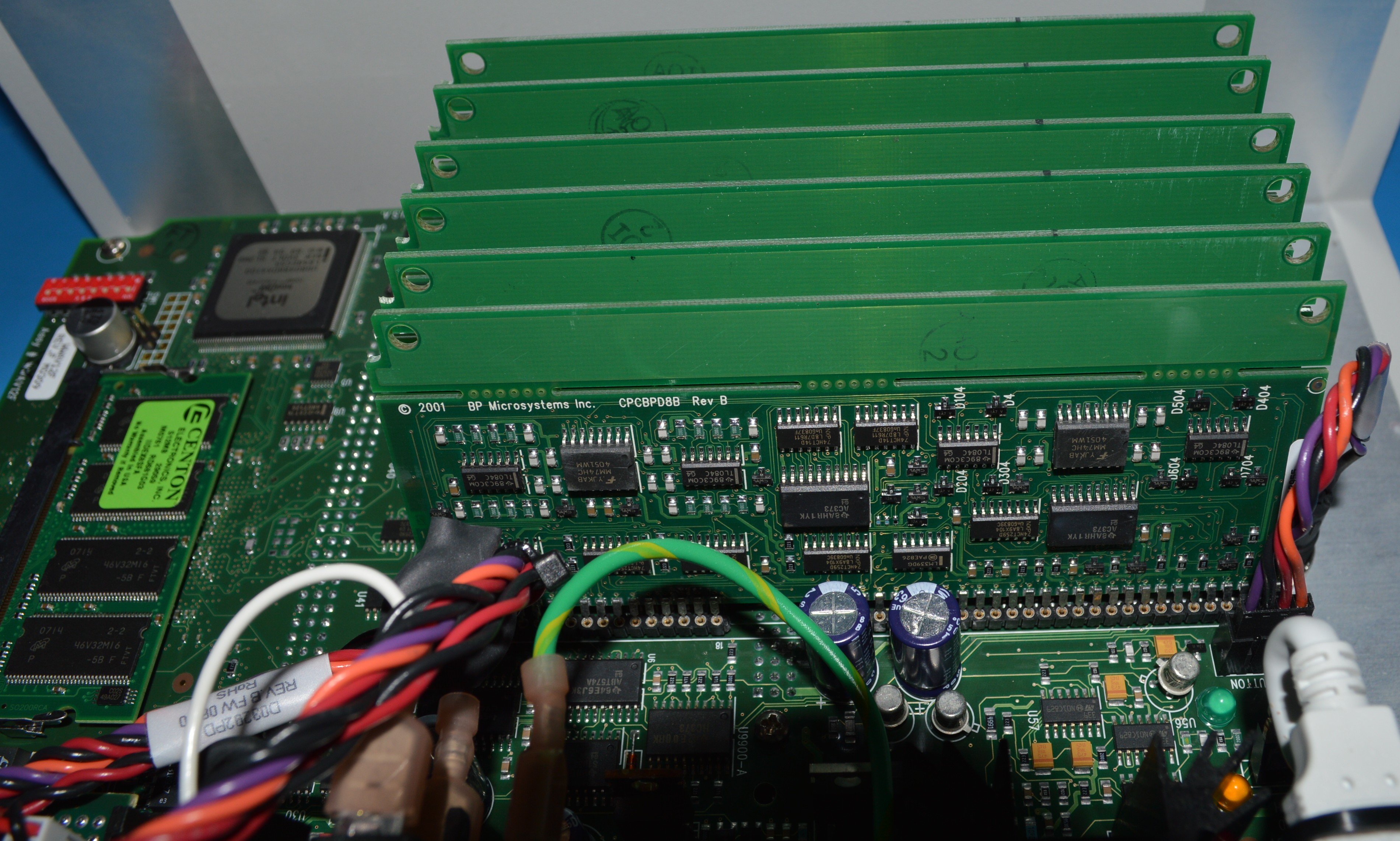

Main assembly:

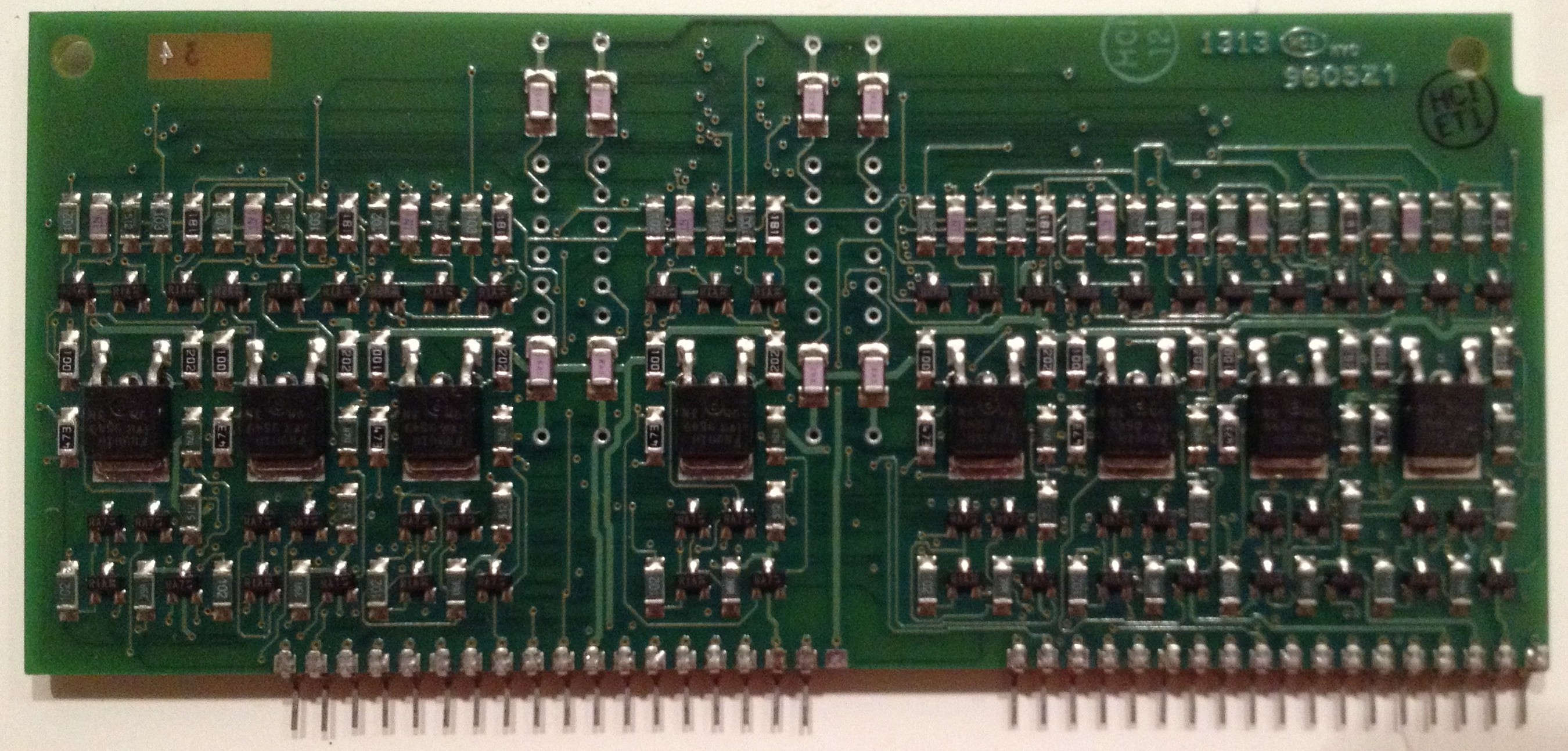

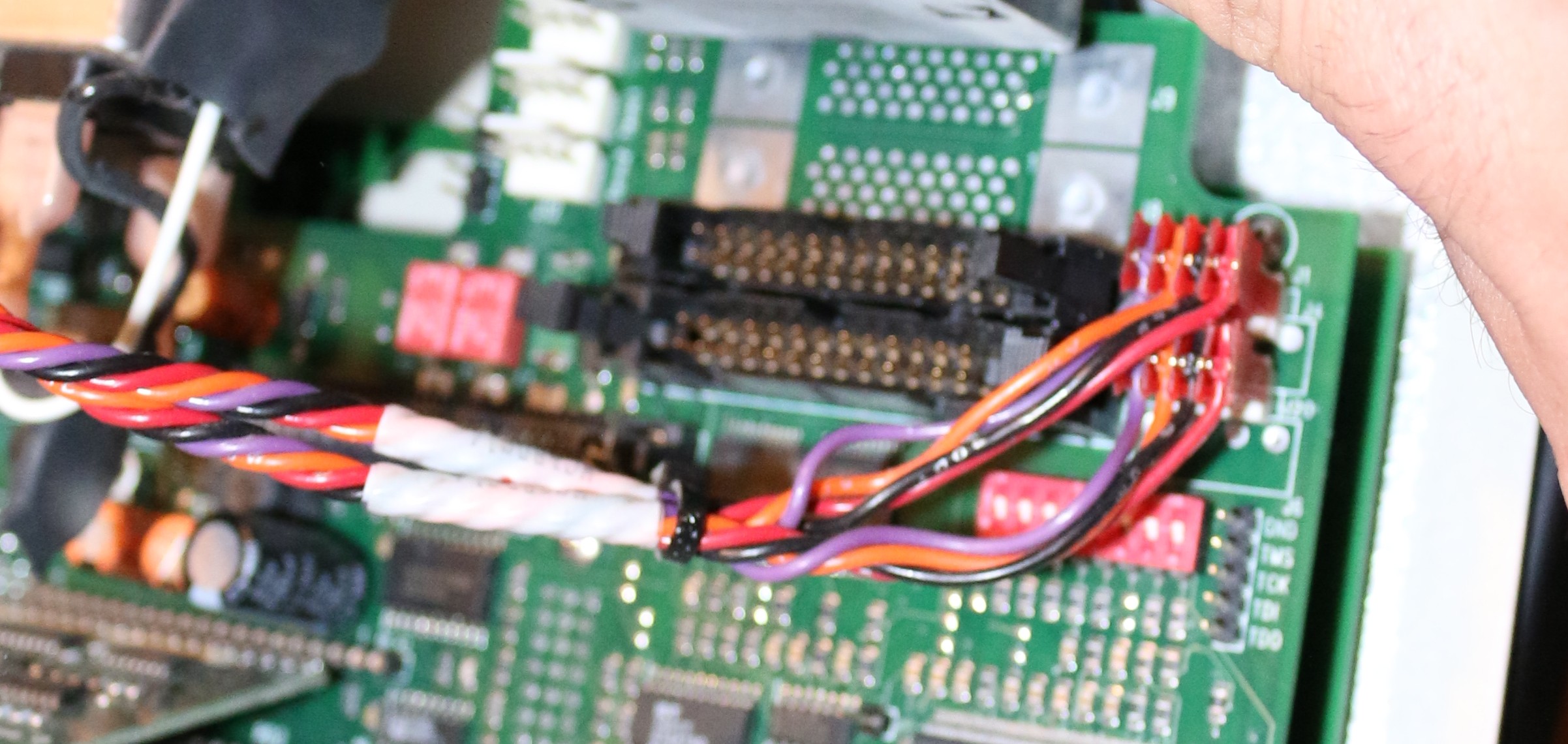

Driver board:

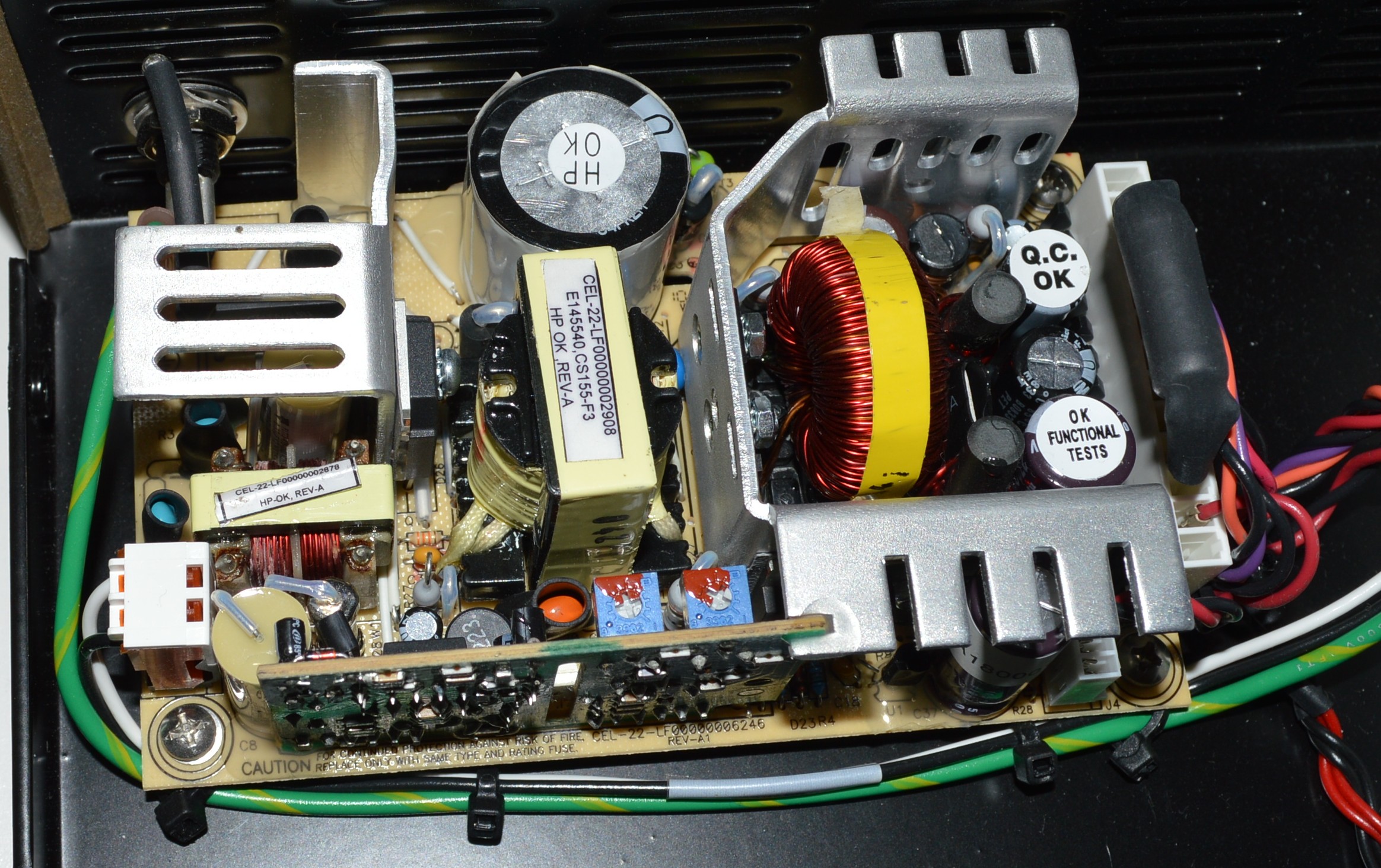

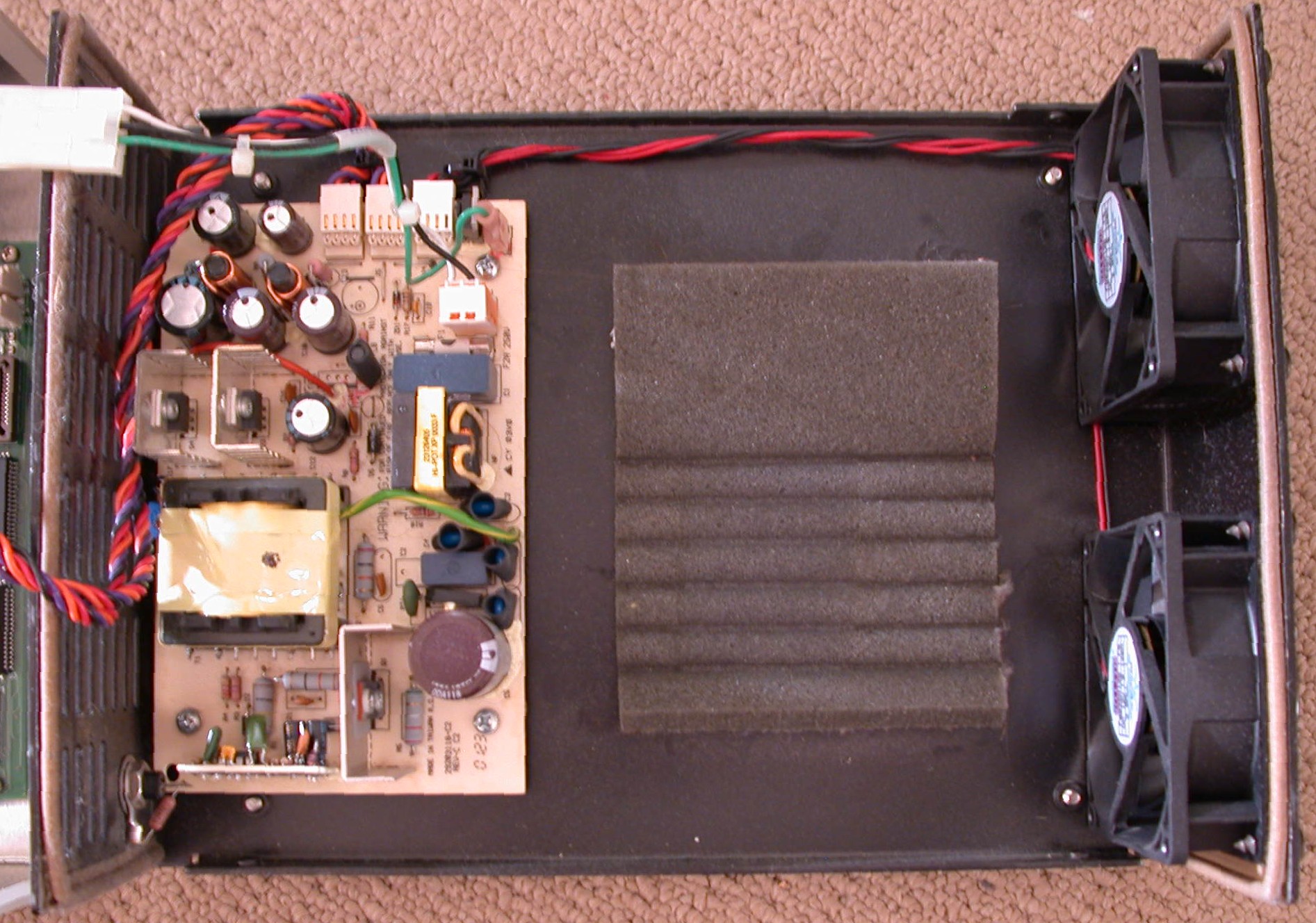

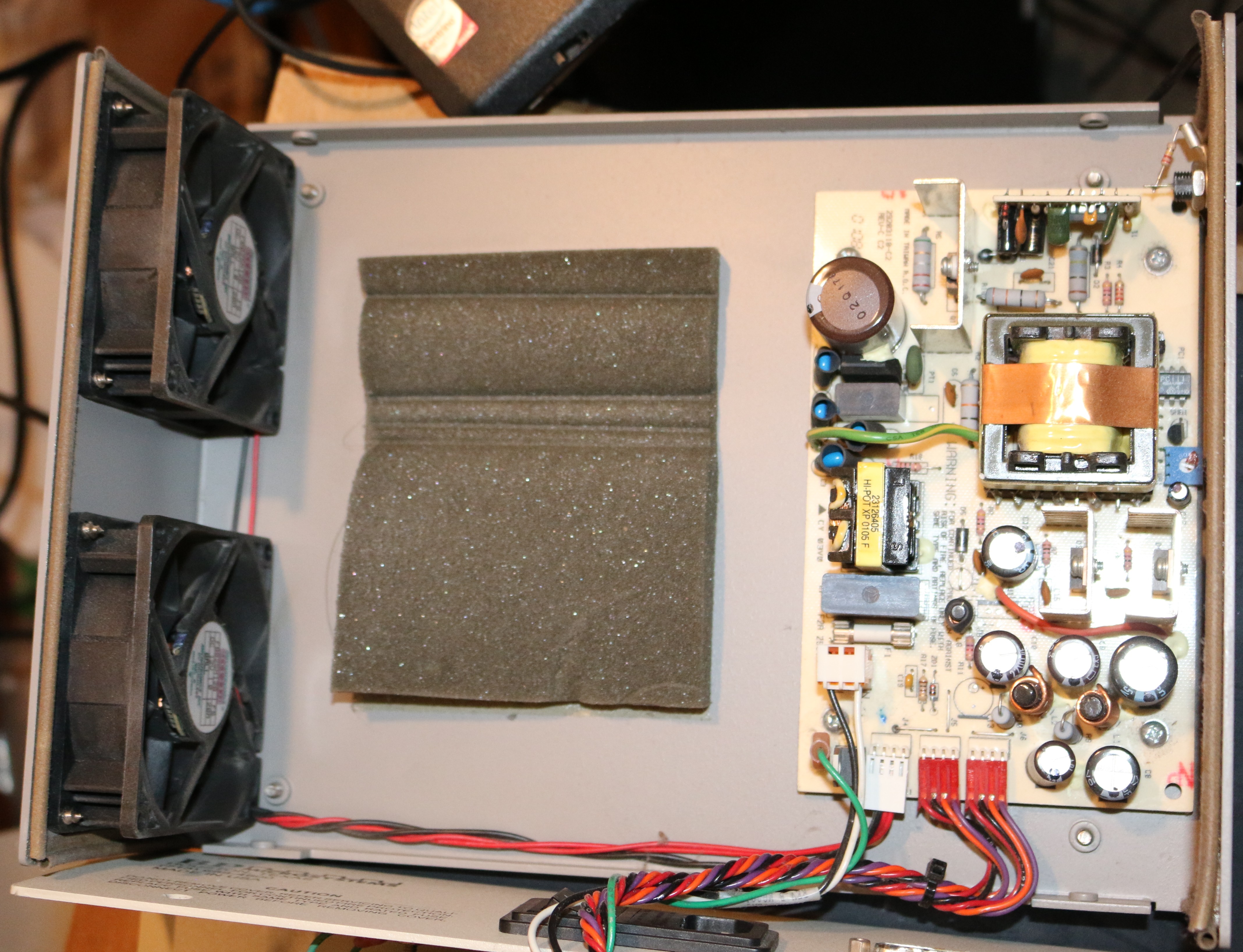

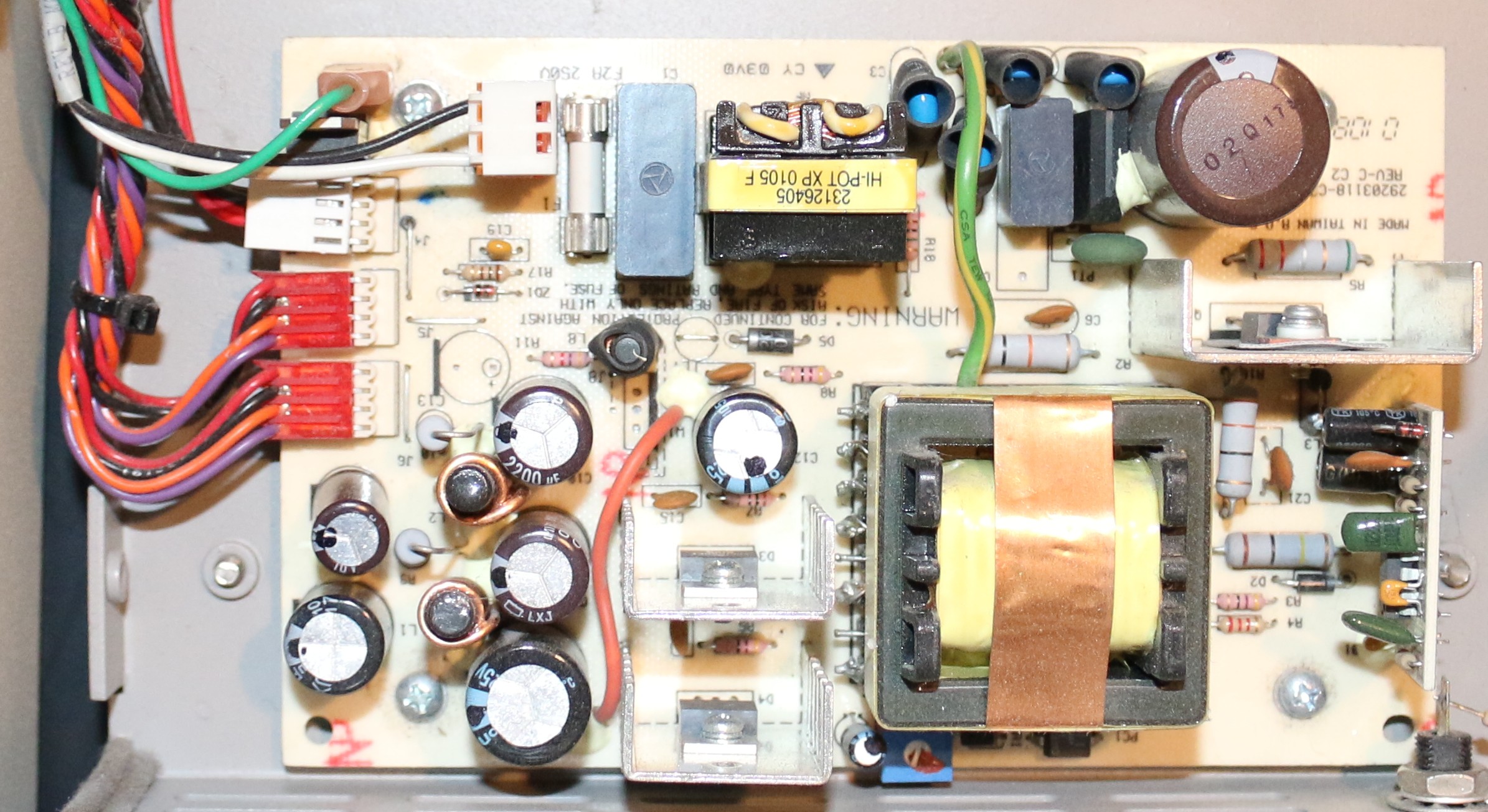

Power supply
BP-1600
External:
PC interface: parallel port
Chip interface: 3 plug SM
BP-1600 datasheet: http://web.archive.org/web/20050530023158/http://www.bpmicro.com/web/BPhome.nsf/webpages/1600-PDF/$FILE/1600DS_EN_0703.pdf
1400 has a 286 and the 1410 a 486 1600 supports 1.5V parts 5000 more devices (probably a lot more by now)

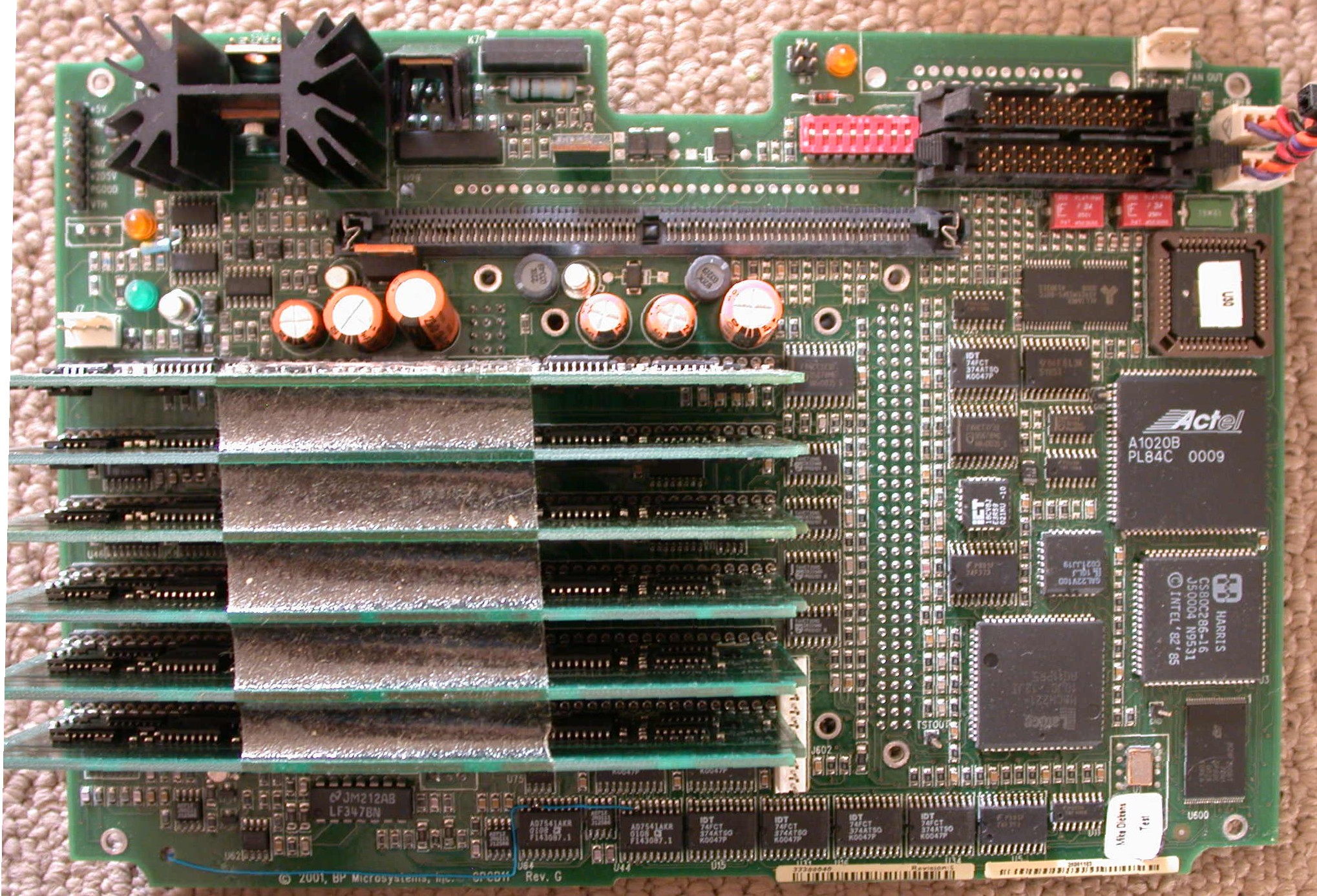

Motherboard:
CPCD12A Rev. C
CPU
intel Intel DX4 iCOMP TM index=435 PC80486DX4100 L124EA01 &EW 3VOLT SL2M9 INTEL (M)(C) '89 '94
Connectors are numbered with 1 at the side of the top or left of the PCB, oriented such that writing is right side up (ie side with blue trim pot)
J10 (Fan, N/C)
| # | V | Note |
|---|---|---|
| 1 | N/C? | |
| 2 | 16.5 | |
| 3 | 0 | |
| 4 | N/C? |
J11 (Term. 1, N/C)
| # | V | Note |
|---|---|---|
| 1 | 0.0 | |
| 2 | 1.1 | |
| 3 | 0.25 | |
| 4 | 5.1 |
J12 (Term. 2, N/C)
Was this supposed to be identical to above? Broken?
| # | V | Note |
|---|---|---|
| 1 | 0.0 | |
| 2 | 0.0 | |
| 3 | 0.0 | |
| 4 | 0.8 |
Voltage header
| Label | V | Note |
|---|---|---|
| +5V | 5.1 | |
| +3.3V | 3.3 | |
| GND | 0.0 | |
| -3.5V | -3.5 | |
| -5V | -5.0 | |
| GND | 0.0 | |
| +2.5V | 2.5 | |
| PGD | 4.1 | |
| VTH | 1.6 |
Power supply
J4 (12V fans…wtf?)
| # | Color | V | Note |
|---|---|---|---|
| 1 | Red | 35.4 | |
| 2 | Red | 16.5 | |
| 3 | Black | 0.0 | |
| 4 | Black | 5.3 |
J5 (to MB J4 or J20)
| # | Color | V | Note |
|---|---|---|---|
| 1 | Purple | 35.4 | |
| 2 | Orange | 16.5 | |
| 3 | Black | 0.0 | |
| 4 | Red | 5.3 |
J6 (to MB J4 or J20)
| # | Color | V | Note |
|---|---|---|---|
| 1 | Purple | 35.4 | |
| 2 | Orange | 16.5 | |
| 3 | Black | 0.0 | |
| 4 | Red | 5.3 |
BP-2200
“Concurrent Programming System”
PC interface: parallel port
Chip interface: 4X 3 plug SM

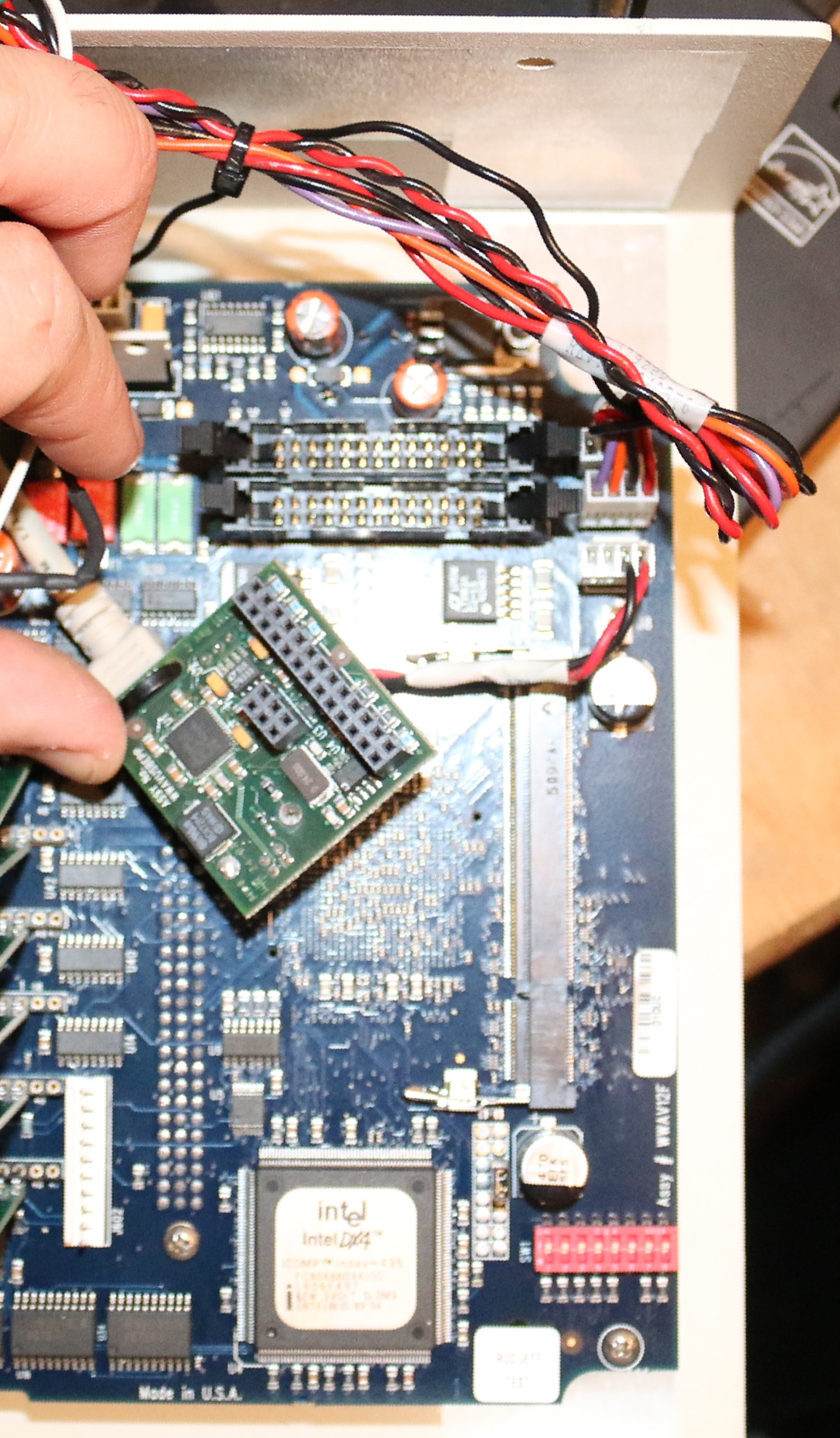

Parallel to USB upgrade
Main page: WWAVUSBEPP

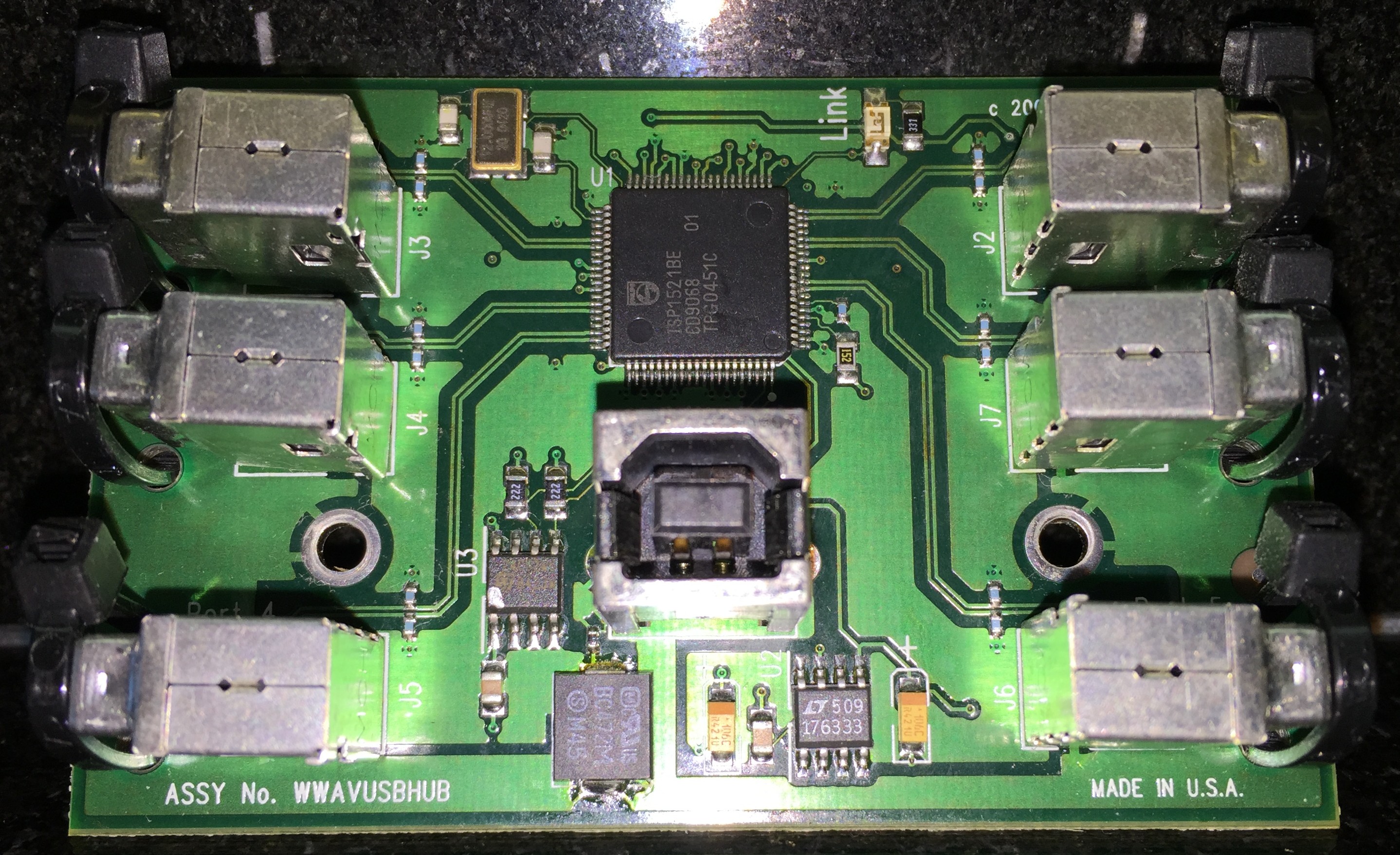

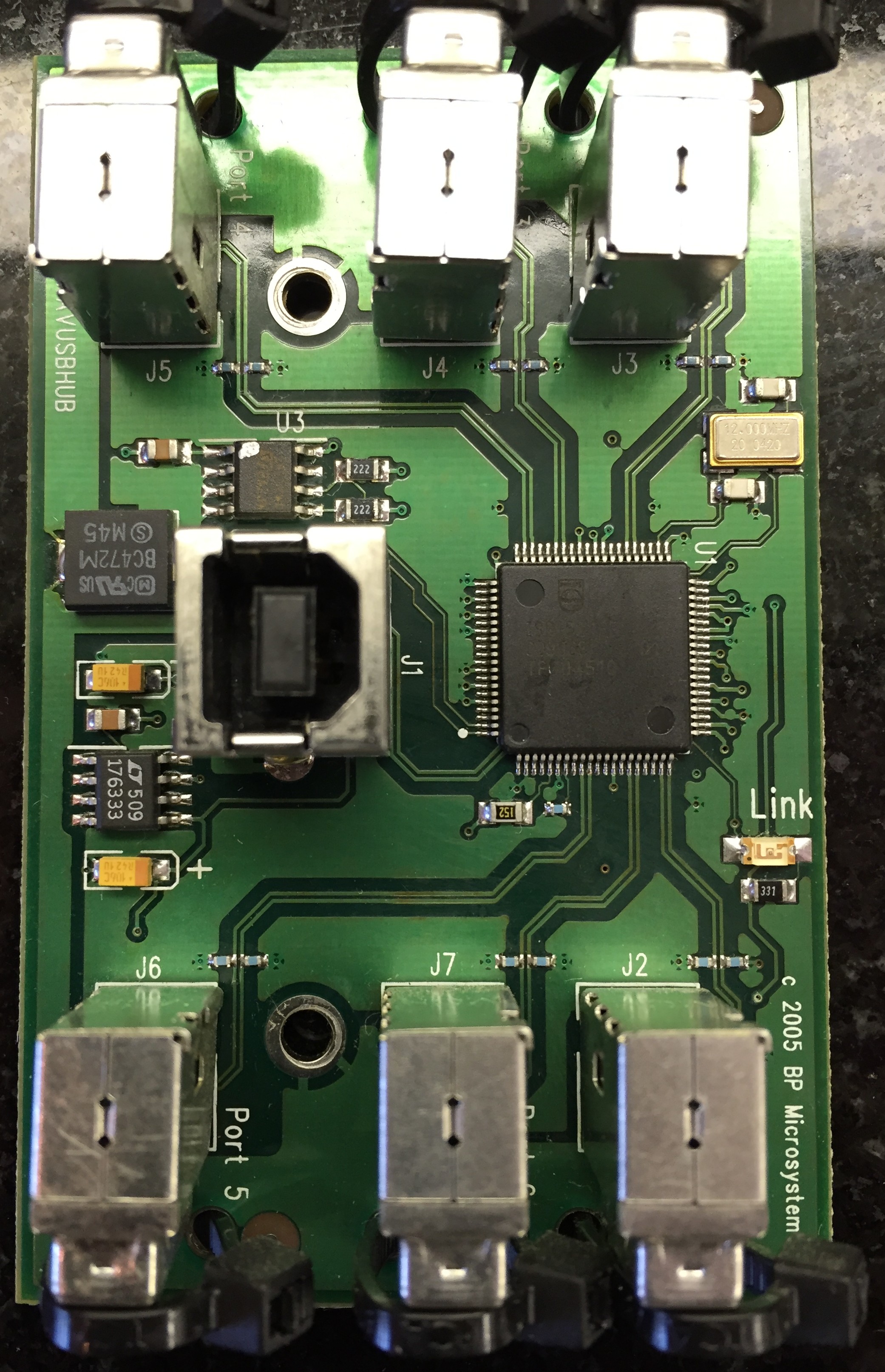

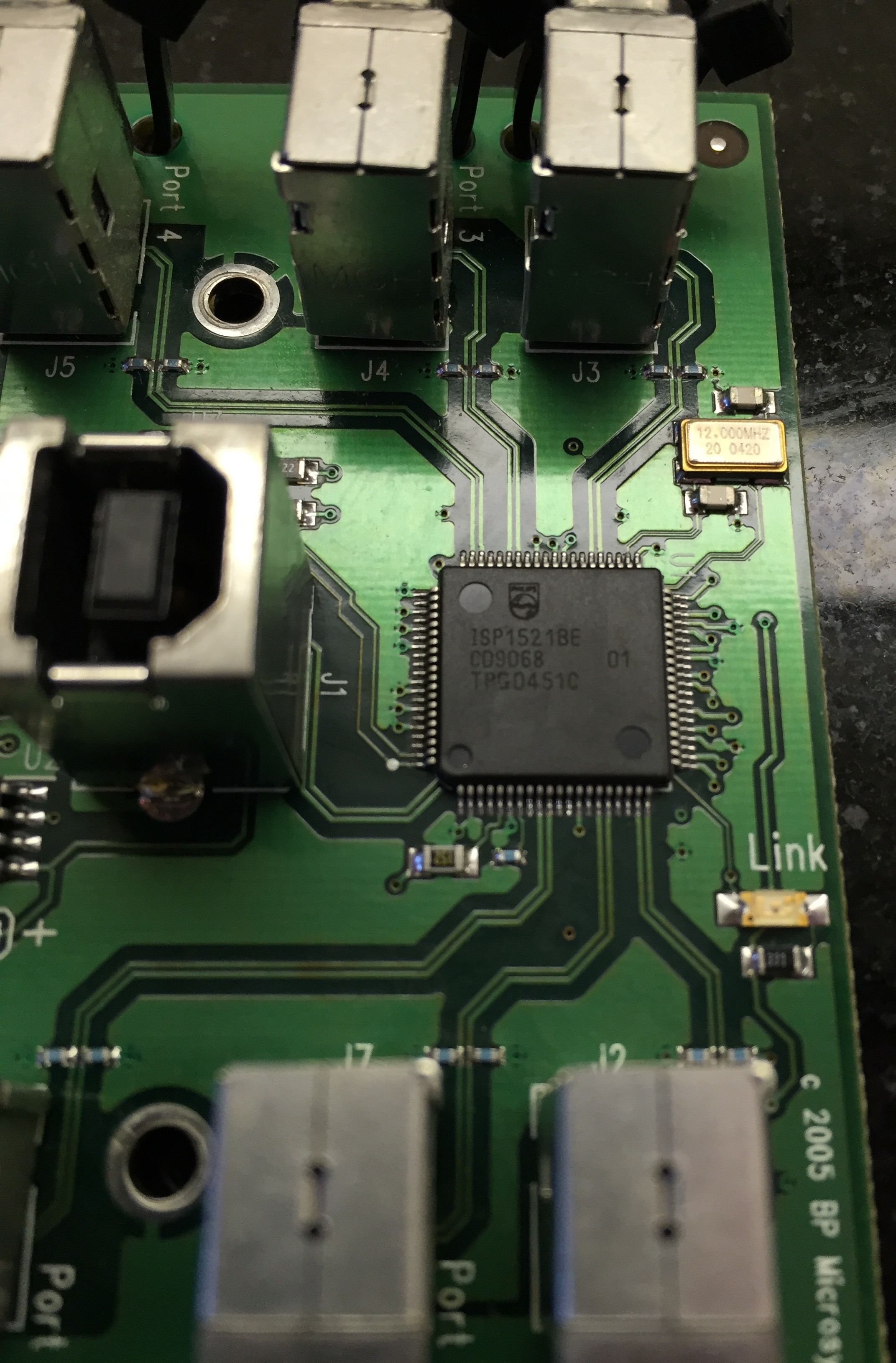

USB hub
Used on gang programmers
EP series
EP-1
PC interface: parallel port
Chip interface: DIP
EP-1132
PC interface: parallel port
Chip interface: DIP-
EP-1140
PC interface: parallel port
Chip interface: DIP-40
PLD series
PLD-1128
PC interface: parallel port
Chip interface: DIP-28
CP series
CP-1128
PC interface: parallel port
Chip interface: DIP-28
Silicon Sculptor
Actel programmers made by BPM.
As these cost less than the “real” BPM programmers, presumably can't be used with normal BPM software and/or work with other adapters
Silicon Sculptor 1
Has 2 headers (left/right) that adaptors plug into
Interface: parallel port
There is version with 1 connector and a version with 6 connectors
1X markings
Silicon Sculptor FAIL ACTIVE PASS START ACTEL DEVICE PROGRAMMER BP MICROSYSTEMS
Silicon Sculptor 2
Briefly looking couldn't find a picture without an adaptor attached…not sure if it has two or three adaptor connectors
Markings:
Silicon Sculptor II Actel FAIL ACTIVE PASS ACTEL DEVICE PROGRAMMER BP MICROSYSTEMS

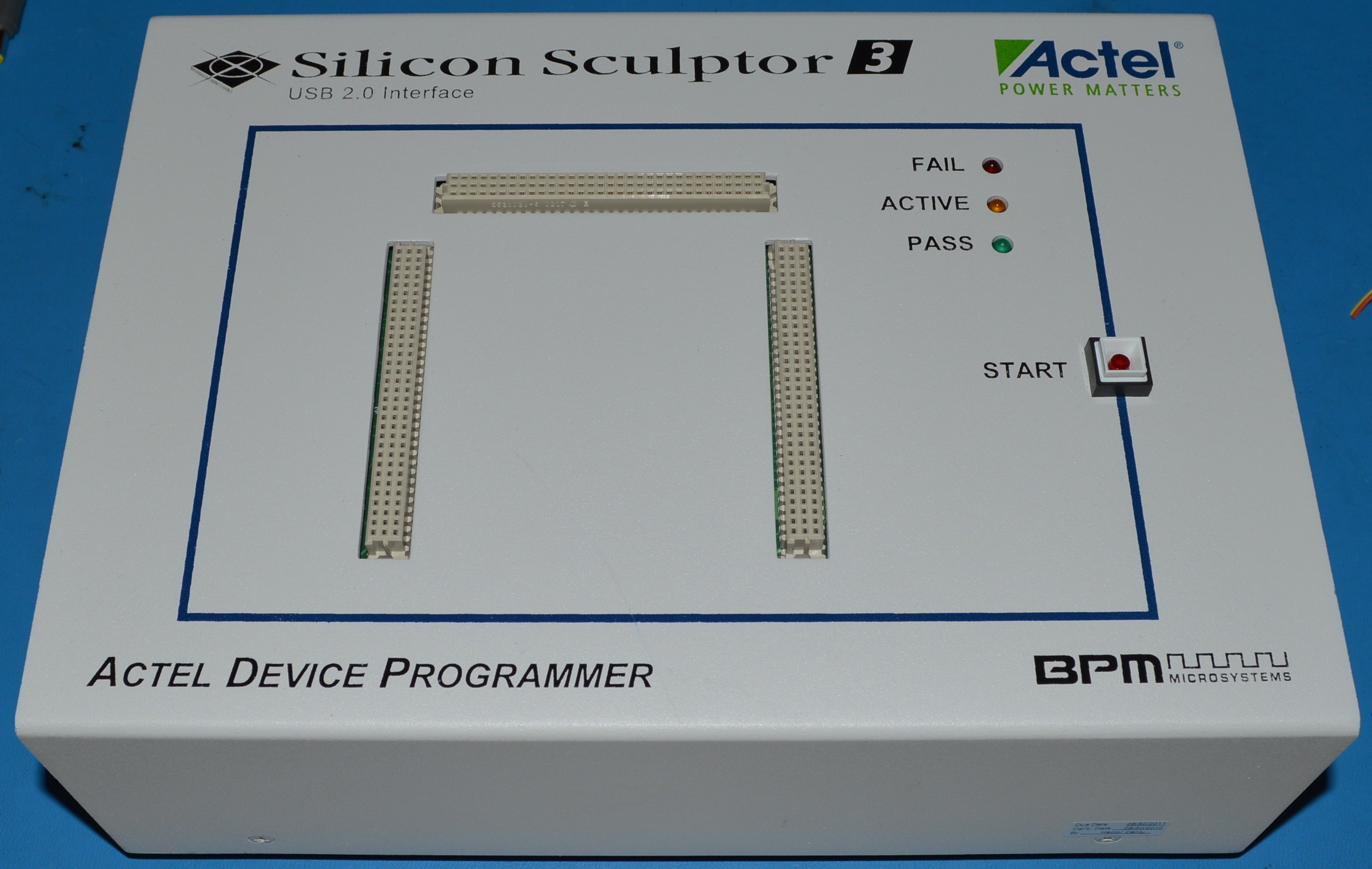

Silicon Sculptor 3
Above: DO NOT TOUCH!
Product page: http://www.microsemi.com/products/fpga-soc/design-resources/programming/silicon-sculptor-3
I love how they switched from roman numerals to Arabic numbers. Maybe they'll call the next one Silicon Sculptor D…
Has 3 headers (left/right/top) that adaptors plug into
Interface: USB
Markings:
Silicon Sculptor 3 Actel FAIL ACTIVE PASS START (button) ACTEL DEVICE PROGRAMMER BP MICROSYSTEMS
