x-ray product summary:

Image	Model	Type	Description	Notes
Source: NPC	JT Cool		detector cryocooler head
	483 Controller		cryocooler controller
	PRISM 60 series		EDS detectors
Source: eBay 270642145582	XS169-IXI	EDS detector / preamp
	0PJ013-1038		EDS detector / preamp	PRISM 2000 series: Si(Li), HpGe EDS detectors w/ preamp
	LS10138	EDS detector (Si(Li)) / preamp		[BNC Ge]
	LS10143	EDS detector (Si(Li)) / preamp		[BNC Ge]
	LS30143	EDS detector (Si(Li)) / preamp		[BNC Ge]
Source: eBay 191140107113	LS30148	EDS detector (Si(Li)) / preamp		[BNC Ge]
	LS60158	EDS detector (Si(Li)) / preamp		[BNC Ge]
	LS60163	EDS detector (Si(Li)) / preamp		[BNC Ge]
	IGX10125	EDS detector (HPGe) / preamp		[BNC Ge]
	IGX10138	EDS detector (HPGe) / preamp		[BNC Ge]
	IGX30133	EDS detector (HPGe) / preamp		[BNC Ge]
	IGX30138	EDS detector (HPGe) / preamp		[BNC Ge]
Source: eBay 360526462914	IGC10-ES
Source: eBay 400720324518 Source: eBay 400720324518		Imagemaster	EDS controller?
	RG-11	Preamp		Use w/ IGC/NIGC detector [NPC]
	PO-14B	Preamp		Use w/ NIGC detector[NPC]
	RG-11	Preamp		Use w/ IGP detector [NPC]
	TR-14	Preamp		Use w/ IGP detector [NPC]
	TR-1	Preamp		Use w/ Si(Li)\IGX detector [NPC]

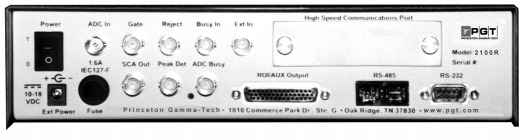

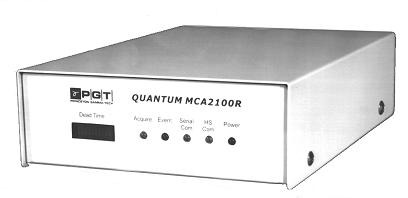

Source: NPC Source: NPC	MCA 2100R	MCA	Multichannel Pulse Height Analyzer	“MCA, bias supply, amplifier, and preamplifier” 20 to 2000 keV? Use included QuantumMCA software for qualitative analysis or (probabaly for $) QuantumGold for quantitative analysis [NPC]
	MCA2100R-EN	MCA (accessory?)	RJ-45 connection for Ethernet	Unclear if this is varient of MCA 2100R or a card for it
Source: [Nuclear presentation, 19]	MCA2500R	MCA		[Nuclear presentation, 19]

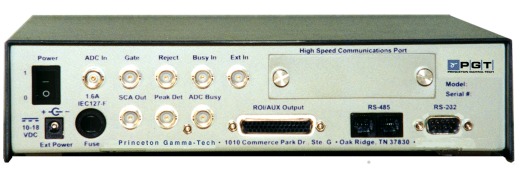

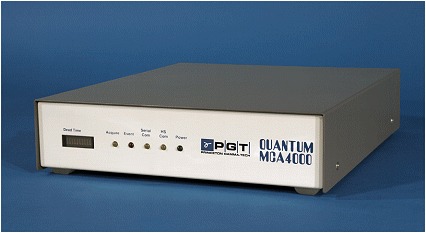

Source: NPC Source: NPC	MCA 4001	MCA	250-1000 channels	RS-232 or etherent QuantumMCA (free/included) or QuantumGold (ante up)
Source: NPC Source: NPC	MCA 4002	MCA	250-2000 channels	See above
Source: NPC Source: NPC	MCA 4004	MCA	250-4000 channels	See above

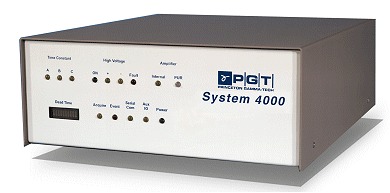

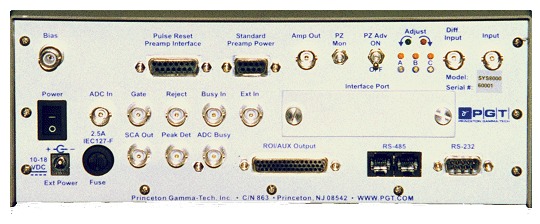

Source: NPC Source: NPC	System 4004X	4000 channels	X-Ray Spectrometer	RS-232 or etherent

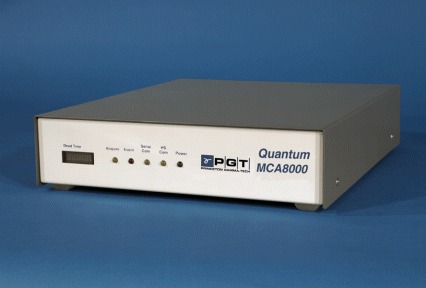

Source: NPC 72	MCA 8008	MCA	8000 spectrum memory channels	10/100 ethernet, RS-232
Source: NPC 72	MCA 8016	MCA	16000 spectrum memory channels	See above

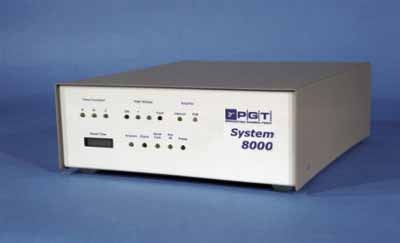

Source: NPC 74	8004X	250-4000 channels
Source: NPC 74	8008G	250-8000 channels
Source: NPC 74	8016G	250-16000 channels
	QuantumMCA	Software	Quantitative

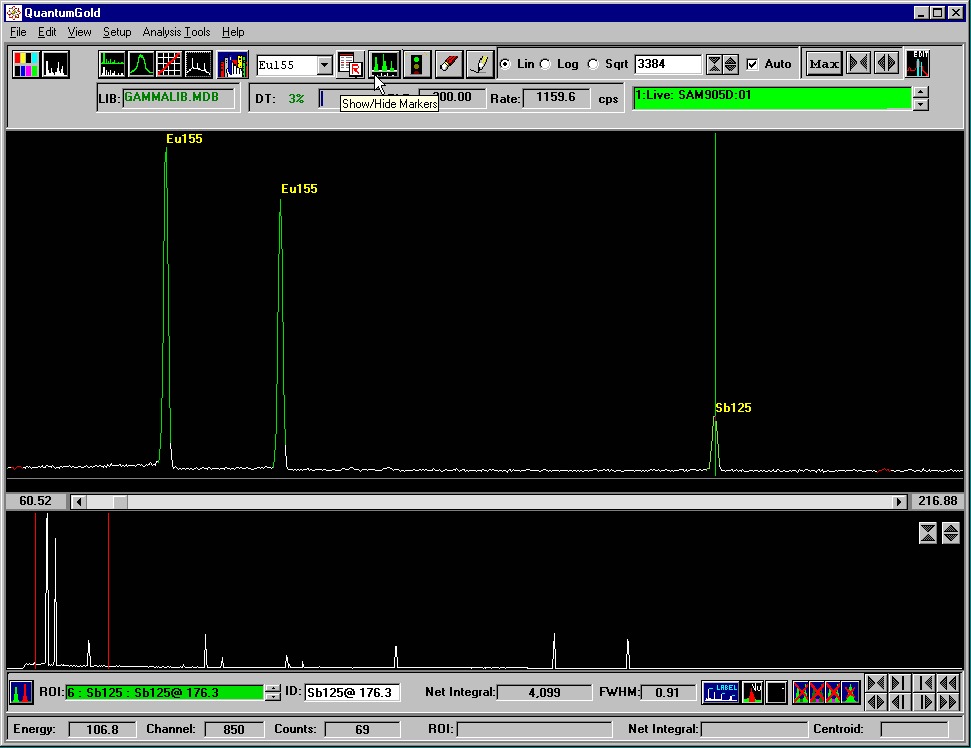

Source: NPC 77	QuantumMCA	Software	Qualitative
	Quantum GeD	Software	quantium + qualitative (Ge detector only)
	Quantum Ge	Software	Quantum GeD minus deconvolution analysis
	Quantum NaID	Software	quantium + qualitative (NaI detector only)
	Quantum NaI	Software	Quantum NaID minus deconvolution analysis

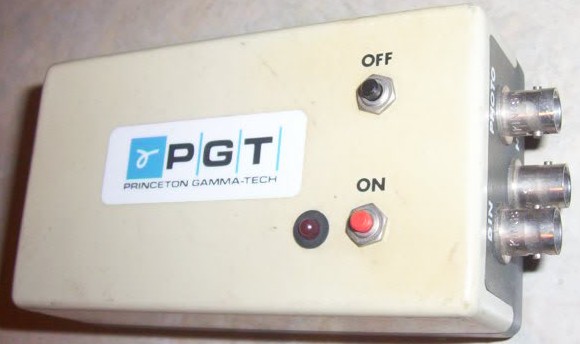

Source: eBay 270641099429			Video switch?	Don't think seller “video switch” description is accurate. “removed from Cambridge Instruments Spectrometer”

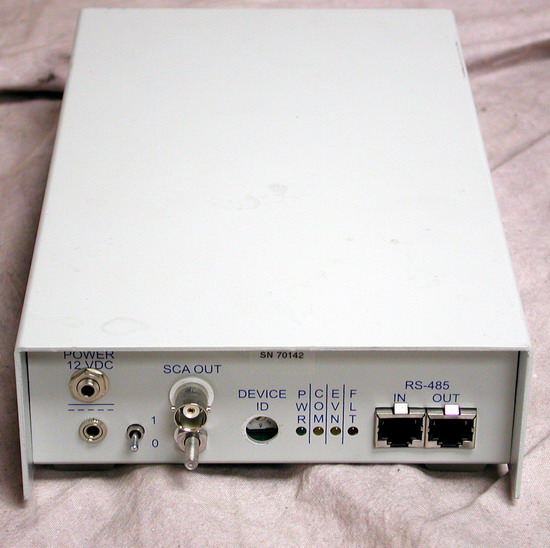

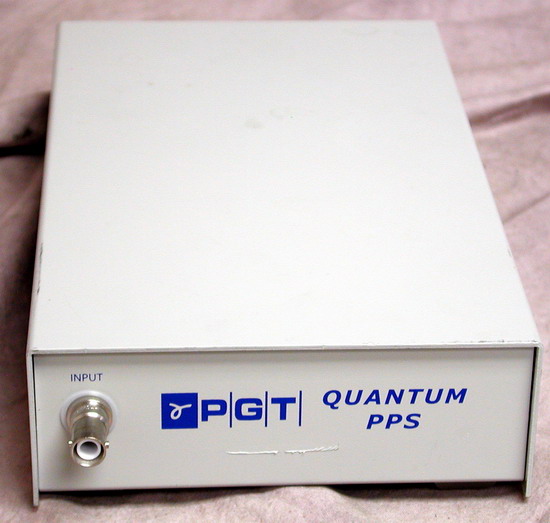

Source: eBay 200151764945 Source: eBay 200151764945				Seller description: “ Princeton Gamma Tech Quantum Pulse Processing System. Up for sale is a Princeton Gamma Tech Quantum Pulse Processing System. I can't find much information on this system, but it may be used in conjunction with PGT's Quantum Nuclear Spectroscopy software. Unit was built around 2002…”

Where:

• MCA: Multichannel analyzer

older units

Official title: “Prisim 2000 Si(Li) and HpGe Detector Series”

Detectors [manual]:

Window type: ultra thin

Cooling method: LN2 or JT Cool

Typical system [Gammy and X-Ray detectors]:

• preamp
• PGT Model 326 LN2 level detector
• PGT Model 312, 314 or 315 HV PS
• Pulser
• PGT Model 347 Amplifier
• ADC
• MCA

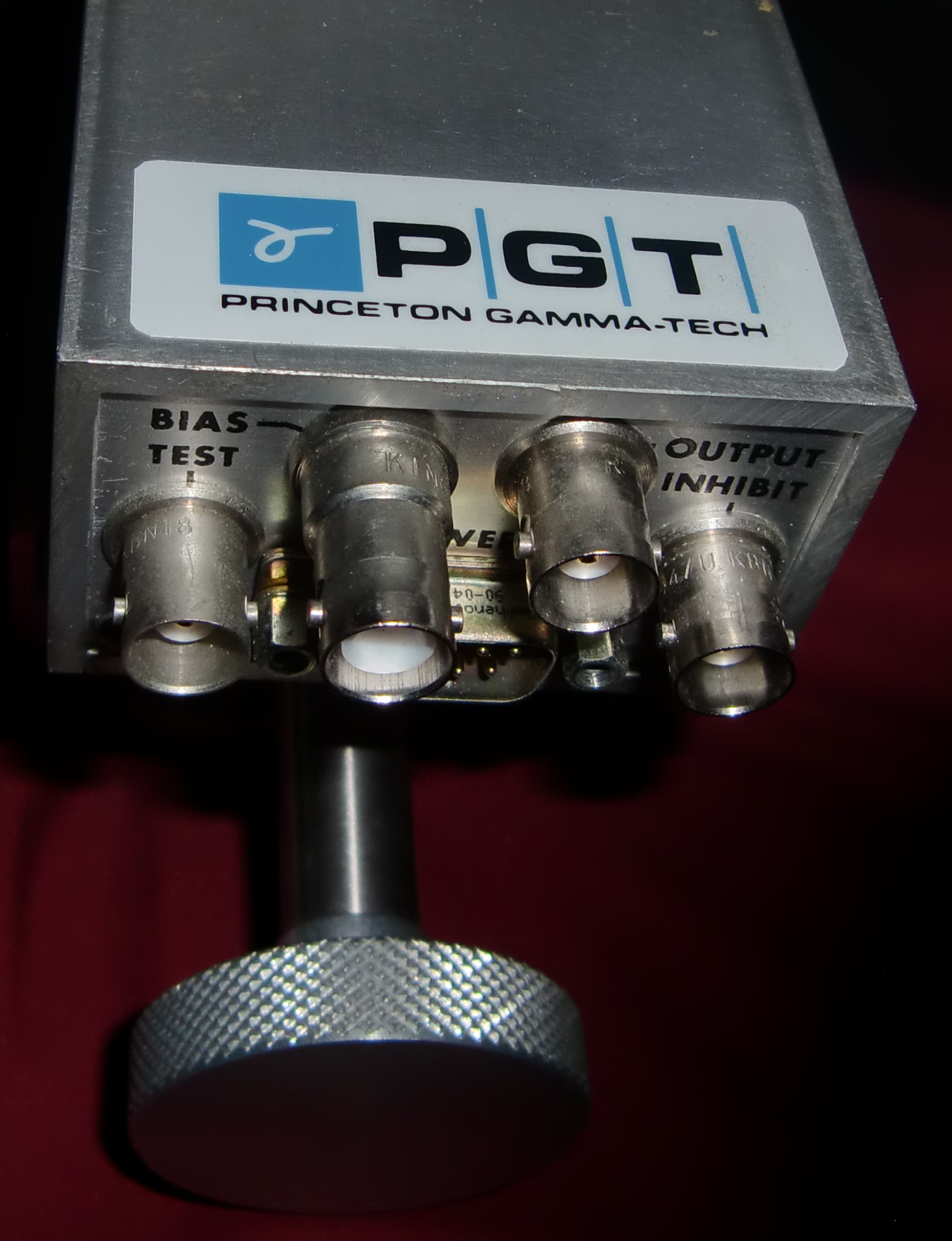

Connections:

TODO: get better info on function/pinout of each

This unit was bought for reasonably low cost with hope to learn about them and maybe fix it. Worst case, this unit should work under atmosphere or scrap for the dewar

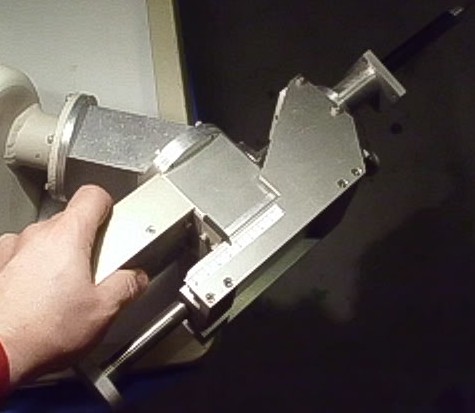

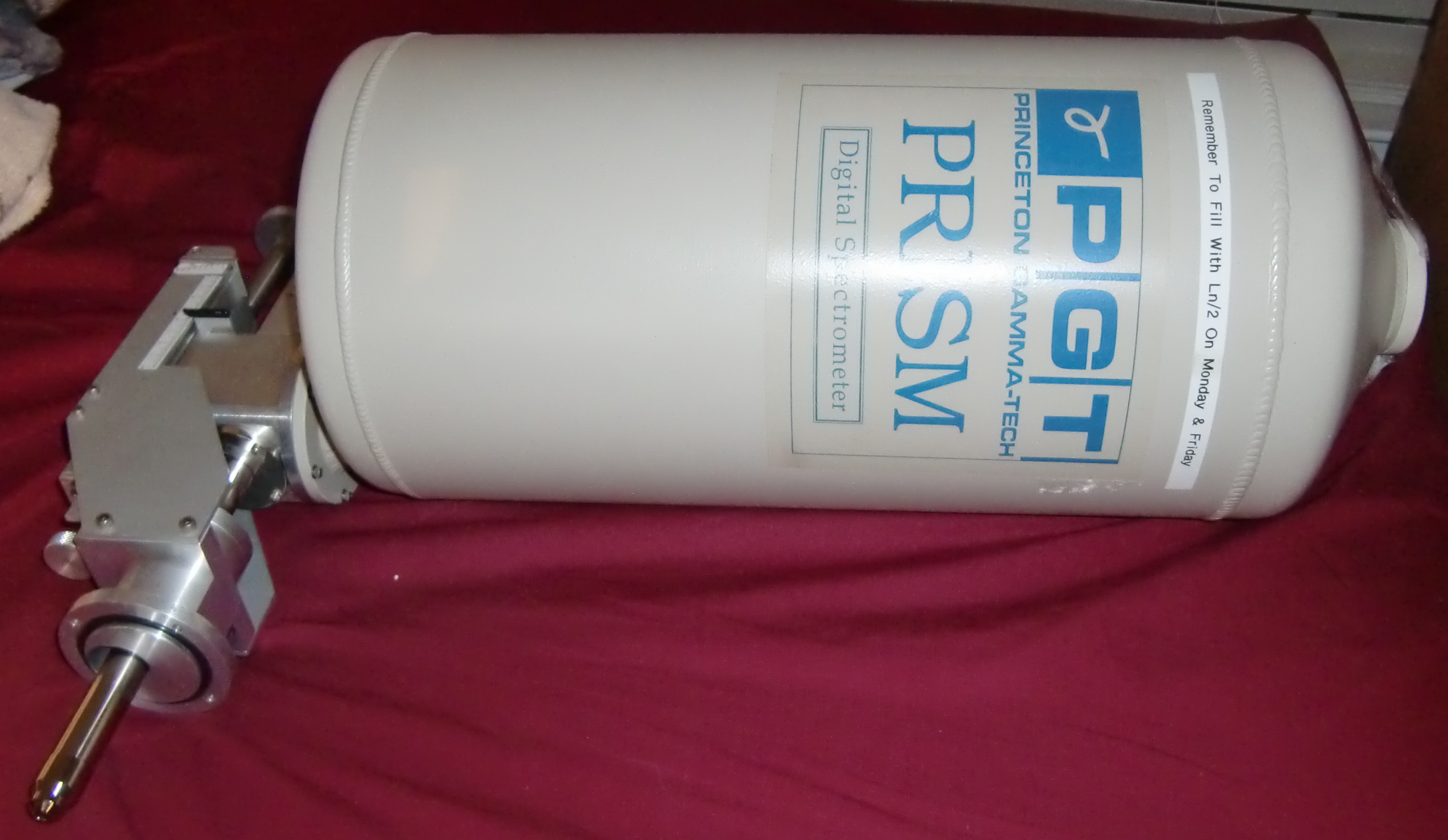

Front:

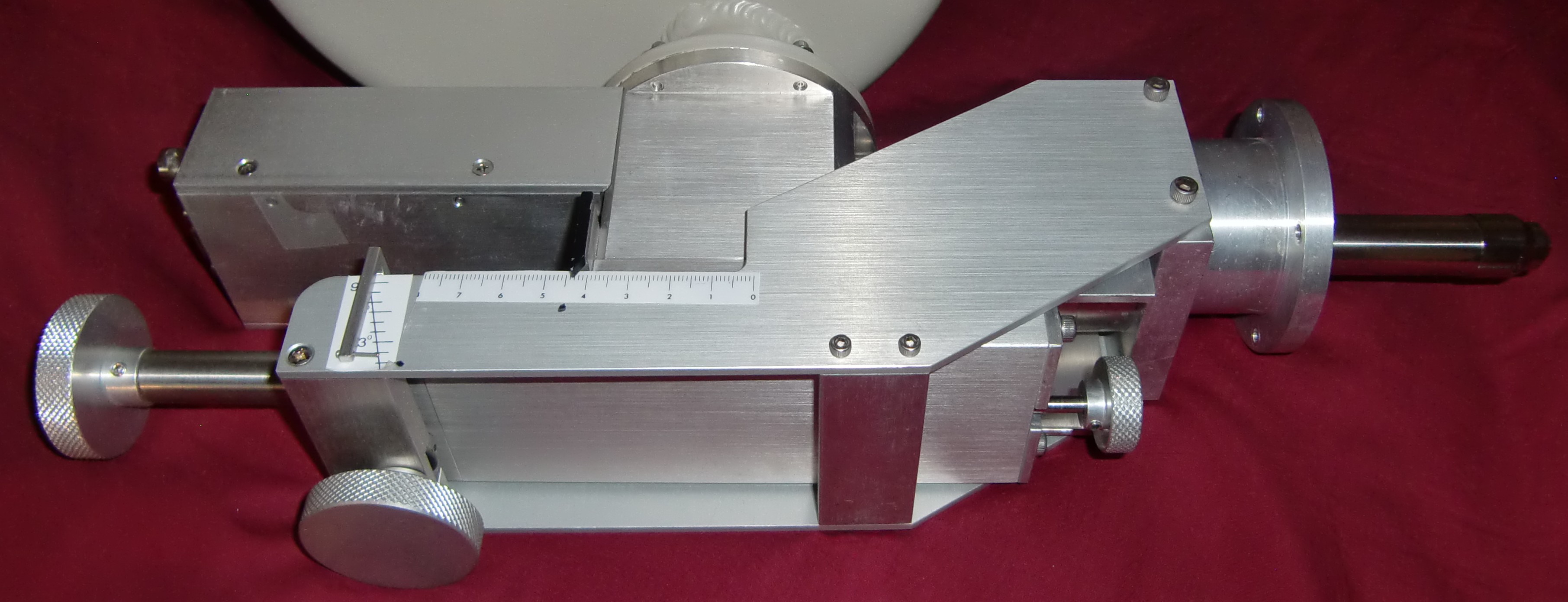

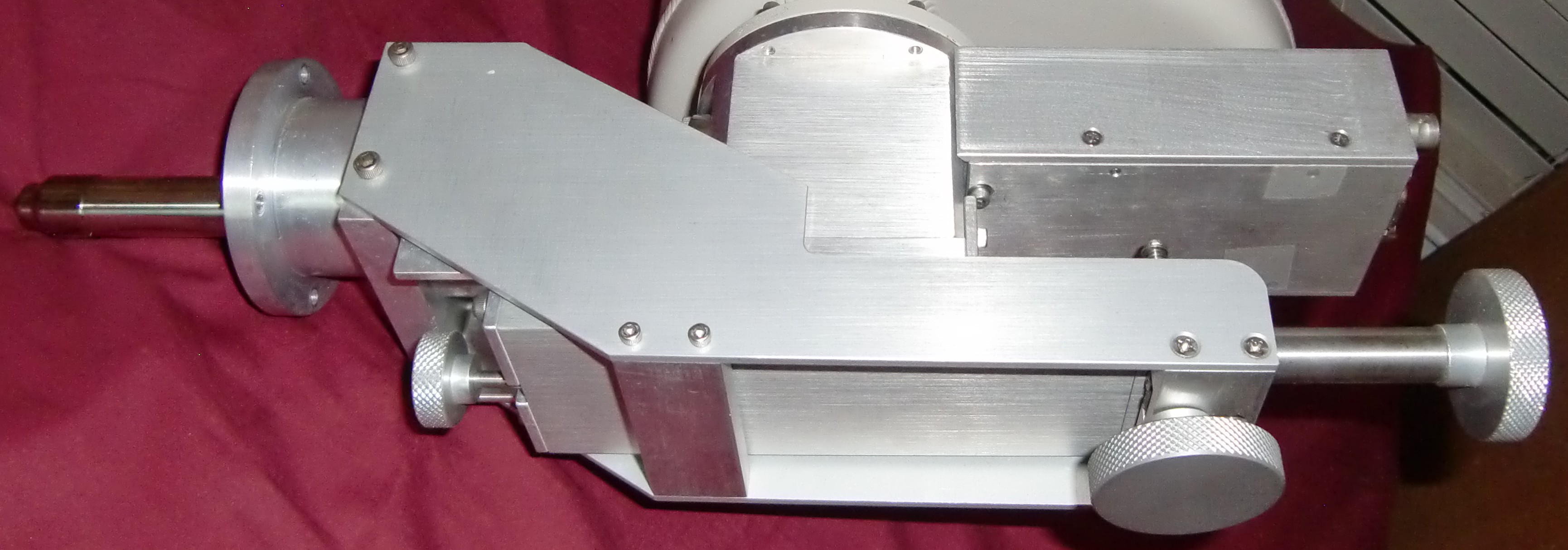

Sides:

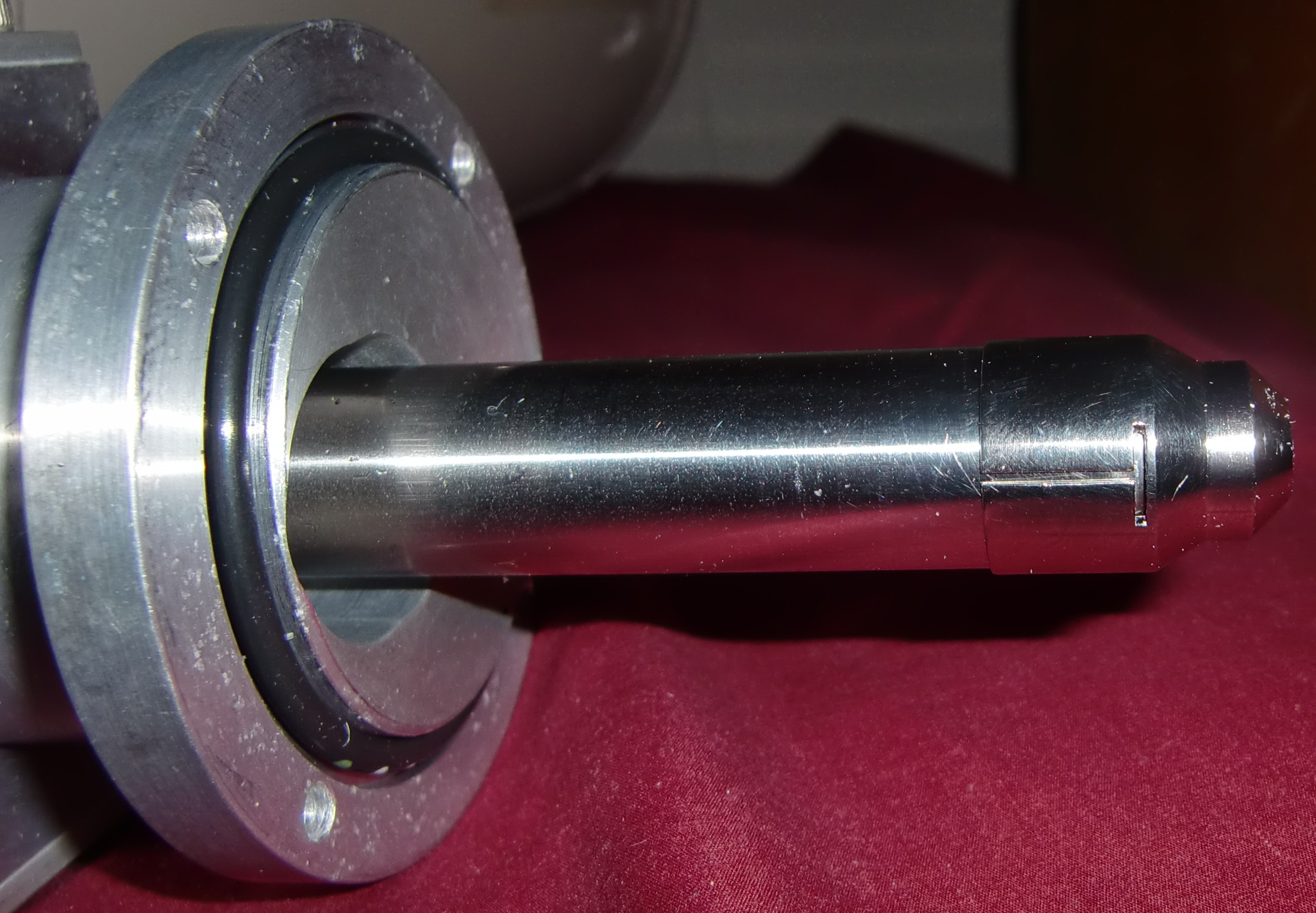

Vacuum section:

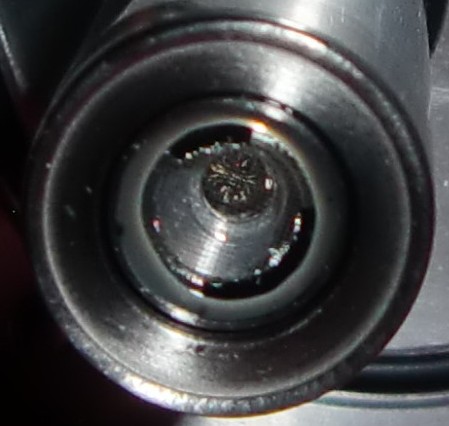

Close up of broken window:

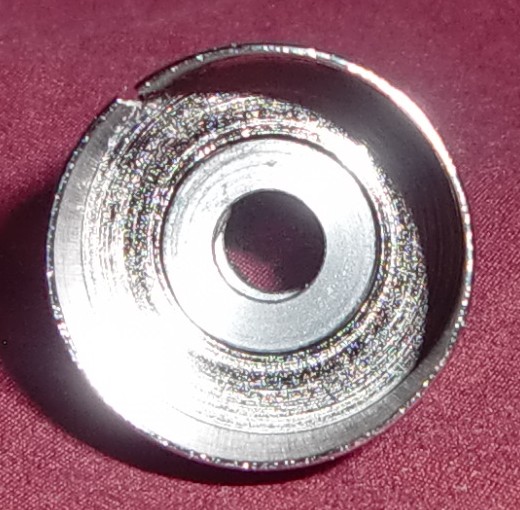

The screen is still intact. This was supposed to protect it:

My guess is that it got damaged during cleaning

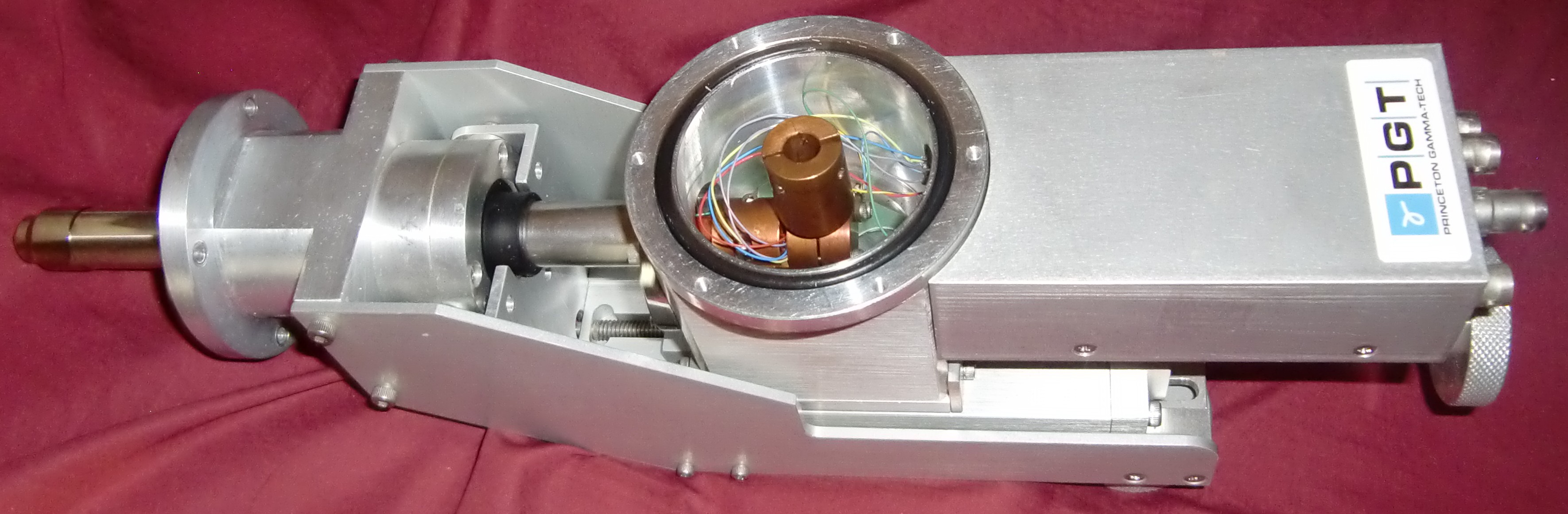

Top:

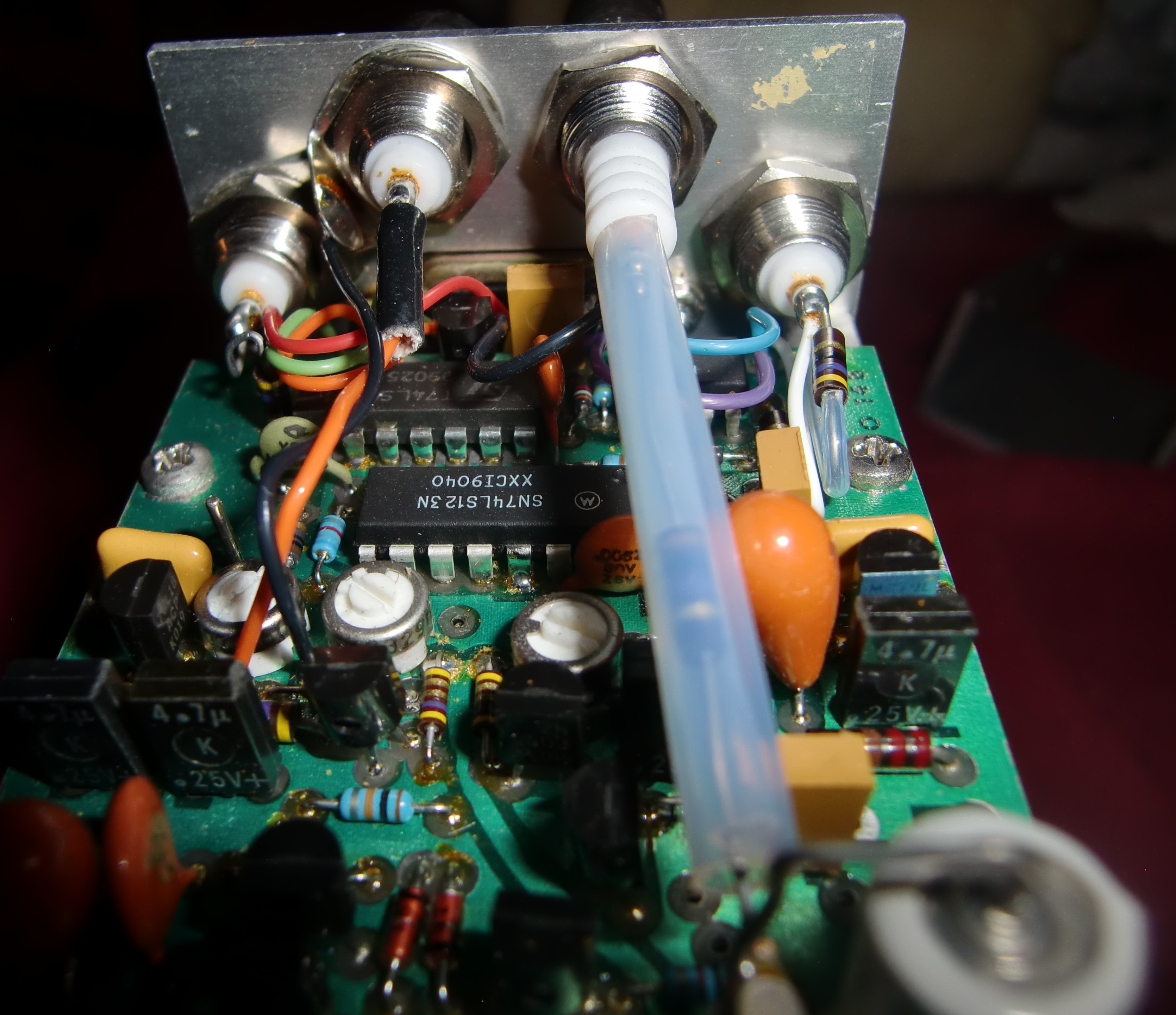

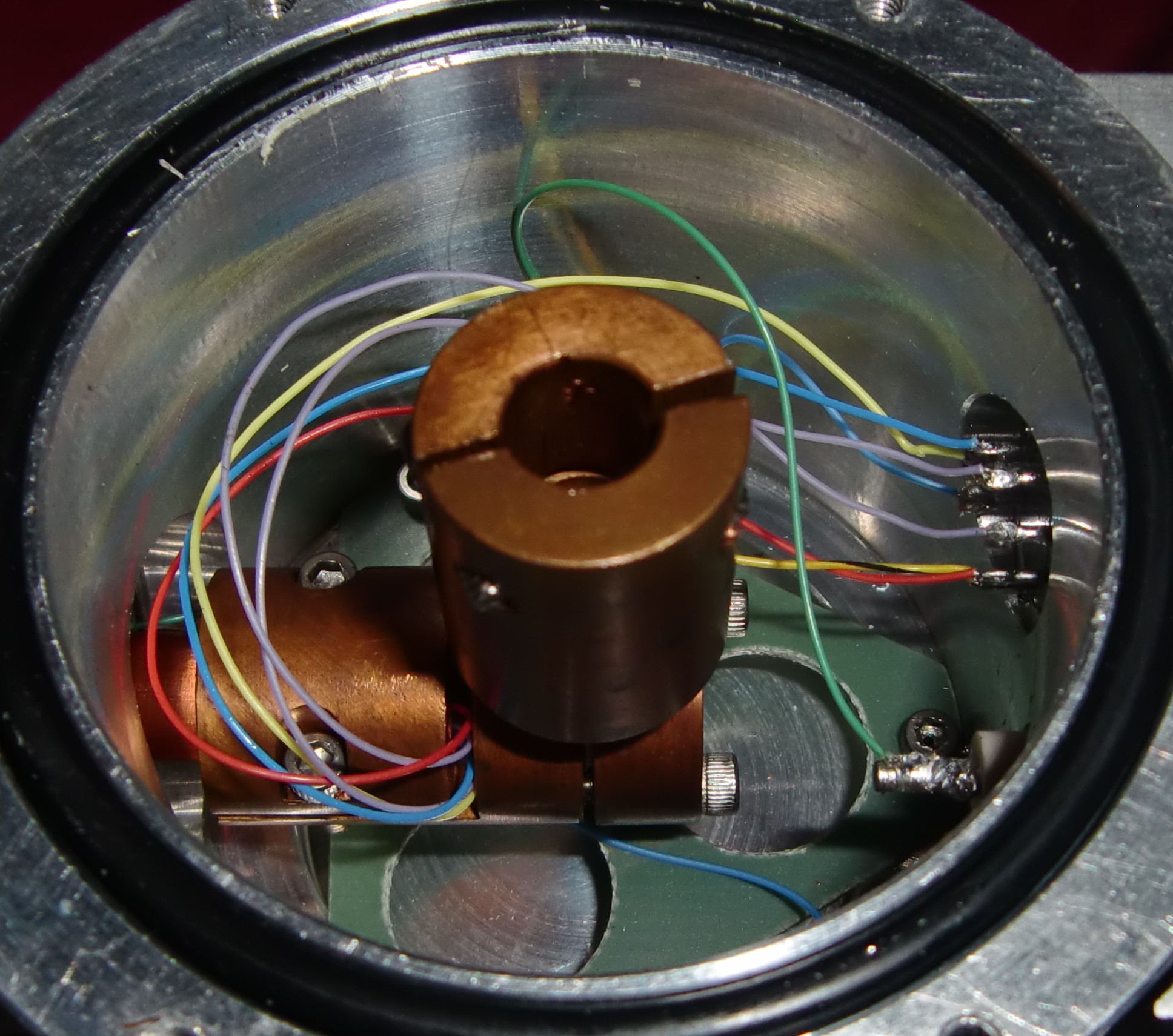

Close up of cryocooled electronics (FET + pre-amp):

Covered removed:

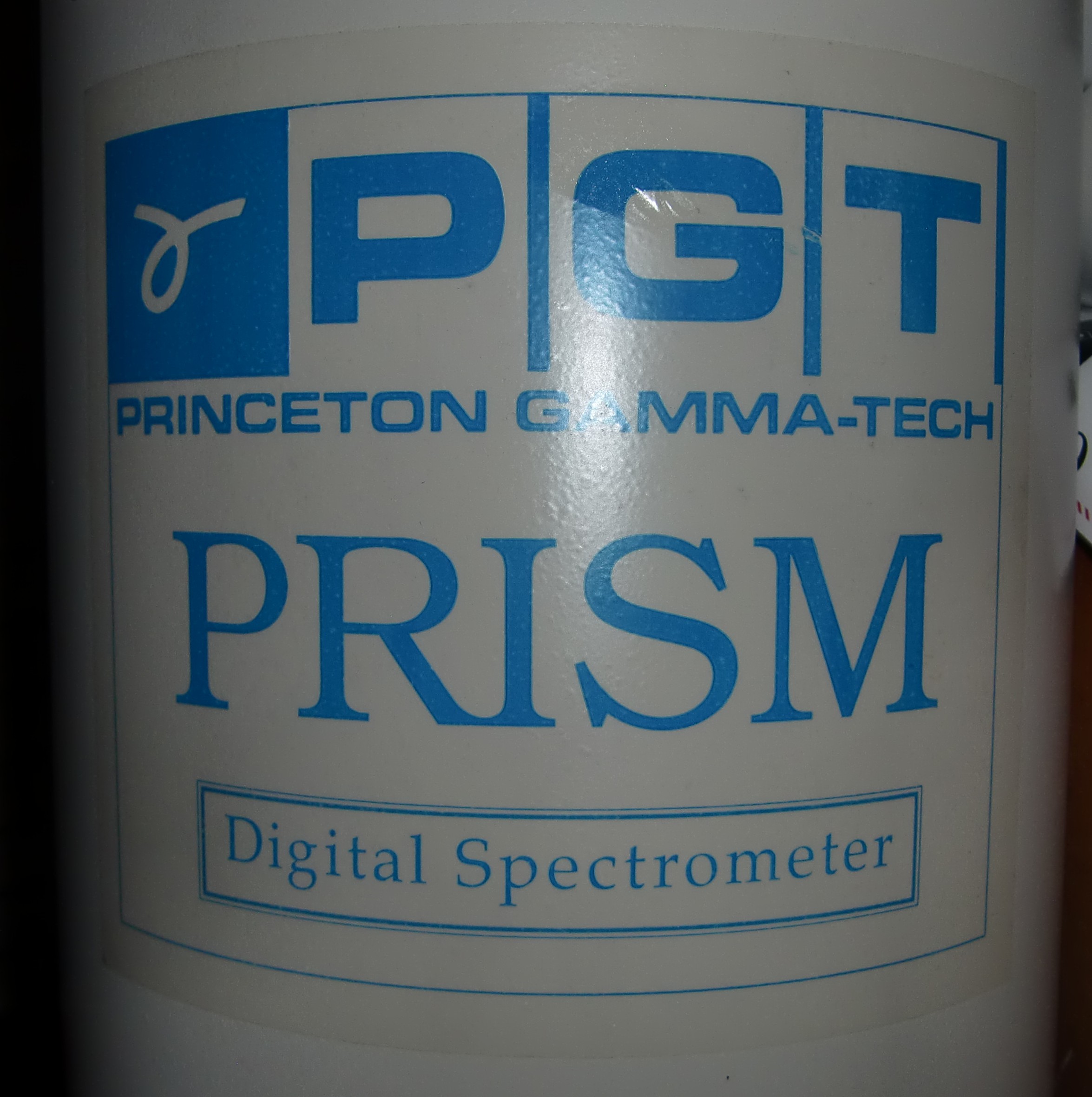

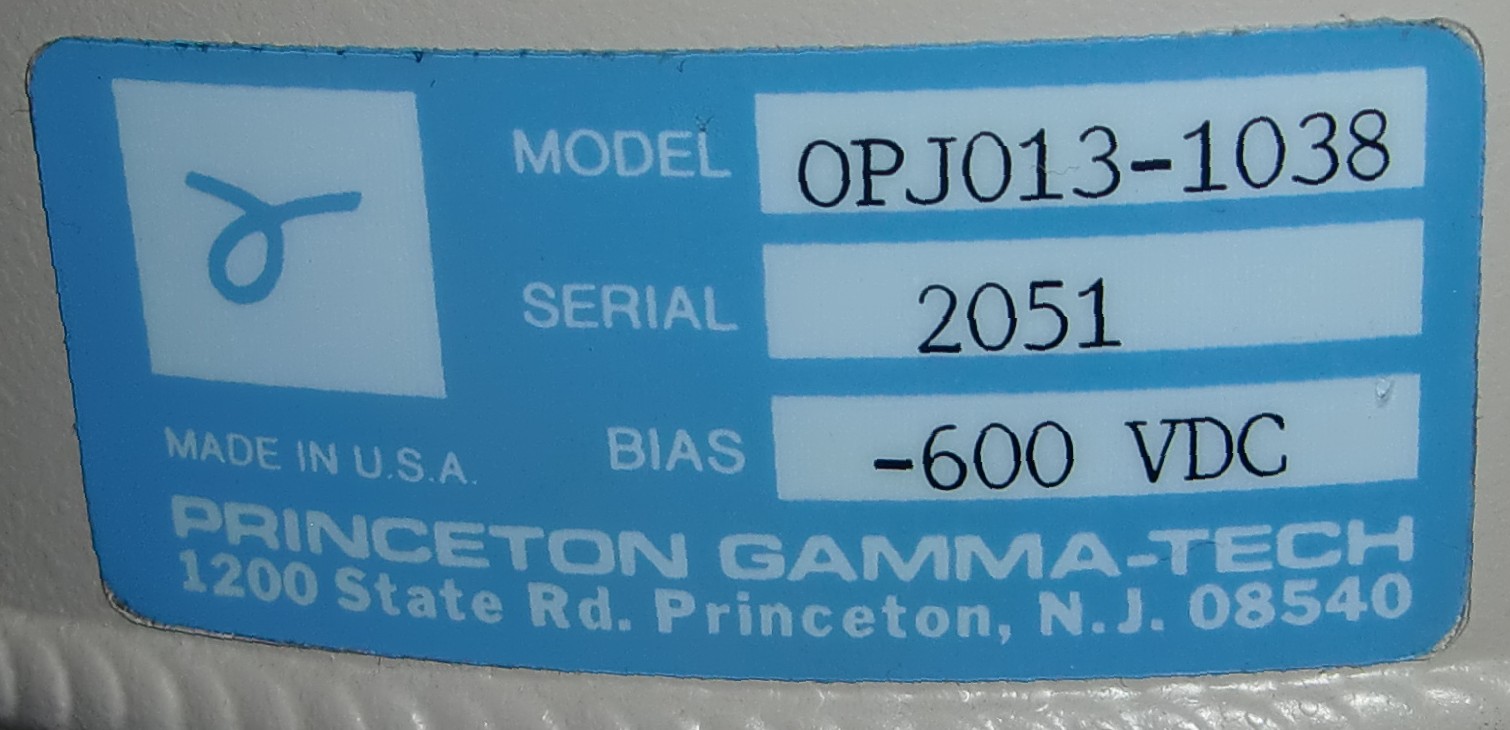

Labels:

Reads:

MODEL 0PJ013-1038
SERIAL 2051
BIAS -600 VDC
MADE IN USA
PRINCETON GAMMA-TECH

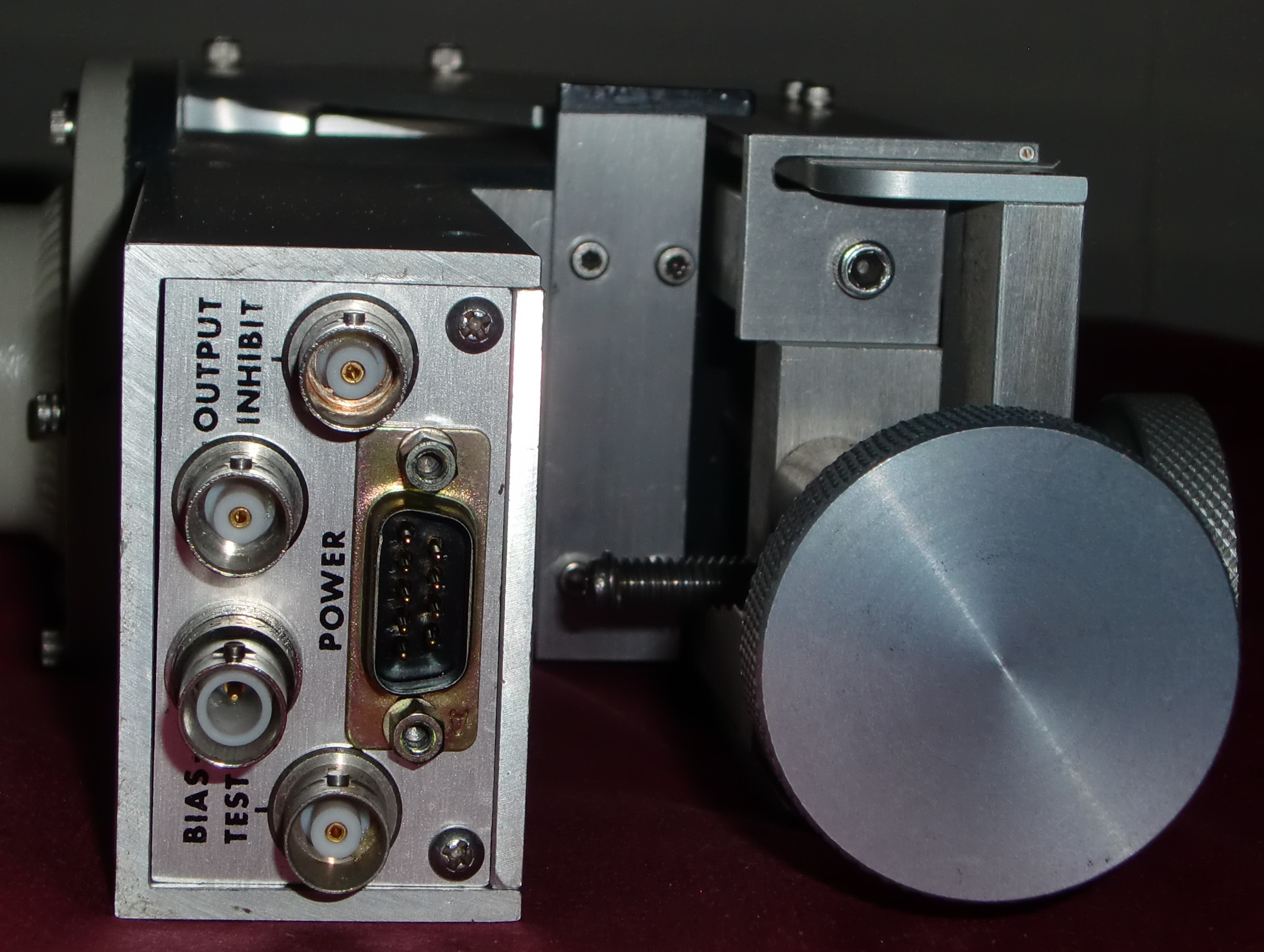

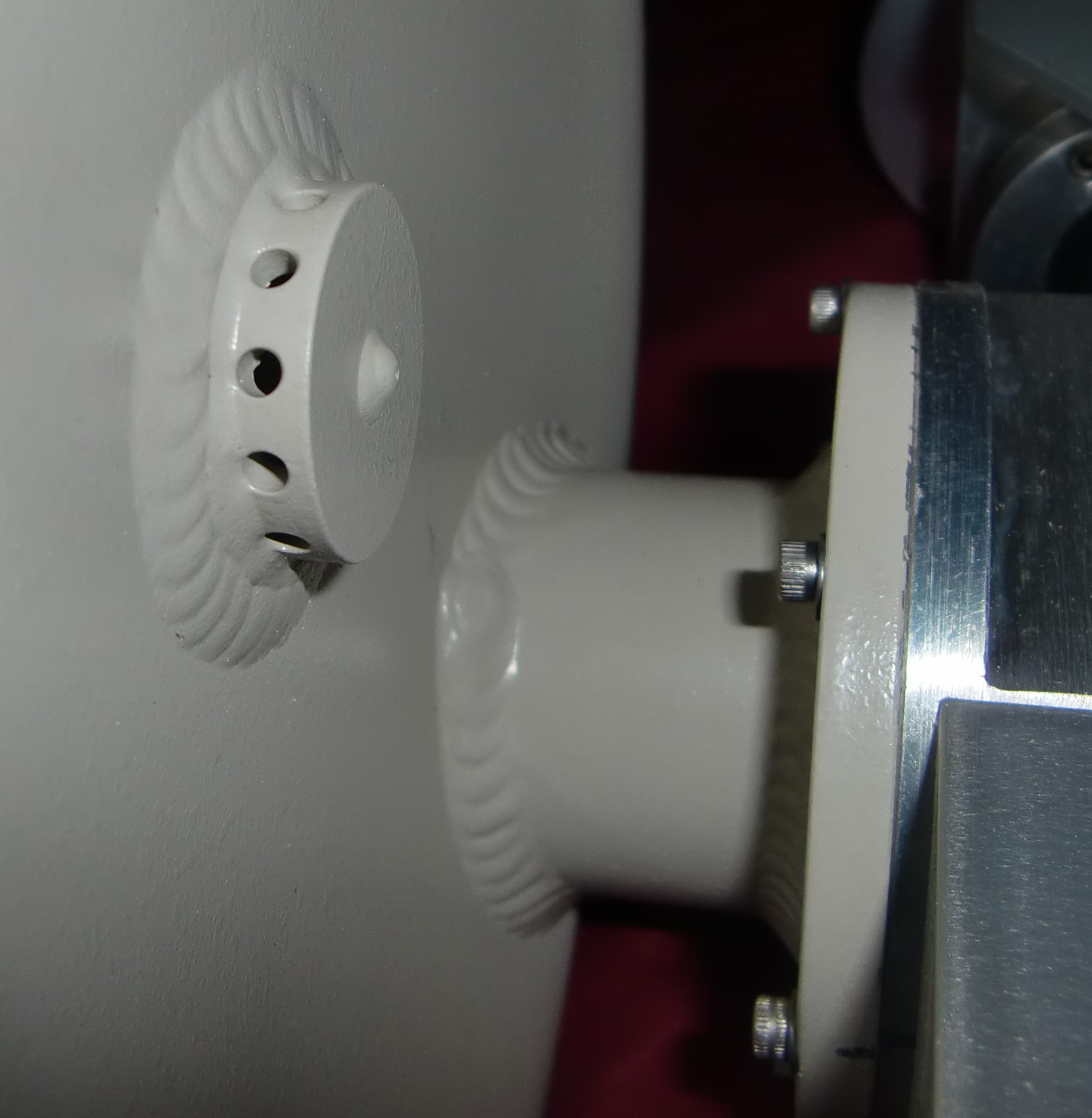

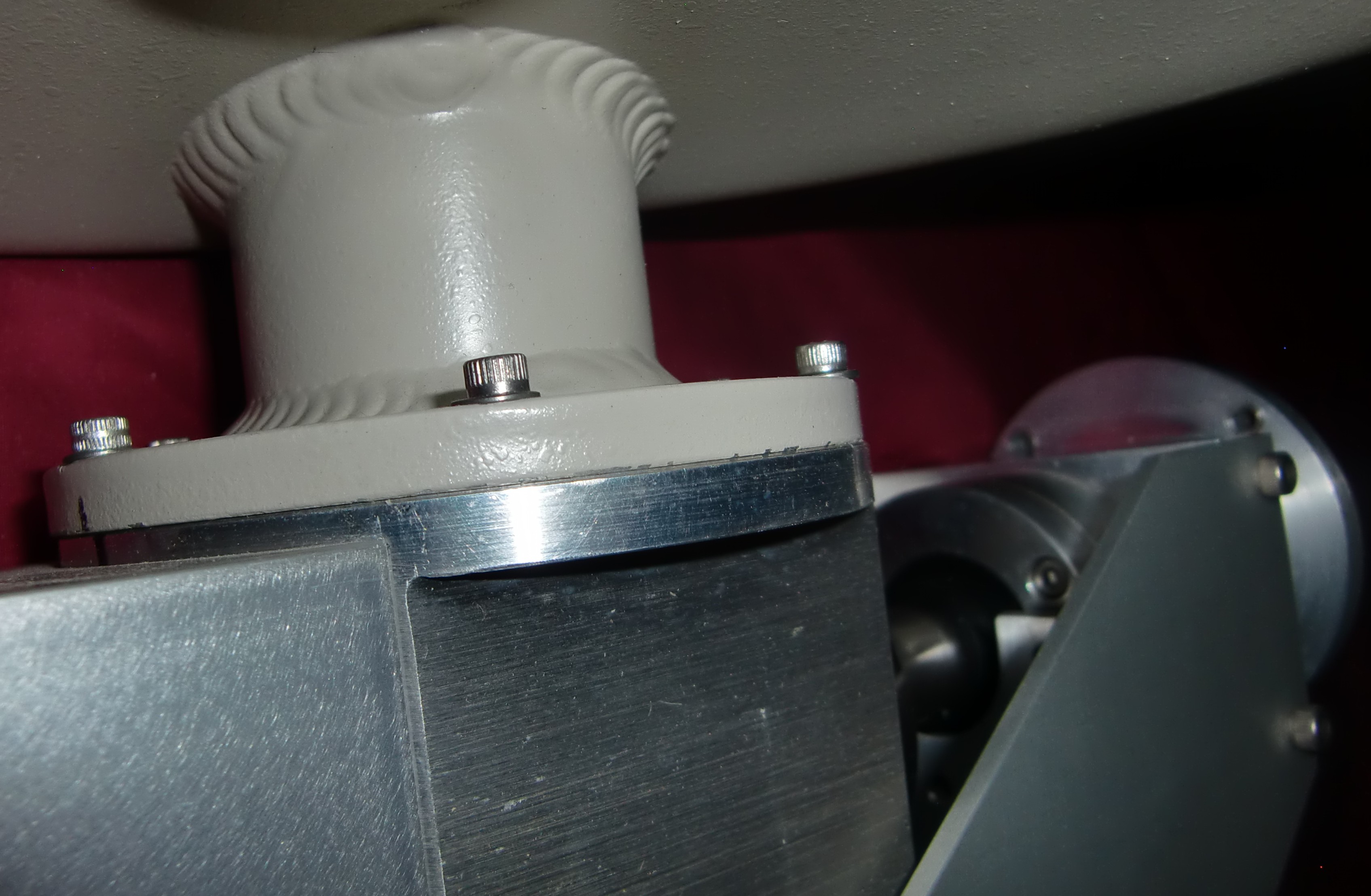

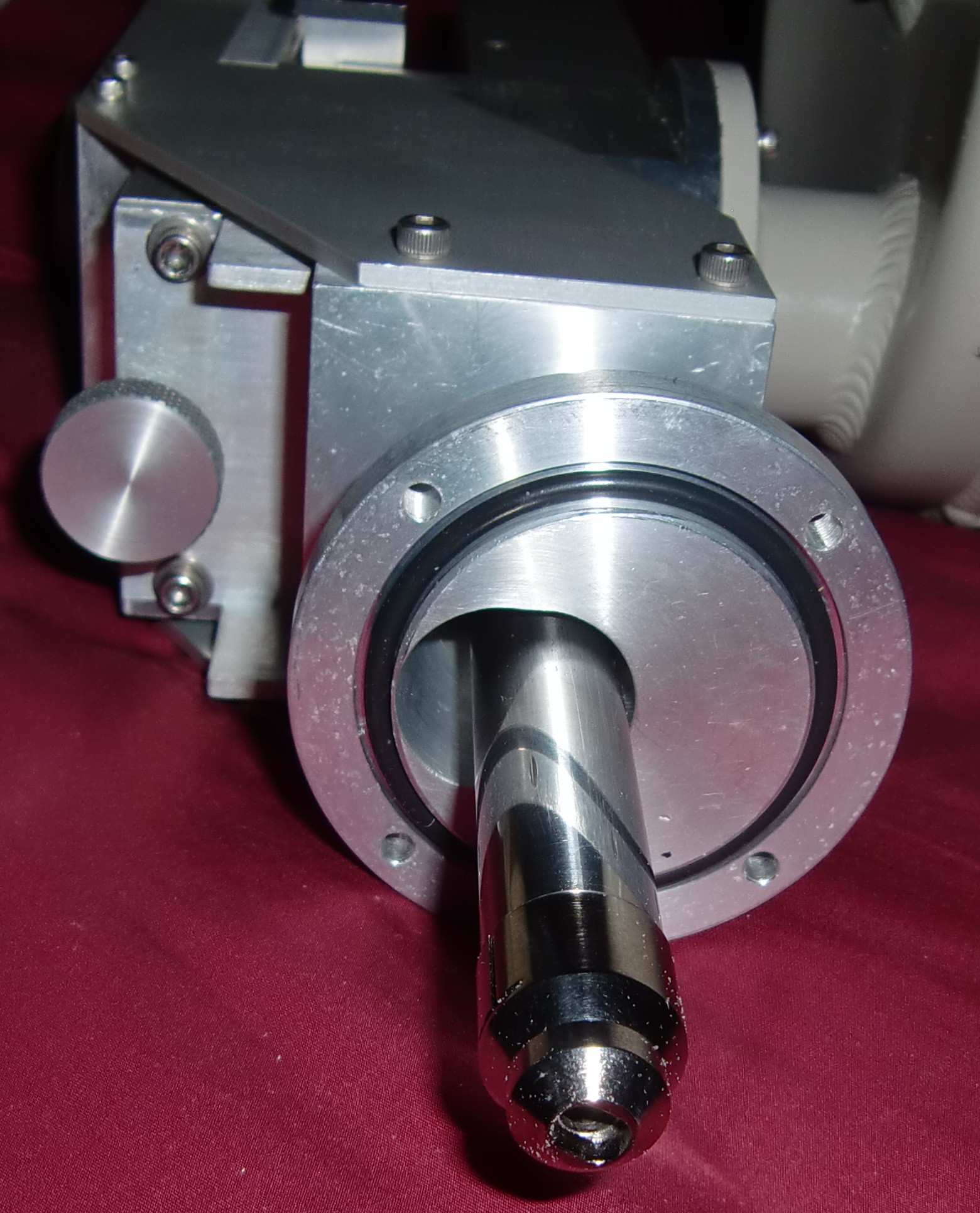

Instrument mating flange (connected):

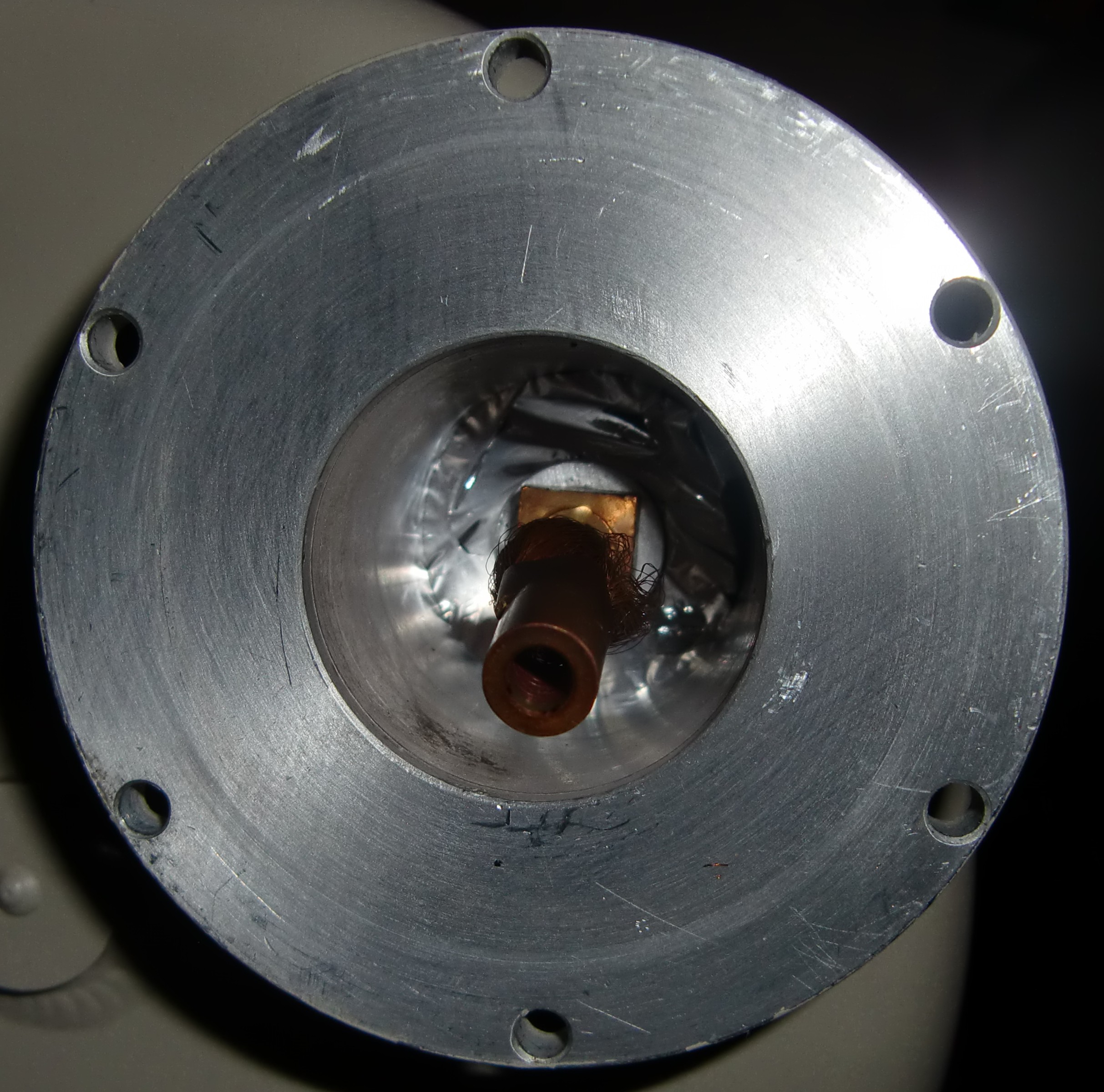

Instrument mating flange (disconnected):

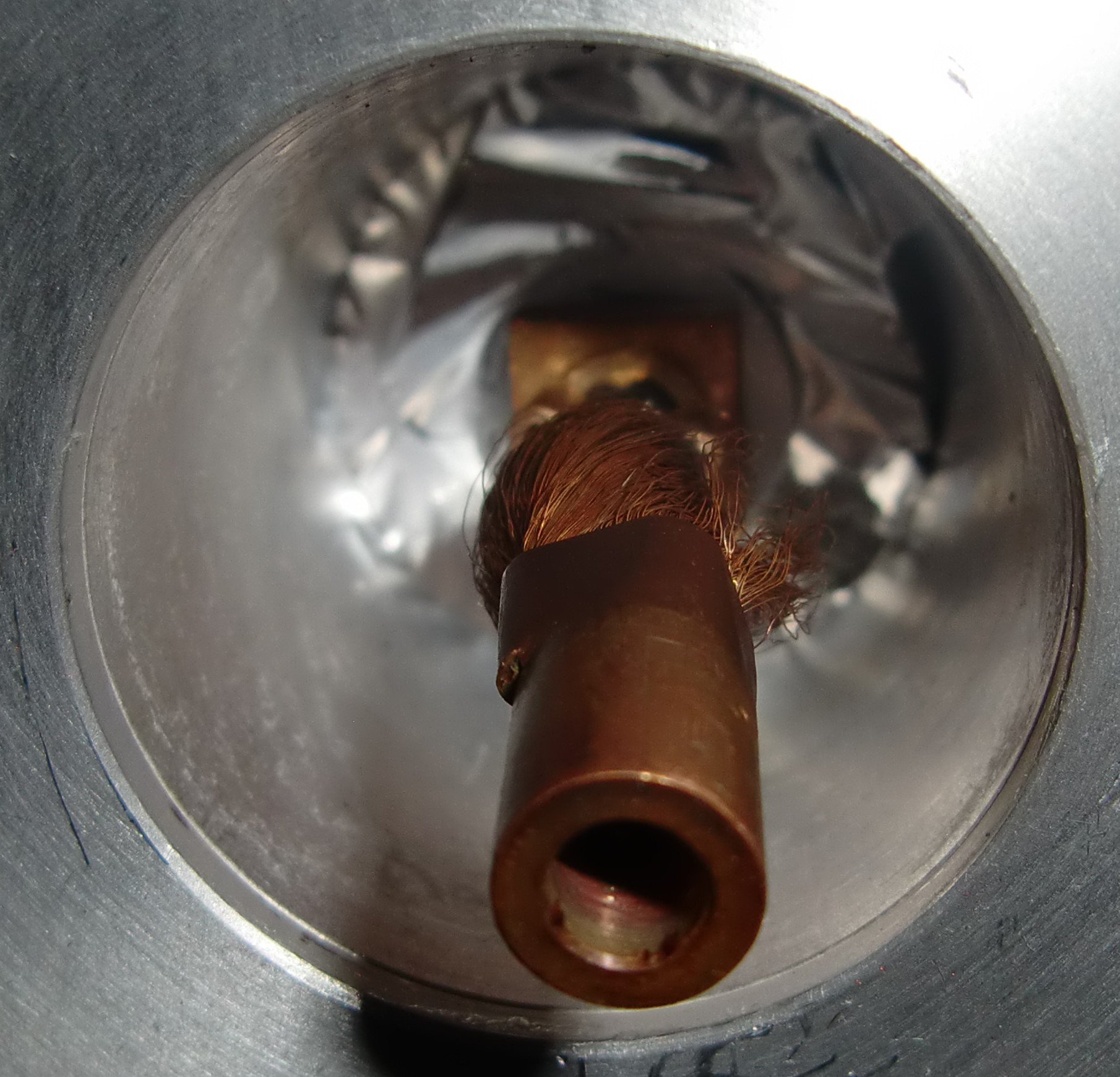

Tank side thermal conduction path:

Looks to be some sort of braided copper alloy

Source: eBay 270642145582

From listing: “Item removed from a Cambridge Scanning Electron microscope (I believe an s200)”

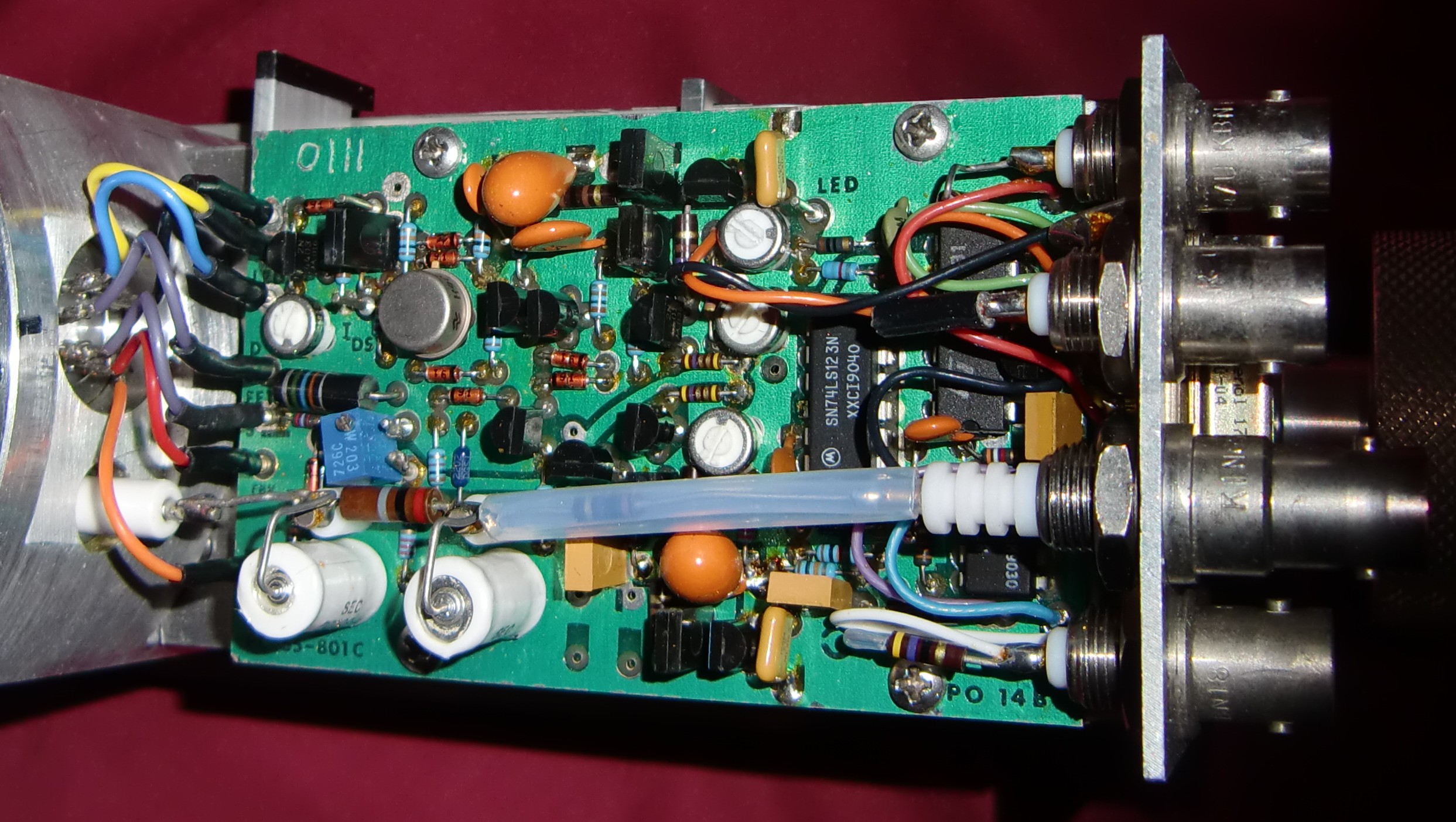

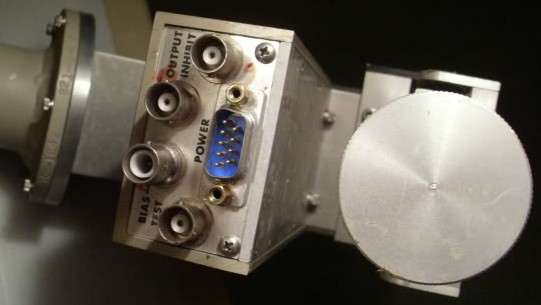

Preamp:

Source: eBay 270642145582

Source: eBay 270642145582

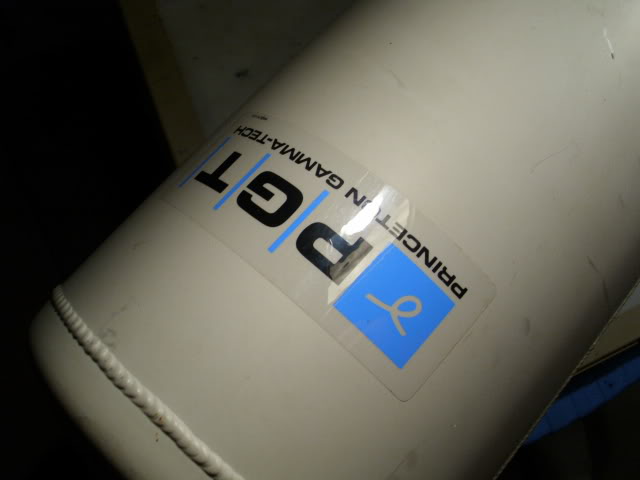

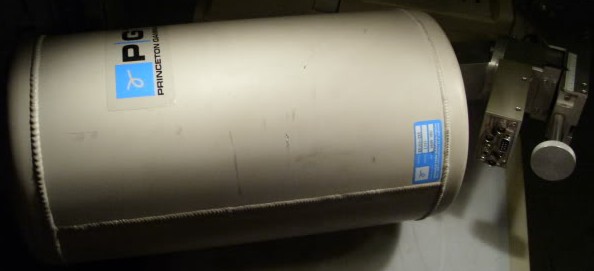

Tank:

Source: eBay 270642145582

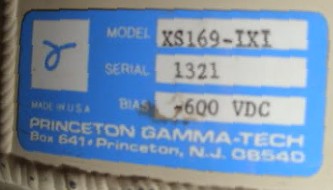

Tank label:

Source: eBay 270642145582

Reads:

MODEL XS169-IXI
SERIAL 1321
BIAS -600 VDC
MADE IN USA
PRINCETON GAMMA-TECH
...

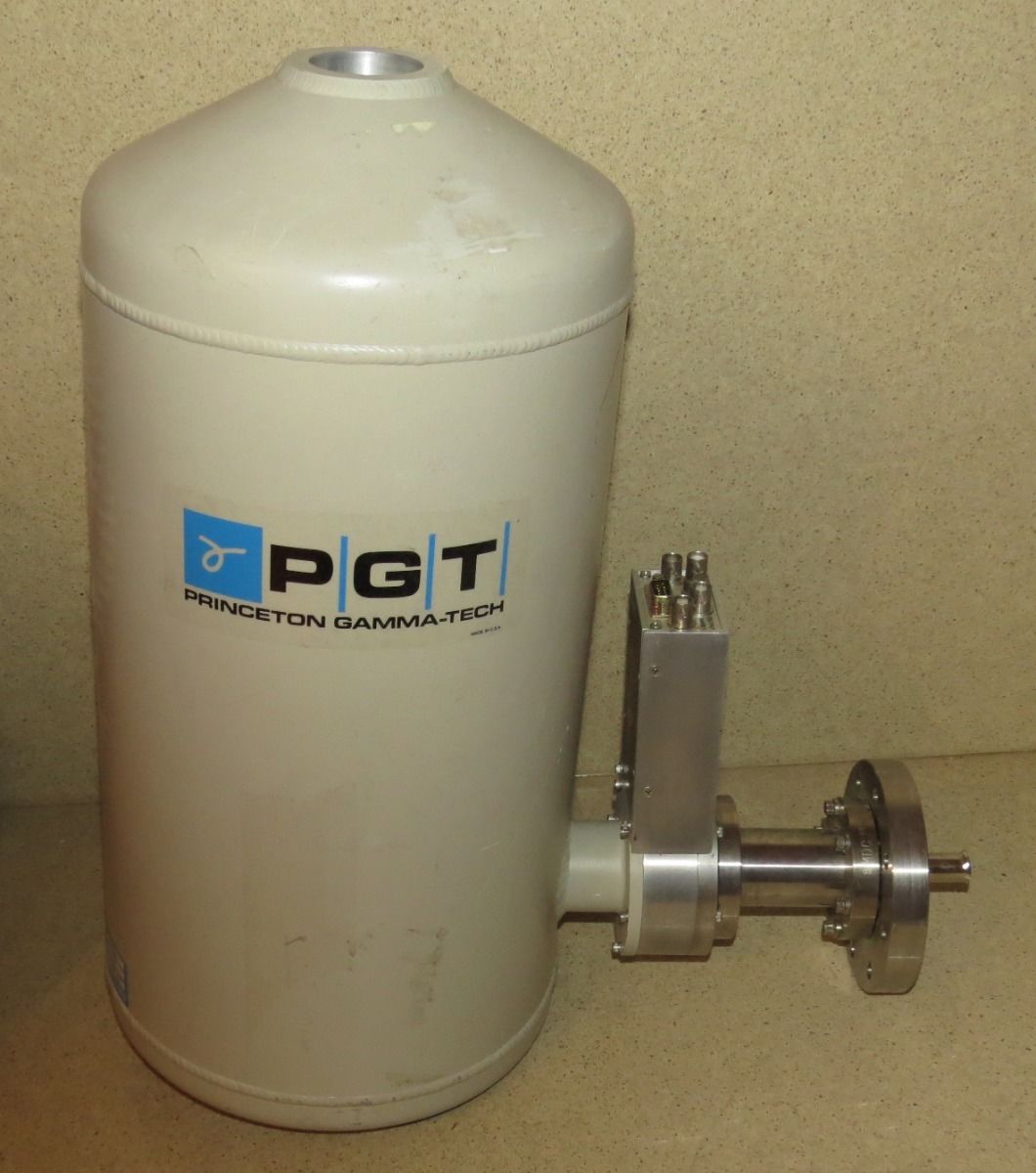

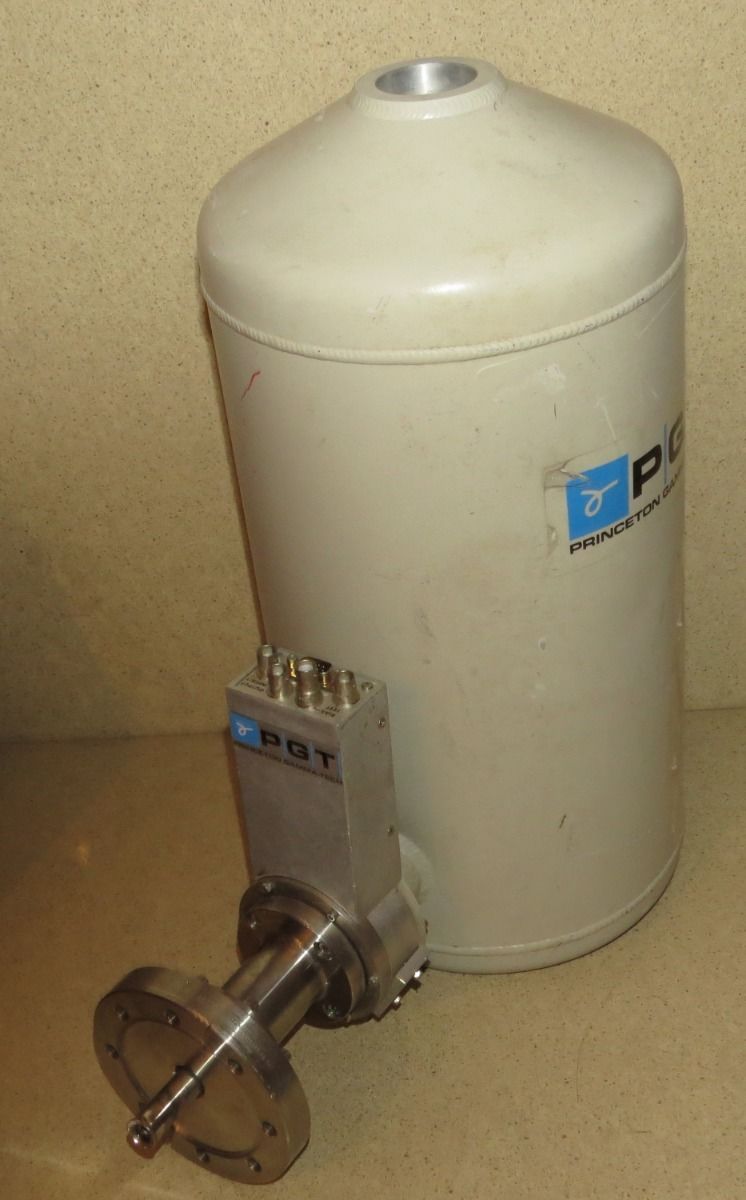

Source: eBay 191140107113

Source: eBay 191140107113

This unit appears to have ConFlat connections and a fixed angle detector. Has the same sort of preamp seen on other models

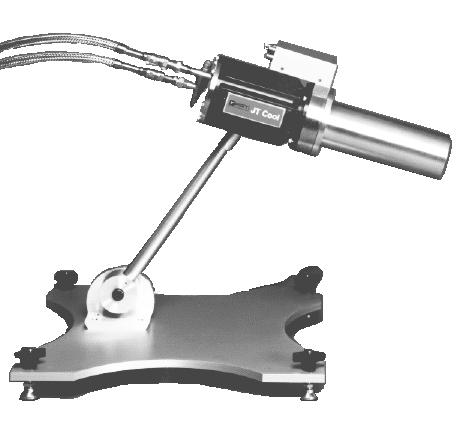

Source: NPC

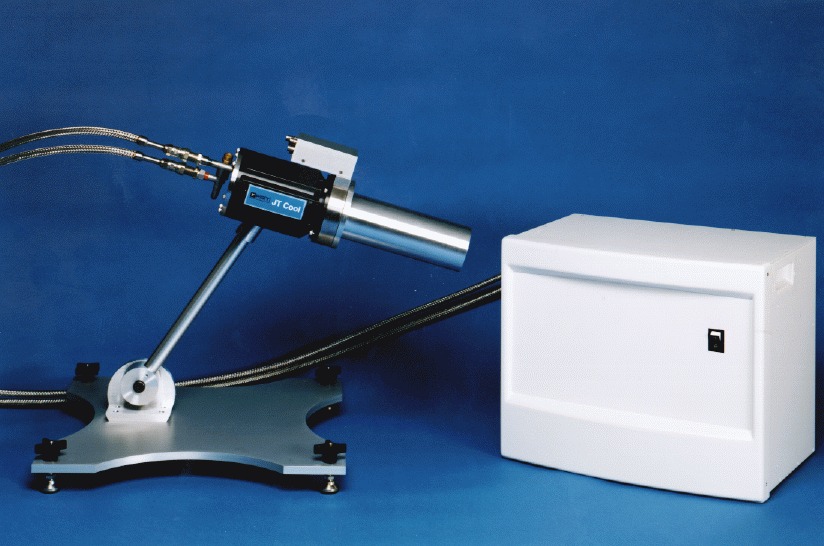

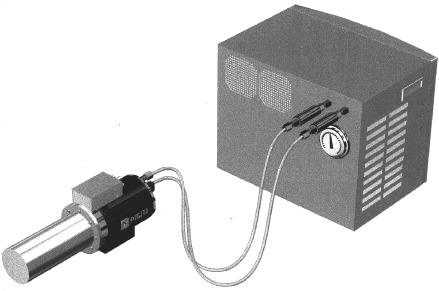

Small crycooler to replace the LN2. Requires Model 483 Controller (white box thing).

Summary [NPC]:

• Uses “propreitary refridgerant mixture” (He?). CFC free
• Claims 5 years of maintenance free operation
• Supports up to 50 foot gas lines
• “Retrofit available for existing detectors, including those of other manufacturers”
• 10-35C environment
• Down to 70K
• Copper gas line option

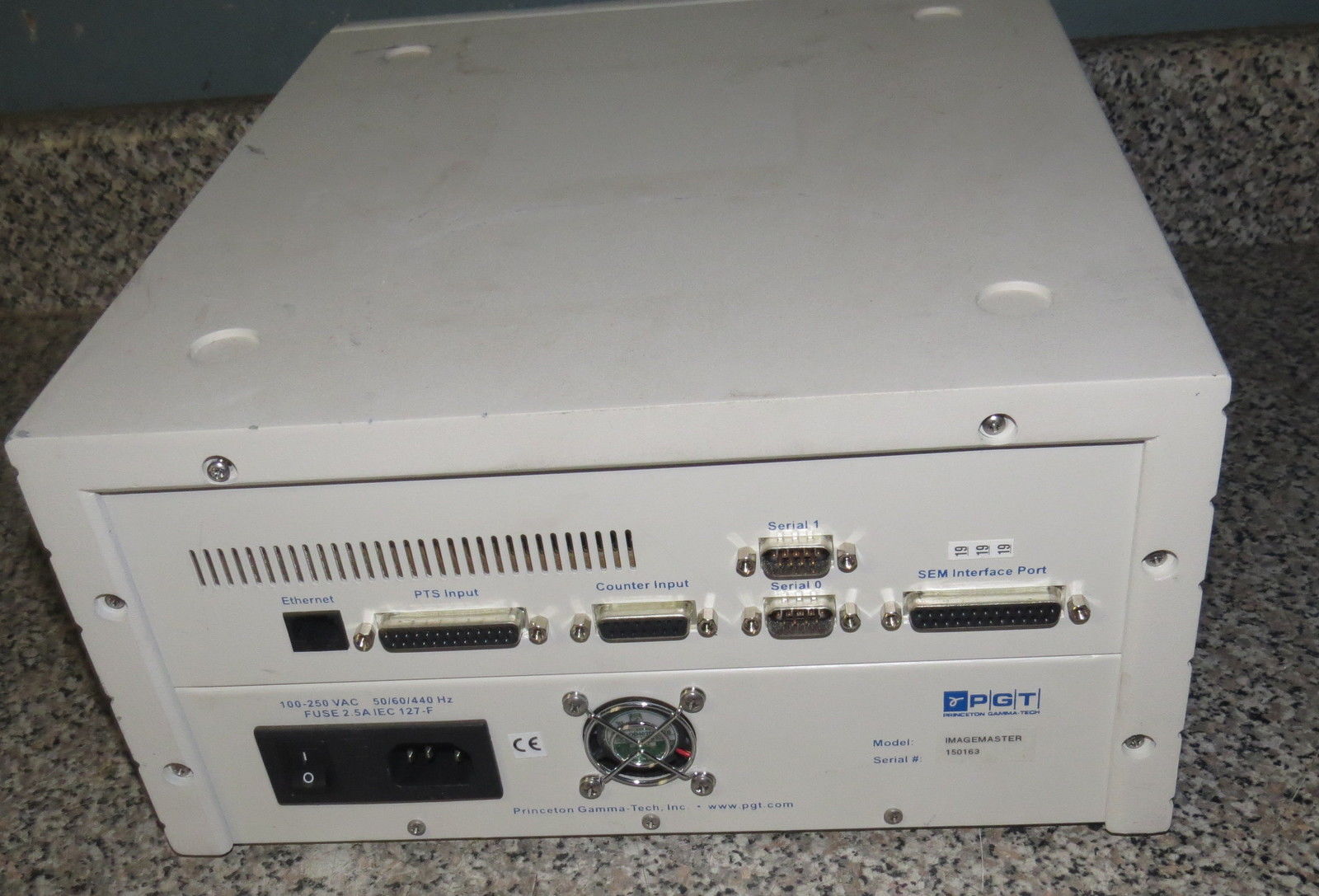

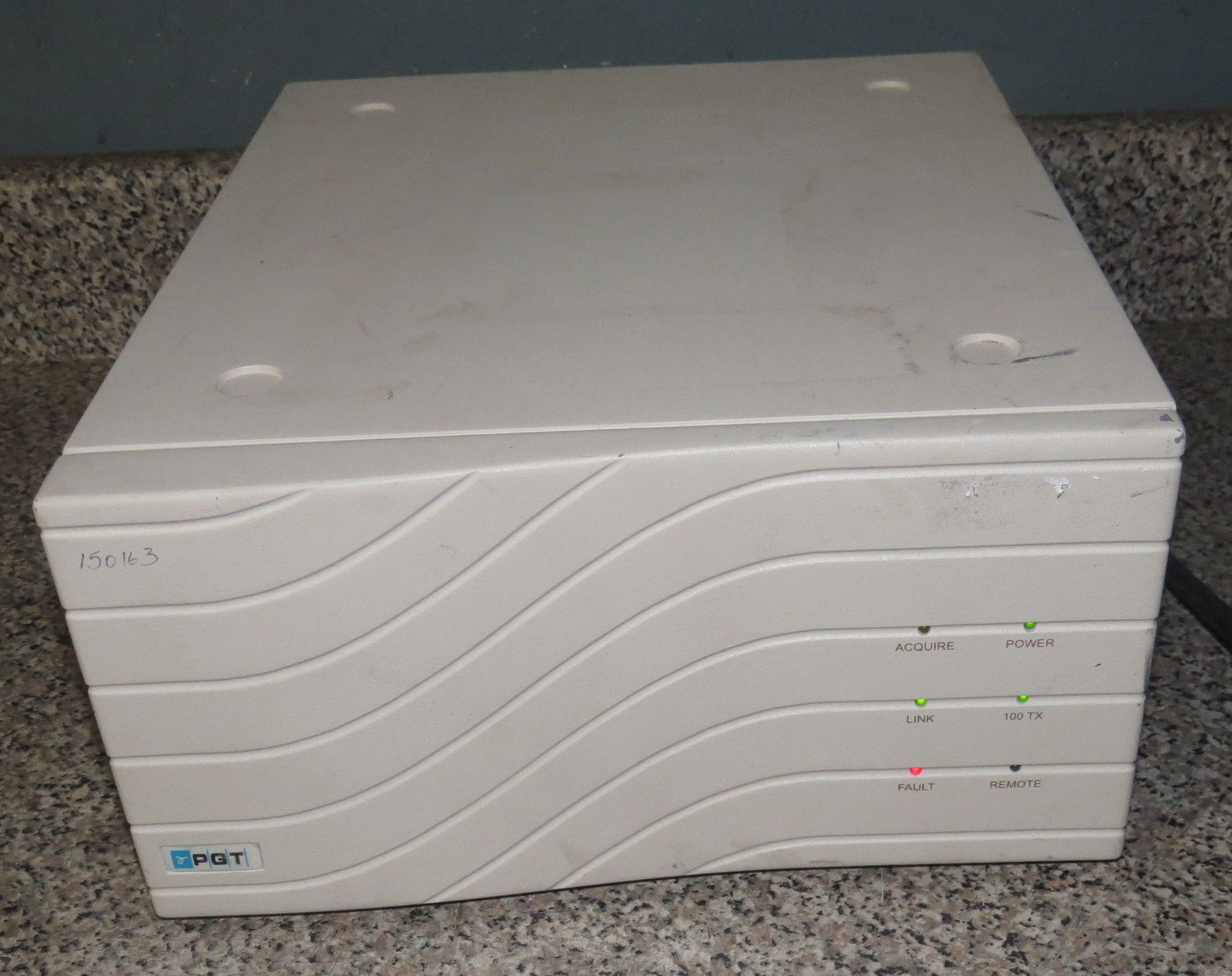

Source: eBay 400720324518

Source: eBay 400720324518

They had a LS30148 and a PRISM 60 for sale along with it, unclear if they somehow go together.

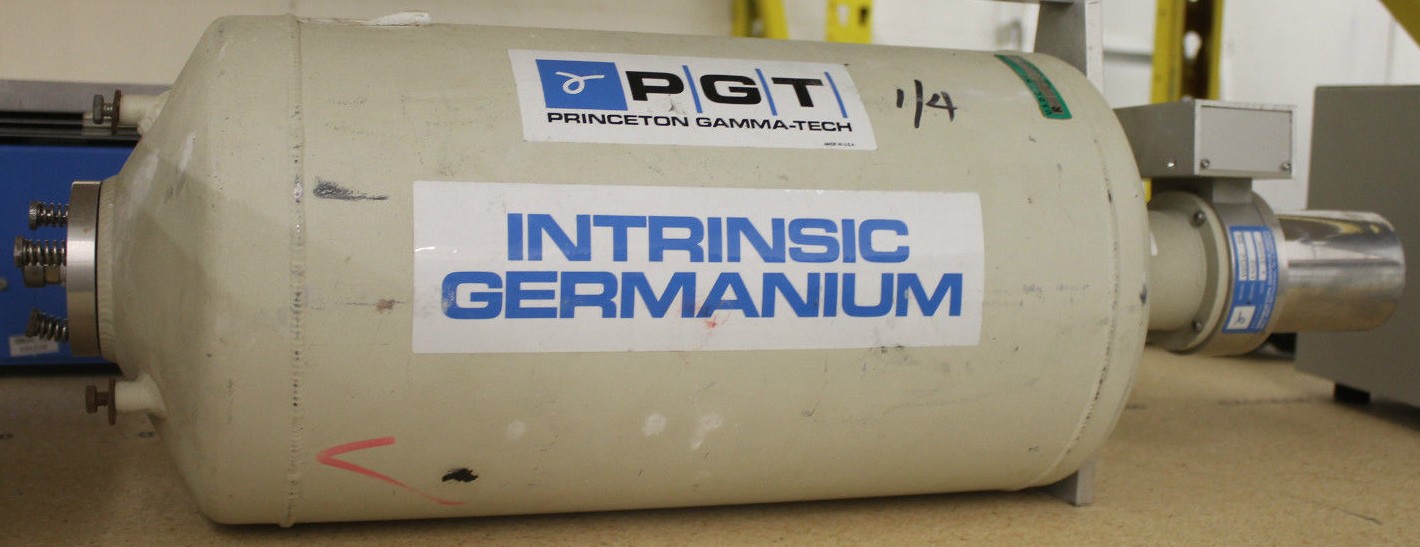

Overview:

Source: eBay 360526462914

Detector area:

Source: eBay 360526462914

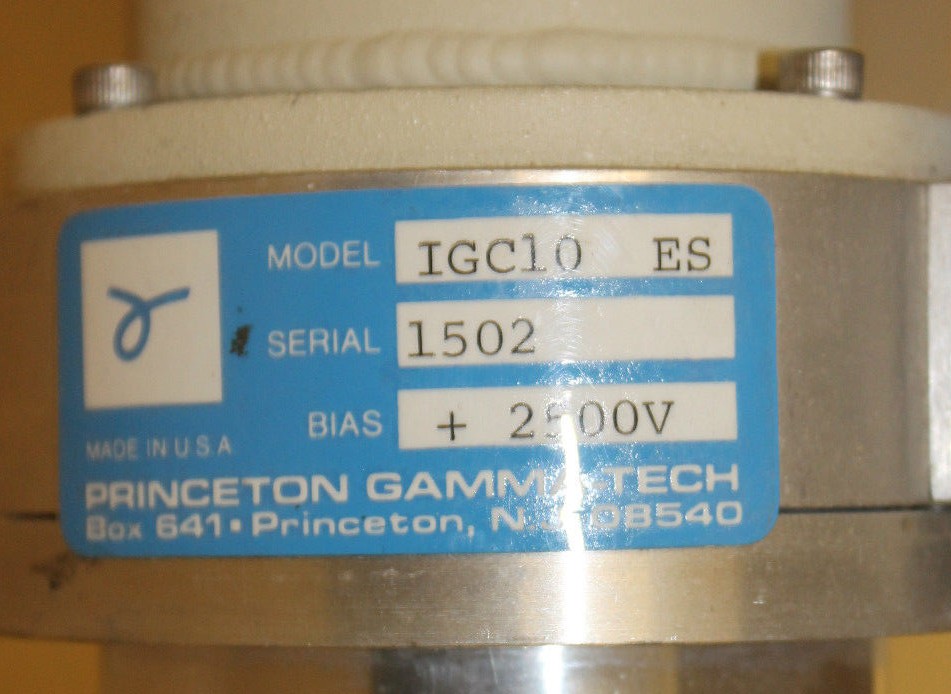

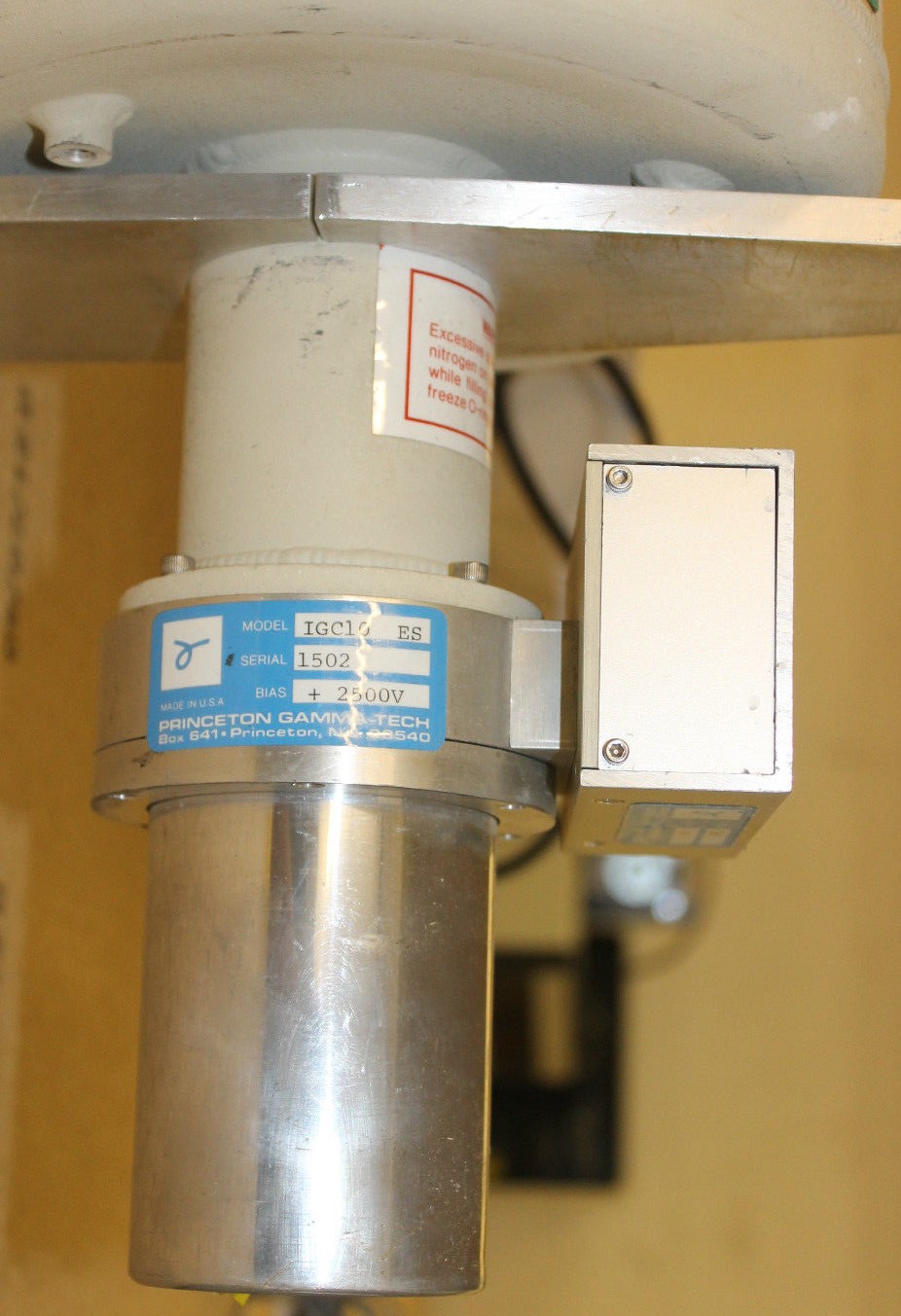

Label:

Source: eBay 360526462914

Reads:

MODEL IGC10 ES
SERIAL 1502
BIAS + 2500V
