Place to aggregate motor information, mostly as it relates to microscopes
2018-05-28: creating page to aggregate industry pinout information and mcmaster recommendations.
Connector
List of common connectors
DB25 (step/direction)

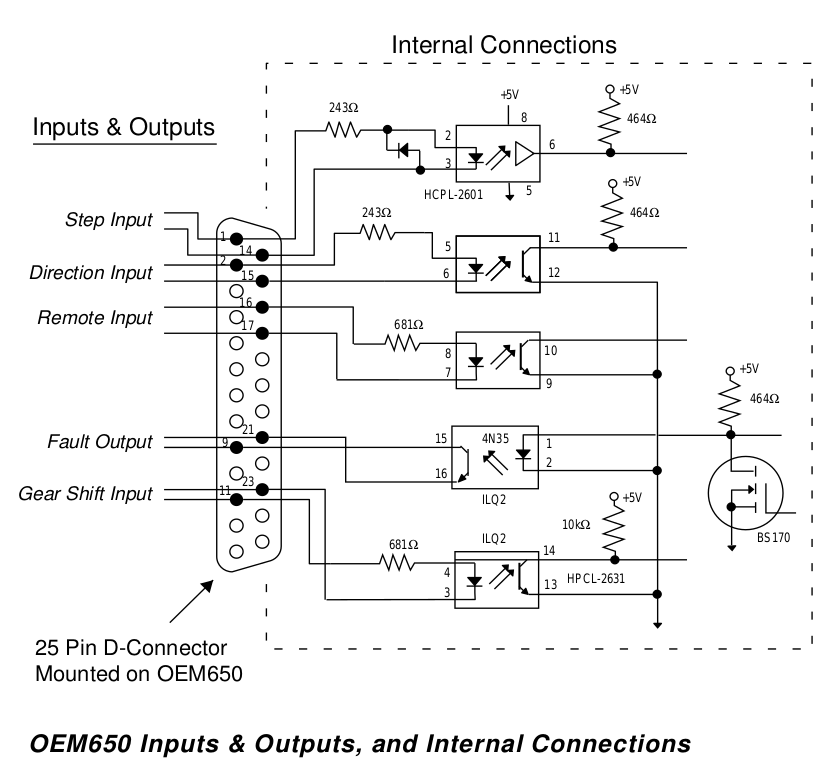

Above: Compumotor OEM650 pinout

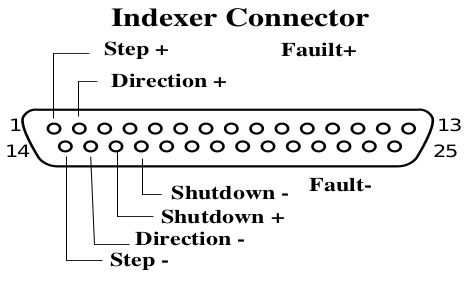

Above: PMC VS Drive pinout
This seems to have been a de facto standard for some years. I've observed it on Compumotor, PMC, and other drivers.
mcmaster: IMHO this is too bulky to use in modern applications, although I do have several legacy drivers using it

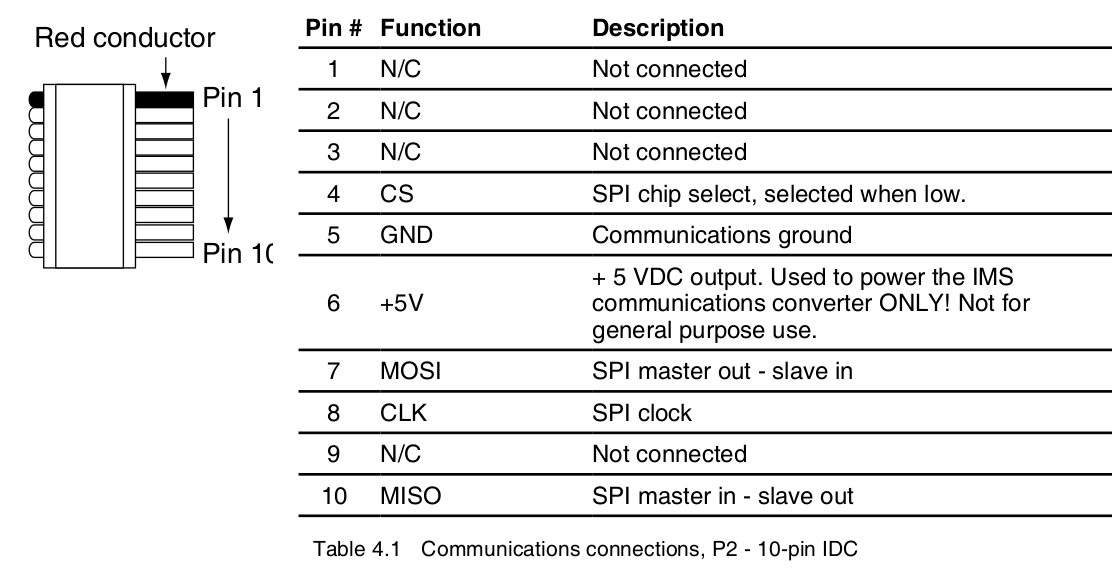

IDC 5x2 (step/direction)
Used on some MDrive17 motors
mcmaster: of particular interest to me since I try to use these motors by default.
M12 connector (power + CAN)
M12/M23 seems to be common on modern stepper motors. The MDrive manual for example cites it was done to reach IP65 enclosure rating:
The MDrive17Plus2-65 Motion Control adds protection against the ingress of fluids and dust to the MDrive17Plus2 by changing the motor-drive enclosure to meet IP65 specifications. With this change the connector configuration changes to industry standard M12/M23 circular connectors.
http://www.te.com/content/dam/te-com/documents/channel/global/m8m12-connectorsystem-presentation.pdf
- A-coding: actuator-sensor plug connections for DeviceNet, IO link and Profibus
- DeviceNet is used my mcmaster MFCs
- B-coding: Fieldbus connections for Profibus and Interbus
- D-coding: Industrial Ethernet, Profinet, Ethernet/IP and EtherCat
- S-coding: Motor, Frequency-convertors, motor operated switches, PSUs for Power, 620V, 12A
- T-coding: Fieldbus comp, passive distribution boxes, motors, PSUs for Power, 63V, 12A

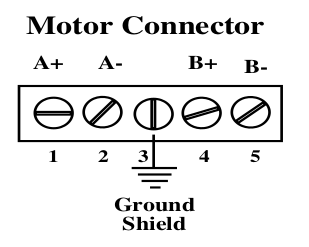

Combicon 5 pin (bipolar motor)
Above: PMC motor
Gecko DB9 (bipolar motor)

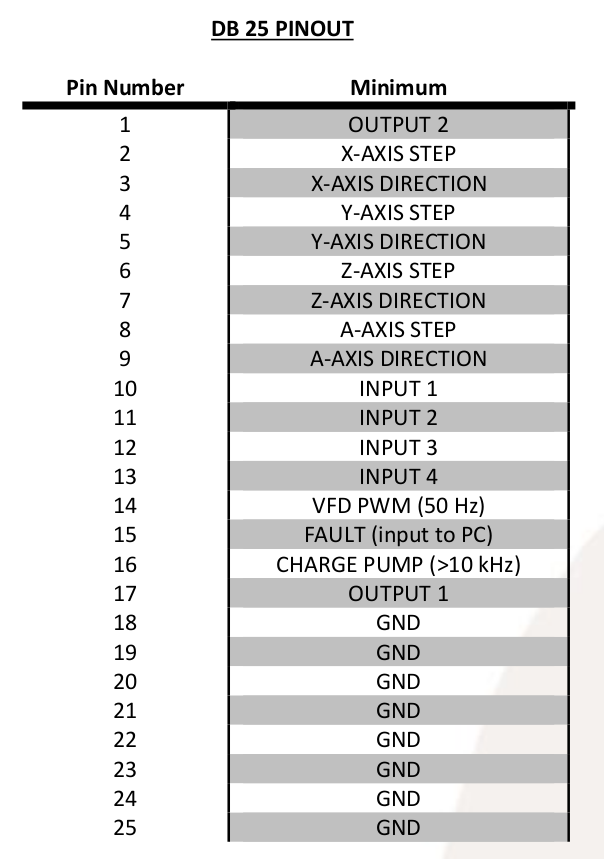

Gecko DB25 (multi-axis indexer)
